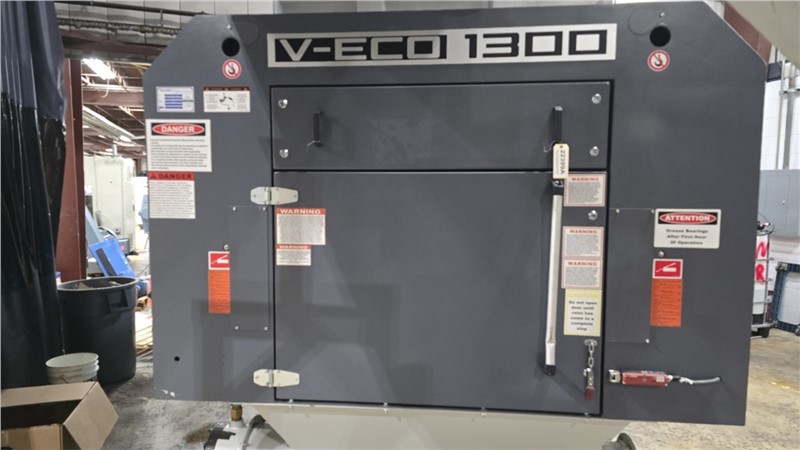

50" x 60" Vecoplan Model V-Eco 1300 Single Shaft Shredder, New 2020
Used 50" x 60" Vecoplan Model V-Eco 1300 Single Shaft Shredder, New 2020
144 HP Motor20" Diameter Rotor
1.5" Screen
Allen Bradley Powerflex VFD Inverter Drive

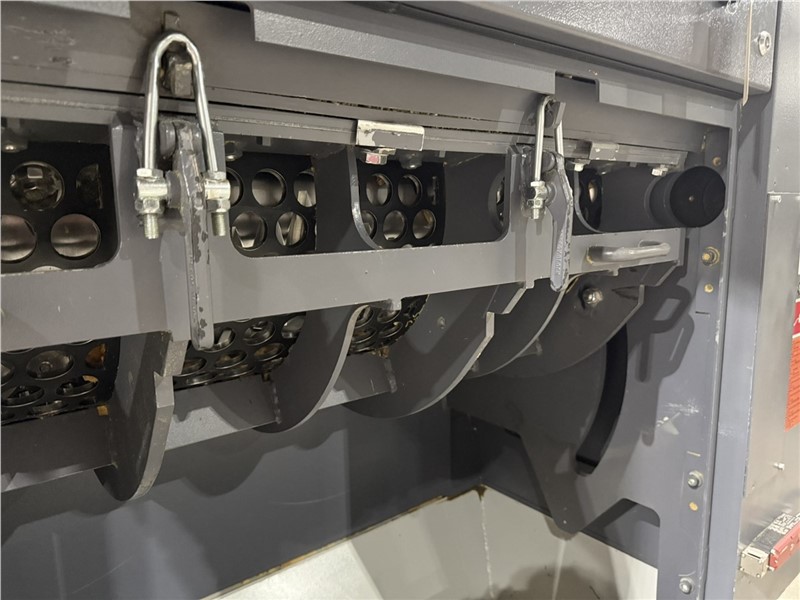

Rotor Drop Down Screen Carriage
Hydraulic Lift-Up Cutting Chamber Floor

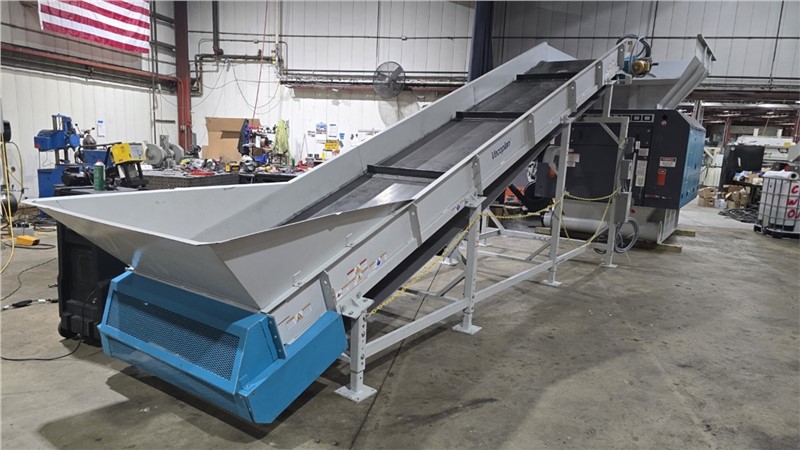

25' Inclined Belt Conveyor, 48" Wide, 3.25" Tall Metal Cleats, 12" High Side Walls, Driven With 2 HP Motor and Gearbox With Stand.
W Rotor For Film, Fibers, And Rigids
Approximate Dimensions:
Shredder Dimensions: 94" L x 59" W x 90" H
Conveyor: 310" L x 72" W x 103" H
Tapered Hopper: 102" L x 90" W x 42" H
Top Hopper Section: 102" L x 90" W x 73" H
Electrical Panel Dimensions: 78" Lx 34" W x 92" H
Weight: 15,000 LBS
