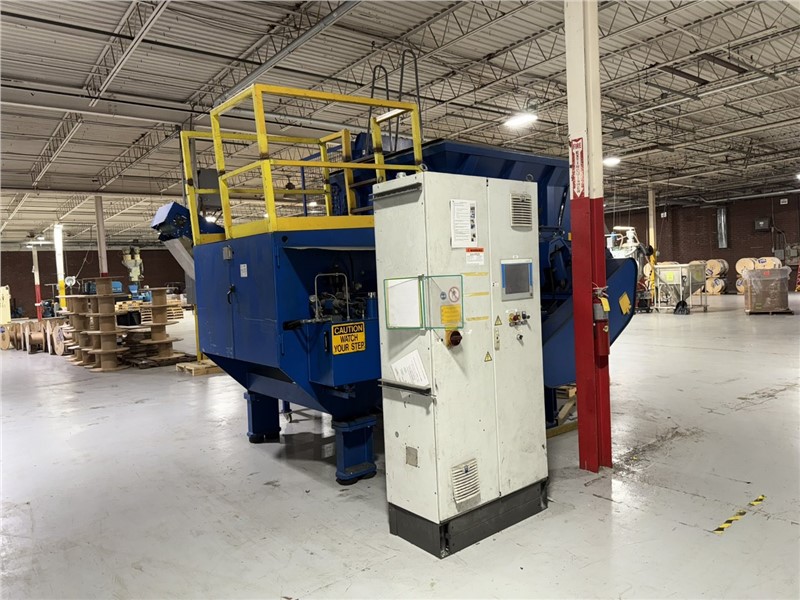

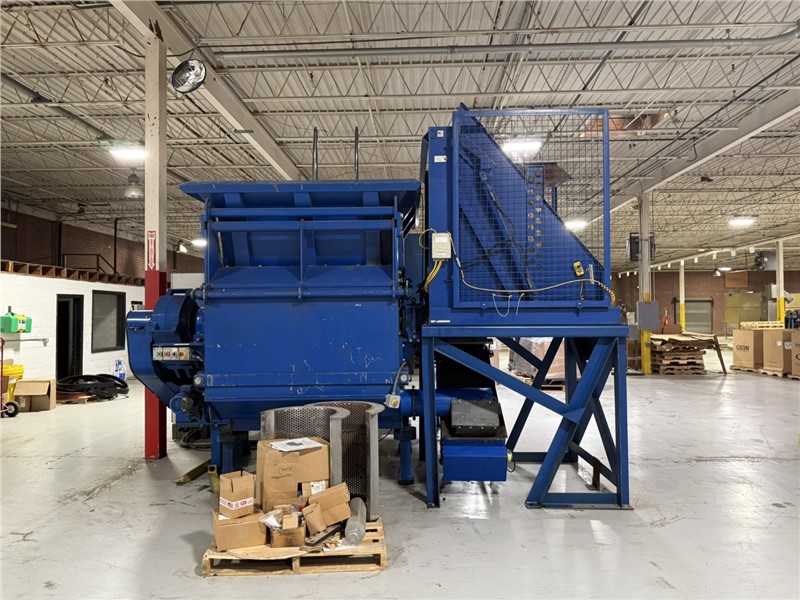

62” W x 62” Redoma MRC 90-1600, New In 2012

1570 MM(61.81”) Rotor Width
488 MM(19.21”) Diameter Rotor
2230 MM(87.79”) x 1940MM ( 76.38”) Hopper Opening
90 KW(122 HP) Main Motor
112 RPM Rotor Speed

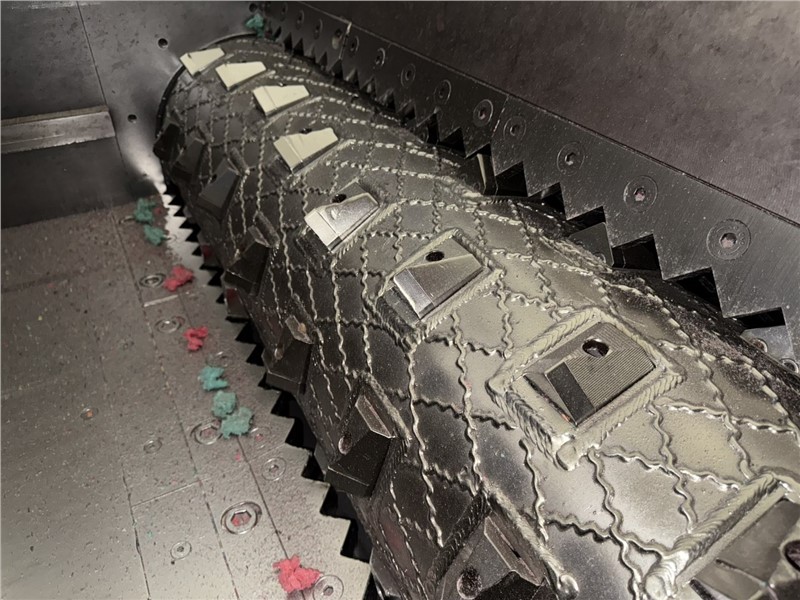

72 Cutters, Hard Faced Rotor
S/N 12/11
Top And Bottom Counter Knives
5.5 KW (7.38 HP)
Unit Includes ½” Screen And 1.0” Screen
480/3/60, 200 Amps
108” In-Feed Height
Hydraulic Screen Cradle
Touch Screen HMI
Approximate Footprint Of System As Currently Installed: 15’ x 12’
Approximate Shredder Dimensions:4080 MM(160”) L x 3445 MM (135”) W x 2820MM (111”) H
Approximate Weight: 21,000 LBS
System Includes The Following Pieces:

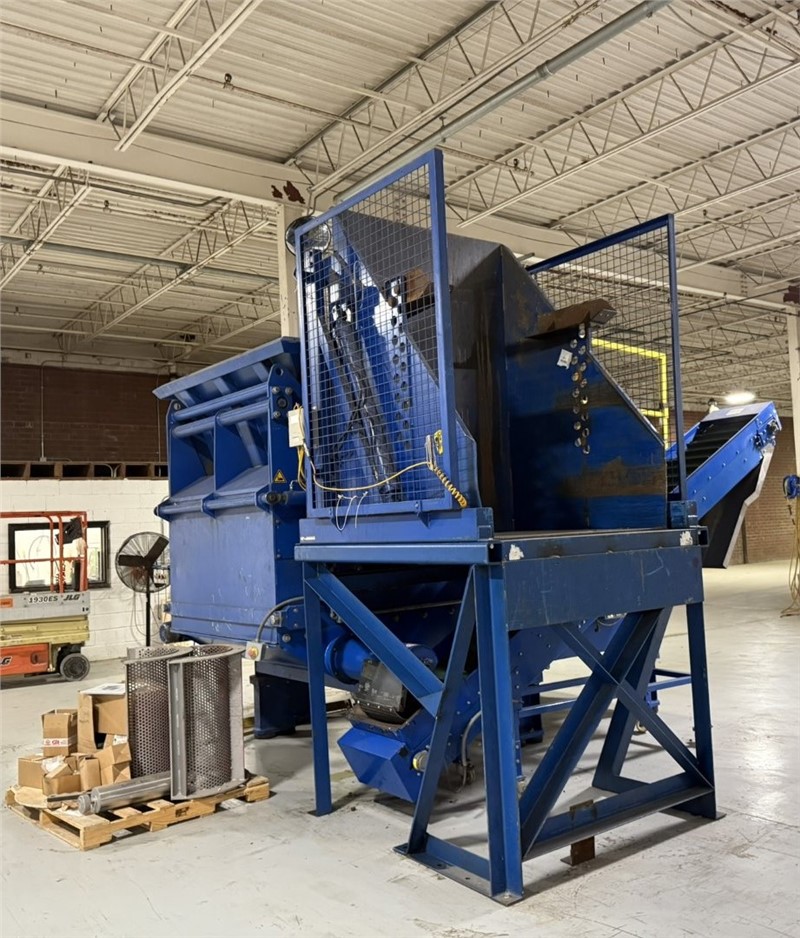

52” Box Dumper, 62” Load Height,
Discharge Auger Driven By 2.2KW(3 HP) Motor – Feeds Onto Conveyor

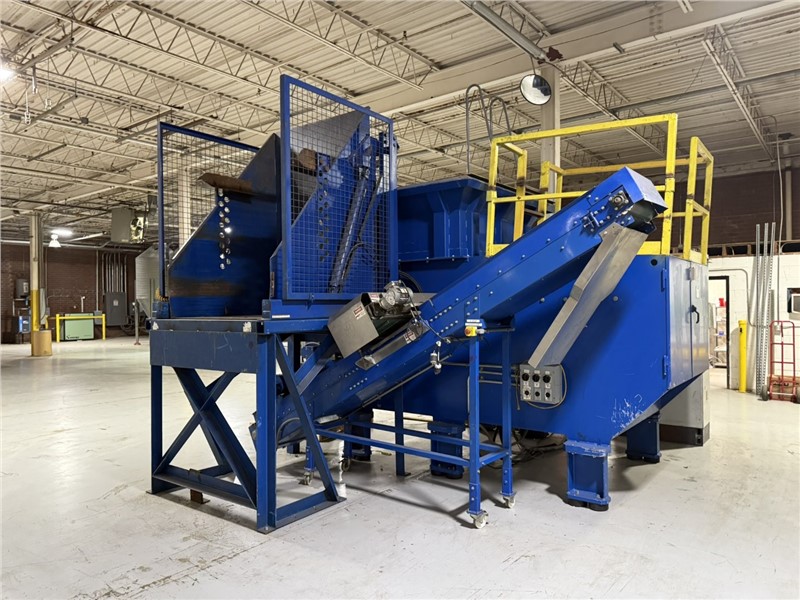

160” L x 20” W Discharge Conveyor With Magnetic Puller. Model BCM 500X4028, S/N 12/176 – 84” Discharge Height

42” L x 12” Wide Cross Belt Magnet Drive By .25KW(.33HP) Lenze Motor Mounted On Discharge Conveyor

The Multi Purpose Rough Choppers of REDOMA are mainly intended for shredding of cables but can also be used for other materials, such as wood, plastics, cartons etc.

  • Cable pieces, coils and bundles can be fed into the rough chopper
  • Automatic buffer feeding
  • Rotor knives made of hard metal for extra long life span
  • Wear-resistant screen made of HARDOX available in different sizes
  • Hydraulic pusher
  • Hydraulic shock absorber for gear box
  • Automatic reversing of rotor when overloaded
  • Material discharge normally by screw conveyor
  • Suitable for forklift or crane feeding

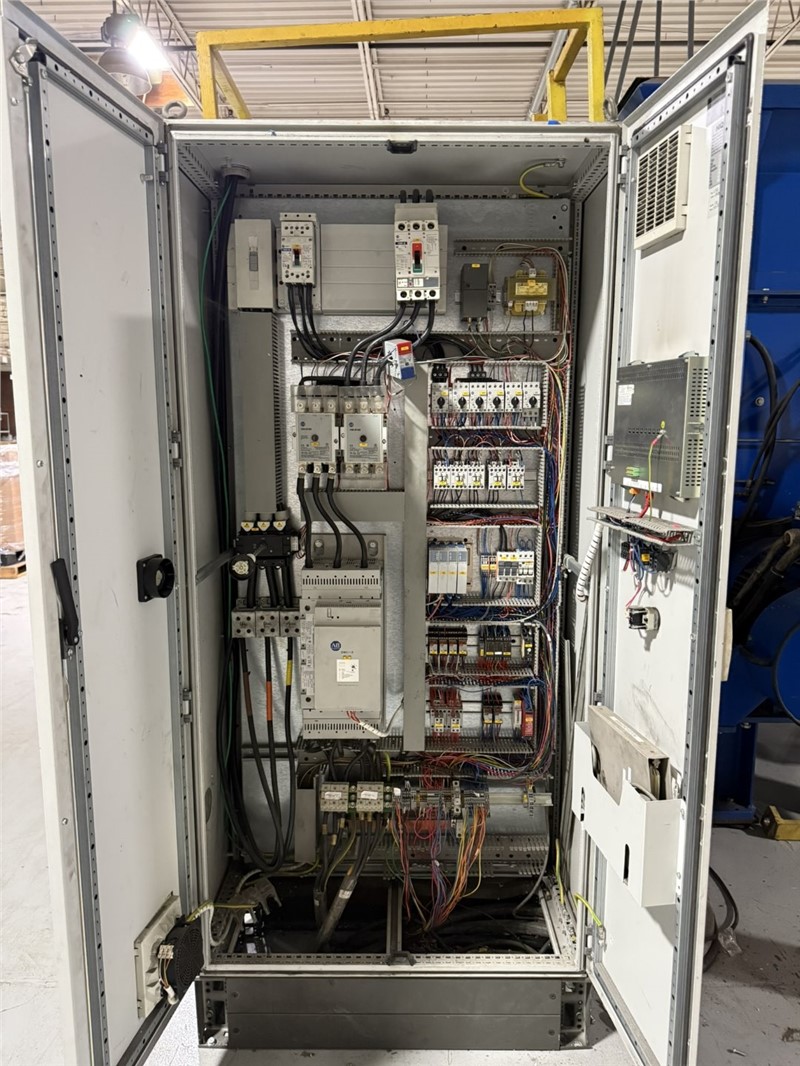

  • PLC-operated with touch screen
  • 10 pre-set programs for different types of cable
  • Cables are chopped down to typically 10-25 mm
