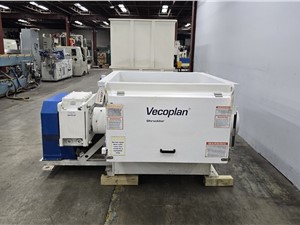

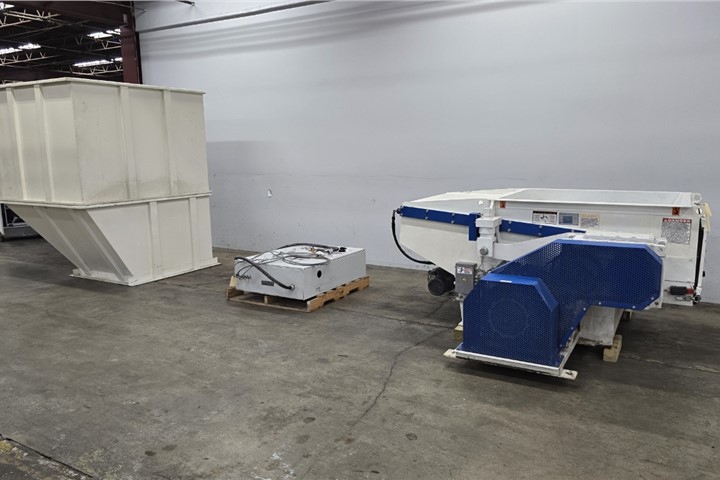

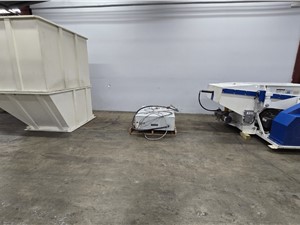

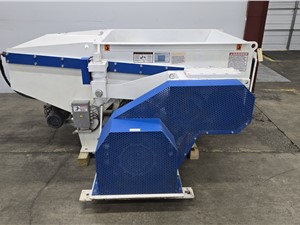

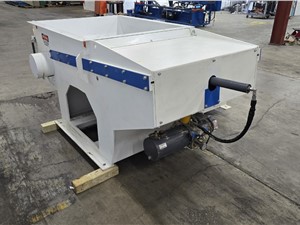

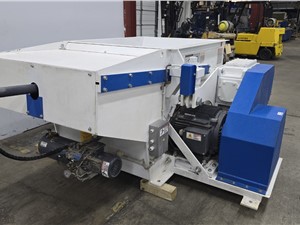

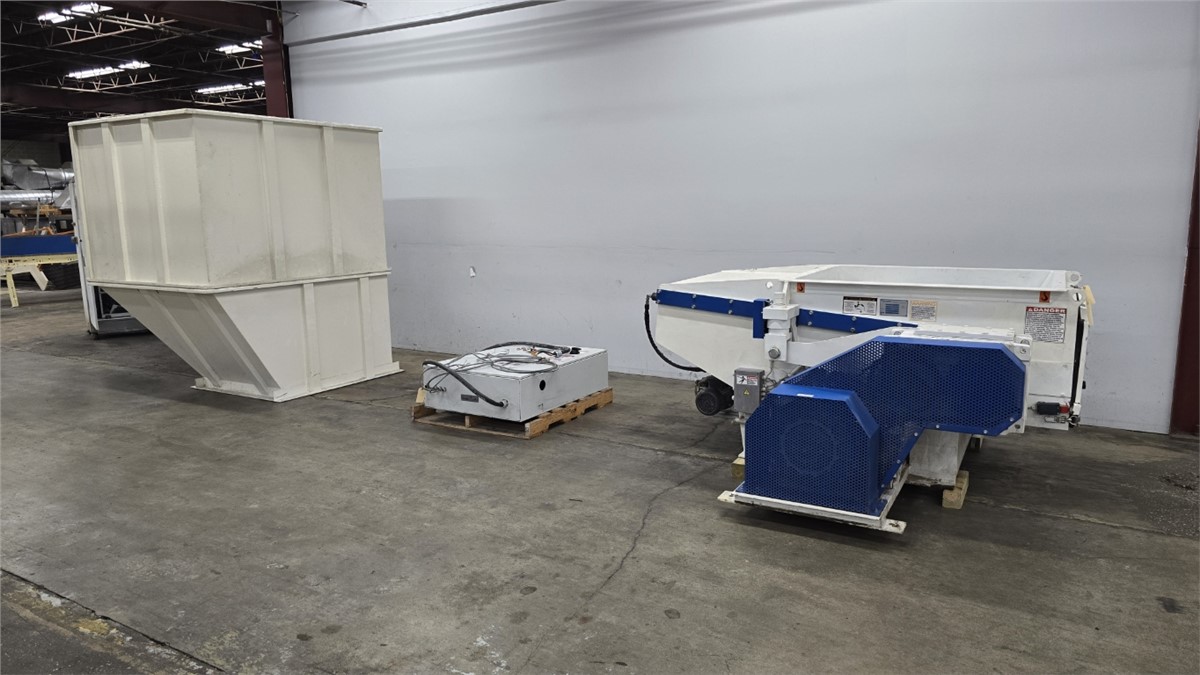

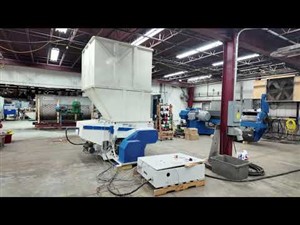

Name: 42" x 52" Vecoplan Single Shaft Shredder, Model VAZ1100-XL-XR, 60hp, New in 2018, With Hopper & Conveyor Discharge
Brand: Vecoplan
SKU: 22611A
Price: 54500.00 USD
Availability: InStock

42" x 52" Vecoplan Single Shaft Shredder, Model VAZ1100-XL-XR, 60hp, New in 2018, With Hopper & Conveyor Discharge

Click to enlarge (44 Total Photos)

Product Features

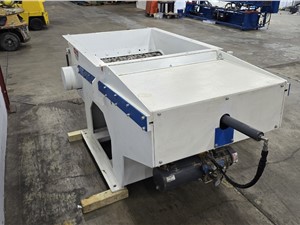

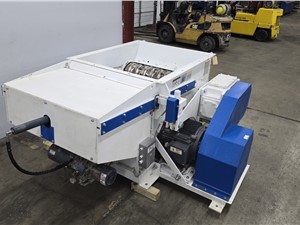

Used 42" x 52" Vecoplan Single Shaft Shredder, Model VAZ1100-XL-XR, 60hp, New in 2018, With Hopper & Conveyor Discharge
83.7 ft³ Hopper Capacity

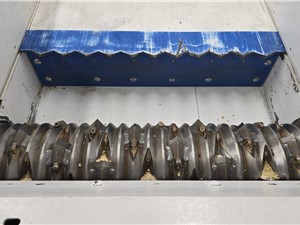

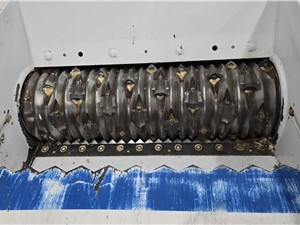

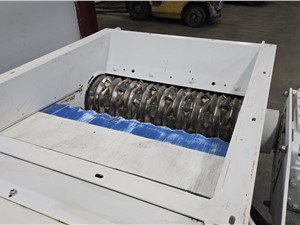

15" Rotor Diameter, 48 Cutters (40mm x 40mm)

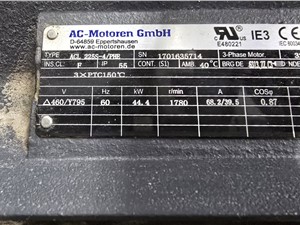

60 HP AC-Motoren, Type: ACL 225S-4/PHE, S/N: 1701635714
1780 RPM
460/3/60, 68.2A
IP55, F Class Insulation
Siemens Gearbox, Gear Ratio: 12.326 : 1
Rated Output Torque: Approx. 8,260 ft/lb
Output Speed:112.69 RPM
3 HP Hydraulic Ram Feed System, Two-Speed

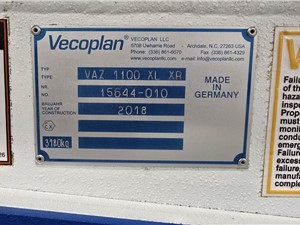

Serial Number: 15644-010

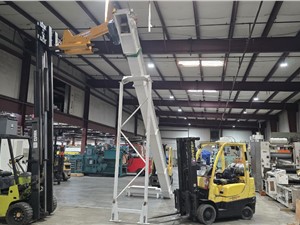

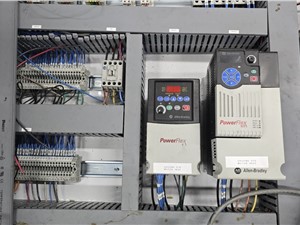

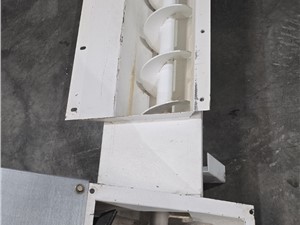

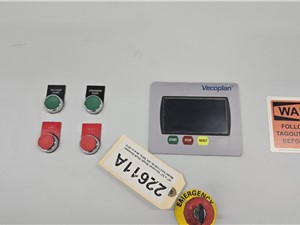

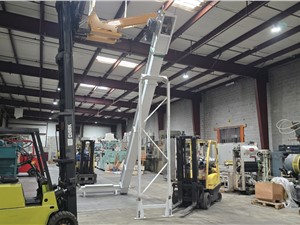

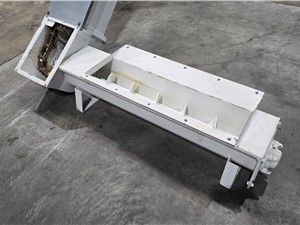

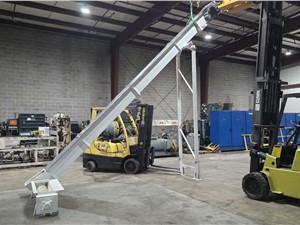

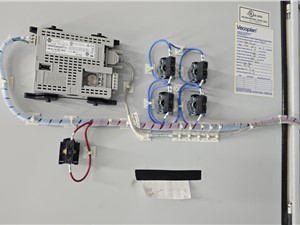

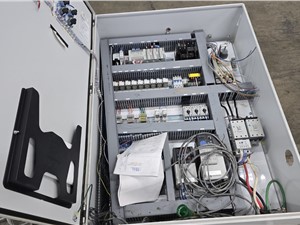

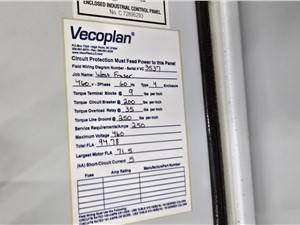

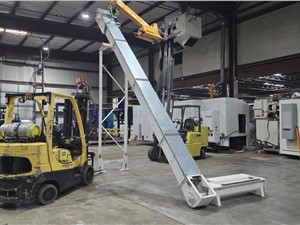

With HMI Control Panel, Hopper, and 2HP KKF 300-1K-E/TS200 Drag Chain Conveyor
Approximate Shredder Dimensions: 116" L x 94" W x 45" H

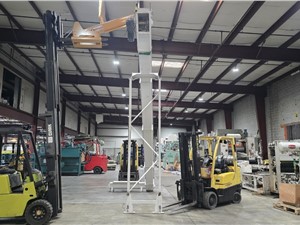

Approximate Conveyor Dimensions: 298" L x 90" W x 23" H

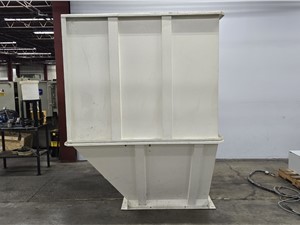

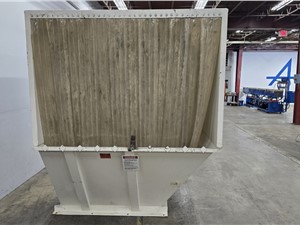

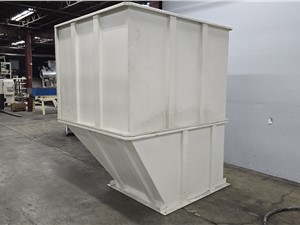

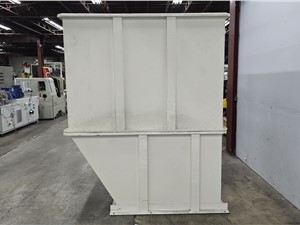

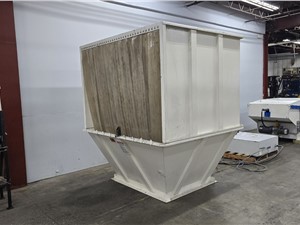

Approximate Hopper Dimensions: 78" L x 74" W x 94" H

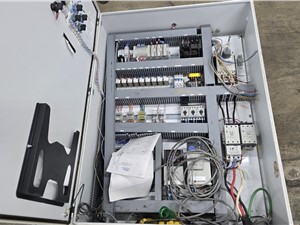

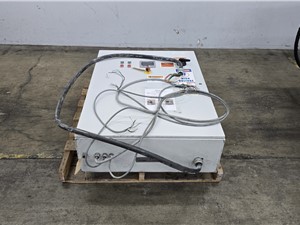

Approximate Panel Dimensions: 37" L x 13" W x 62" H
