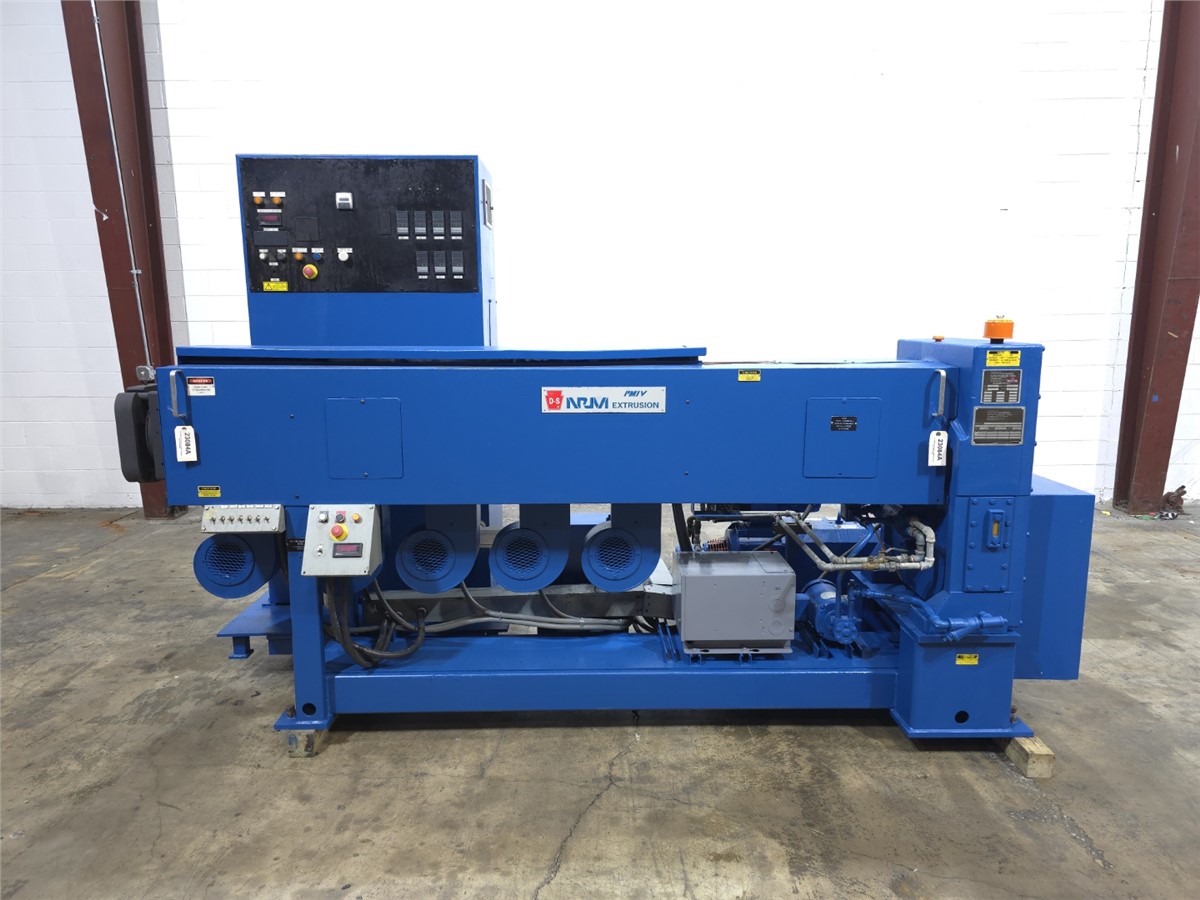

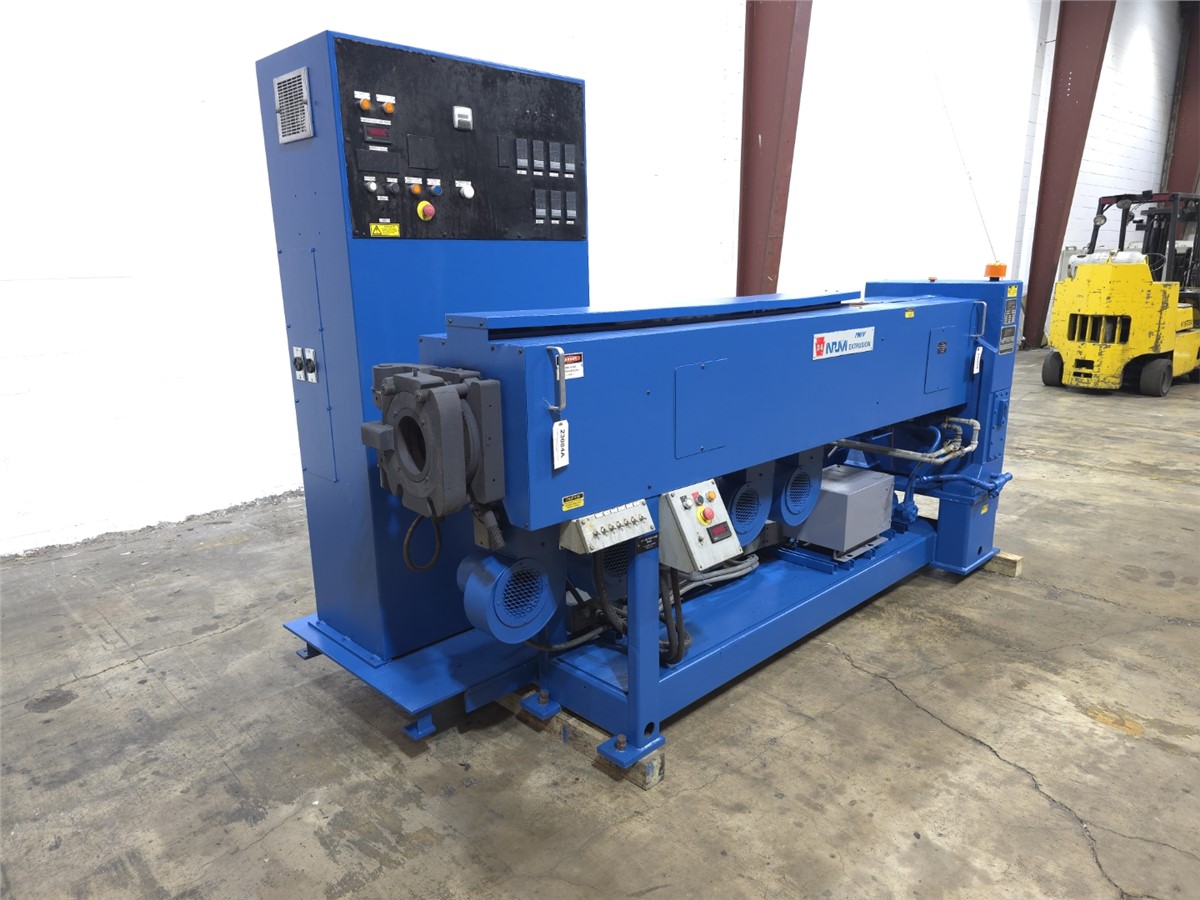

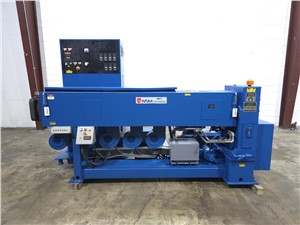

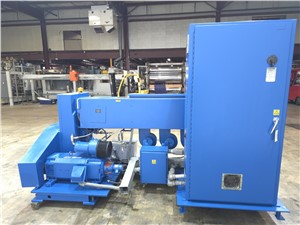

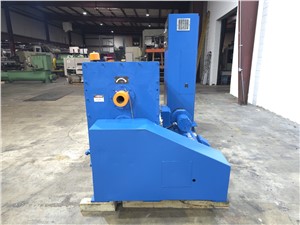

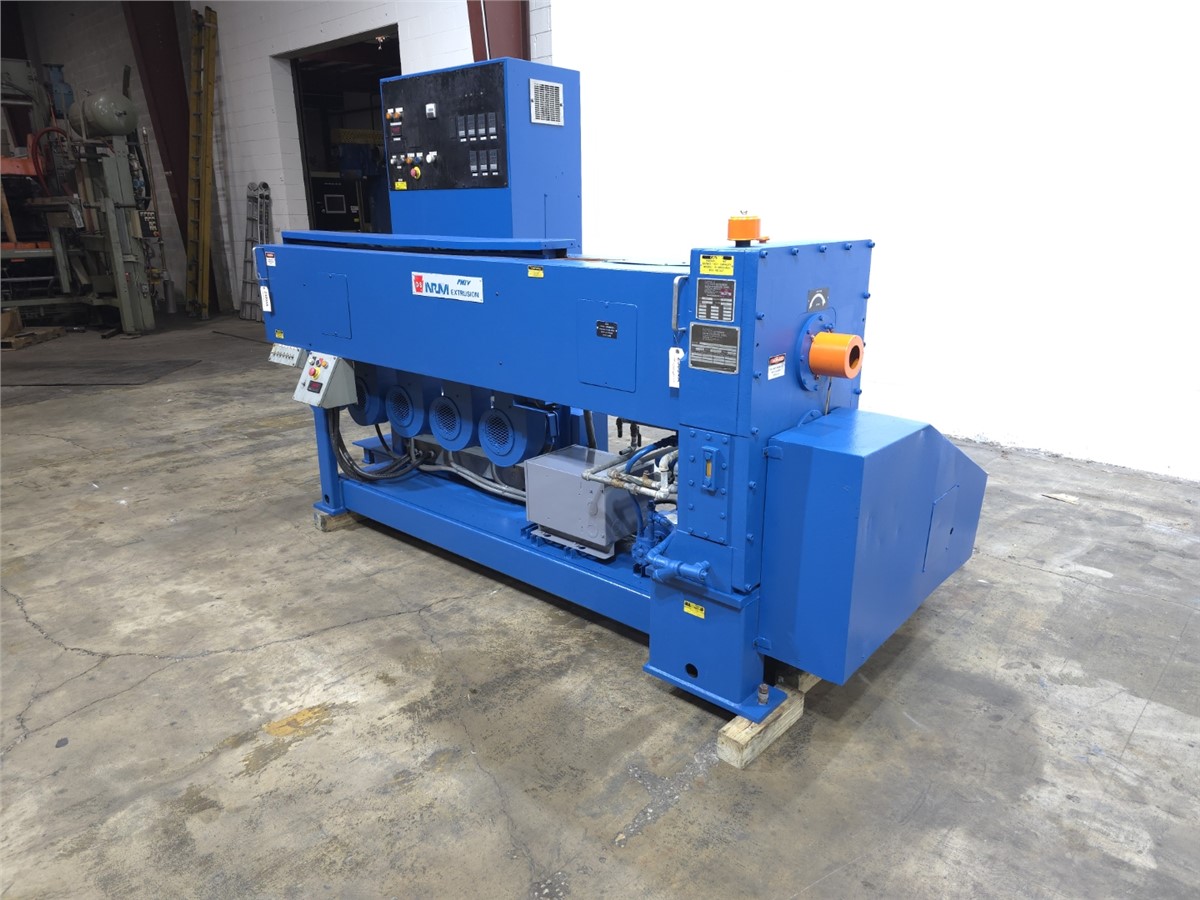

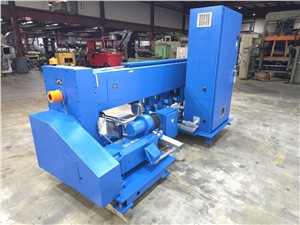

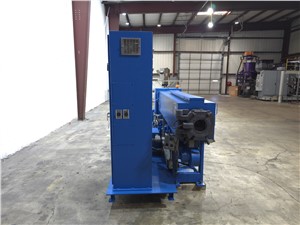

3.5" NRM/Davis-Standard PM IV Single Screw Extruder, 24:1 L/D, 75 HP

Click to enlarge (36 Total Photos)
Product Features
  • Used 3.5" NRM/Davis-Standard PM IV Single Screw Extruder, 24:1 L/D, 75 HP

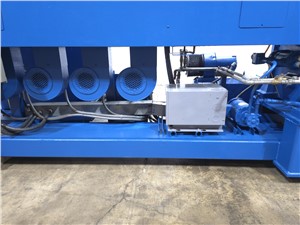

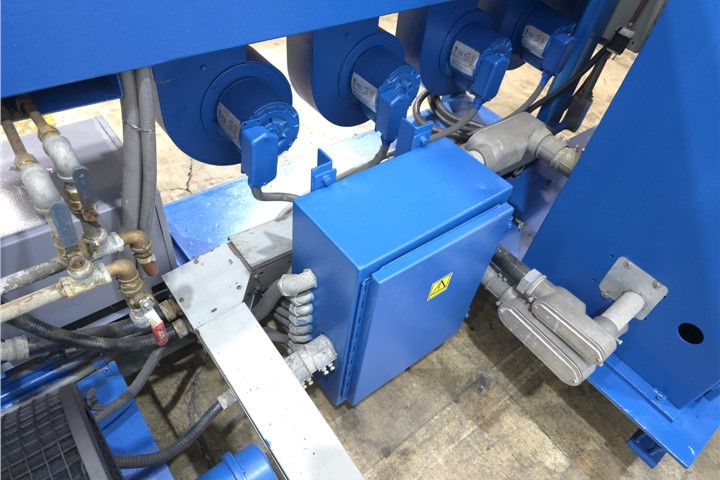

  • Air-Cooled Barrel

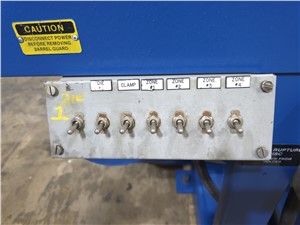

  • 4 Barrel Zones, 3 Downstream Zones

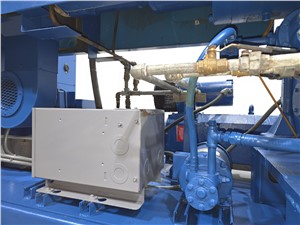

  • 7" x 3.5" Water-Cooled Feed Throat
  • 42" Centerline Height
  • Approx. 73 Screw RPM @ 1750 Motor RPM

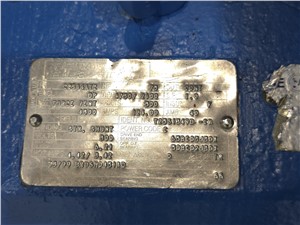

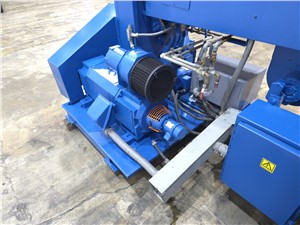

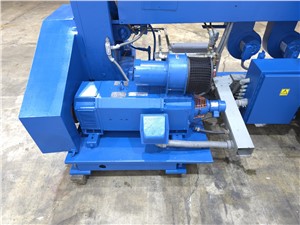

  • 75 HP Reliance Electric DC Motor, With Blower
  • 1750/2100 RPM
  • 500 VDC, 124 Armature Amps

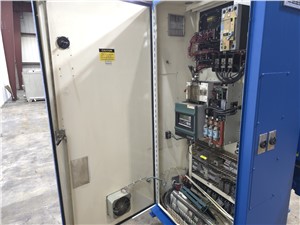

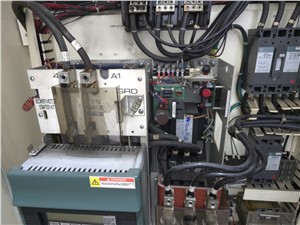

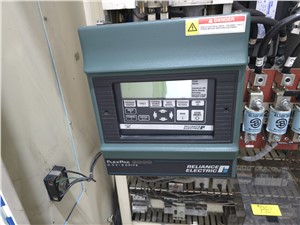

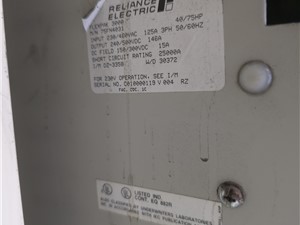

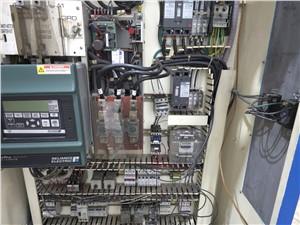

  • Reliance Electric FlexPak 3000 DC Drive
  • Input: 230/460 VAC /3/60, 125A
  • Output: 240/500 VDC, 146A
  • DC Field: 150/300 VDC, 15A

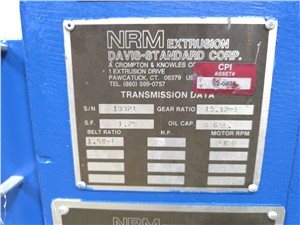

  • 15.12:1 Gearbox, 1.58:1 Belt Reduction
  • 460/3/60, 165 FLA

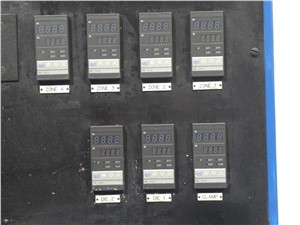

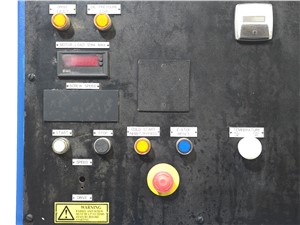

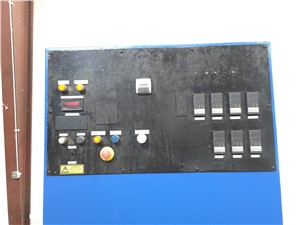

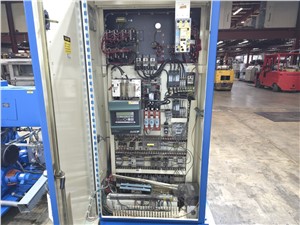

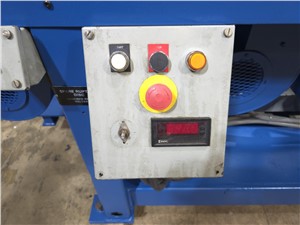

  • RKC CB400 Digital Temperature Controllers, Digital Amp And Screw Speed Readouts, Start/Stop/E-Stop

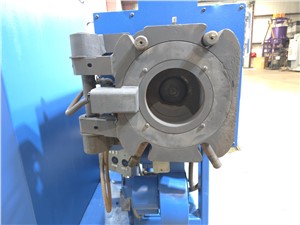

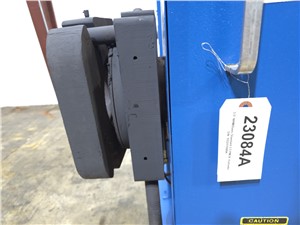

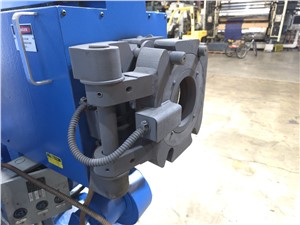

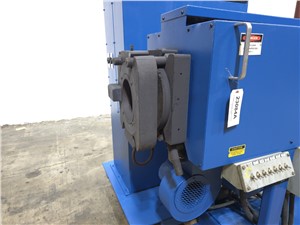

  • Includes Swing-Bolt Die Clamp

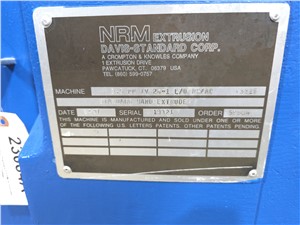

  • S/N: 19321
  • Order No.: 59864
  • New In 1997
  • Approx. 148" L × 64" W × 86" H
Add To Quote
Call Us
(877) 887-9408
International
(312) 878-3809
Sell Your Used
Machinery
Brand Davis Standard
Model 3.5PM IV
Item 23084A
