Name: Keyence High-Speed 2D Laser Profiler
SKU: 23044J
Availability: InStock

Keyence High-Speed 2D Laser Profiler

Click to enlarge (12 Total Photos)

Product Features

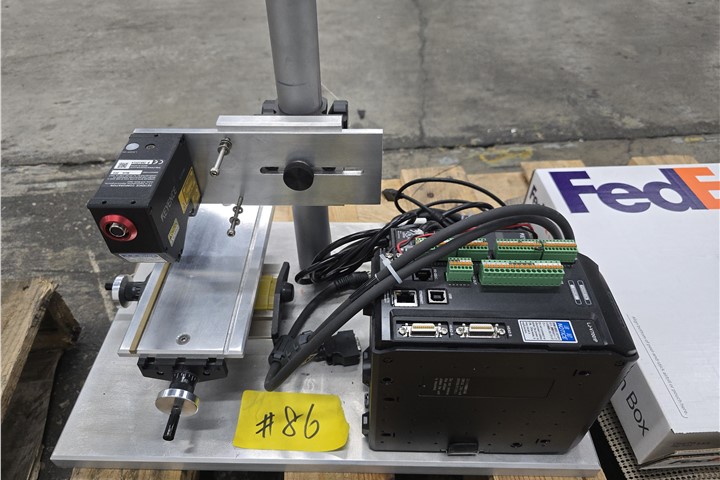

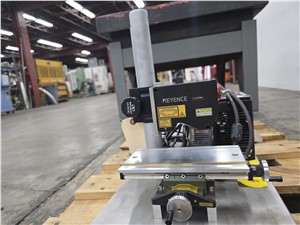

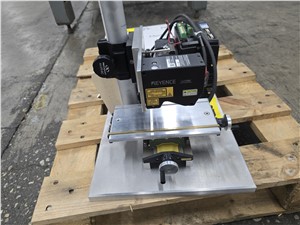

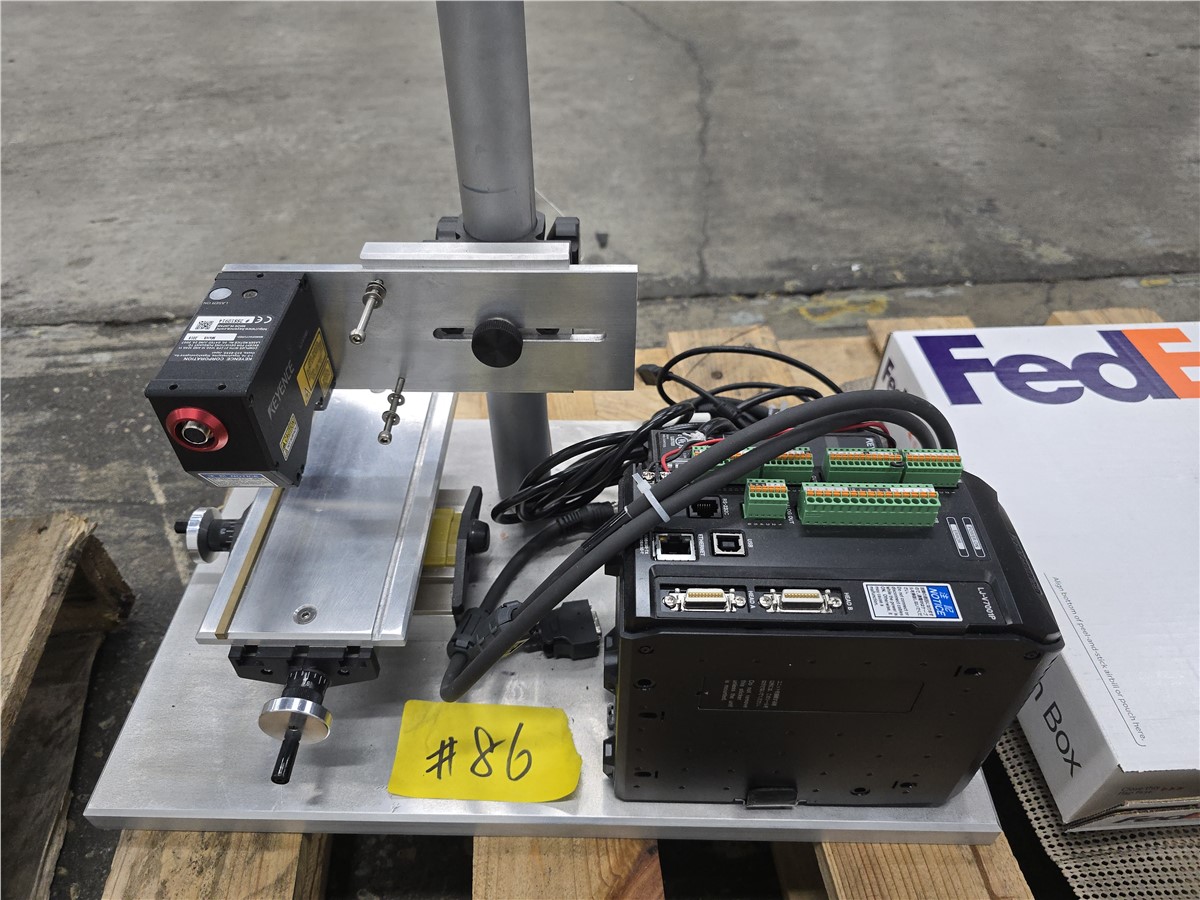

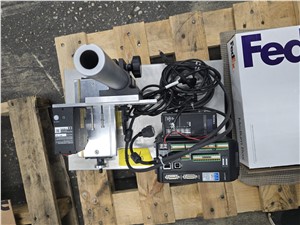

Used Keyence LJ-V7080 High-Speed 2D Laser Profiler System with LJ-V7001P Controller
LJ-V7000 Series

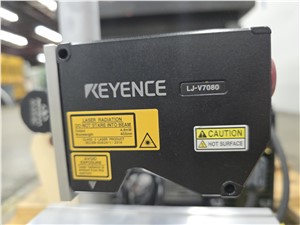

LJ-V7080 Diffuse Reflection Laser Profiler Sensor Head
80 mm / 3.15" Reference Distance
±23 mm / ±0.91" Z-Axis Measurement Range
32 mm / 1.26" X-Axis Measurement Width at Reference Distance
25 mm / 0.98" X-Axis Width at Near Side
39 mm / 1.54" X-Axis Width at Far Side
405 Nanometer Blue Semiconductor Laser
4.8 Milliwatt Laser Output
Class 2 Laser Product
Approximately 48 Millimeter x 48 Micrometer Spot Size at Reference Distance
0.5 Micrometer Vertical Axis Repeatability
10 Micrometer Horizontal Axis Repeatability
±0.1% Full Scale Vertical Axis Linearity
50 Micrometer / 0.002 Inch Profile Data Interval
16 Microsecond Minimum Sampling Cycle in High-Speed Mode
32 Microsecond Minimum Sampling Cycle in Advanced Function Mode
Ingress Protection Rating 67 Sensor Head

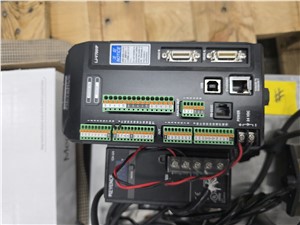

LJ-V7001P Positive-Negative-Positive Output Controller
Maximum (2) Sensor Heads Connectable
1000 Megabit Per Second / 100 Megabit Per Second Ethernet Interface
Universal Serial Bus 2.0 Interface
RS-232C Serial Communication Interface
(2) ±10 Volt Analog Outputs
Positive-Negative-Positive Open Collector Comparator Outputs
24 Volts Direct Current ±10% Controller Power Requirement

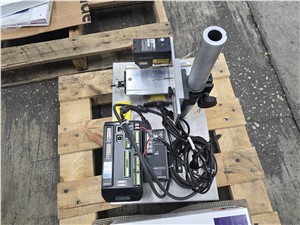

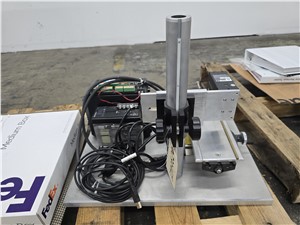

Adjustable Benchtop Sensor Mounting Fixture

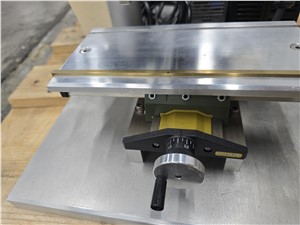

Proxxon Horizontal and Vertical Axis Compound Positioning Table
Newport M-70 Vertical Mounting Column
Keyence 24 Volt Direct Current Power Supply

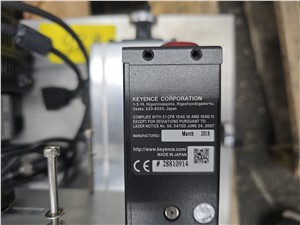

Sensor Head Manufactured March 2018
Sensor Head Identification Number 28810914
Includes Connecting Cables and Keyence LJ-V7000 Series Documentation

Add To Quote

Call Us
(877) 887-9408

International
(312) 878-3809

Sell Your Used
Machinery

Model	LJ-V7080/LJ-V7001P
Item	23044J
