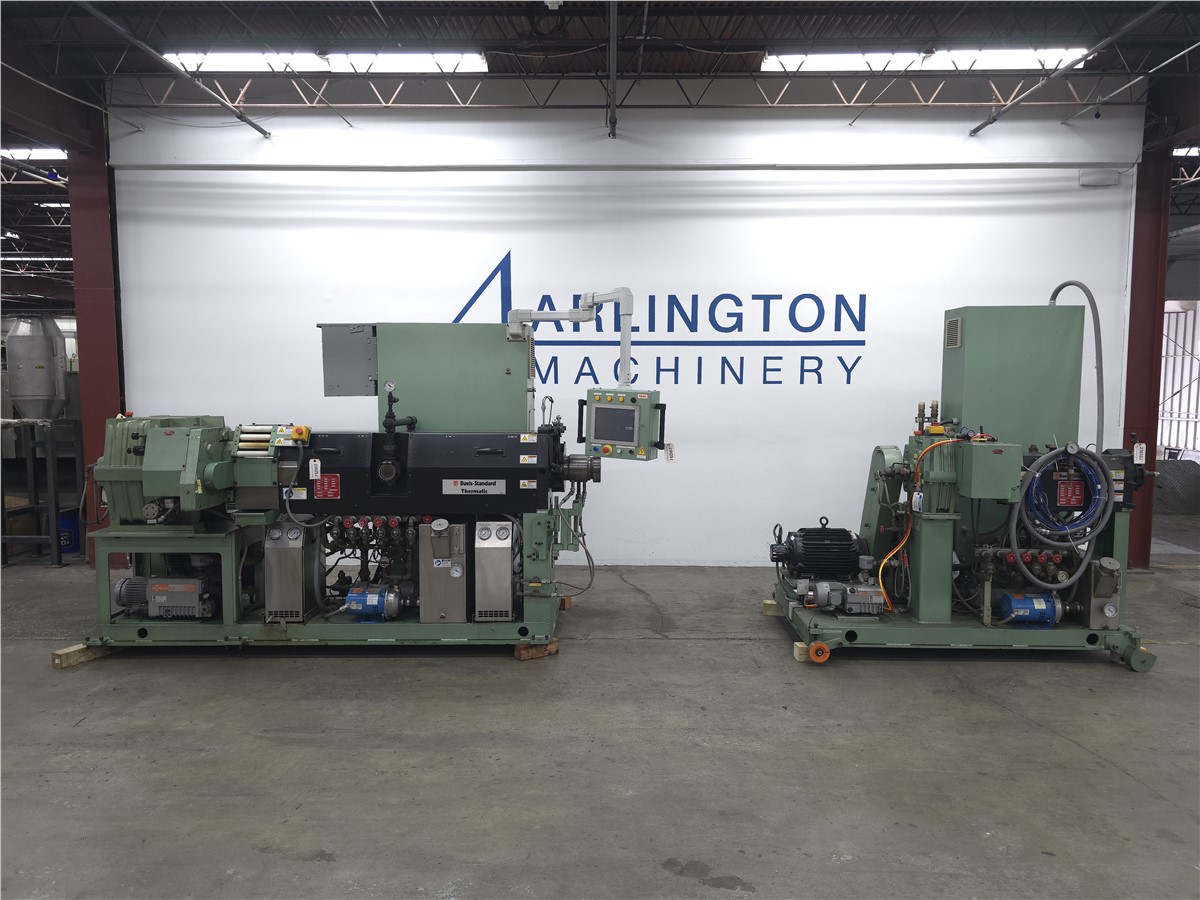

Name: 3.5" & 1.5" Davis-Standard DSRE Cold Feed Rubber Co-Extrusion System, 100 HP Main Extruder
Brand: Davis Standard
SKU: 23029J
Price: 89500.00 USD
Availability: InStock

3.5" & 1.5" Davis-Standard DSRE Cold Feed Rubber Co-Extrusion System, 100 HP Main Extruder

Click to enlarge (77 Total Photos)

Product Features

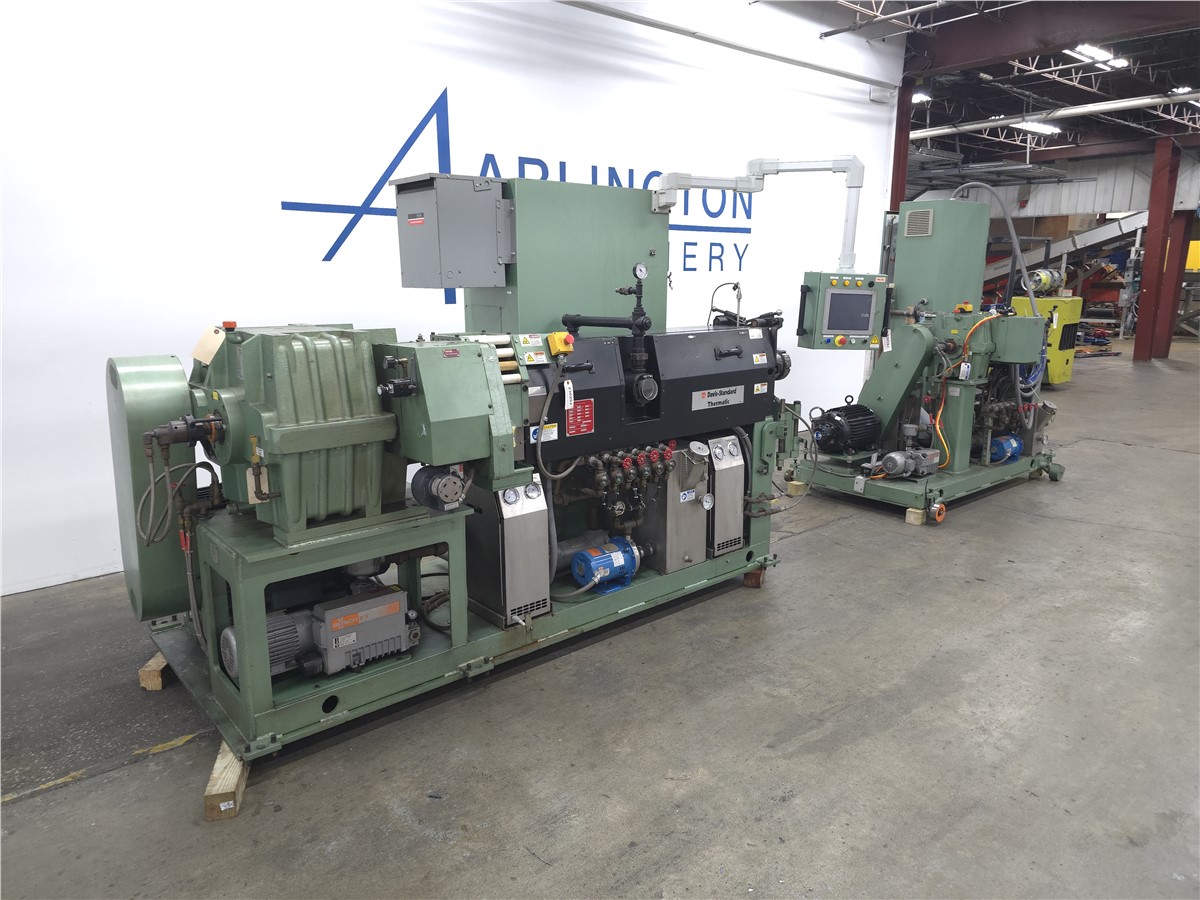

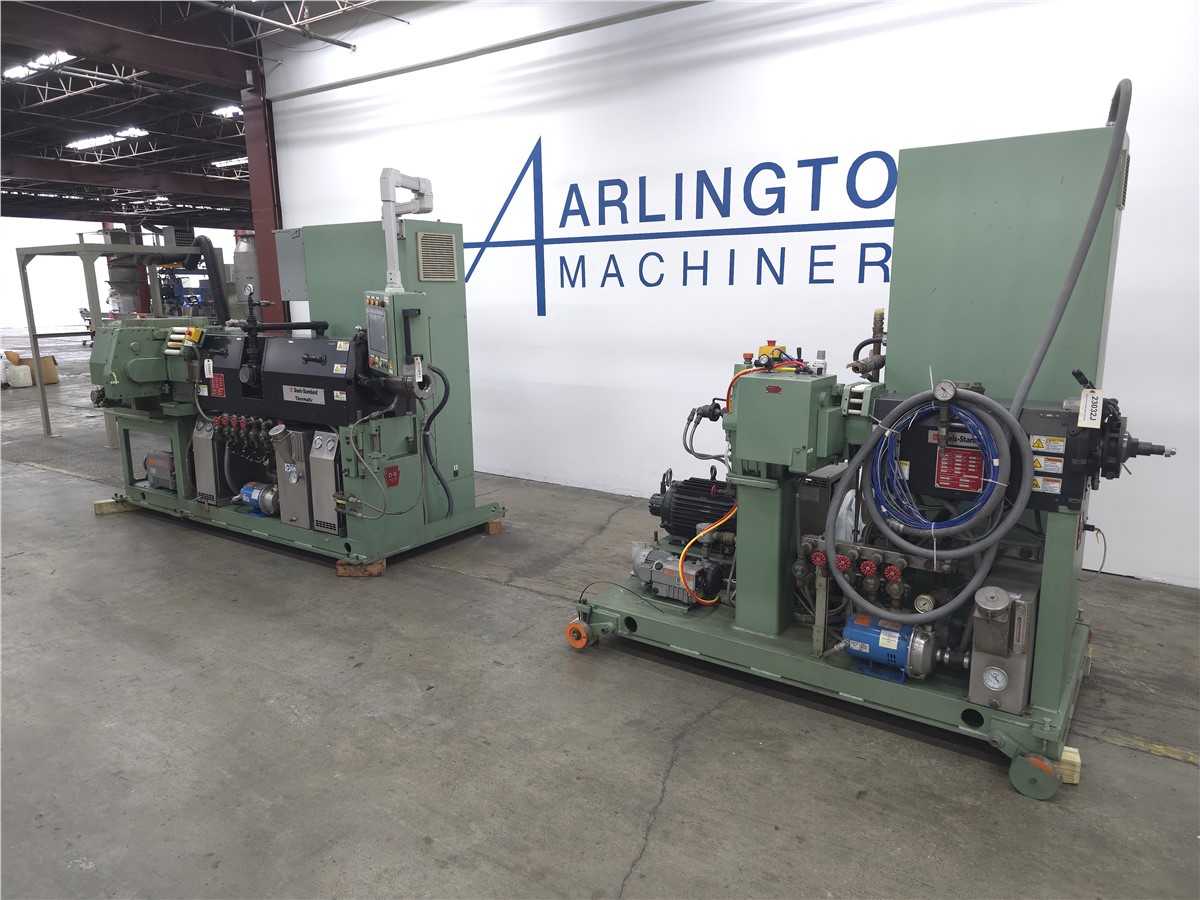

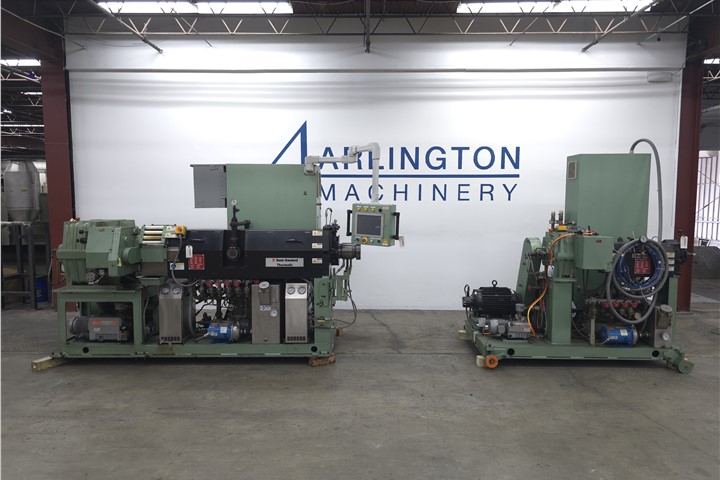

Used 3.5" & 1.5" Davis-Standard DSRE Cold Feed Rubber Co-Extrusion System, 100 HP Main Extruder, 2012
System Includes:

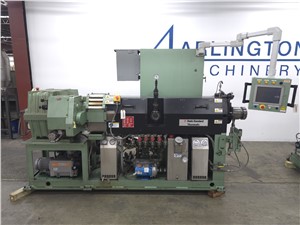

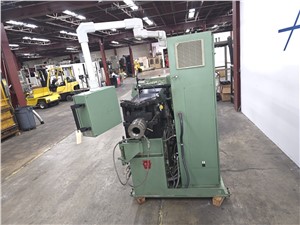

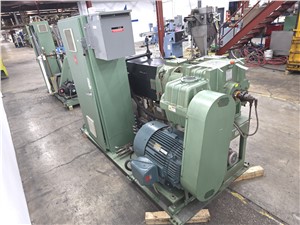

Used 3.5" Davis-Standard Model 35TN35-19DSRE Cold Feed Rubber Extruder, 20:1 L/D, 100 HP
4 Barrel Zones, 1 Downstream Zone, Water-Cooled Screw & Barrel
Side Vented Barrel
42" Centerline Height

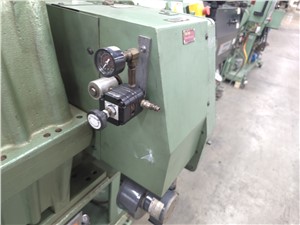

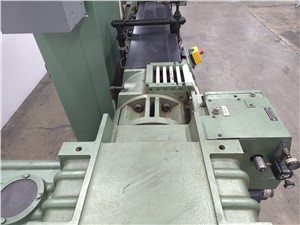

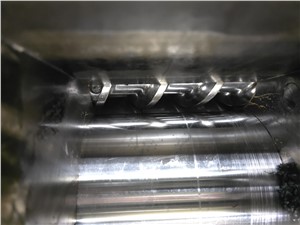

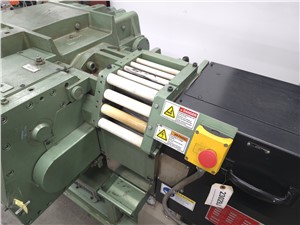

7" Wide Pneumatic Roll Feed, 30 PSI Static Air Requirement – OEM Standard
Roll Feed Drive System: Pneumatically Controlled, Torque-Sensing Clutch Driven By Main Thrust Shaft
100 RPM Maximum Extruder Speed

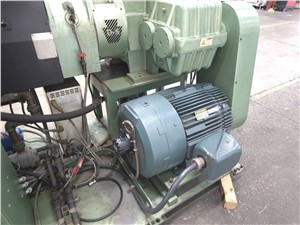

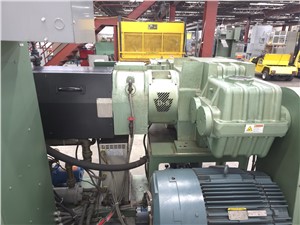

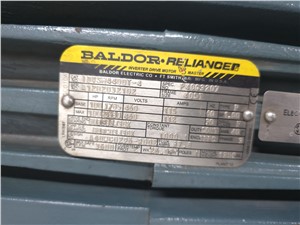

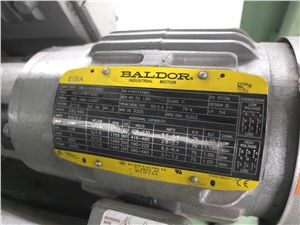

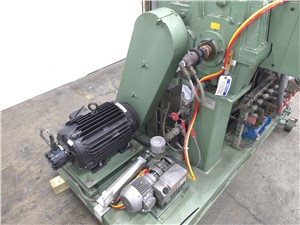

100 HP Baldor-Reliance Inverter Duty Motor, Frame: 405T
Baseline: 1785 RPM, @ 115A, 60hz
Max: 2680 RPM @ 112A, 90hz

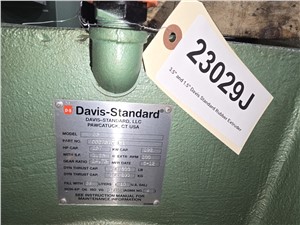

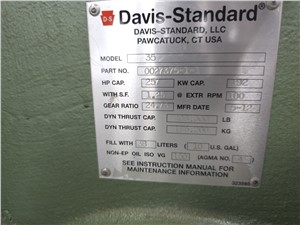

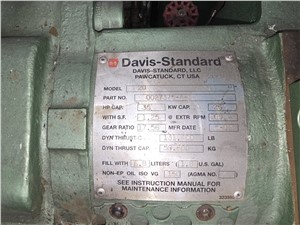

24.76:1 Davis Standard Model 35 Gearbox Rated For 257 HP, Fan Cooled Gearbox

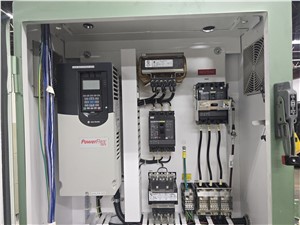

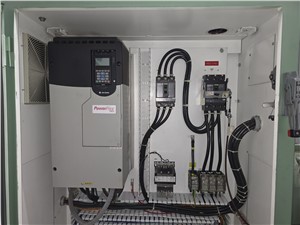

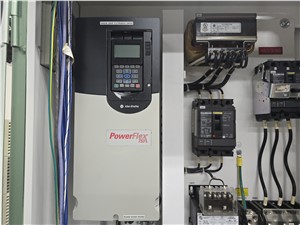

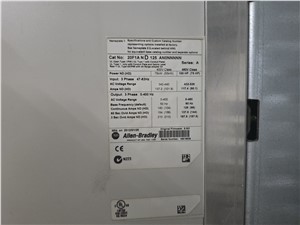

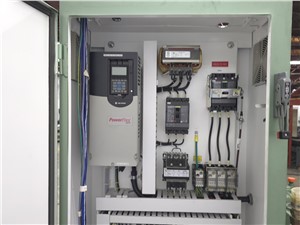

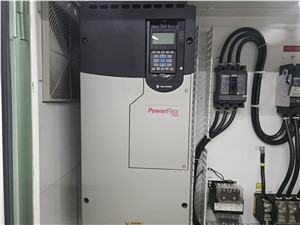

Allen-Bradley PowerFlex 753 VFD, Cat. No: 20F1A N D 125 AN0NNNNN
Input: AC Voltage Range: 432-528, 117.4 Amps ND, 90.1 Amps HD
Output: 460/3/60, 125A Continuous ND, 96A HD
408,300 Lb Dynamic Thrust Capacity
Davis-Standard Thermatic Temperature Control

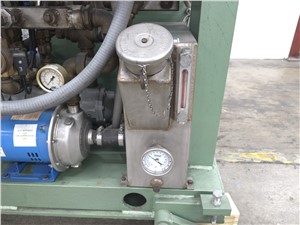

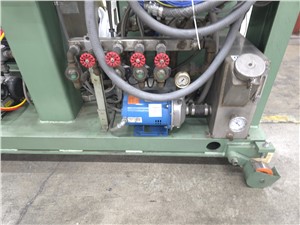

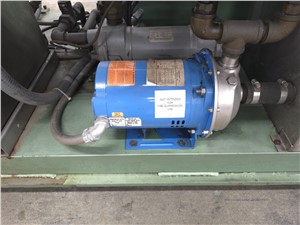

Closed-Loop Water-Cooled Barrel With Self-Contained Closed-Loop Water System That Includes A Water Pump And Heat Exchanger

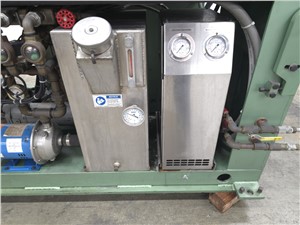

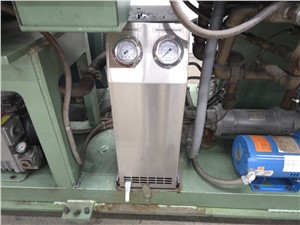

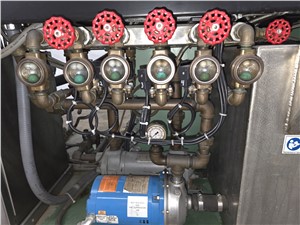

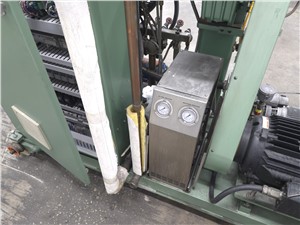

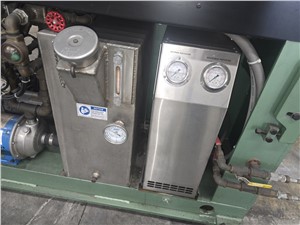

Direct-Injection Water Temperature Control Units for Screw and Head Zones
New In 2012

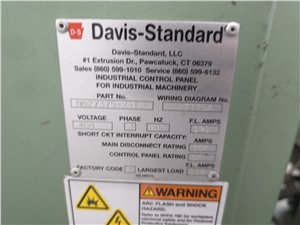

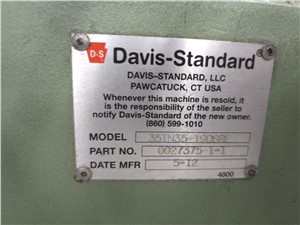

Part No. 0027375-1-1

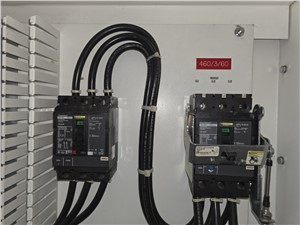

460/3/60, 191A
Approximate Dimensions: 124" x 70" x 89" H

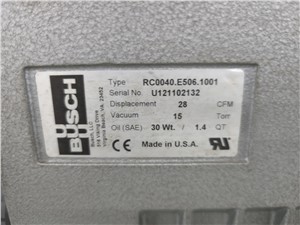

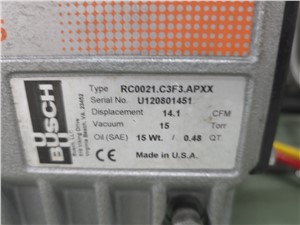

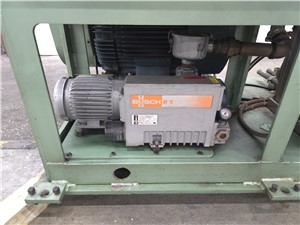

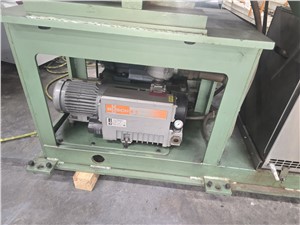

Busch R5 RC0021 Vacuum Pump, 14.1 CFM, 15 Torr

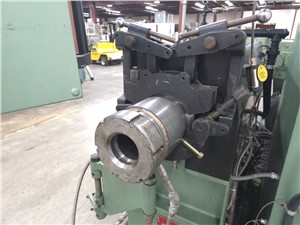

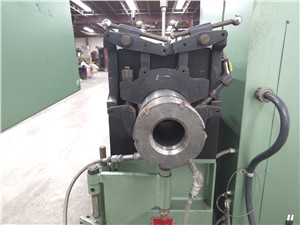

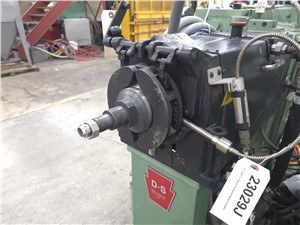

With Die Clamp

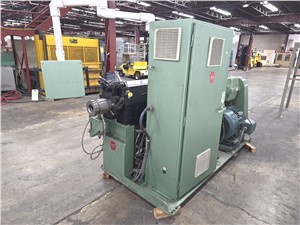

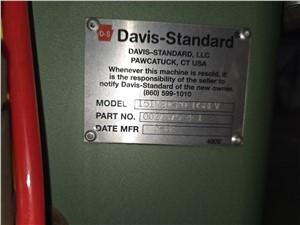

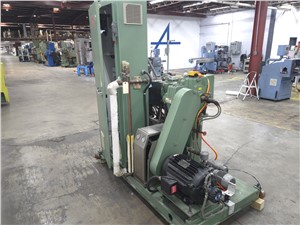

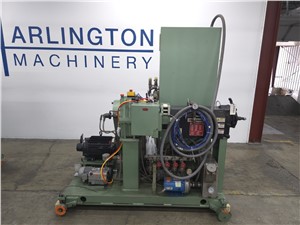

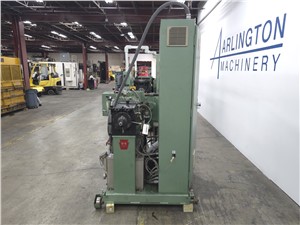

Used 1.5" Davis-Standard DSREV Cold Feed Rubber Extruder, 20:1 L/D, 20 HP
3 Barrel Zones, Water-Cooled Screw & Barrel
Top Vented Barrel
42" Centerline Height
2" Wide Pneumatic Roll Feed, 30 PSI Static Air Requirement – OEM Standard
Roll Feed Drive System: Pneumatically Controlled, Torque-Sensing Clutch Driven By Main Thrust Shaft

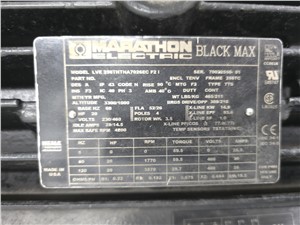

20 HP Marathon Electric Black Max, Frame: 256TC
1770 RPM
Motor Electrical: 460/3/60, 26A

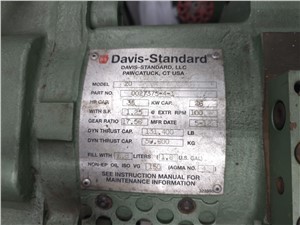

17.56:1 Davis Standard Model 20 Gearbox Rated For 35 HP

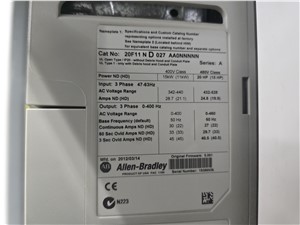

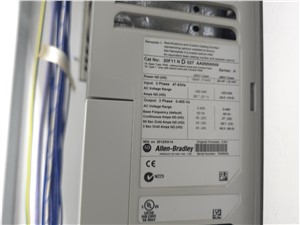

Allen-Bradley PowerFlex 753 VFD, Cat. No: 20F11N D 027 AA0NNNNN
Input: AC Voltage Range: 432-528, 24.8 Amps ND, 19.9 Amps HD
Output: 460/3/60, 27A Continuous ND, 22A HD

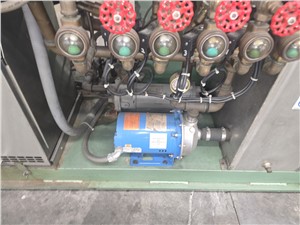

Closed-Loop Water-Cooled Barrel With Self-Contained Closed-Loop Water System That Includes A Water Pump And Heat Exchanger
Direct-Injection Water Temperature Control Units for Screw and Head Zones
New In 2012
Part No. 0027375-4-1

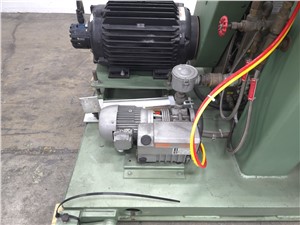

Busch R5 RC0021 Vacuum Pump, 14.1 CFM, 15 Torr
With Die Clamp
Approx. Dims: 86" x 55" x 91" H

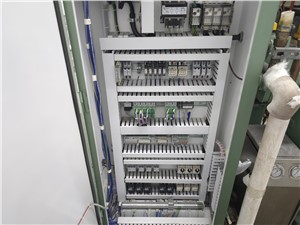

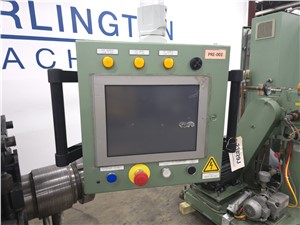

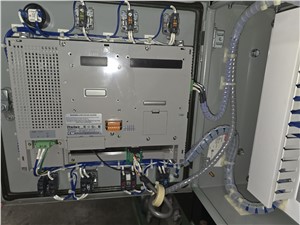

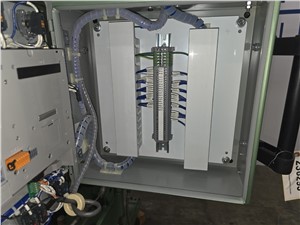

Integrated Co-ex Controls On Pendant Swing Arm Mounted To 3.5" Extruder
