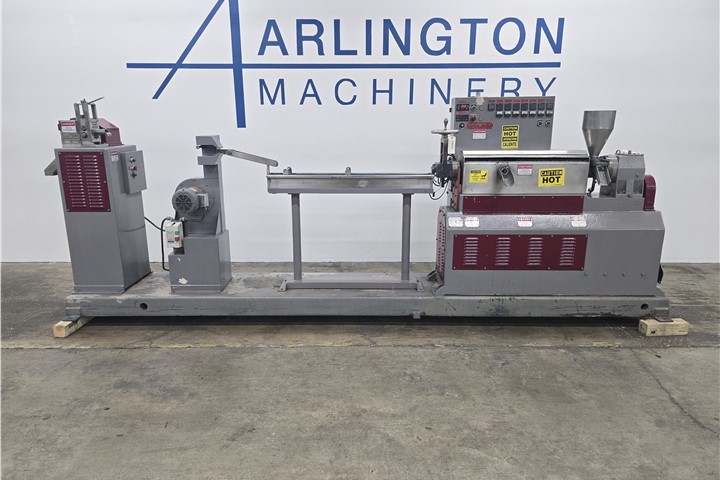

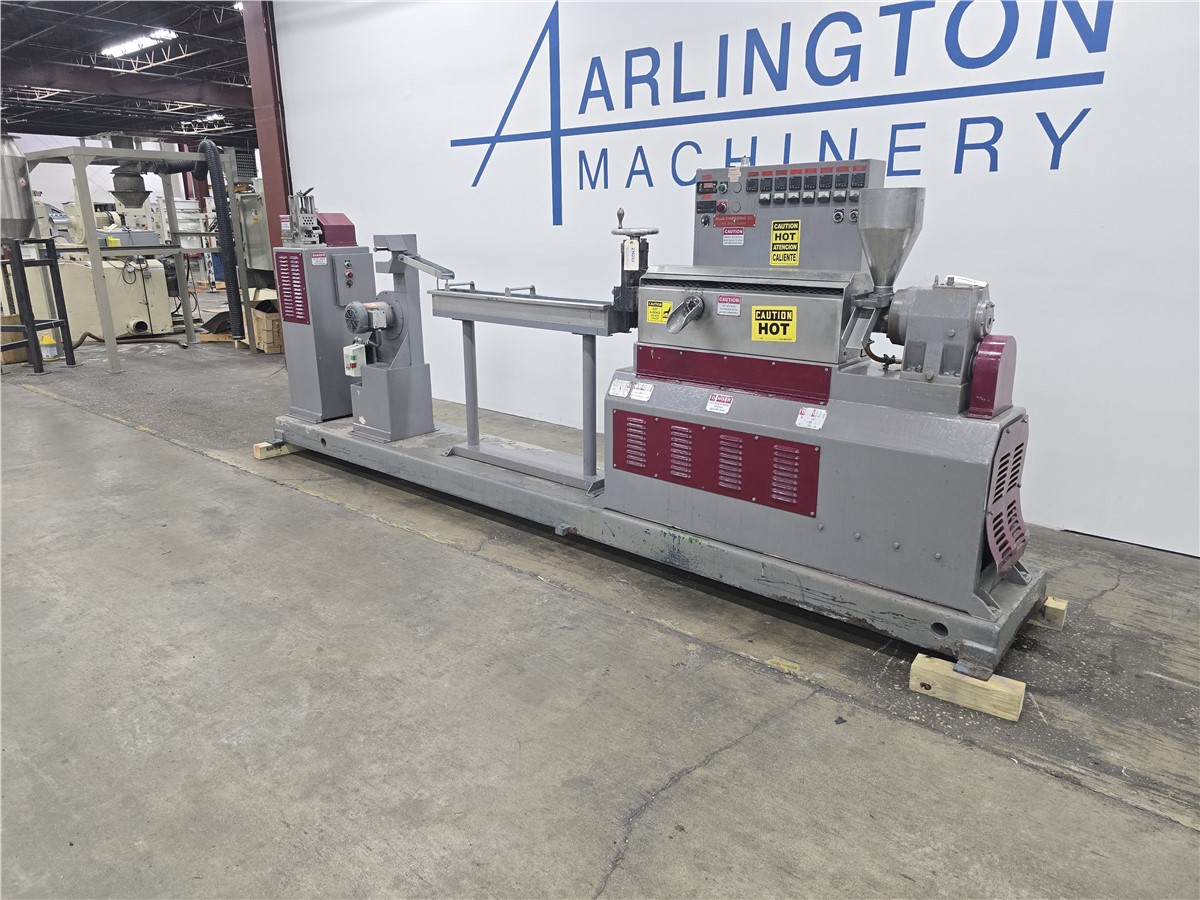

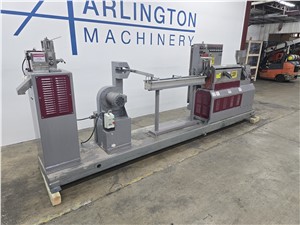

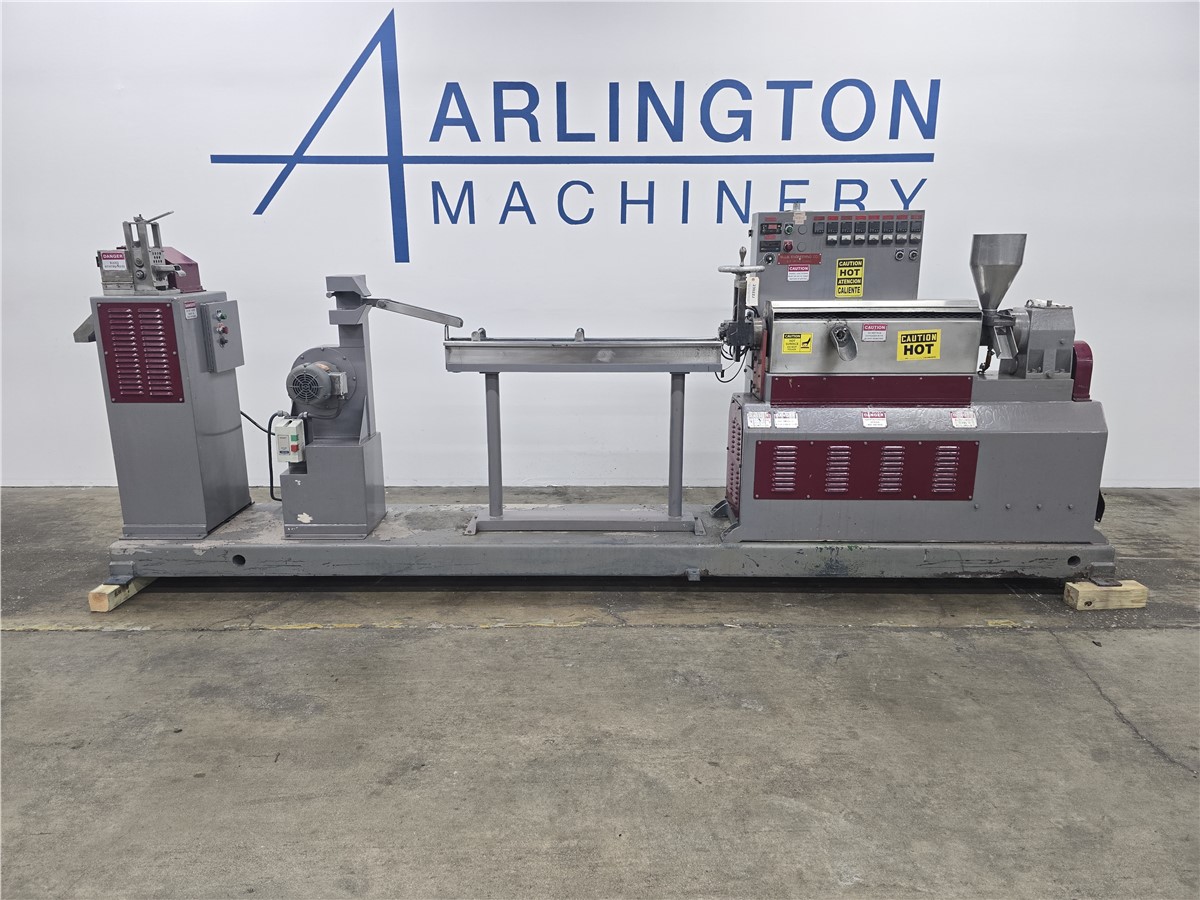

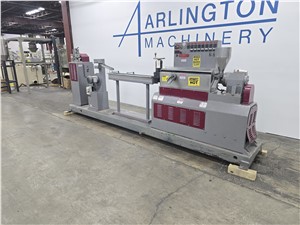

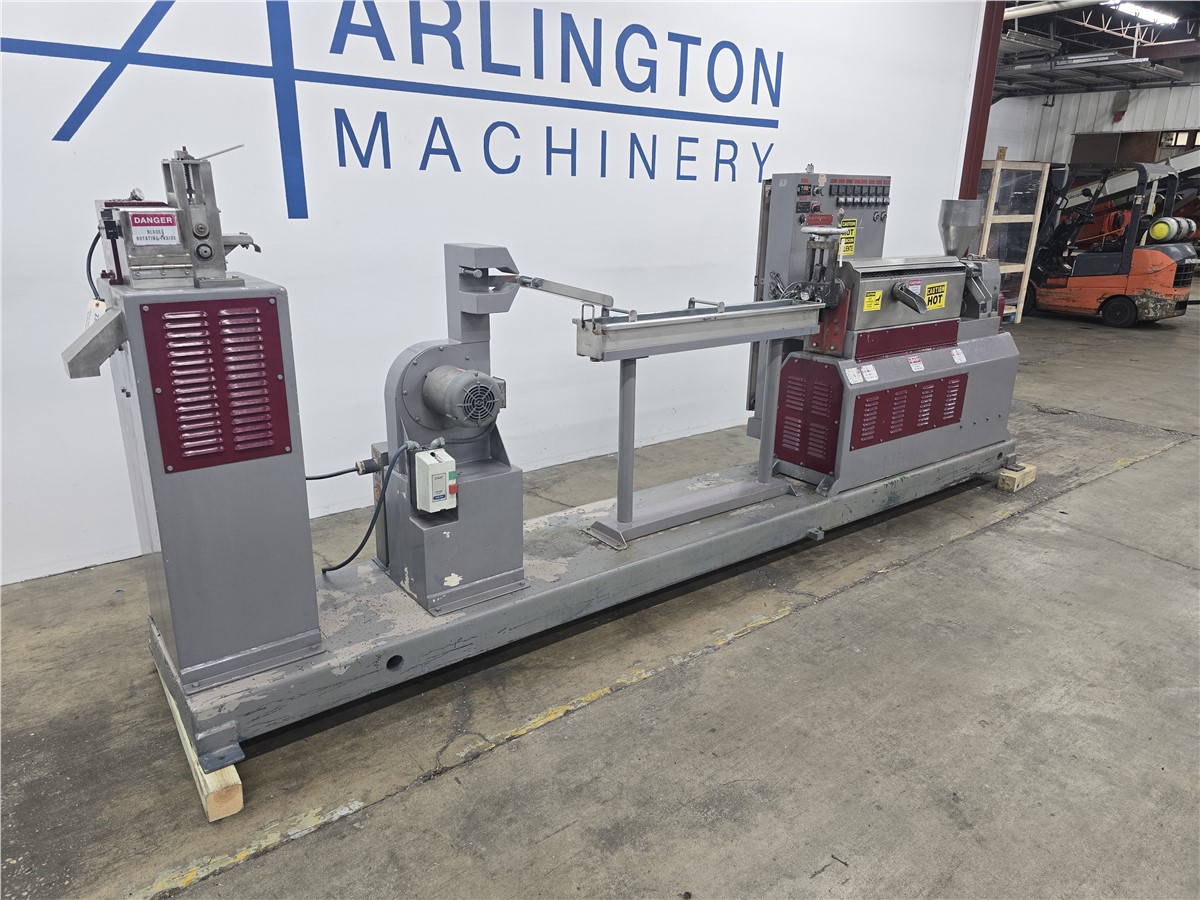

1" MGB Engineering Lab Strand Pelletizing Line With 4' Water Bath & 4" Air Knife

Click to enlarge (30 Total Photos)
Product Features
  • Used 1" MGB Engineering Lab Strand Pelletizing Line With 4' Water Bath & 4" Air Knife

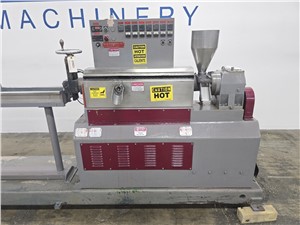

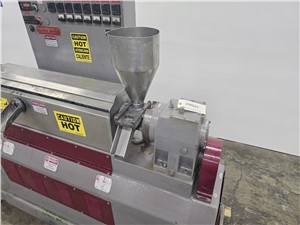

  • 1" Single Screw Extruder
  • 4 Barrel Heating Zones, 3 Downstream Zones (SC Body, Plate, Die)
  • 30 mm x 60 mm Water-Cooled Feed Throat
  • Up To 156 RPM Screw Speed
  • 35.5" Centerline Height

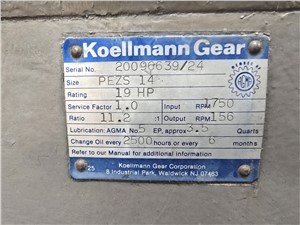

  • Koellmann PEZS 14 Extruder Gearbox, 19 HP Rated, 1.0 Service Factor
  • 11.2:1 Gearbox Ratio, 1750 RPM Input / 156 RPM Output

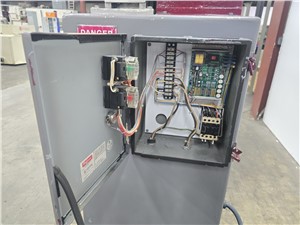

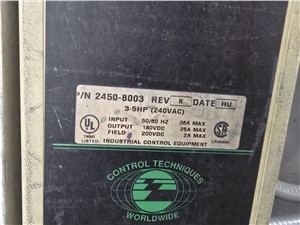

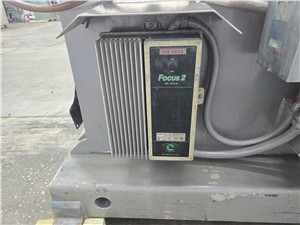

  • Control Techniques Focus 2 DC Drive, P/N 2450-8003, 3-5 HP Drive Rating
  • 240 VAC, 50/60 Hz, 36A Maximum Drive Input, 180 VDC / 25A Maximum Output, 200 VDC / 2A Maximum Field

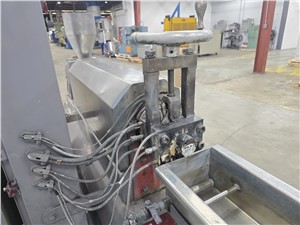

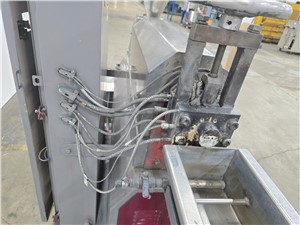

  • Manual Screen Changer

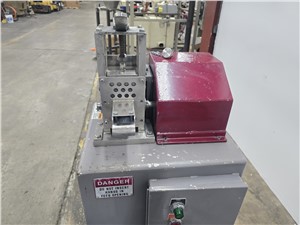

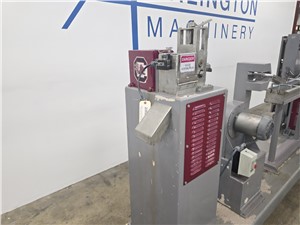

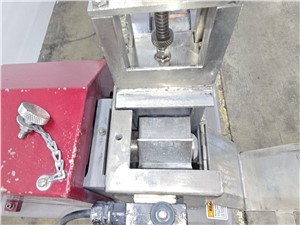

  • 2" Maximum Strand Pelletizer Feed Width

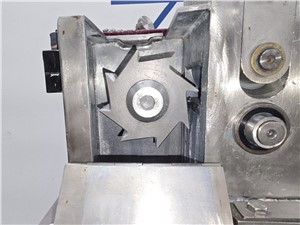

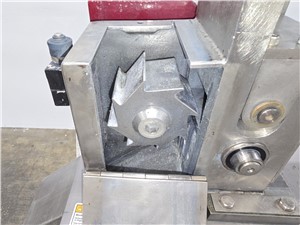

  • 8-Knife Bolt-On Helical Style Pelletizer Rotor, Approx. 2.75" Knife Length
  • 40.5" Pelletizer Discharge Height, Approx. 5" x 2.5" Discharge Opening

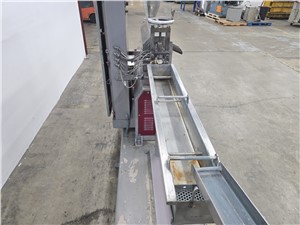

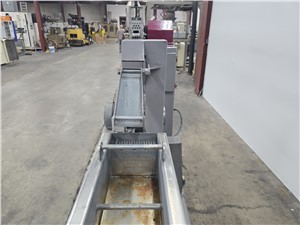

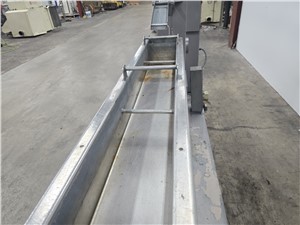

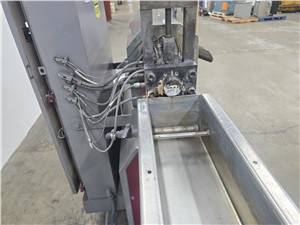

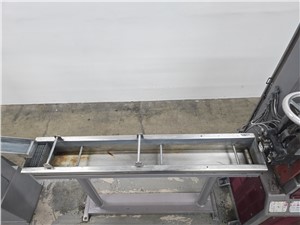

  • 4' Long Stainless Steel Water Bath

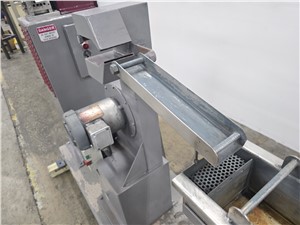

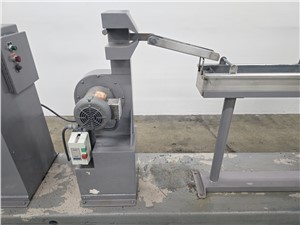

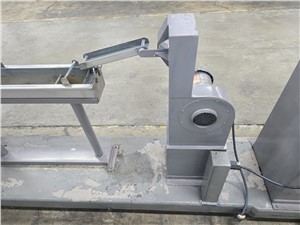

  • 4" Wide Air Knife With 1/2 HP Blower

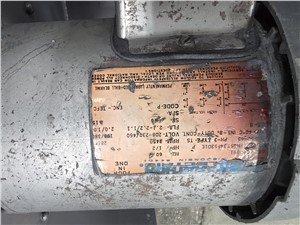

  • 1/2 HP Air Knife Blower Motor, 3450 RPM, 230/460V, 3/60, TEFC

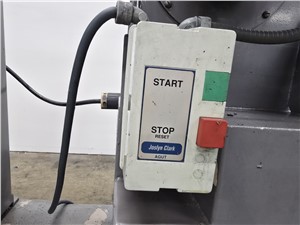

  • Dedicated Air Knife Start/Stop Controls

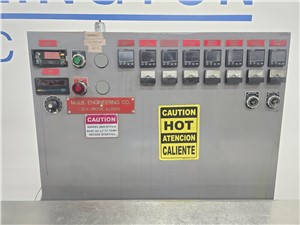

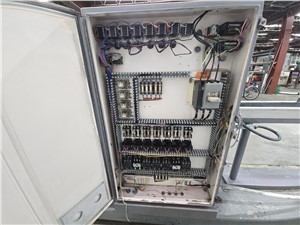

  • Red Lion PXU10020 Temperature/Process Controllers, Simpson Falcon Digital RPM Readout, Screw Speed Potentiometer, Dedicated Analog Heater Ammeters, Extruder Start/Stop
  • Approx. Dimensions: 184" x 33" x 66" H
Add To Quote
Call Us
(877) 887-9408
International
(312) 878-3809
Sell Your Used
Machinery
Brand MGB Engineering
Item 23022J
