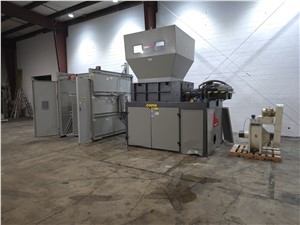

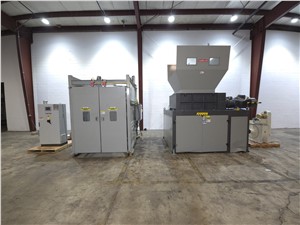

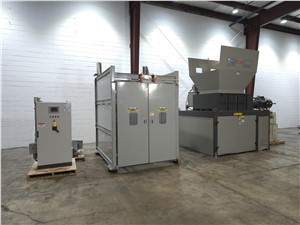

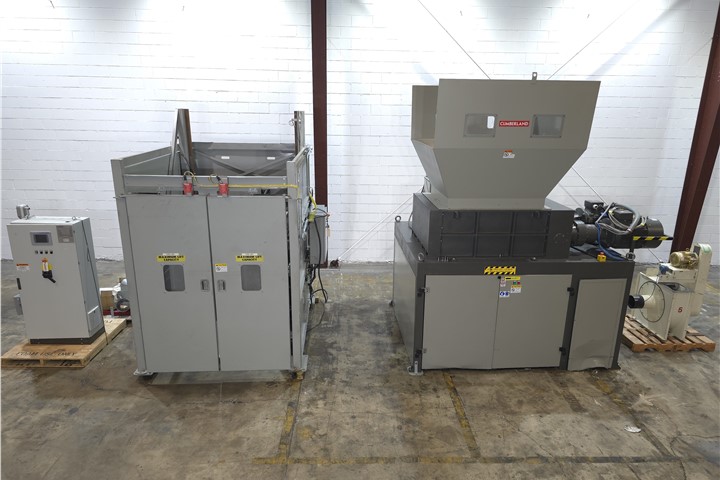

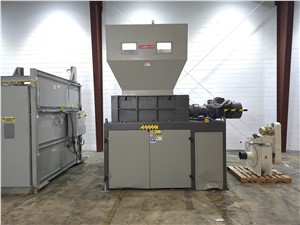

Cumberland Quad Shaft Shredder/Granulator Combo, New in 2015

Click to enlarge (95 Total Photos)
Product Features

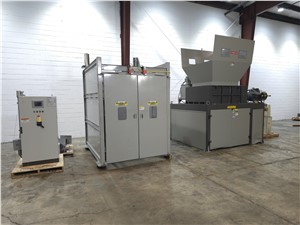

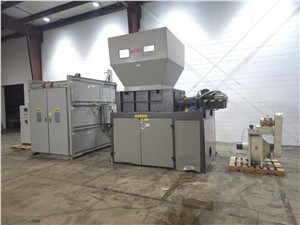

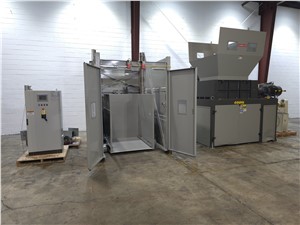

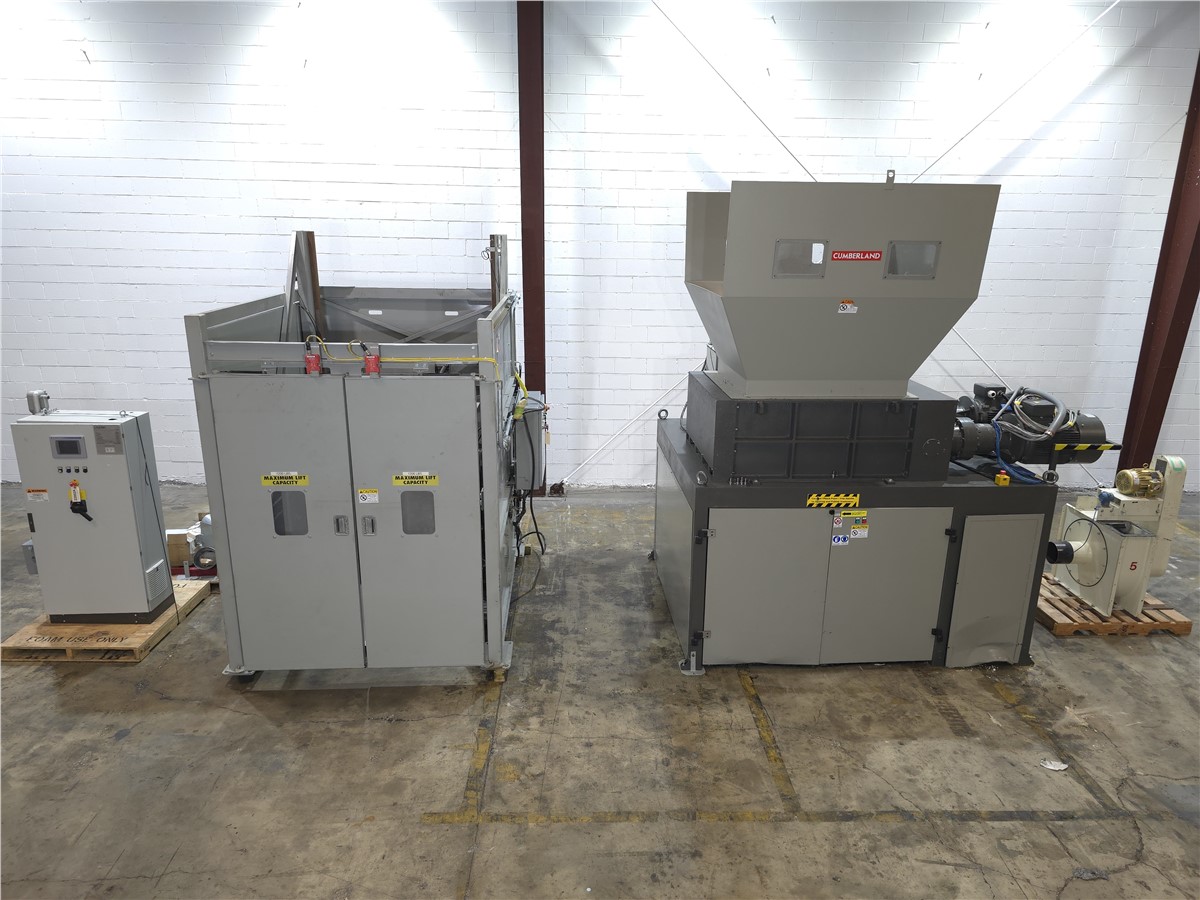

  • Used Cumberland Quad-Shaft Shredder / 1640X Granulator Size Reduction System, New In 2015

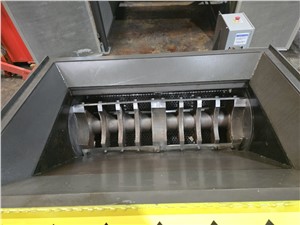

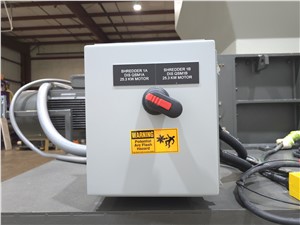

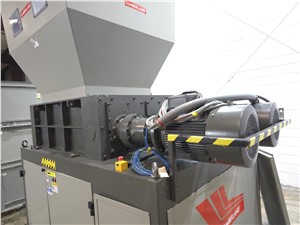

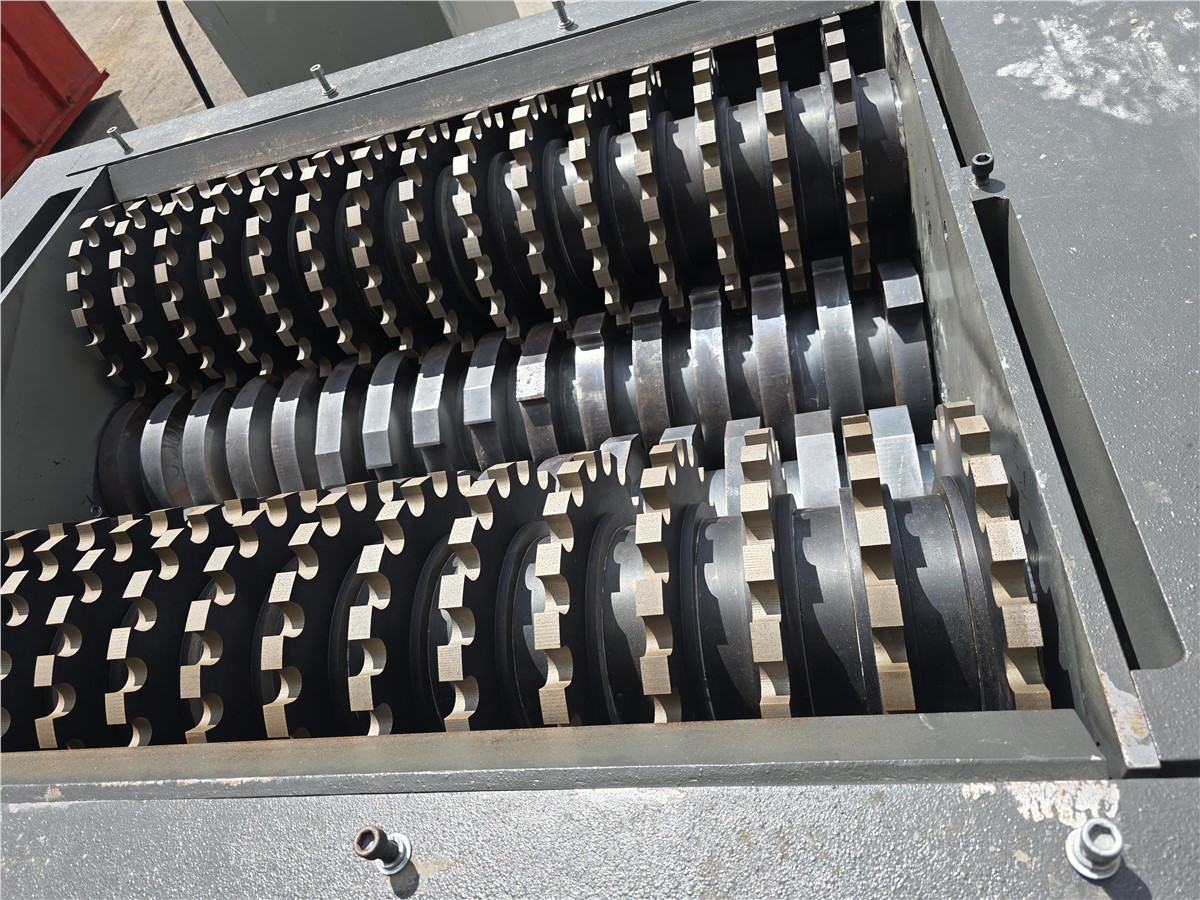

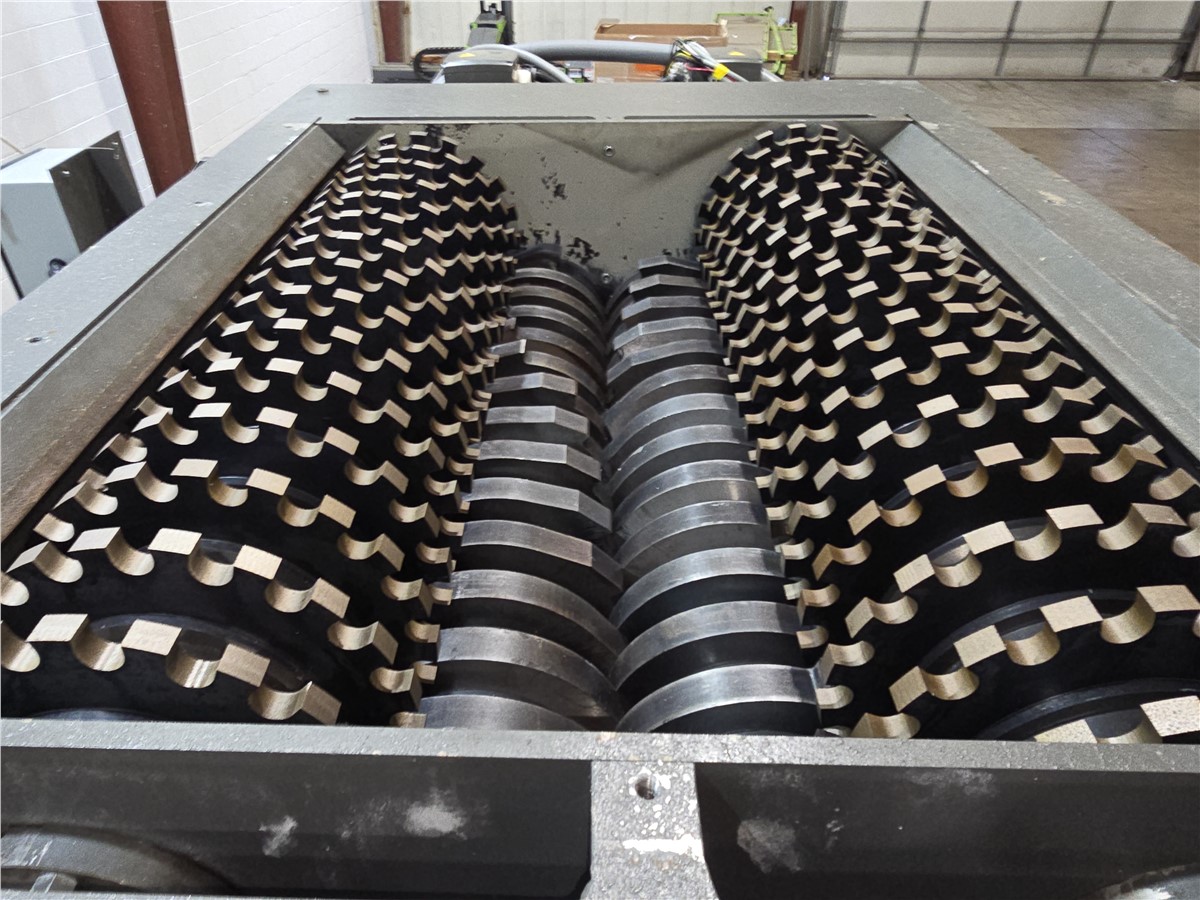

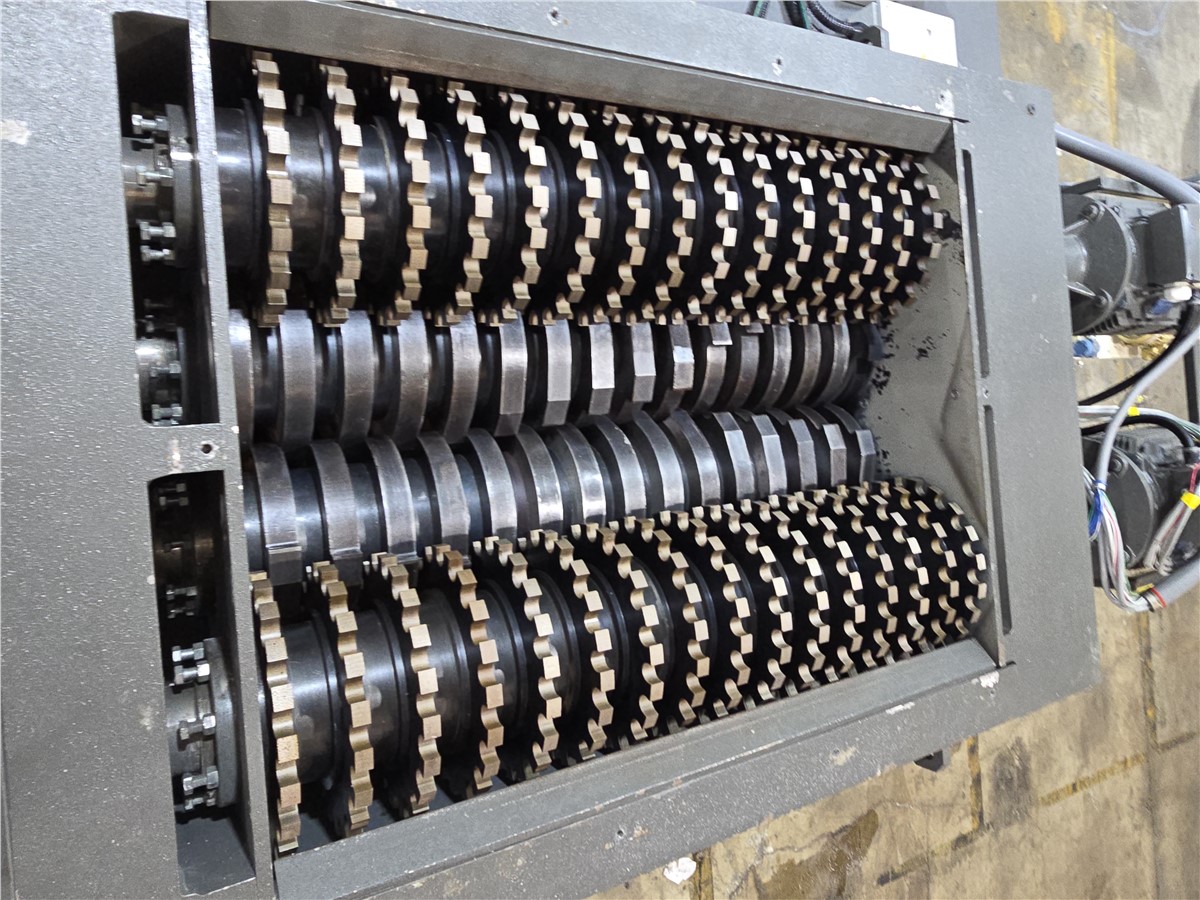

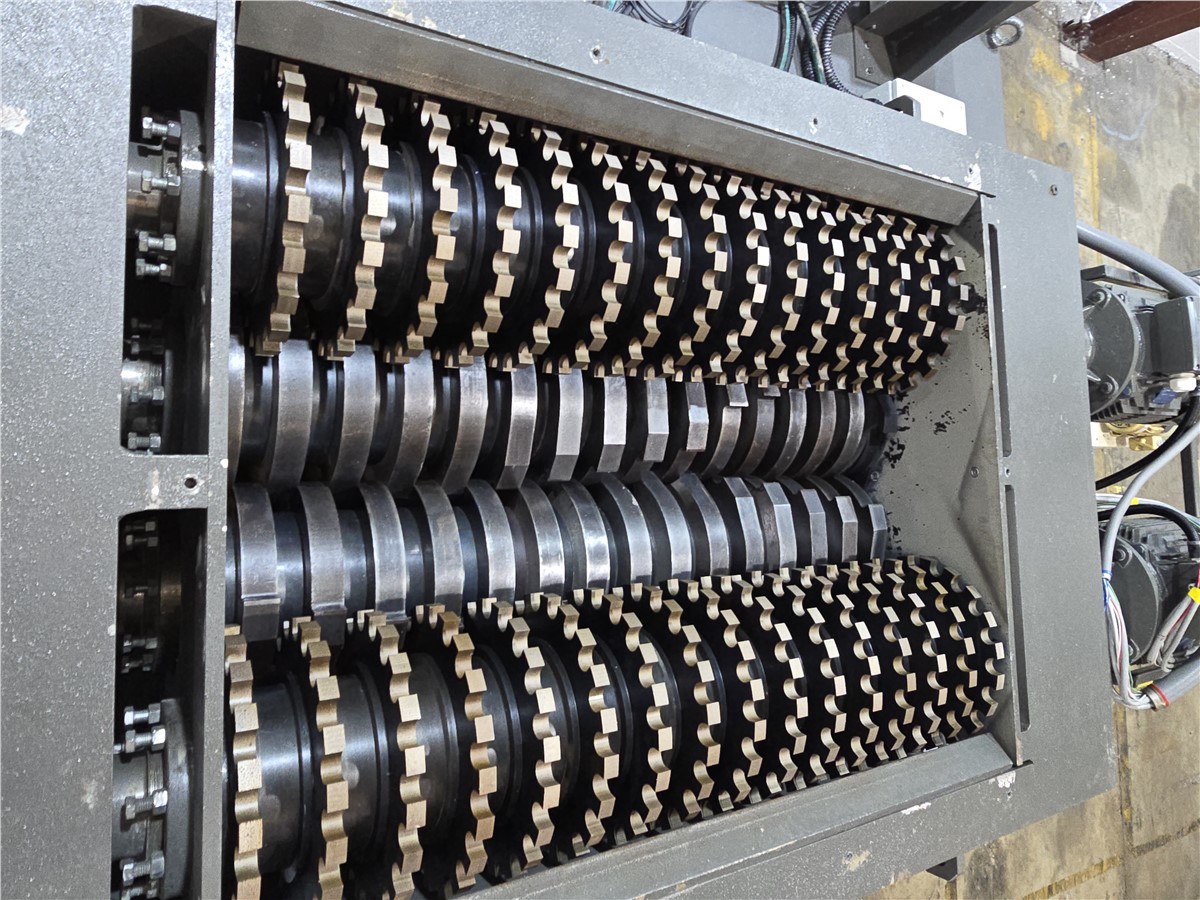

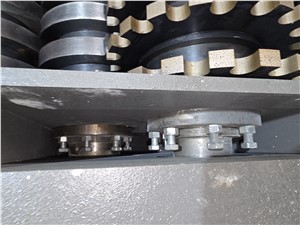

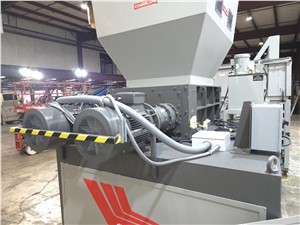

  • Cumberland 49" x 36" Quad-Shaft Shredder, Dual 35hp Motors

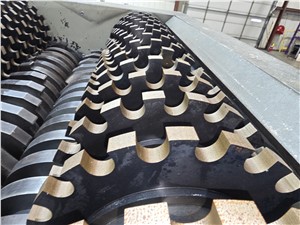

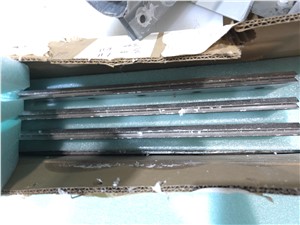

  • Top Cutters: 3/4" Thick
  • Bottom Cutters: 1.5" Thick, approx. 12" Cutting Diameter

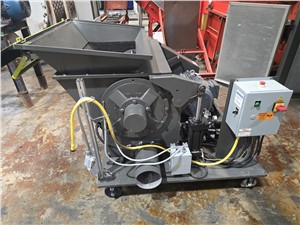

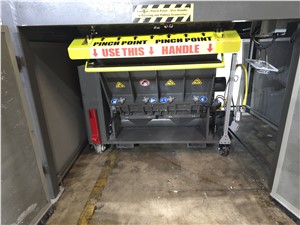

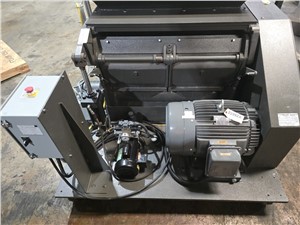

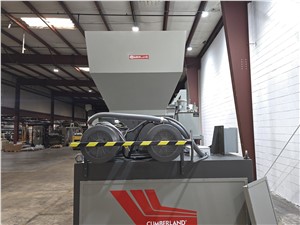

  • Cumberland Model 1640X Granulator, 40 HP
  • 16" x 40" Cutting Chamber
  • 16.54" Cutting Circle Diameter

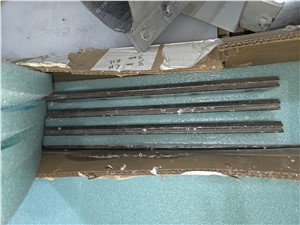

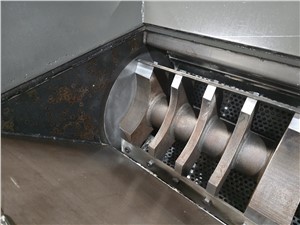

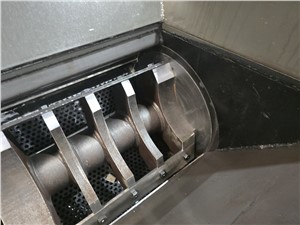

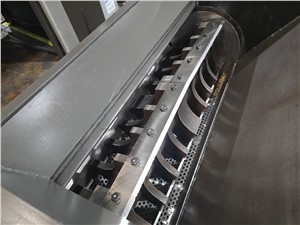

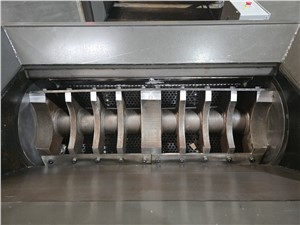

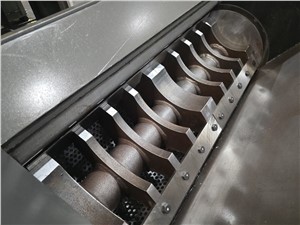

  • 3-Knife Open-Scooped Rotor With Rotating End Discs
  • 437 RPM Rotor Speed
  • 8" Pneumatic Discharge
  • Up To 1,800 Lbs/Hr Manufacturer Rated Throughput, Material Dependent
  • Approximately 4,000 LBS
  • 57" Infeed Height

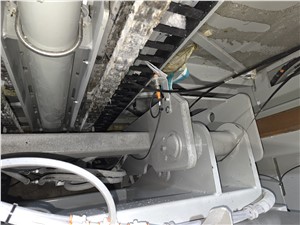

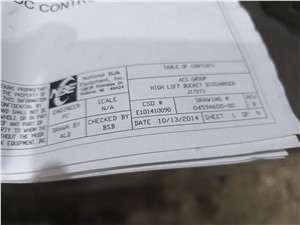

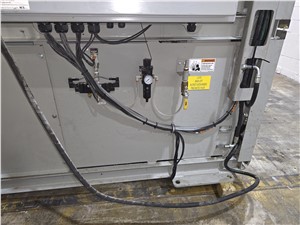

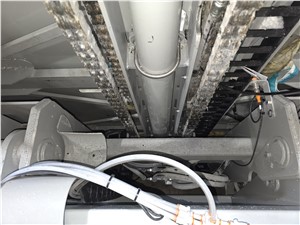

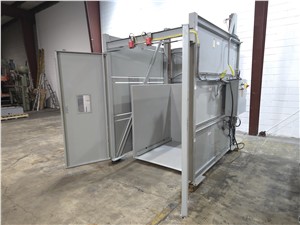

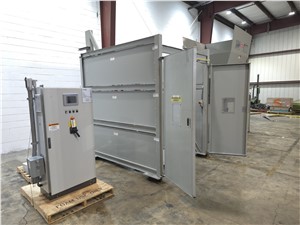

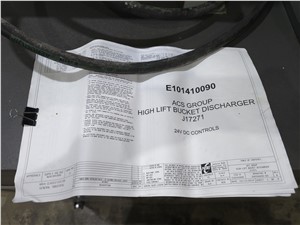

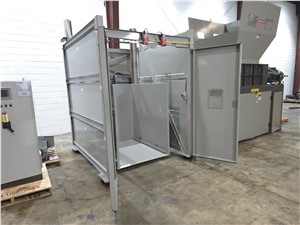

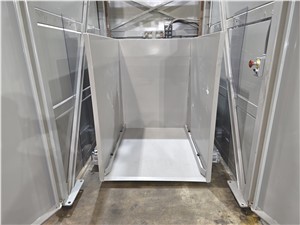

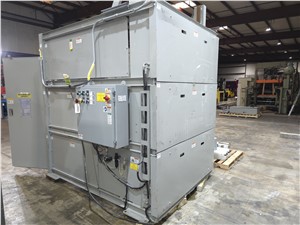

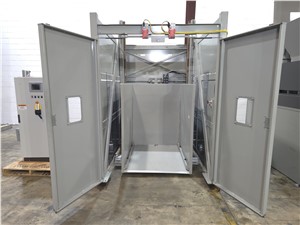

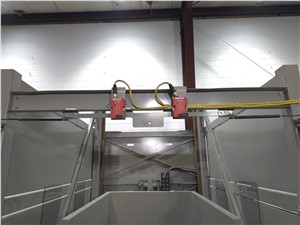

  • National Bulk Equipment / ACS Group High-Lift Bucket Discharger / Box Dumper

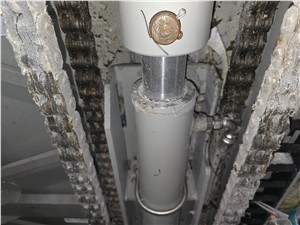

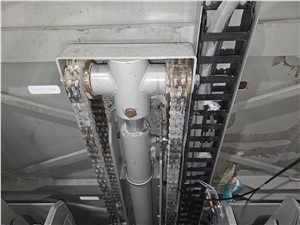

  • ACS Group Model 1640 Hydraulic Lift And Dump System

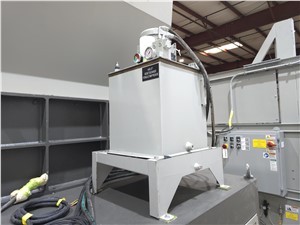

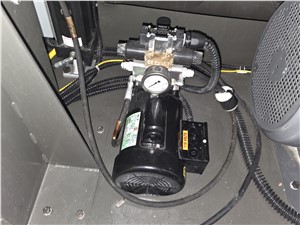

  • 1 HP Hydraulic Power Unit Motor

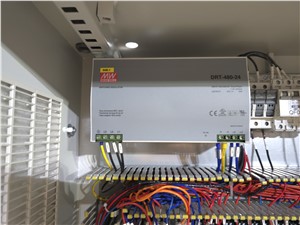

  • 24 VDC Controls
  • NEMA 12 Enclosure

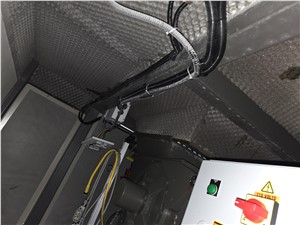

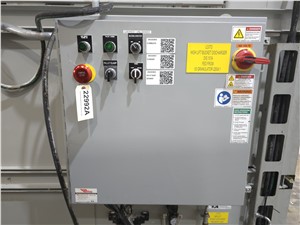

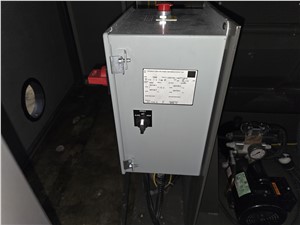

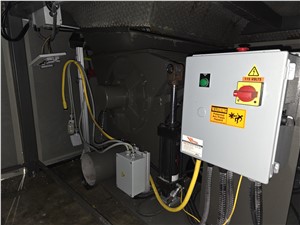

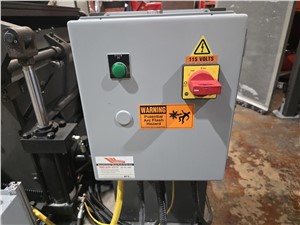

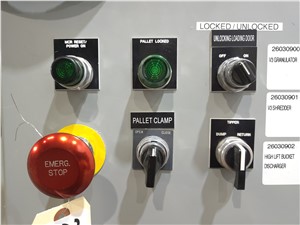

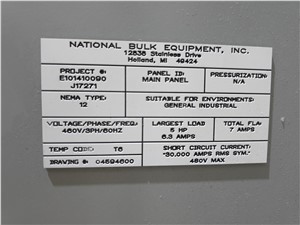

  • Dedicated NBE Control Panel
  • 460/3/60, 7 FLA
  • 5 HP, 6.3 Amp Largest Connected Load

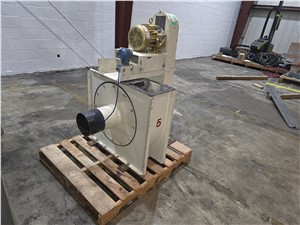

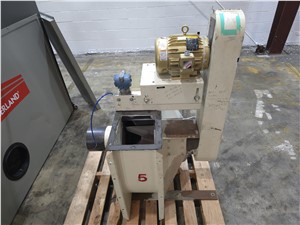

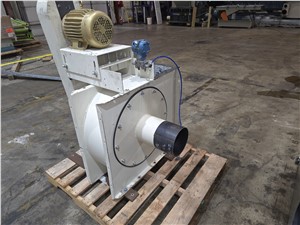

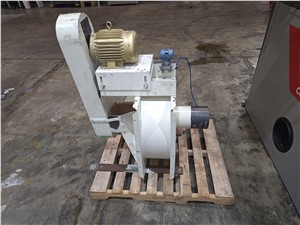

  • Includes Pneumatic Conveying Blower

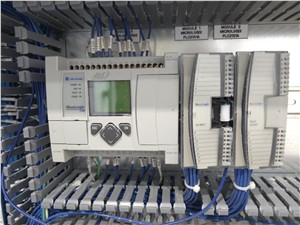

  • Includes Integrated System Controls
  • S/N CA083100A-14002
  • New In 2015
  • Dumper Weight Approx. 25,000 LBS

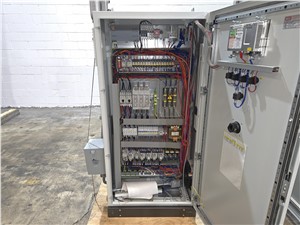

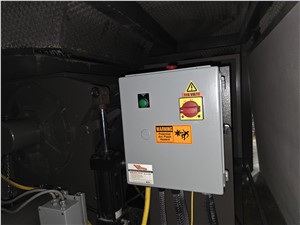

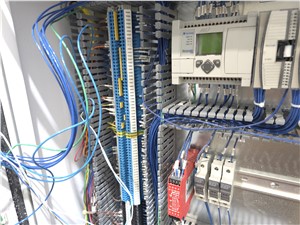

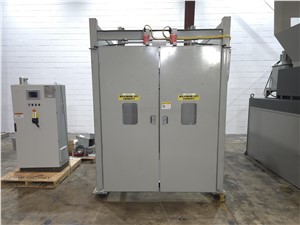

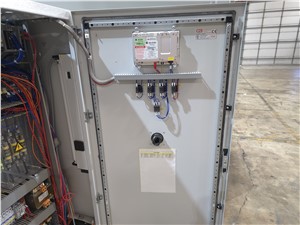

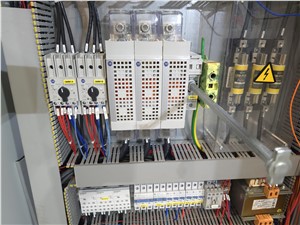

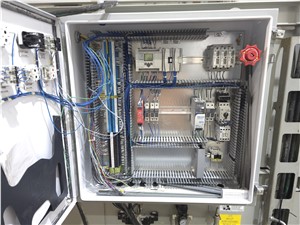

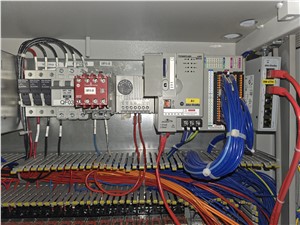

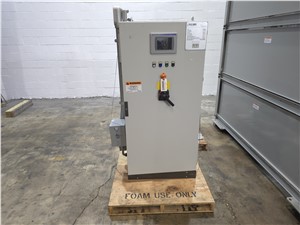

  • ELE.MAC Main Industrial Control Panel
  • 96 kW Installed System Power
  • 135 Amp Total Load Current
  • 52 Amp Largest Motor FLA
  • 460/3/60
  • NEMA 12 Control Enclosure
  • 10 kA Short Circuit Current Rating At Supply Voltage
  • 200 kA Short Circuit Rating Of Protective Device
  • Approximate Dimensions:
  • 1640X Granulator Dimensions: 72" L x 72" W x 80" H, Approx. 4,000 LBS
Add To Quote
Call Us
(877) 887-9408
International
(312) 878-3809
Sell Your Used
Machinery
Brand Cumberland
Item 22992A
