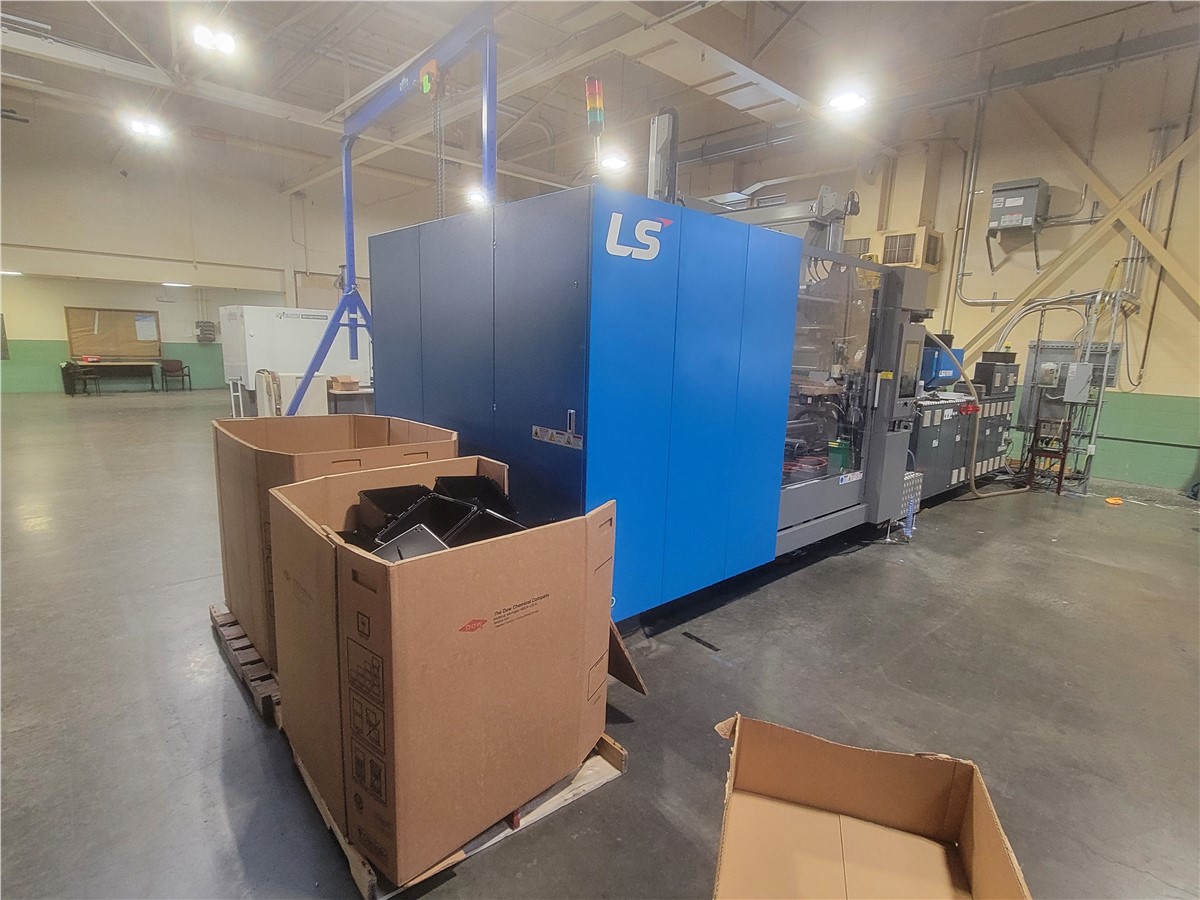

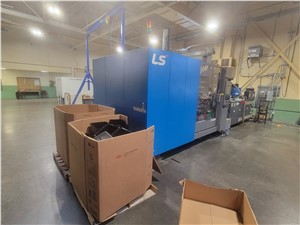

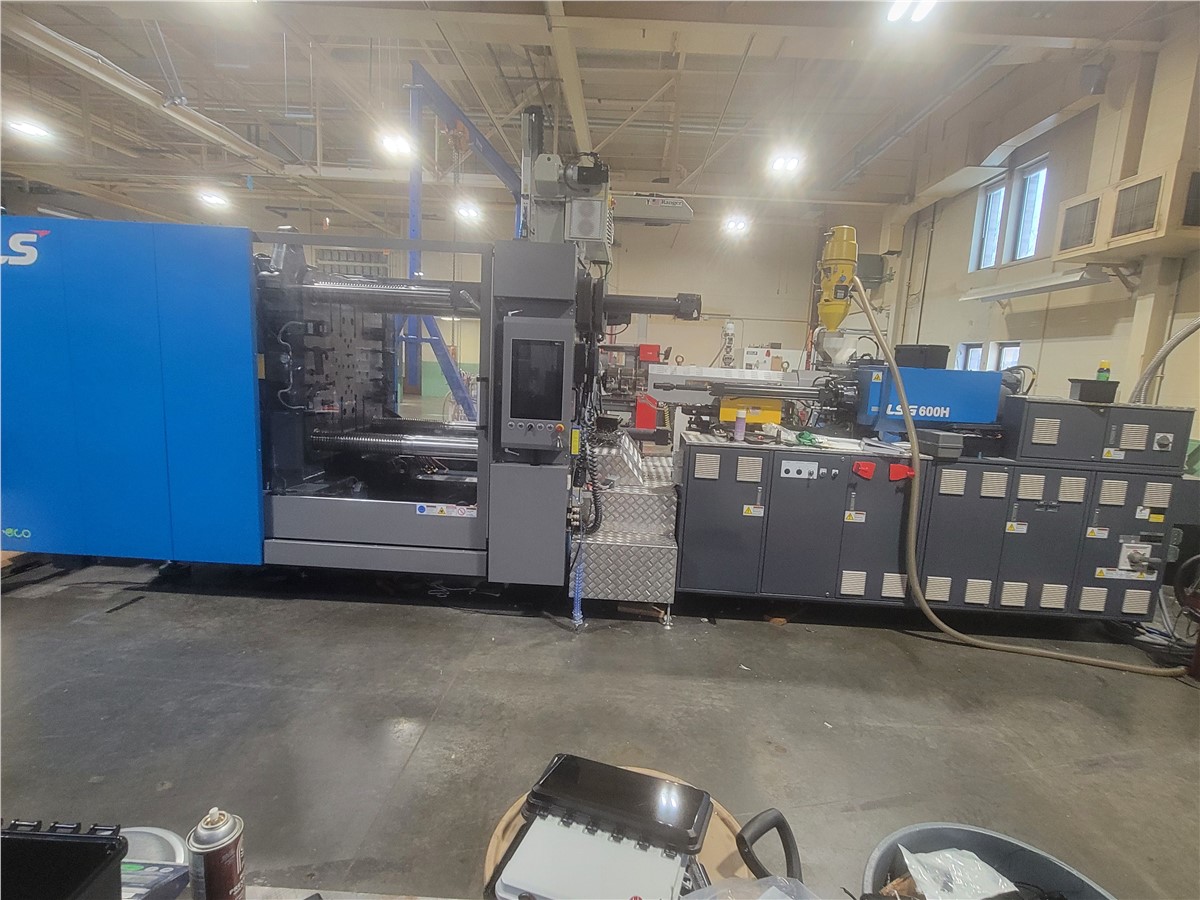

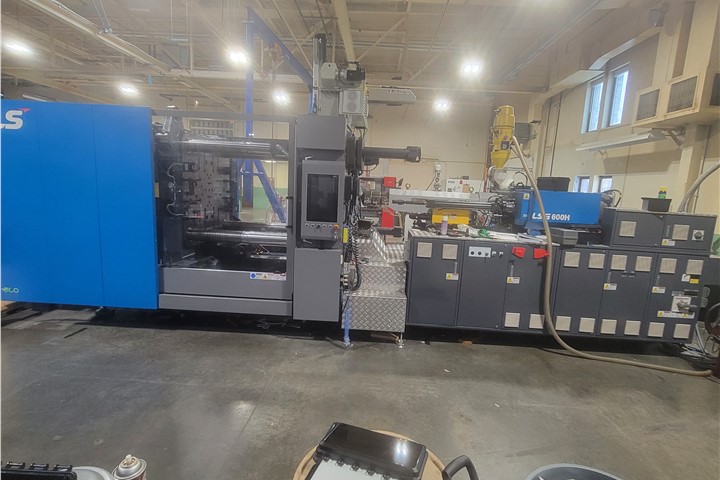

660 Ton LS Mtron Injection Molding Machine, 60 OZ Shot Size, New In 2023

Product Features
  • Used 660 Ton LS Mtron Injection Molding Machine, New In 2023
  • Model LSG 600H i35
  • 660 Ton Servo Hydraulic Clamp
  • 60 OZ Shot Size
  • 36.6" X 33.1" Tie Bar Spacing

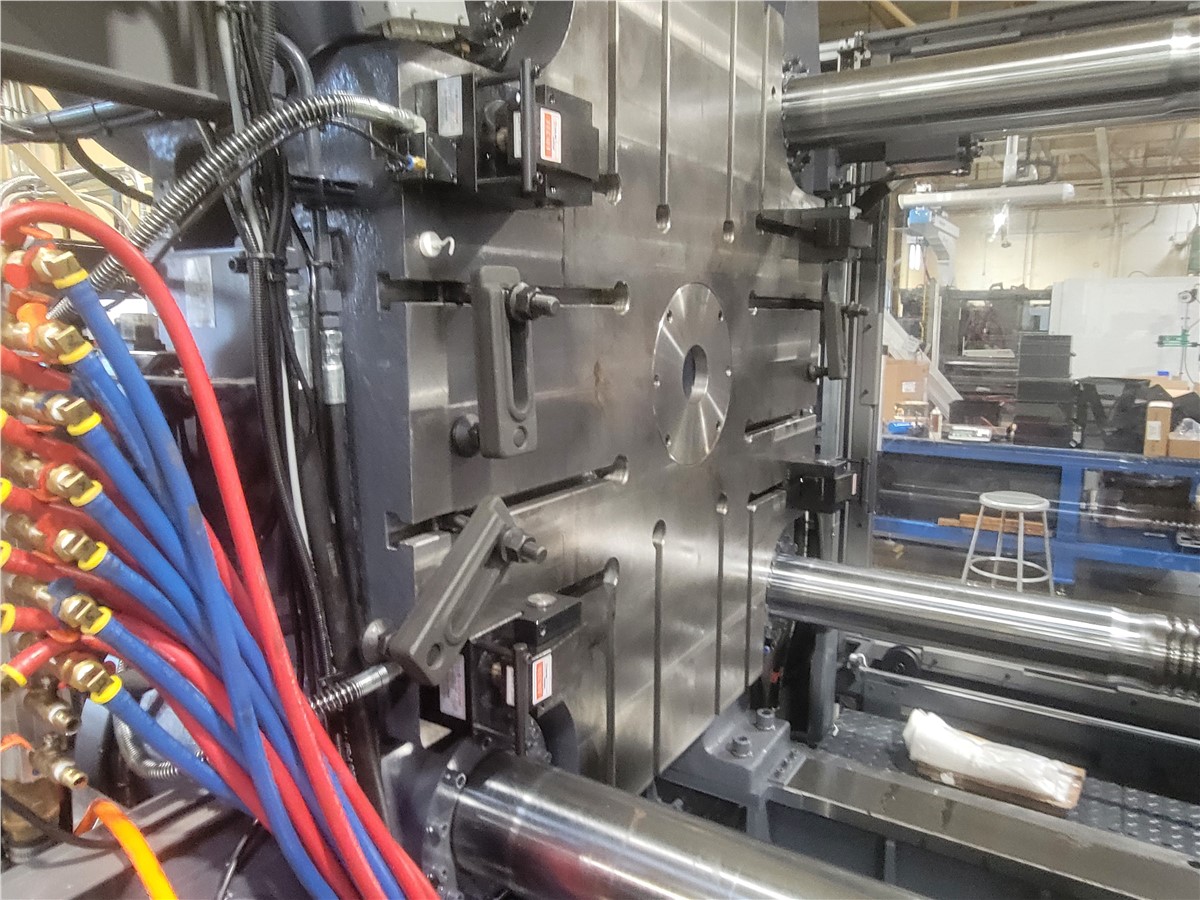

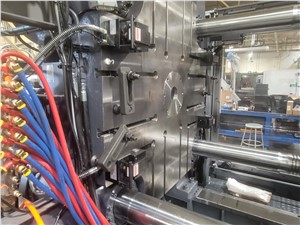

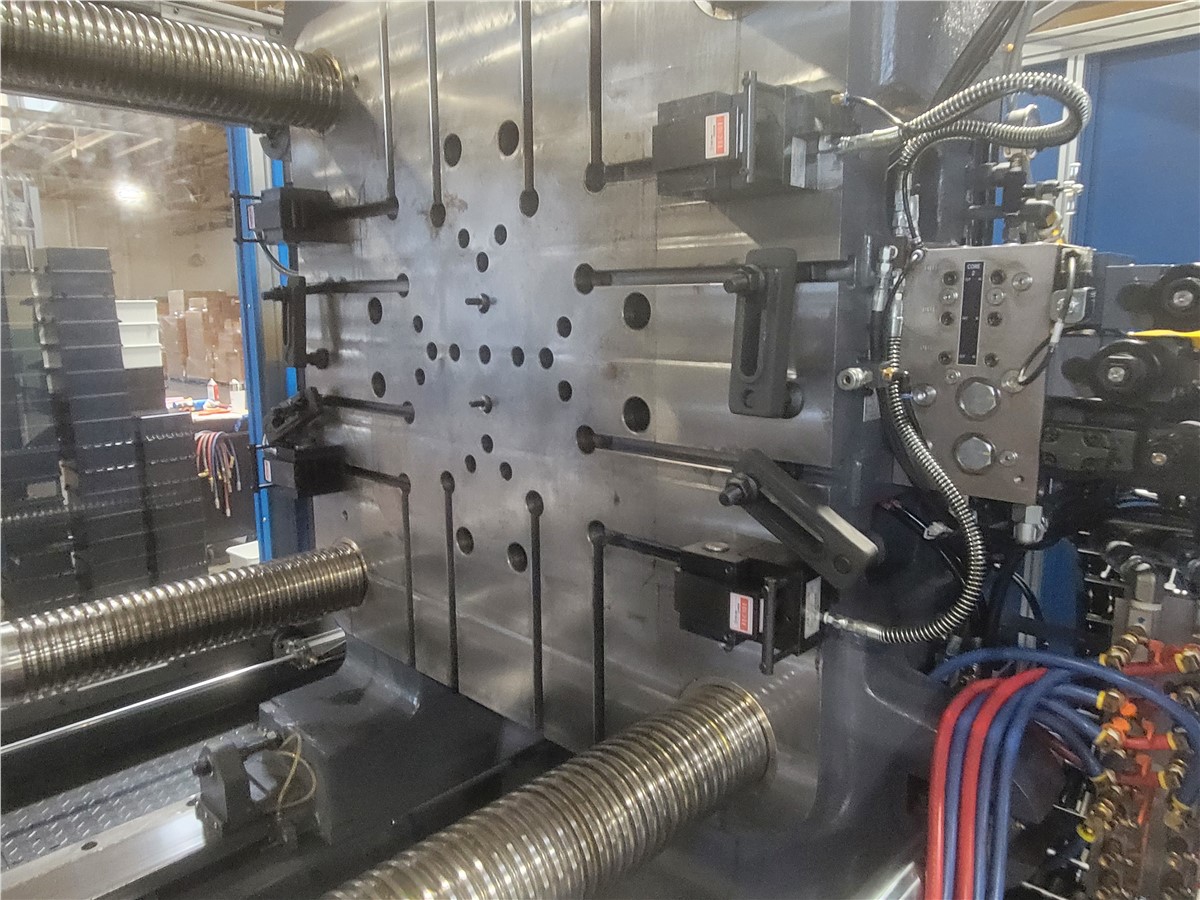

  • 53.1" x 50.4" Platen Size
  • 27.6"/49.5" Mold Opening Stroke
  • 15.8"/37.4" Min/Max Mold Height
  • 9.8" Ejector Stroke
  • 11.7 Ton Ejector Force
  • Max Daylight 65.00"

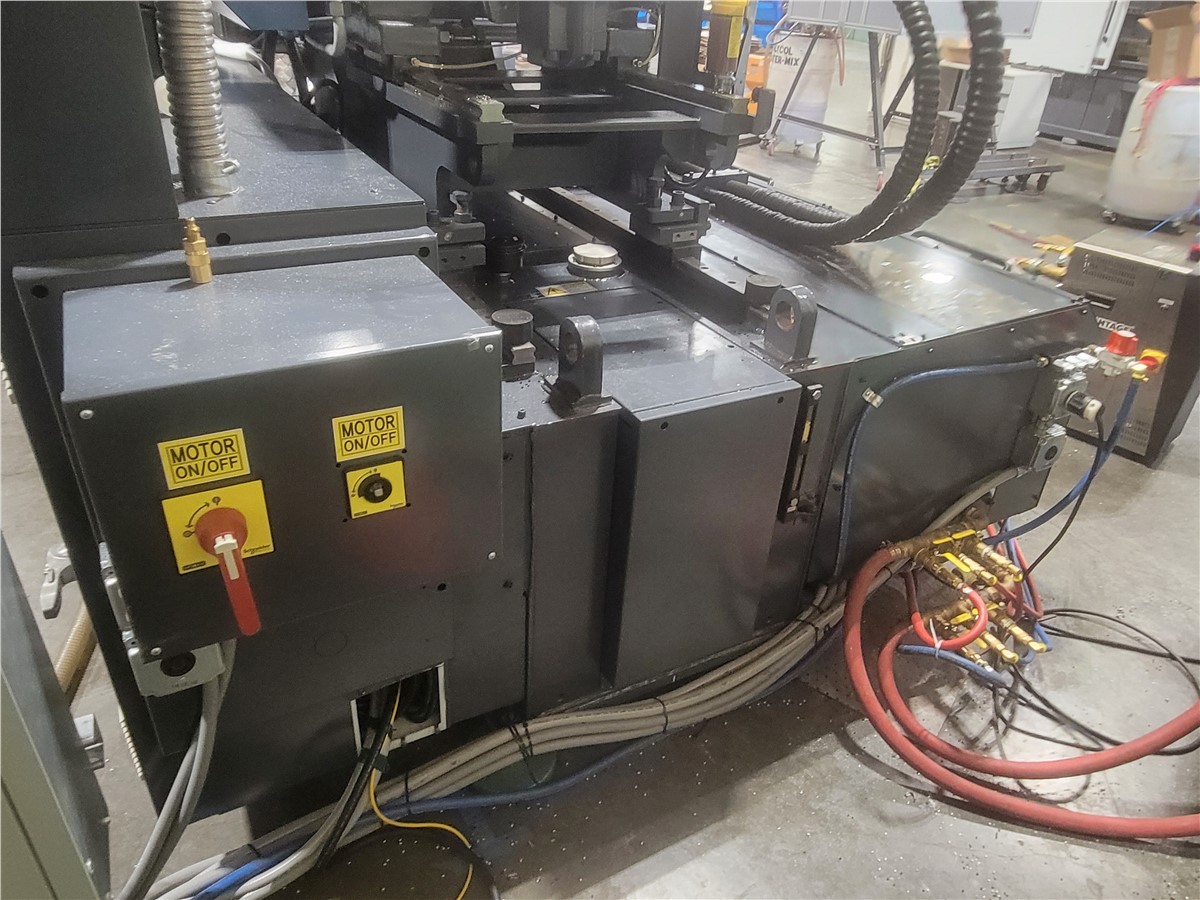

  • 75MM Diameter Screw
  • 16.5" Screw Stroke
  • Max Mold Weight 17,600 LBS

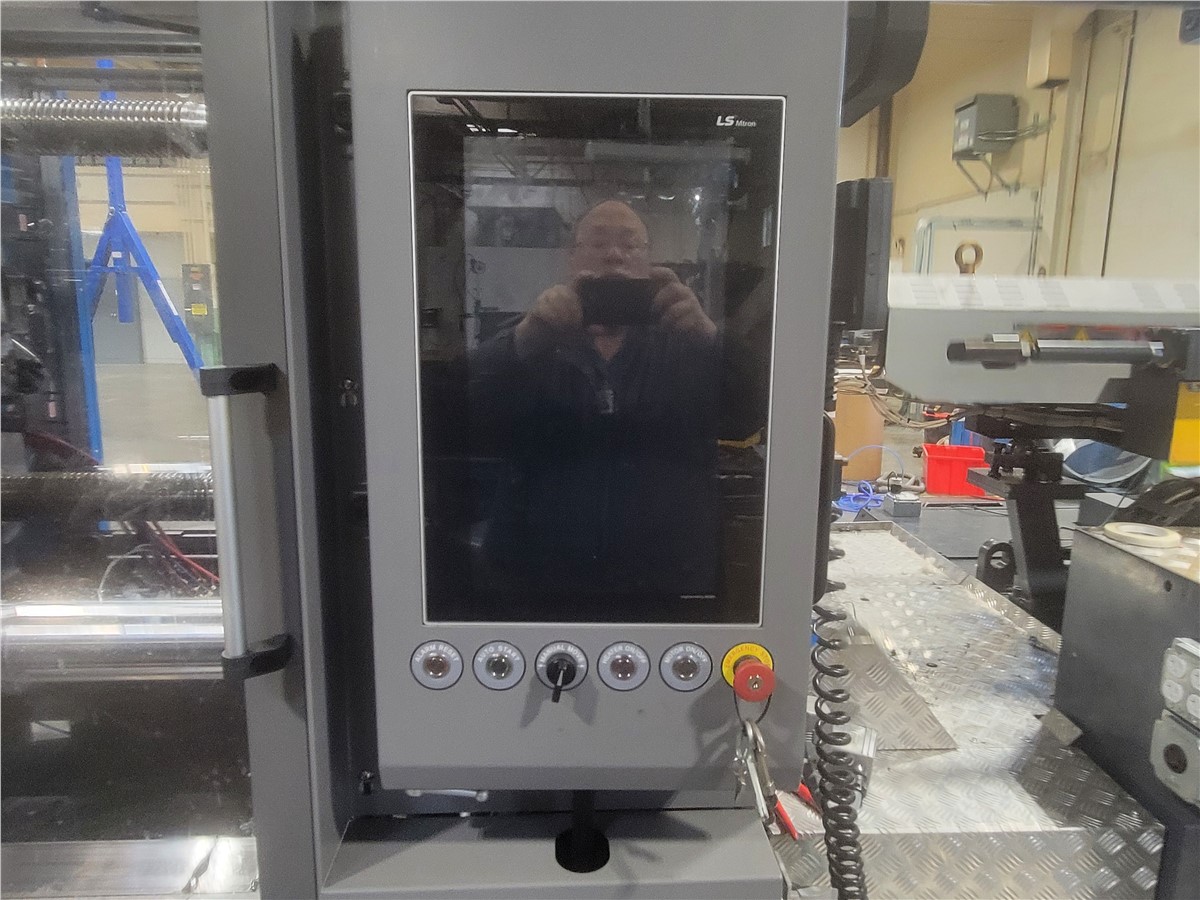

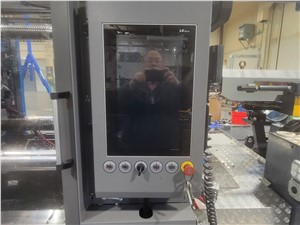

  • Keba 18.5" Touch Screen Controller
  • Hydraulic Core Pull
  • Air Blow
  • Euromap 67 Robot Interface

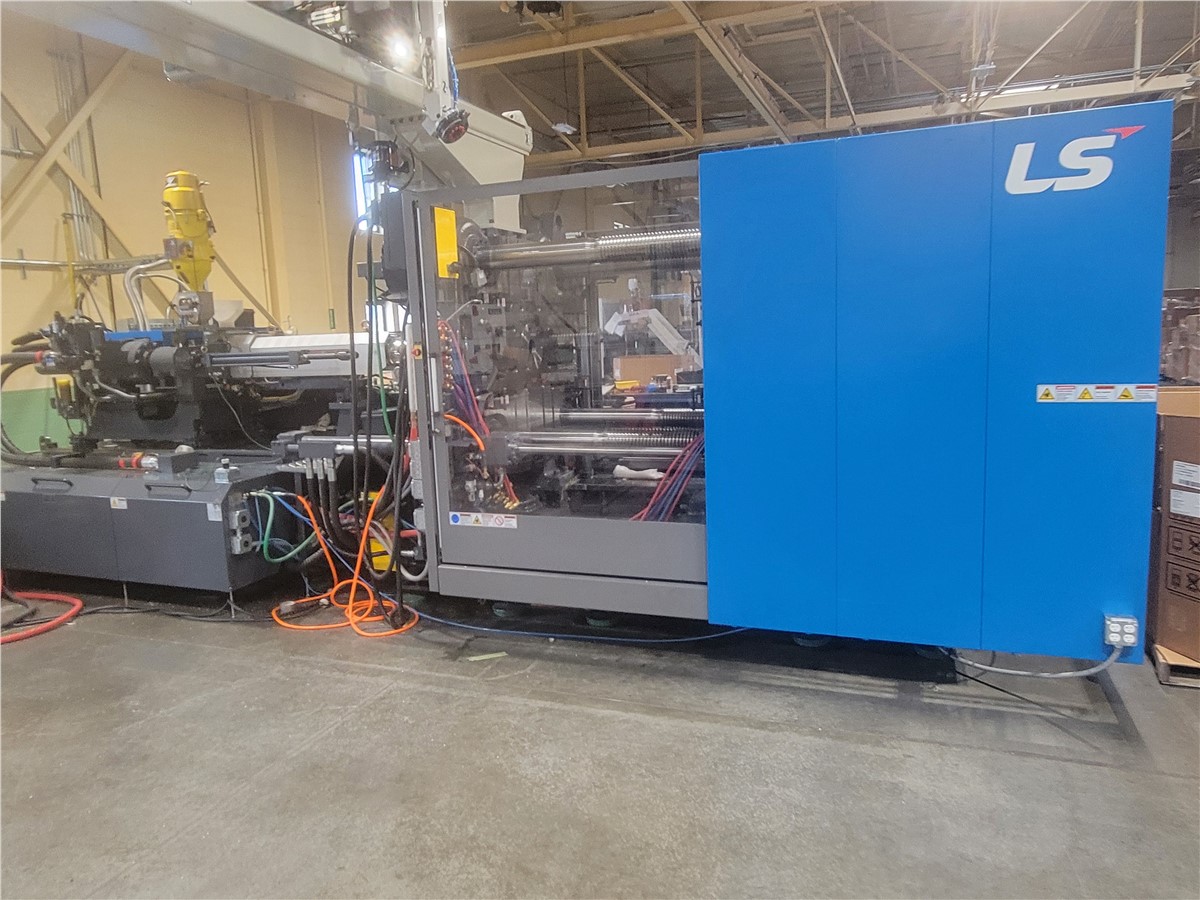

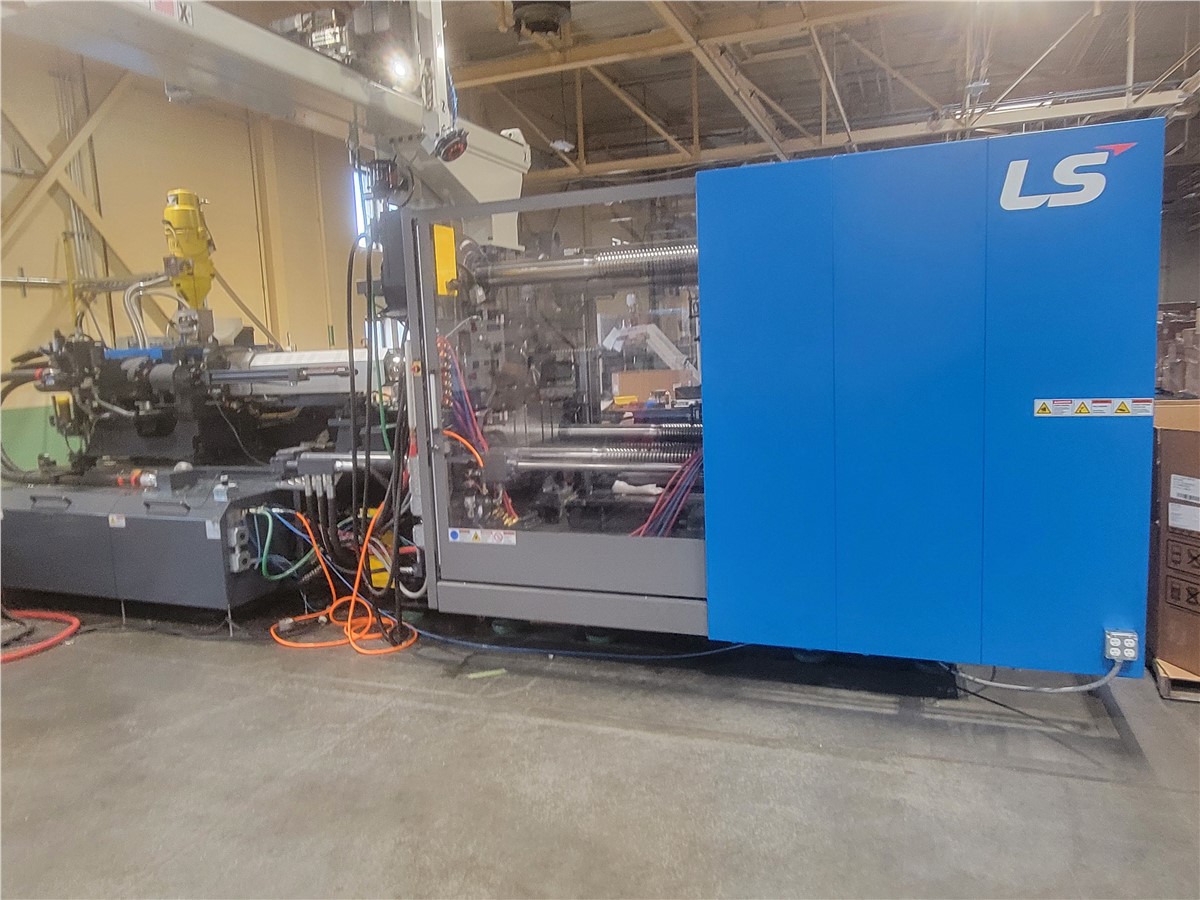

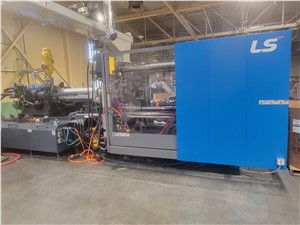

  • Tie Bar Pullers On The Non-Operator Side
  • 480/3/60
  • Dimensions: 298.8" Lx 98.4" W x 86.4" H
  • Weight: Clamp 37,400 LBS, Injection Unit 13,200 LBS
  • Under 100 Hours - Demo Machine
  • Located In Ohio
Call Us
(877) 887-9408
International
(312) 878-3809
Item 22859B
