78" Wide PTI Sheet Line, With 6", 36:1 L/D Extruder, 2003

Add To Quote
Call Us
(877) 887-9408
International
(312) 878-3809
Brand PTI
Model 6000
Item 16235J

Product Features

  • Used PTI 78" Wide Sheet Line (2003) Last Used On PET Sheet.
  • A PTI MODEL 6000 6? 36:1 L/D EXTRUDER HAVING AN EIGHT (8) ZONE ELECTRICALLY HEATED, WATER COOLED (CLOSED LOOP) AND VENTED BARREL AT A 64" CENTER-LINE HEIGHT. GEARBOX IS A FLENDER MODEL SZNF 390, HAS A 15.4:1 REDUCTION RATIO RATED FOR UP TO 986 HP. MACHINE DOES NOT CURRENTLY HAVE A MOTOR, SCREW IS DESIGNED FOR USE ON PET AND HAS PROVISION FOR COOLING. CONTROL PANEL HAS 25 ZONES OF EUROTHERM CONTROLLERS. SERIAL NUMBER 3767/10082. MANUFACTURED 6/2003
  • B DYNISCO MODEL EH-60 SCREEN CHANGER HAVING TWO NOMINAL 6" DIAMETER BREAKER PLATES. INCLUDES 2 HP HYDRAULIC POWER PACK.
  • C MAAG MODEL 90/90 MELT PUMP WITH 30 HP DRIVE SYSTEM, CONTROLS, AND MODEL 6000 STATIC MIXER.
  • D CLOEREN 70? AUTO-FLEX SHEET DIE. 1" X 4" BACK CENTER FEED ENTRANCE. SERIAL NUMBER 77831-2129. MANUFACTURED 4/2003.

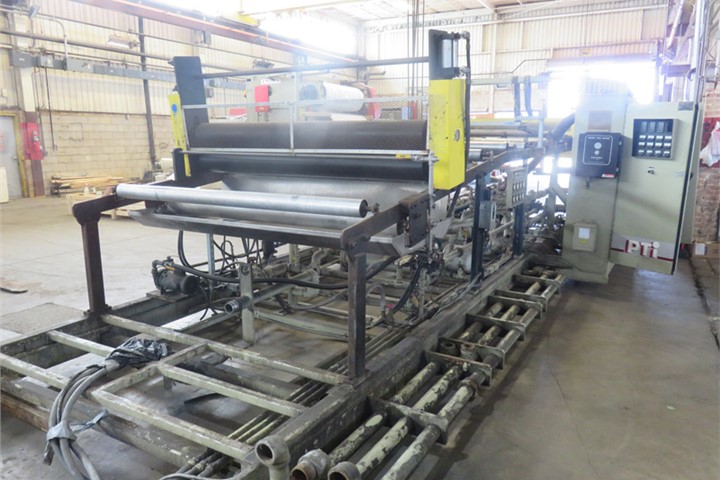

  • E PTI MODEL 7824 DOWN STACK ROLL STAND HAVING THREE ROLLS MOUNTED IN A VERTICAL ARRANGEMENT CONSISTING OF 24" DIAMETER MIDDLE AND BOTTOM CHROME PLATED ROLLS AND AN A 16" DIAMETER CHROME PLATED TOP ROLL. HYDRAULICALLY ACTUATED GAPPING. ROLLS ARE DRIVEN BY A 10 HP AC MOTOR THROUGH GEARBOXES VIA SILENT CHAIN AND SPROCKETS. INCLUDES BUILT ONTO FRAME TEMPERATURE CONTROL SYSTEM (MISSING ONE PUMP), IDLER CONVEYOR, DIP COATING STATION, SLITTING STATION, AND PULL ROLL STAND WITH 78" X 8" DIAMETER ROLLS. SERIAL NUMBER 3354R. 480/3/60. 175 AMPS.
  • F - 78" PARKINSON TURRET WINDER HAVING FOUR WINDING POSITIONS. EACH STATION IS DRIVEN BY A 5 HP AC MOTOR. INCLUDES THREE WINDING SHAFTS. MISSING GEARBOX ON TURRET.
  • G - PREVIOUSLY RUNNING PET. LINE WAS ORIGINALLY FACTORY DESIGNED TO RUN PET, PP, AND PS AT 2500-3000 POUNDS AN HOUR.
