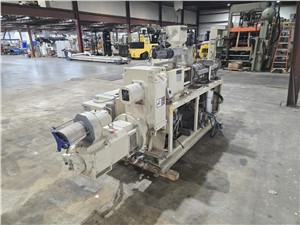

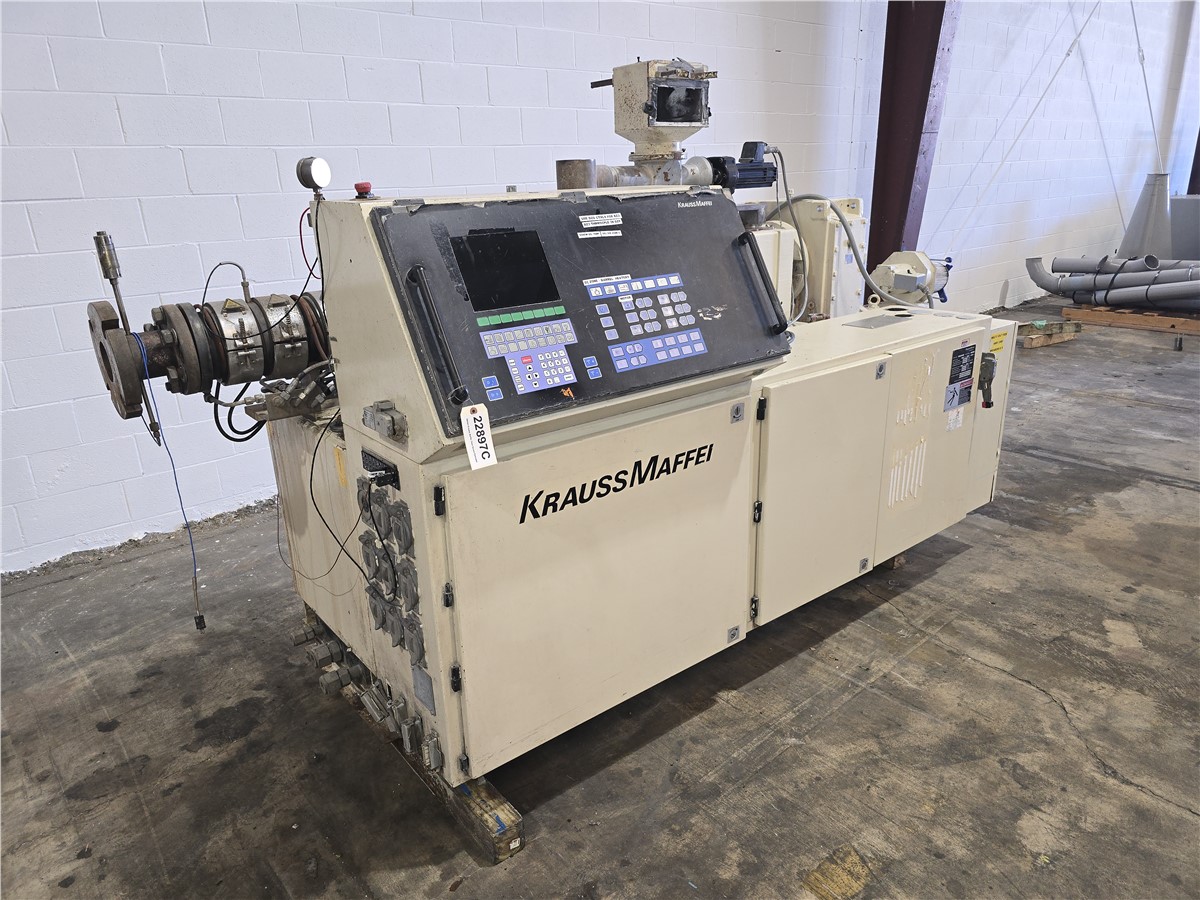

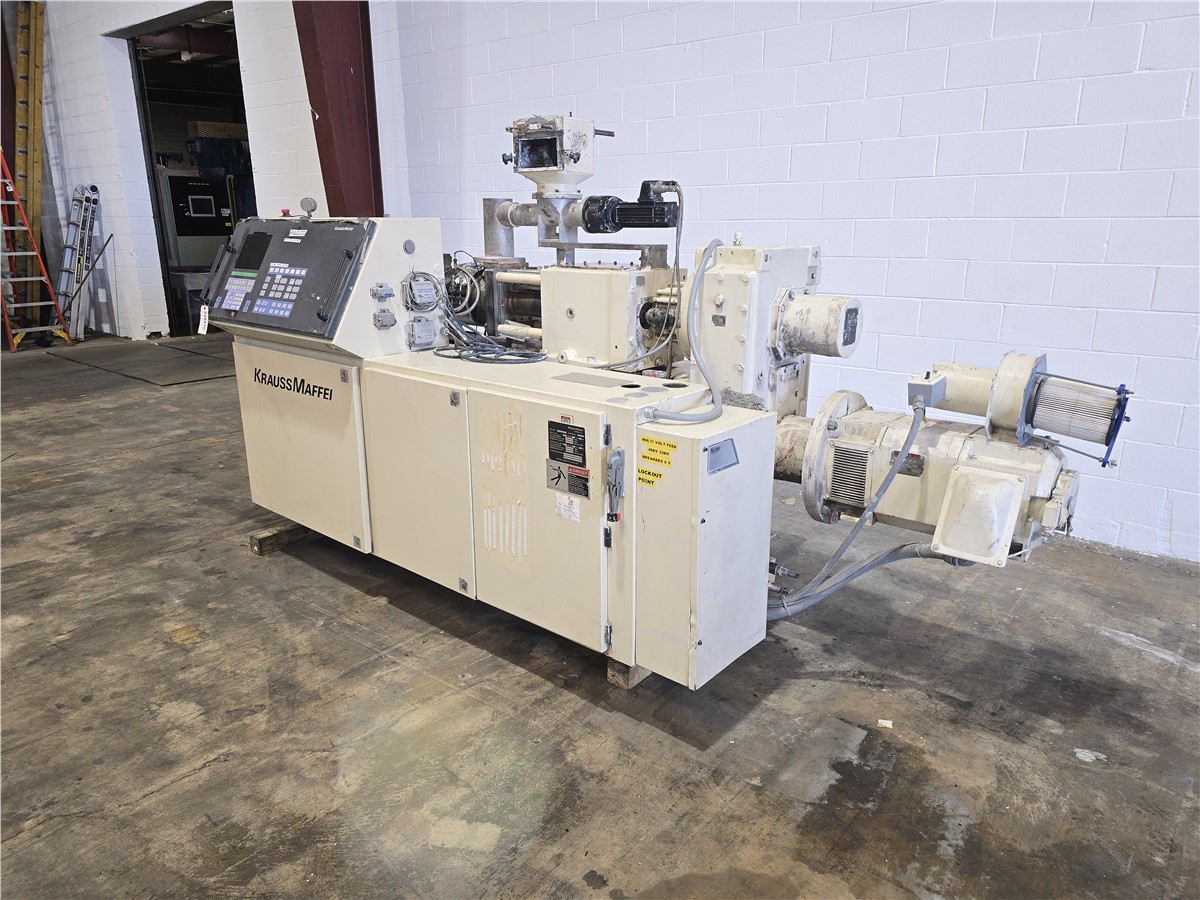

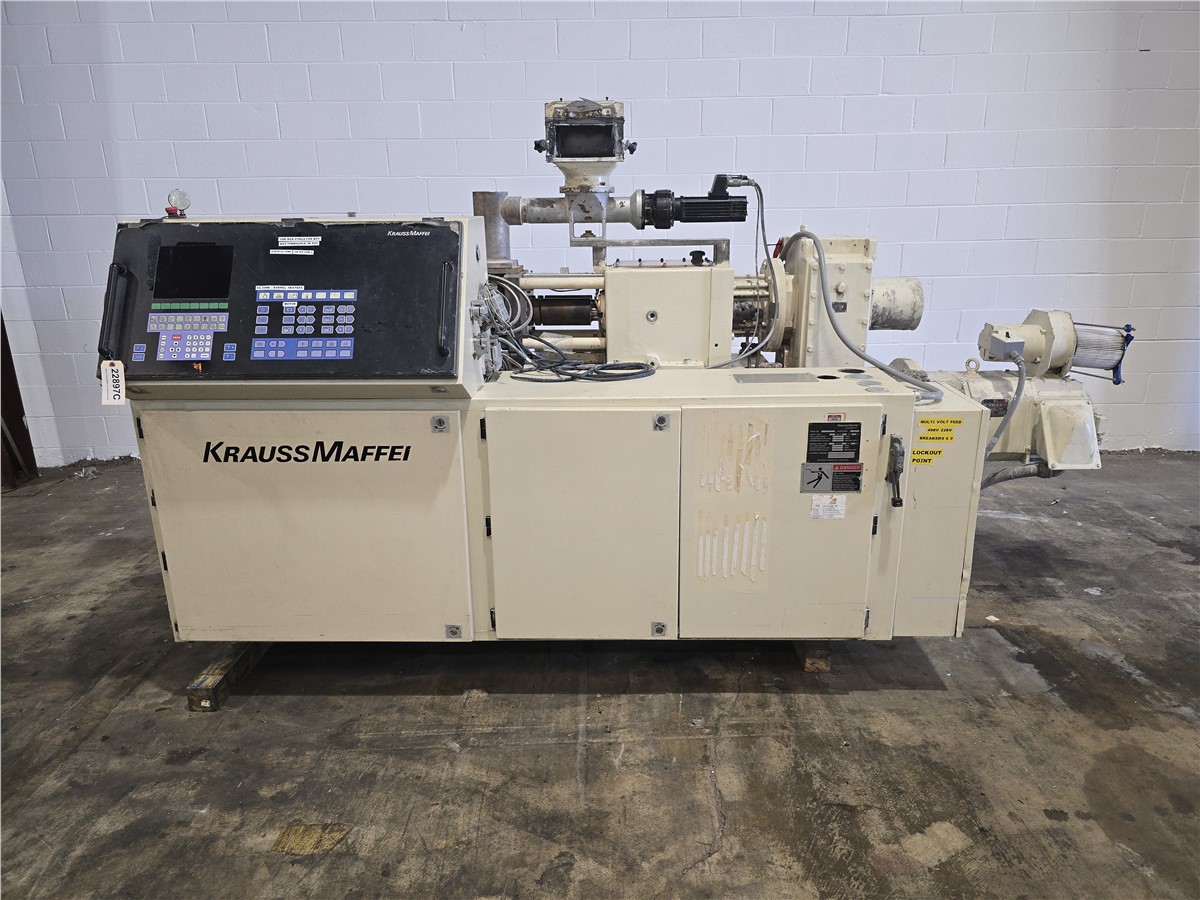

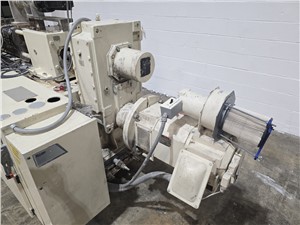

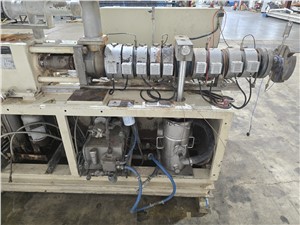

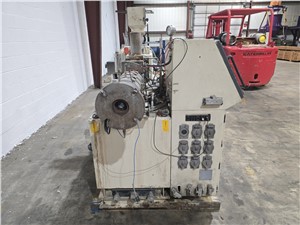

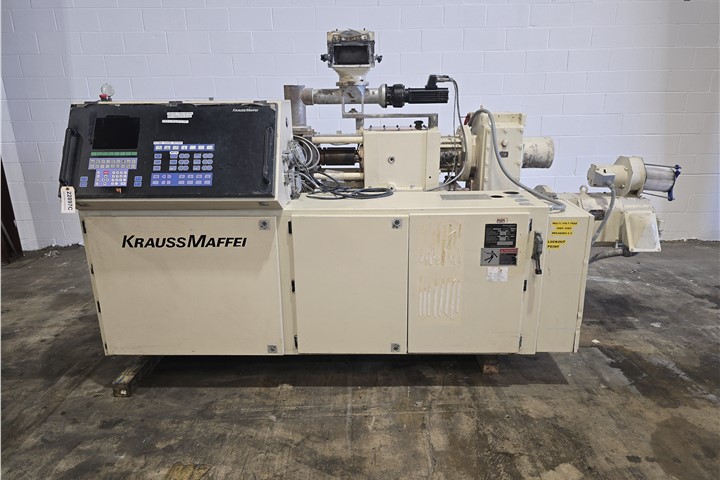

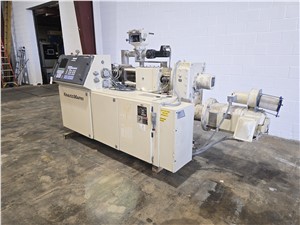

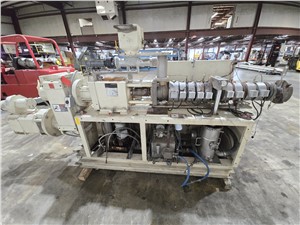

60mm Krauss Maffei Counter-Rotating Conical Twin Screw Extruder, 50 HP

Click to enlarge (45 Total Photos)
Product Features
  • Used 60mm Krauss Maffei Counter-Rotating Conical Twin Screw Extruder, 50 HP

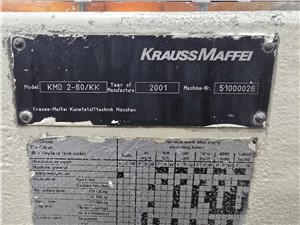

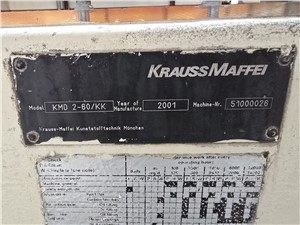

  • Model: KMD 2-60/KK
  • Screw Diameter: 2.36"–4.92" (60–125 mm)
  • Maximum Screw Speed: 37.5 RPM

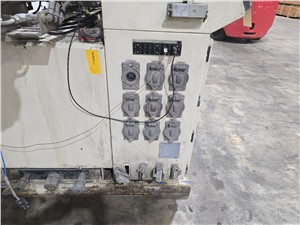

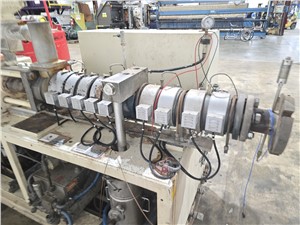

  • 4 Barrel Zones, 9 Die Zones
  • 15.5 kW Max Barrel Heating Capacity

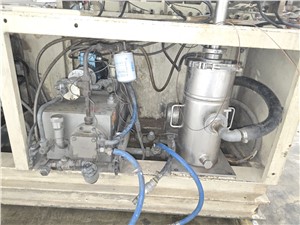

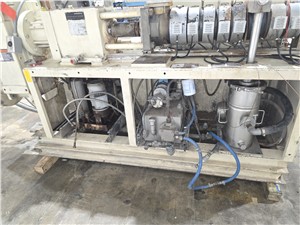

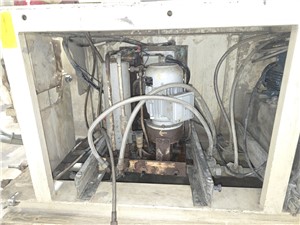

  • 3 Zone Closed-Loop Oil Cooling  w/ Water-Cooled Heat Exchanger, Water Pump, Reservoir
  • Centerline Height: Approx. 39.5"

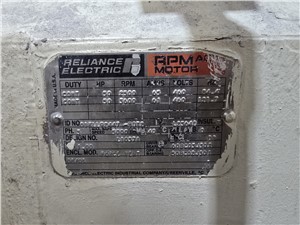

  • 50 HP Reliance Electric RPM AC Motor, 460V
  • 2500 RPM @ 84.4Hz , 65 A
  • 3000 RPM @ 181.7Hz, 61A

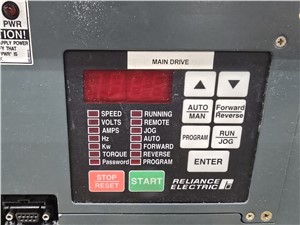

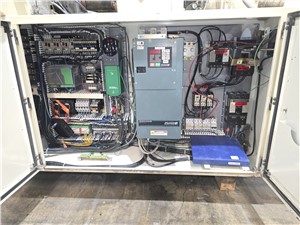

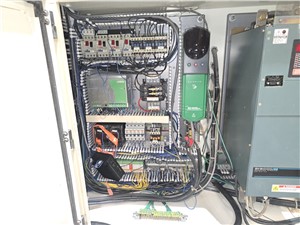

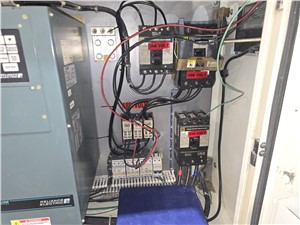

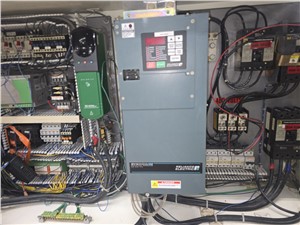

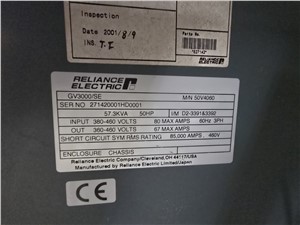

  • Reliance Electric GV3000/SE AC Drive, S/N: 271420001HD0001
  • Input: 380-460/3/60,  80 Max Amps
  • Output: 360-460V, 67 Max Amps

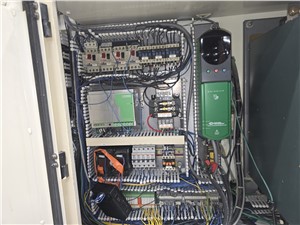

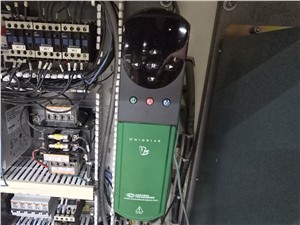

  • Unidrive V3

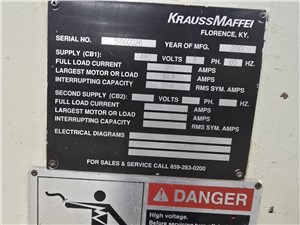

  • Extruder Power: 480/3/60, 125 Amp
  • Gearbox Reduction Ratio: 1:62
  • Maximum Gearbox Torque: 9,000 Nm
  • New In 2001
  • Extruder S/N: 51000026
  • New Barrel and Screw Installed 2020

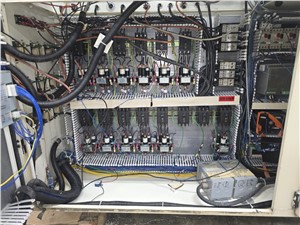

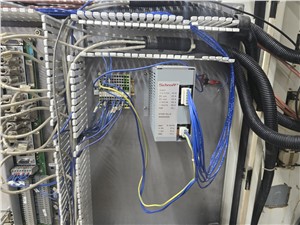

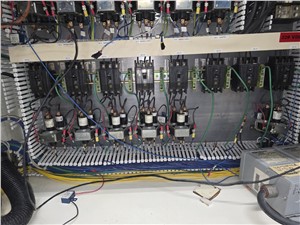

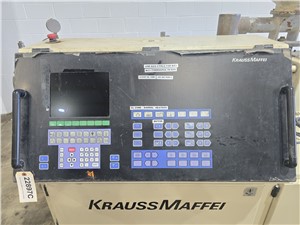

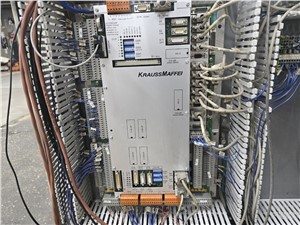

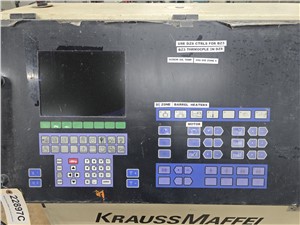

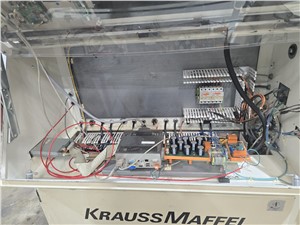

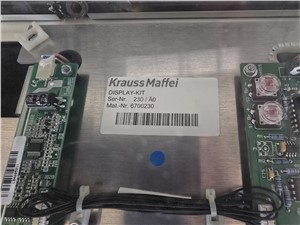

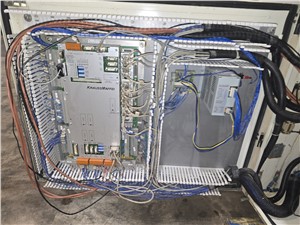

  • Krauss-Maffei C4 Controller, Krauss Maffei Digital Display Kit
  • Approximate Manufacturer Dimensions: 144" L x 50" W x 92" H
  • Approximate Manufacturer Net Weight: 5,030 Lbs
  • PHOTOS COMING SOON
  • Suitable For Rigid And Flexible PVC Pipe, Profile, Conduit, Siding, Window Profile, Decking, Trim, And Granulation
