Name: 7,500-10,000 Lbs/Hr Sterling EL99C / 9917EL Elutriation System, New In 2015
Brand: Sterling
SKU: 22853A
Price: 29500.00 USD
Availability: InStock

7,500-10,000 Lbs/Hr Sterling EL99C / 9917EL Elutriation System, New In 2015

Click to enlarge (63 Total Photos)

Product Features

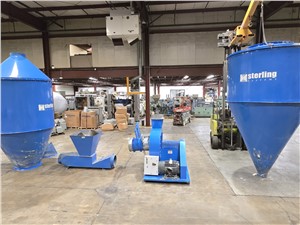

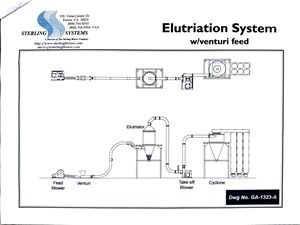

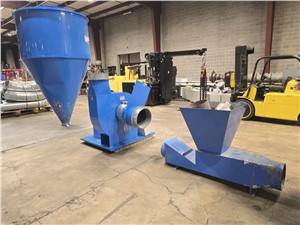

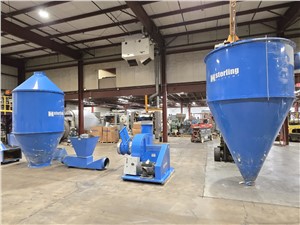

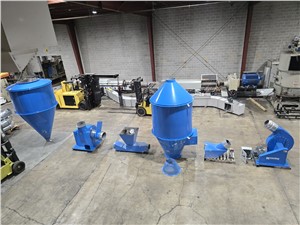

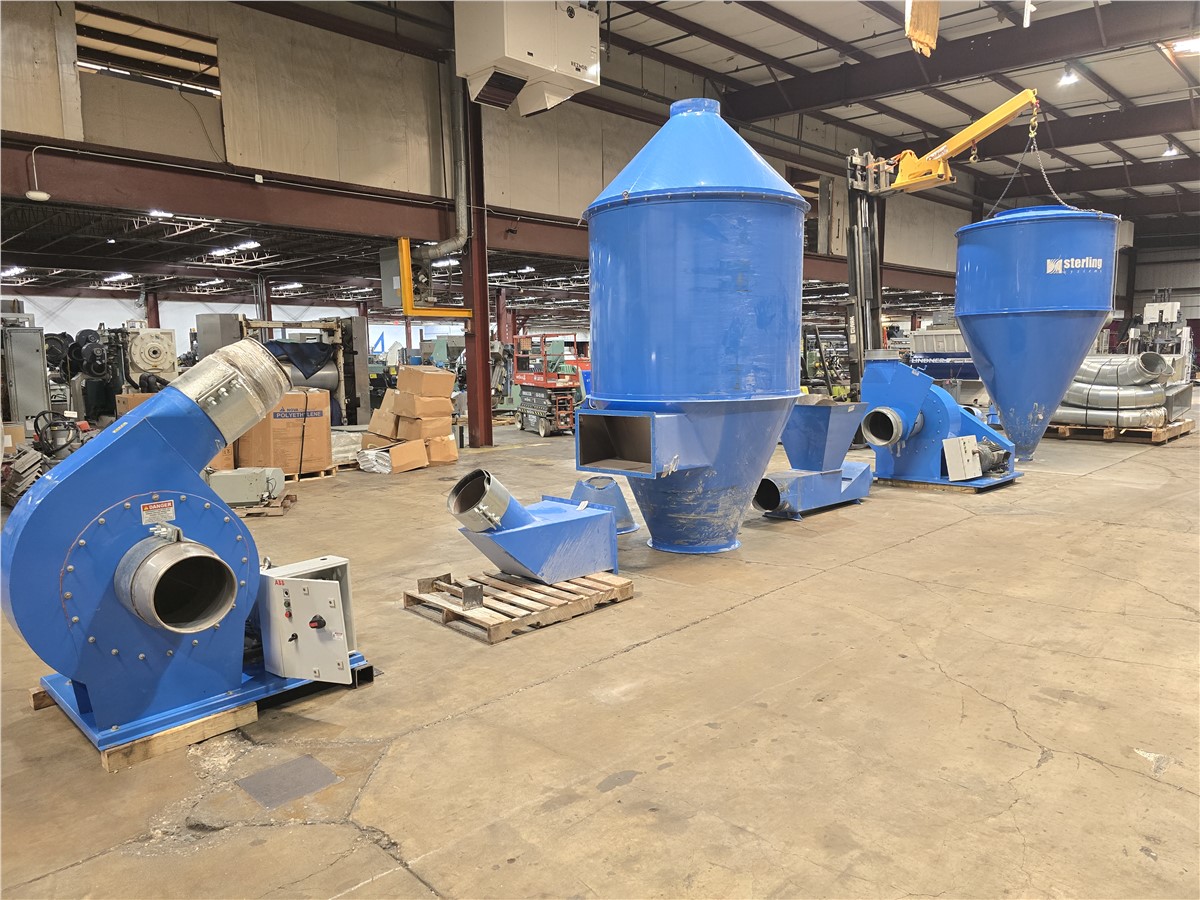

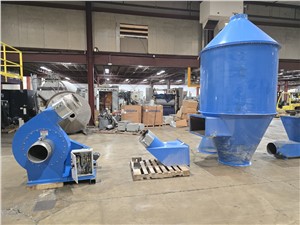

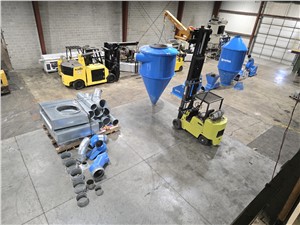

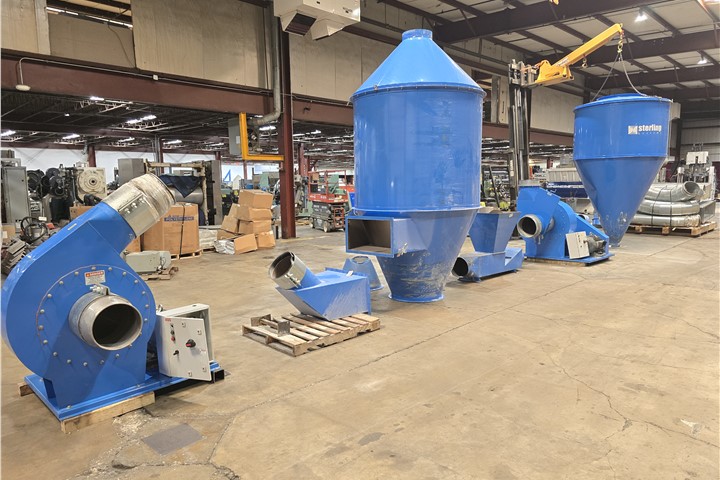

Used 7,500-10,000 Lbs/Hr Sterling EL99C / 9917EL Elutriation System, Complete Air Separation System with Blowers, Cyclone, Filter Head, Controls & Tubing

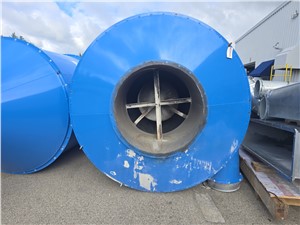

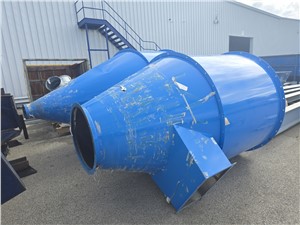

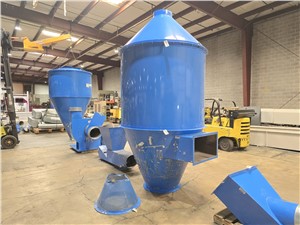

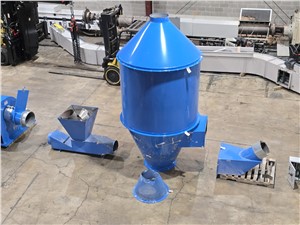

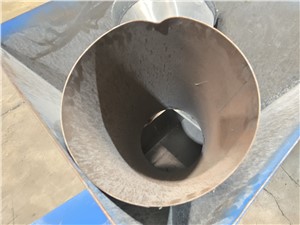

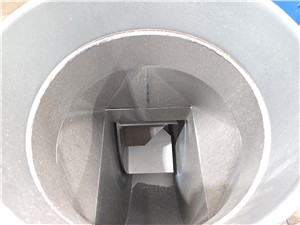

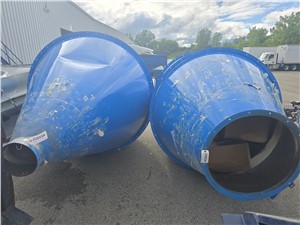

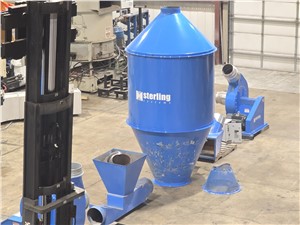

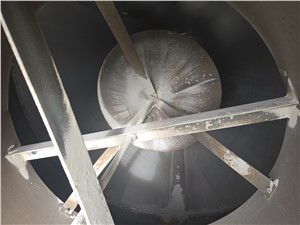

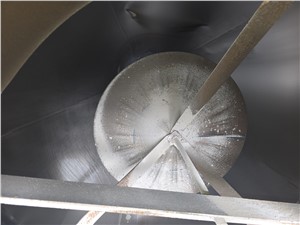

Sterling EL99C Size 17 Elutriator, Carbon Steel

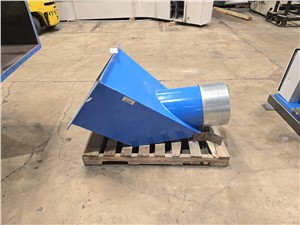

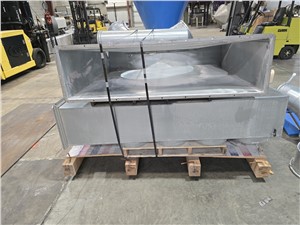

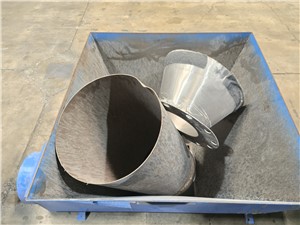

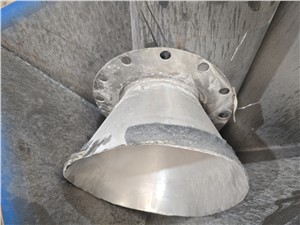

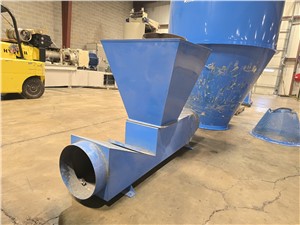

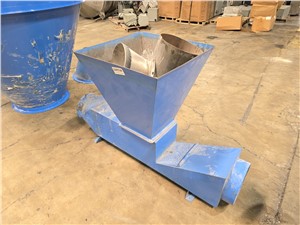

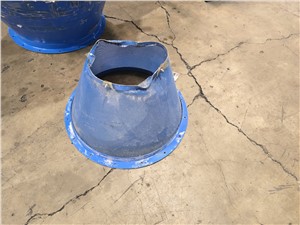

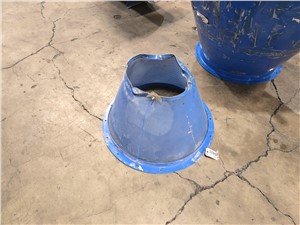

Includes Top Cone, Main Body, Inlet Box, Perforated Bottom Cone, 45° Inlet, and Regular Cone
14" OD inlet
16" OD top outlet
16" OD cone collar

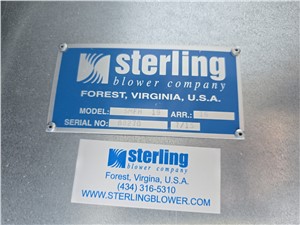

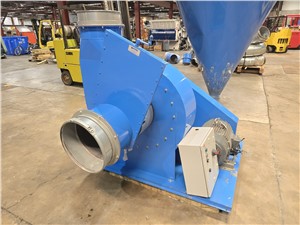

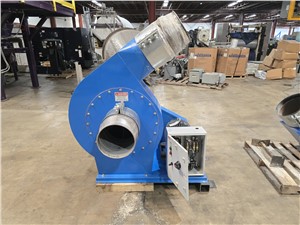

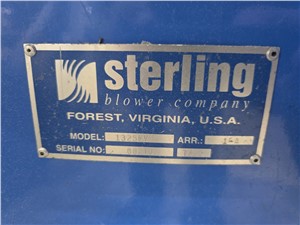

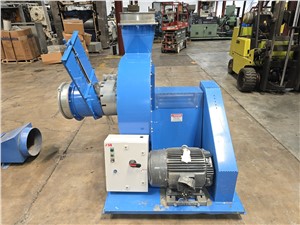

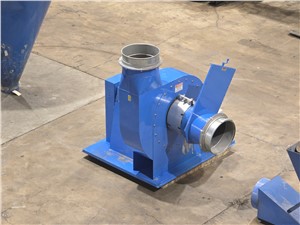

Sterling 1325FV Feed Blower, 25 HP
Arrangement: 1-A
Rotation: CCWBH

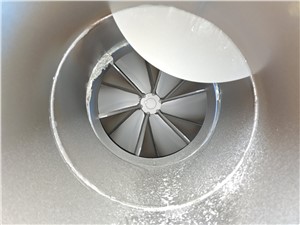

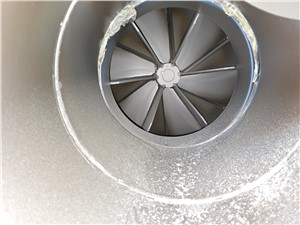

26" X 9-1/4" Steel Reinforced Wheel
1-11/16" Bore
1800 RPM

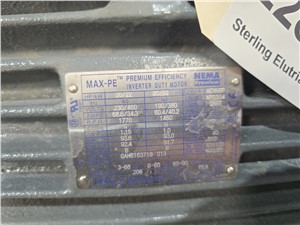

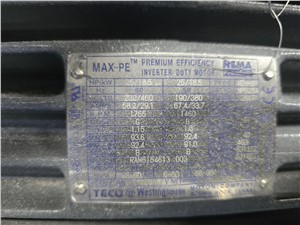

TEFC Motor, 284T Frame
14" OD Inlet
14" OD Outlet
Belt Driven With Sheaves And Belts

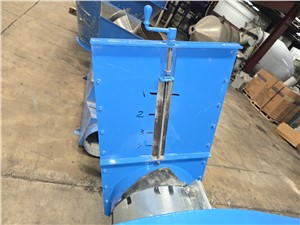

16" Screw-Actuated Gate Valve
Expanded Metal Screen On One Side
Designed To Couple To The Inlet Of The 1325FV Blower

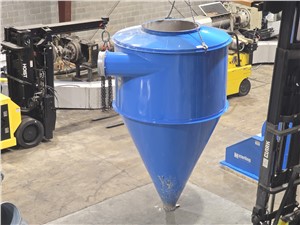

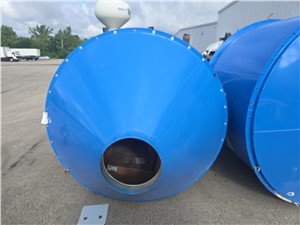

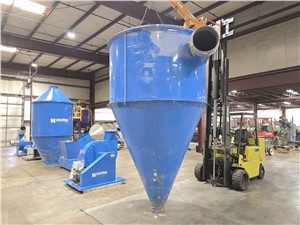

Sterling #19 Cyclone
Regular Cone
16" OD Flanged Right-Hand Inlet
10" OD Cone Collar
Flanged Tubular Guard

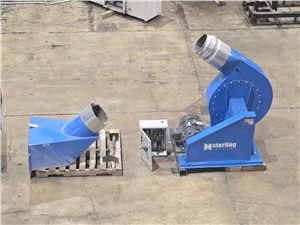

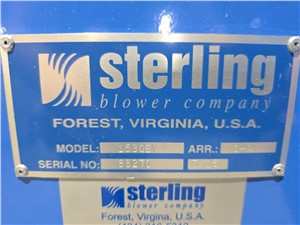

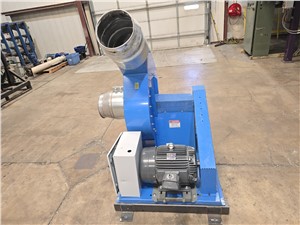

Sterling 1530FV Take-Off Blower, 30 HP
Arrangement: 1-A
Rotation: CCWUD

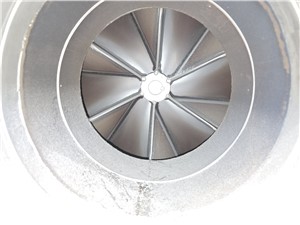

30" X 10-3/8" Steel Reinforced Wheel
1-15/16" Bore
1800 RPM
TEFC Motor, 286T Frame
16" OD Inlet
16" OD Flanged Outlet
Belt Driven With Sheaves And Belts
#19 Side-Mount Filter Head

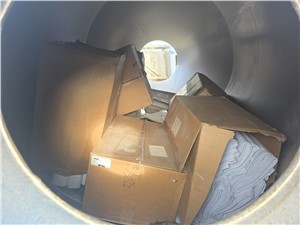

Includes 16" Diameter X 180" Long Shaker Felt Filter Bags
Quantity: 16 Filter Bags
Nylon Quick-Release Straps

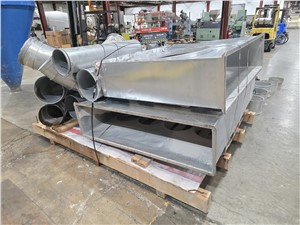

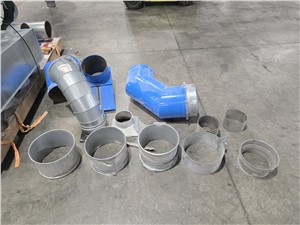

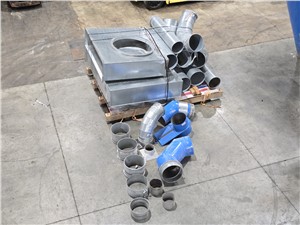

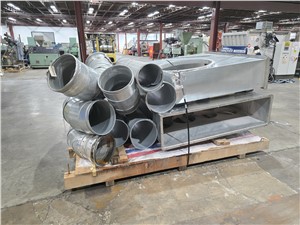

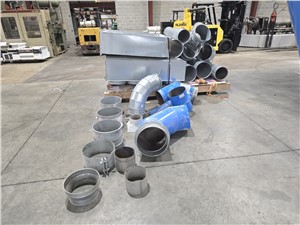

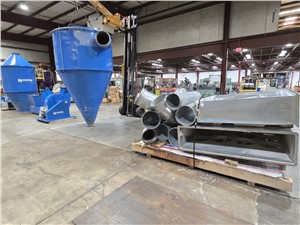

Includes Interconnecting Tubing And Fittings Originally Supplied With The System:
14" ID Galvanized Metalflex Assembly, 5 Ft Long, With Flow Collars Both Ends
14" OD, 12 Gauge Carbon Steel Tubing, 40" Long
Two 14" OD 90° Flatback Elbows, 36" Centerline Radius
14" OD 45° Two-Piece Mitered Elbow For EL99C Inlet
16" OD 90° Three-Piece Mitered Elbow, 24" Centerline Radius, 14 Gauge Carbon Steel, Flanged One Side
Four 16" Galvanized QF Angle Flange Adapters
Three 16" OD 90° QF Galvanized Elbows
Four 16" OD QF X 5 Ft Tubing Sections
Three 16" QF Adjustable Nipples With O-Rings
Twelve 16" Galvanized QF Clamps With Pins
Four 16" Flange Gaskets
Five 14" 3-Bolt Couplings
16" 3-Bolt Couplings
Venturi Sterling 1414P Parts

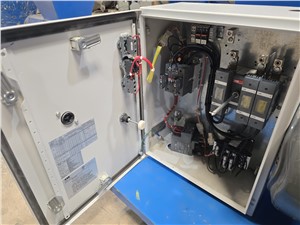

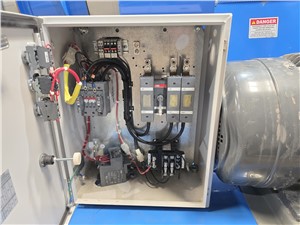

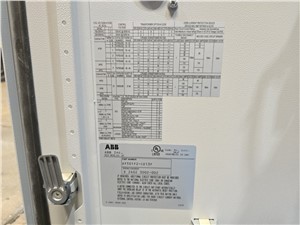

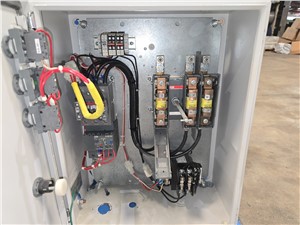

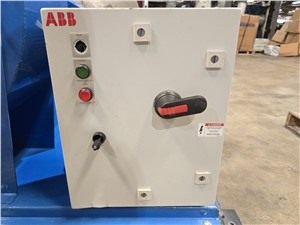

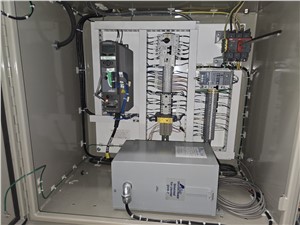

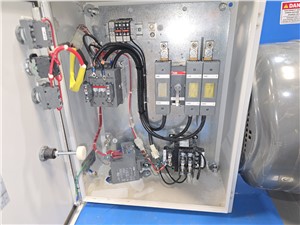

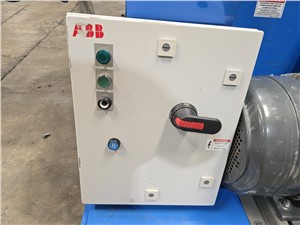

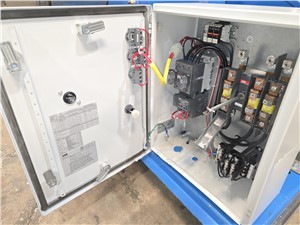

Starter Panels For 30 HP And 25HP Blowers Included, Nema 12 Enclosure Rated
Cutler-Hammer IEC Components, Fusible Disconnects, 460 Volt
System New In 2015
*Throughput Rating Is Application Dependent

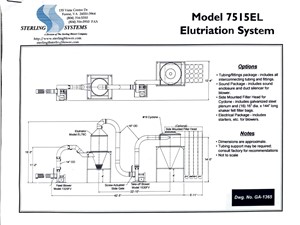

Approximate Layout Dimensions: 42' L x 12' 4" W x 20' 5" H
Does Not Include Stands - This Unit Was Suspended From Ceiling In Previous Install
