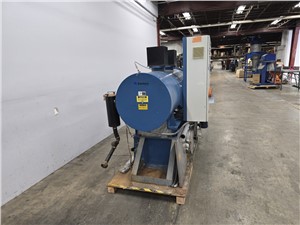

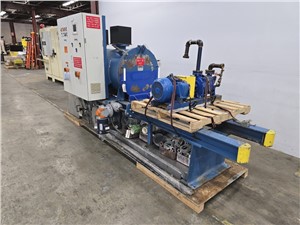

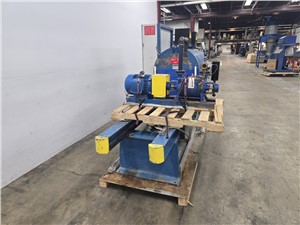

Name: 15.5" x 60" Dynisco/Nordson BKG Pyrolysis Cleaning Oven, Model JC-1760
Brand: Dynisco
SKU: 22684A
Price: 47500.00 USD
Availability: InStock

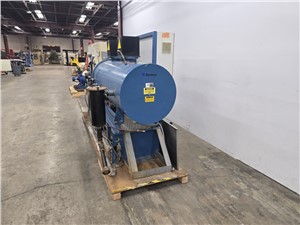

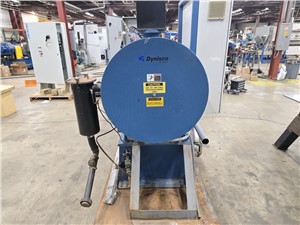

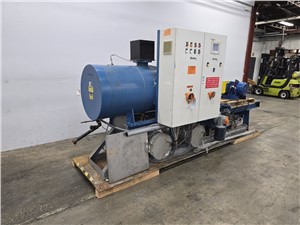

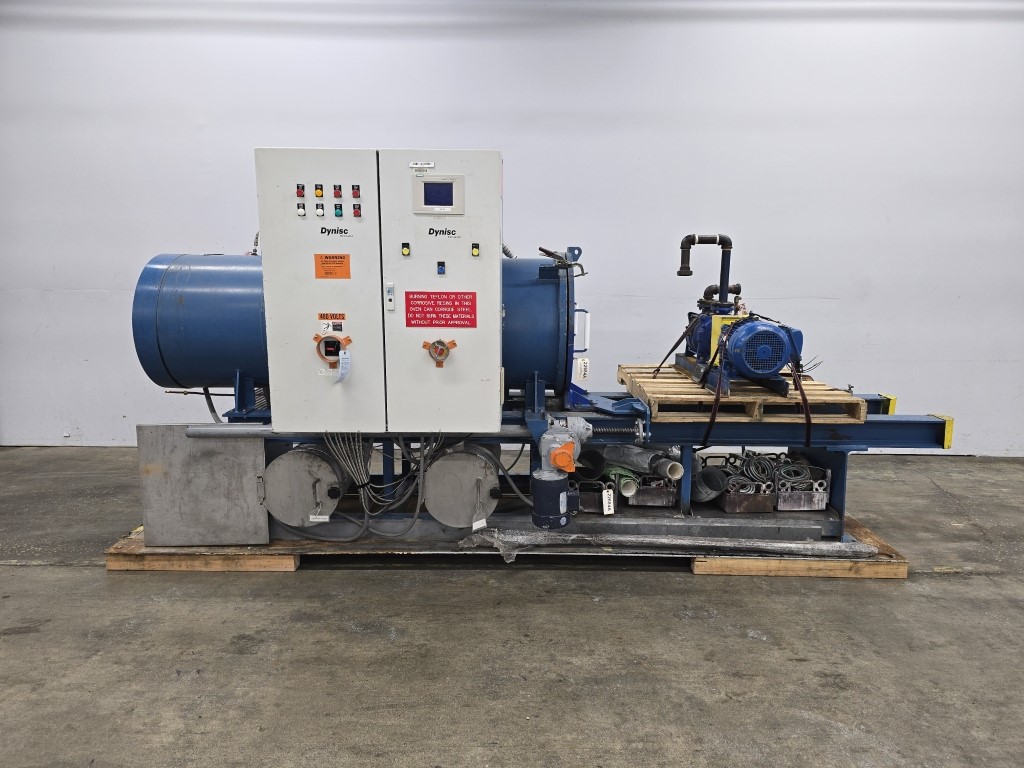

15.5" x 60" Dynisco/Nordson BKG Pyrolysis Cleaning Oven, Model JC-1760

Product Features

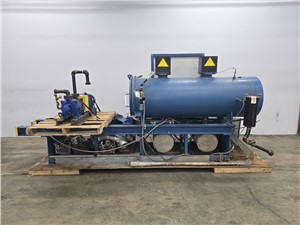

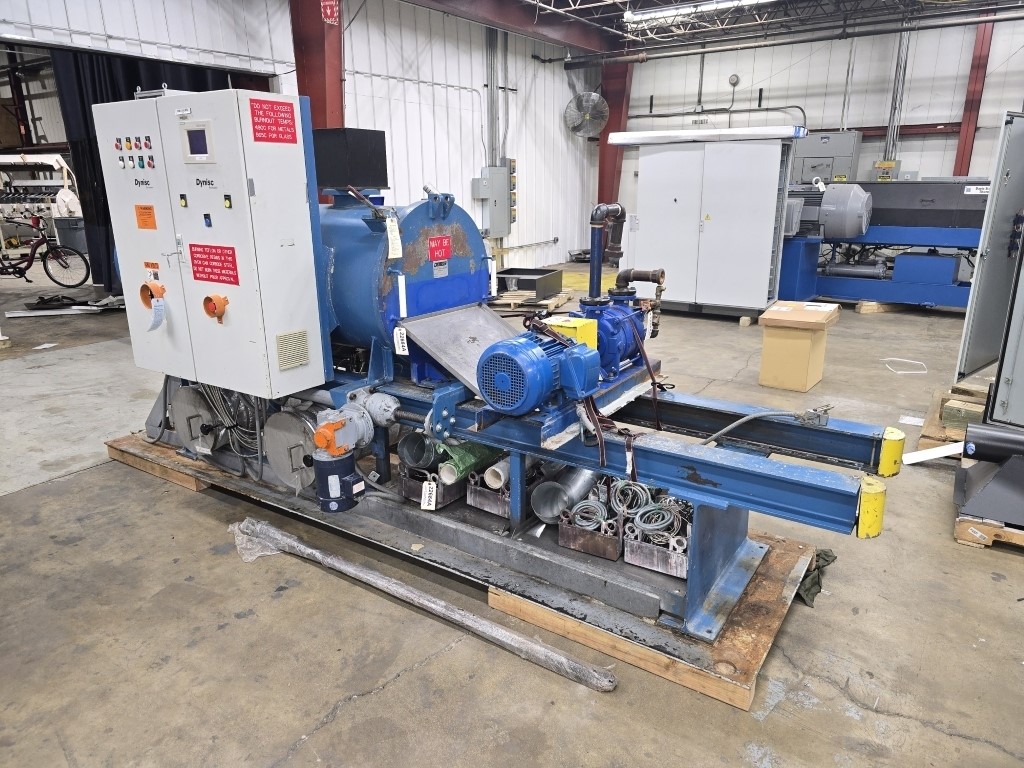

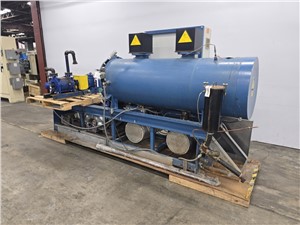

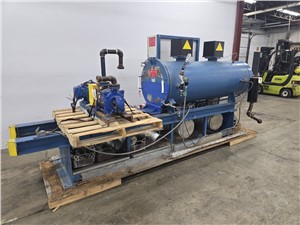

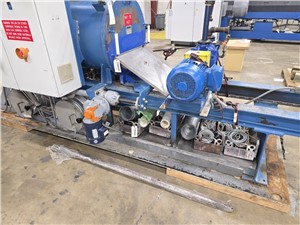

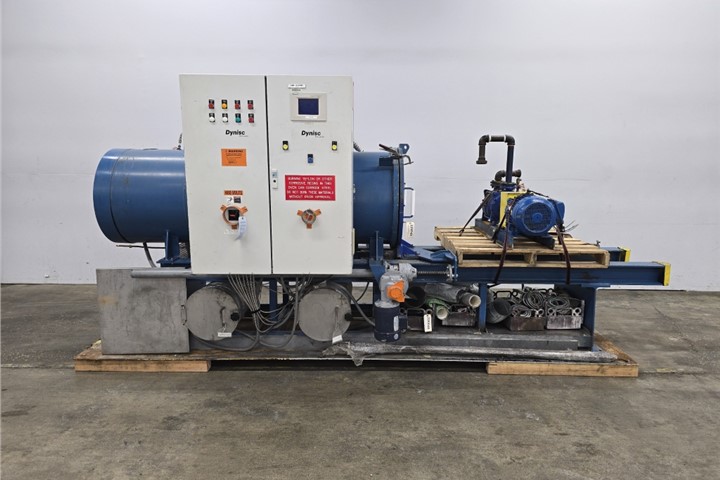

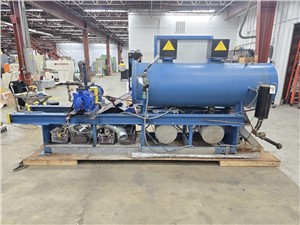

Used 15.5" x 60" Dynisco/Nordson BKG Pyrolysis Cleaning Oven, Model JC-1760
Cleaning Capacity: 15.5" W x 60" L (393mm x 1524mm)
Approximate Operating Temperature Range: 800 - 900° F
Vacuum: 635mm (25'') of Mercury
Cleaning Cycle Approximately: 2-4 Hours
High Temp & Vacuum To Vaporize Polymer Residue

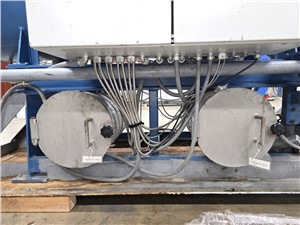

Primary Trap Located Beneath & Attached To Chamber To Collect Melted Resin
Cast Aluminum Housing w/ Swing Bolt-Clamped Cover Containing A Seal Gasket

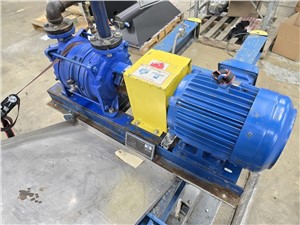

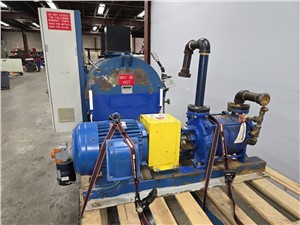

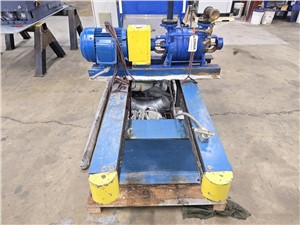

Secondary Trap Vertically In Pipe Run Between Chamber And Vacuum Pump
Welded Carbon Steel w/ Quick Open Cover And Seal Gasket Condenses & Collects Water Vapor via Water Spray Mist Scrubber
Removable Stainless Steel Collector Pan Included
Water Vapor Seperator At Vacuum Outlet

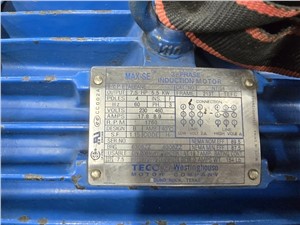

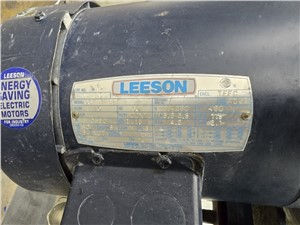

7.5 HP Circulation Blower Motor

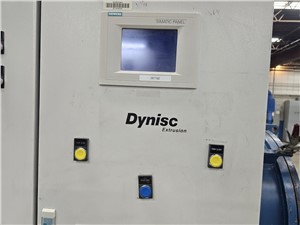

Siemens Simatic TP070 Touchscreen HMI

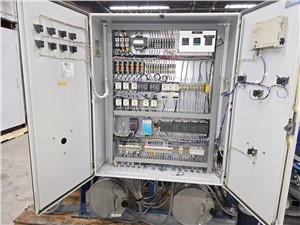

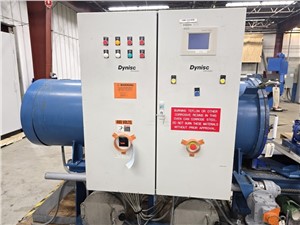

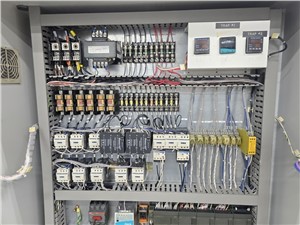

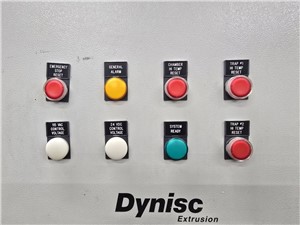

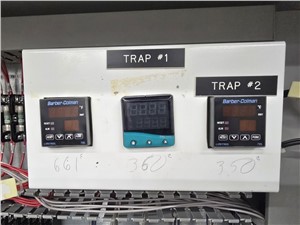

Barber-Coleman Limitrol 7SL & Cal 400 Temp Controllers, Trap Hi Temp Resets, E/Stop, Alarm, 115VAC Control Voltage, 24vdc control voltage, Door Close/Open Controls

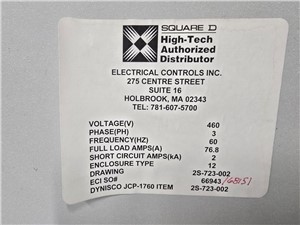

S/N: JG-1001460/3/60, 76.8A FLA
Nema 12 Enclosure
Approx Dimensions: 166" L x 52" W x 78" H
JUST PURCHASED PHOTOS COMING SOON
Suitable For Removing All Types of Thermoplastic and Thermoset Compounds From Metal Parts and Extrusion Hardware
