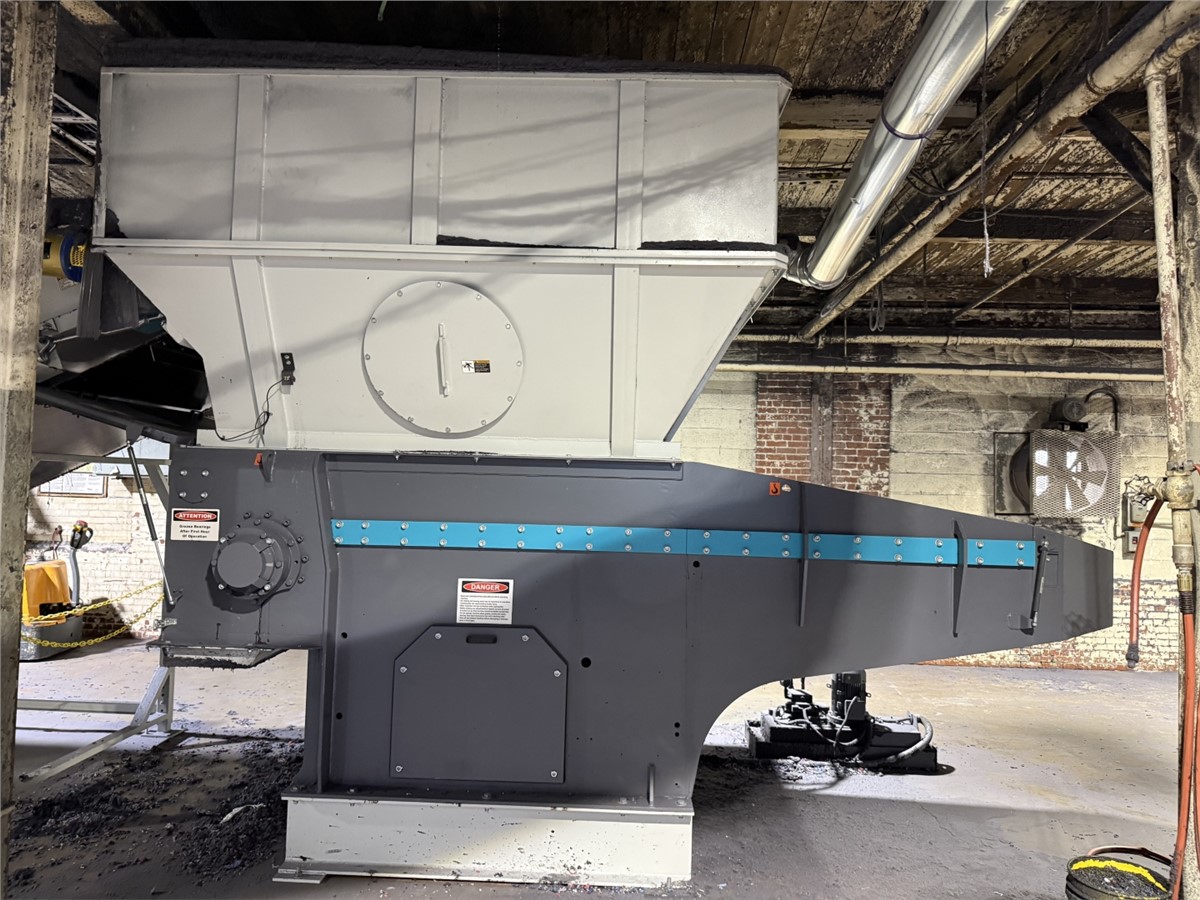

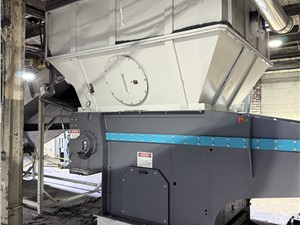

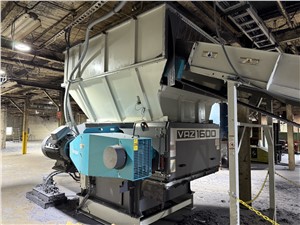

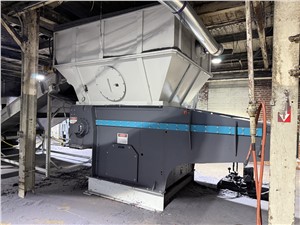

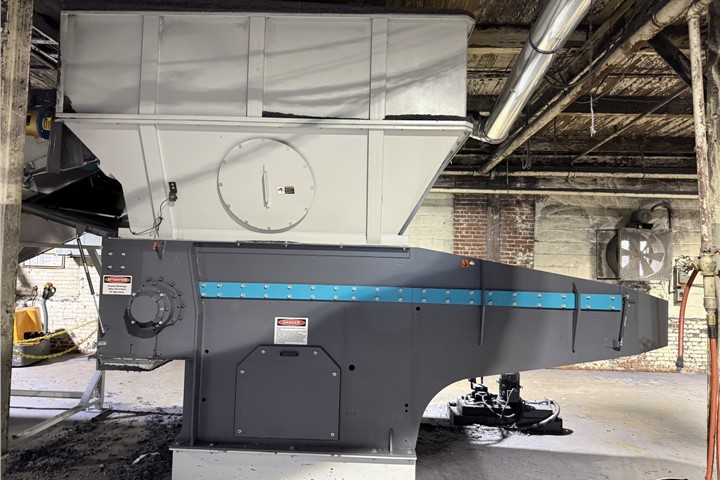

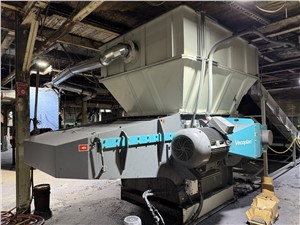

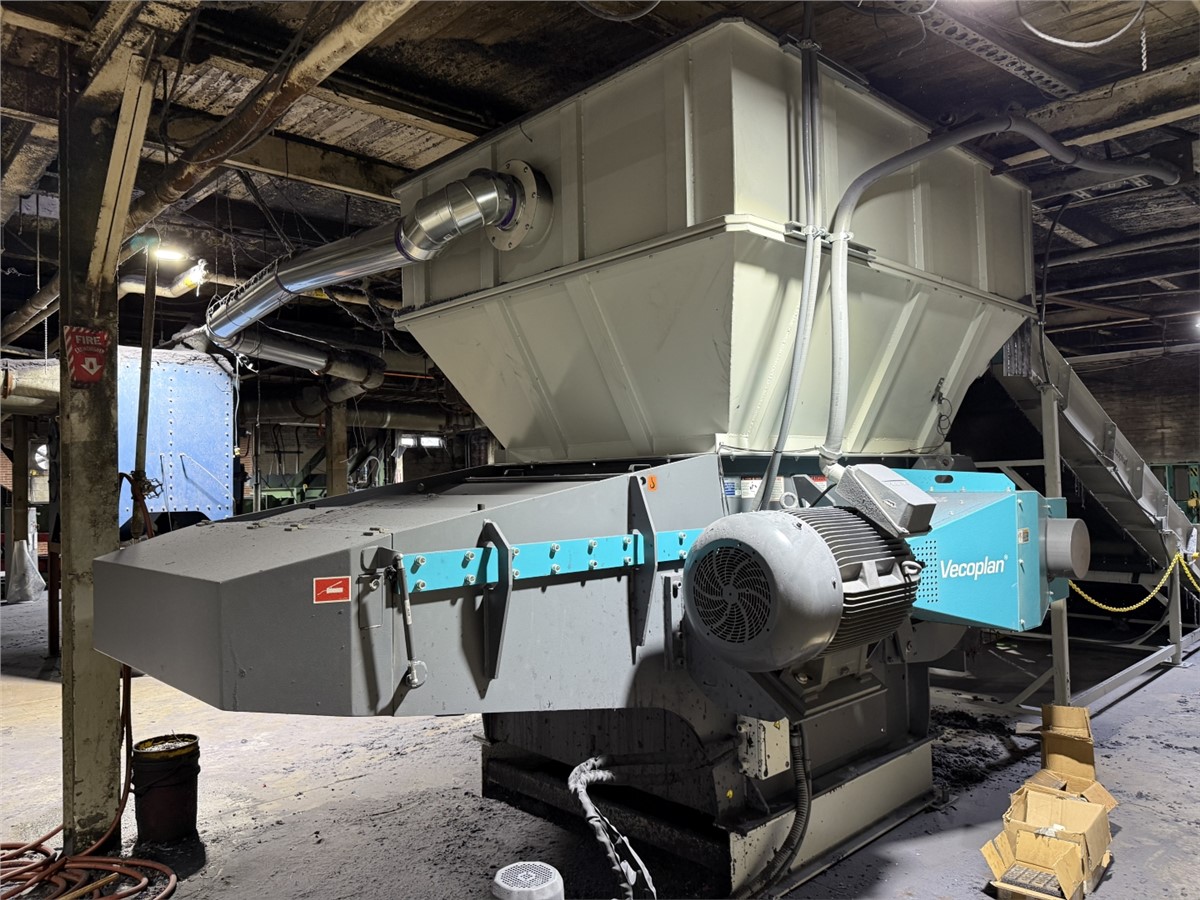

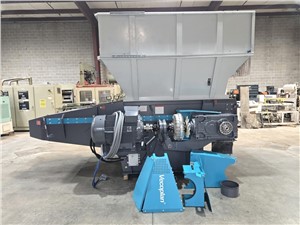

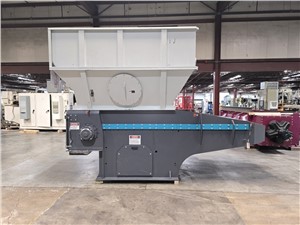

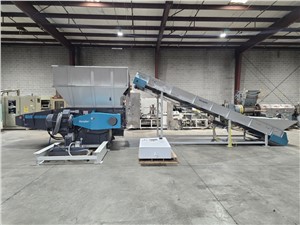

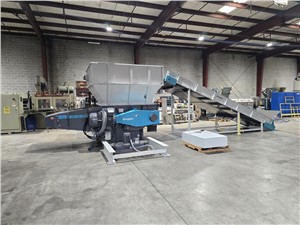

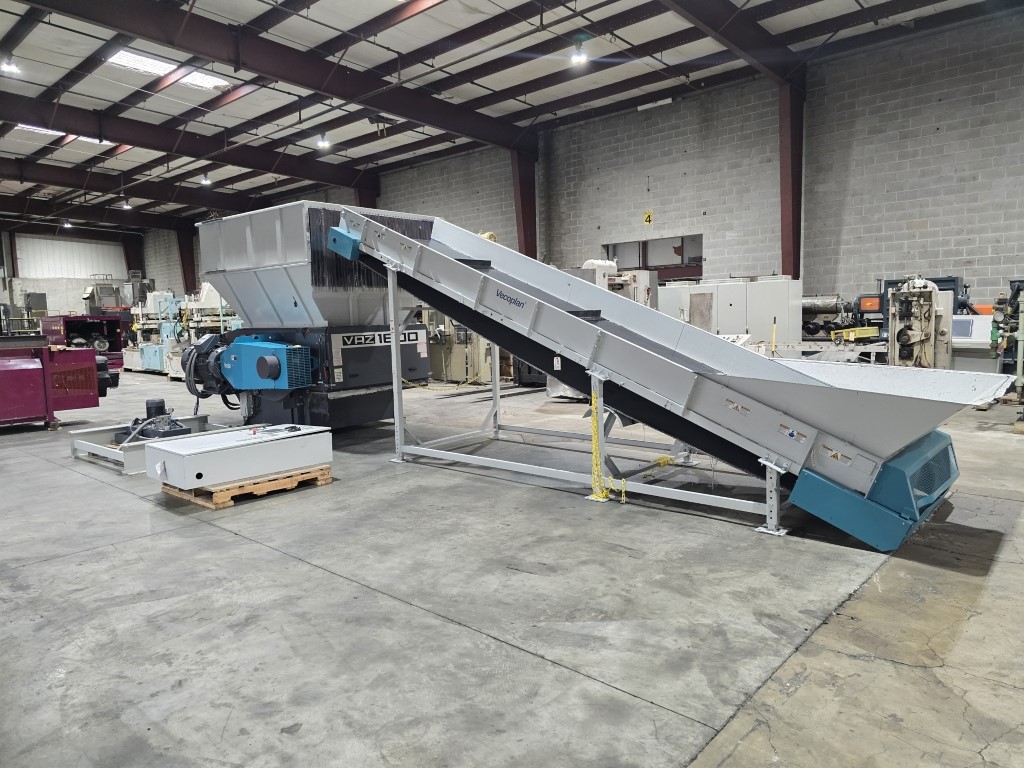

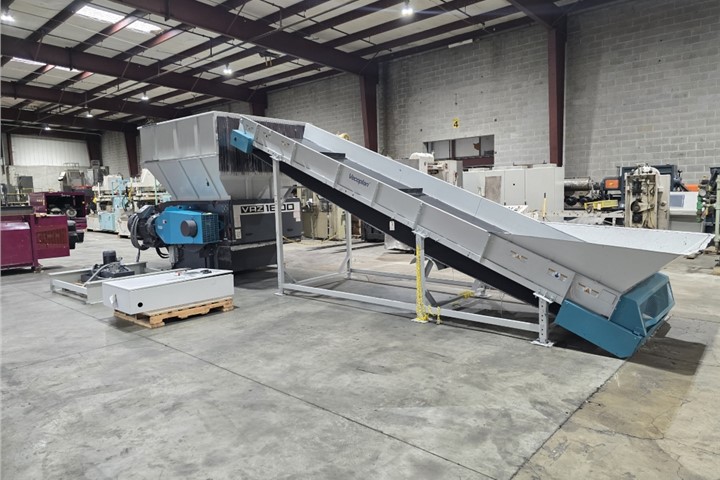

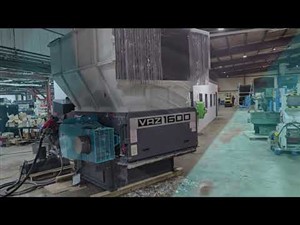

Name: 62" Vecoplan Model VAZ-1600-M-FF V-5552 Single Shaft Shredder With Conveyor
Brand: Vecoplan
SKU: 22671J
Price: 169500.00 USD
Availability: InStock

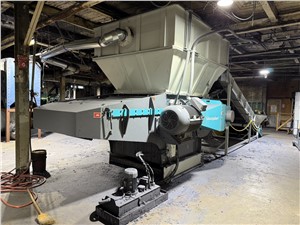

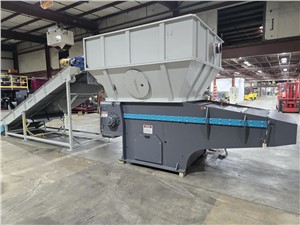

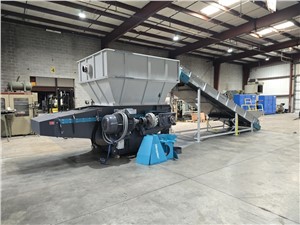

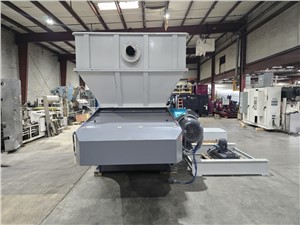

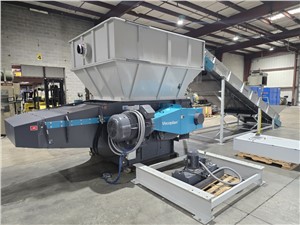

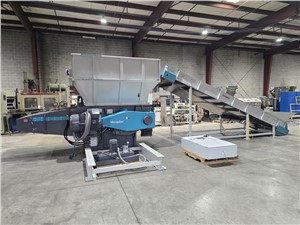

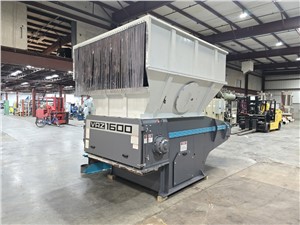

62" Vecoplan Model VAZ-1600-M-FF V-5552 Single Shaft Shredder With Conveyor

Click to enlarge (23 Total Photos)

Product Features

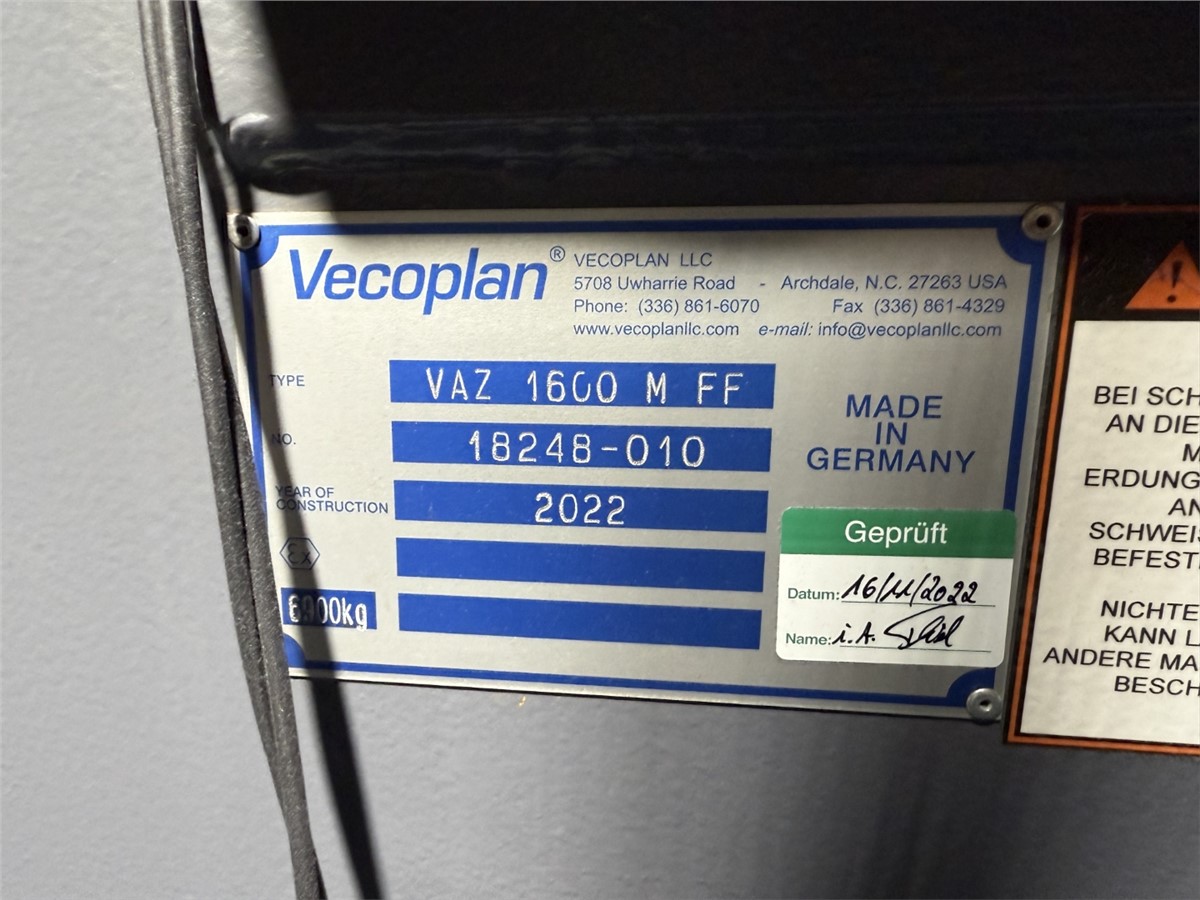

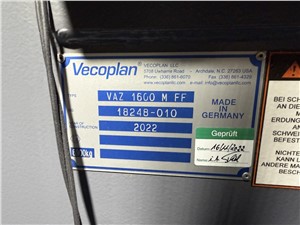

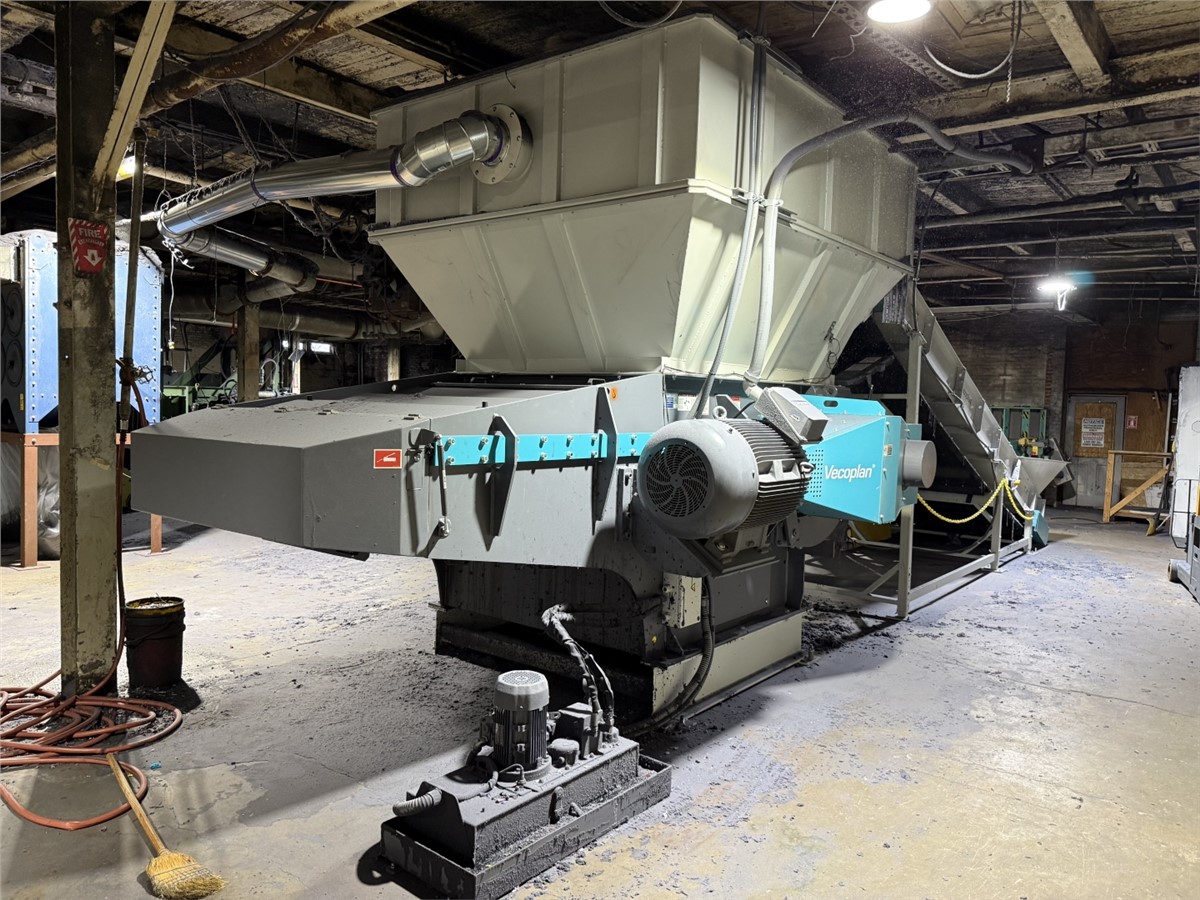

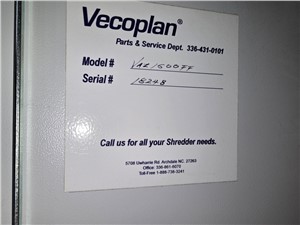

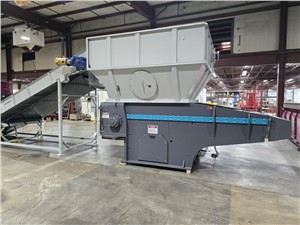

Used 62" Vecoplan Model VAZ-1600-M-FF V-5552 Shredder/Cutter, s/n 18248-010, New in 2022/Installed 2024, ONLY 1,651 Hours

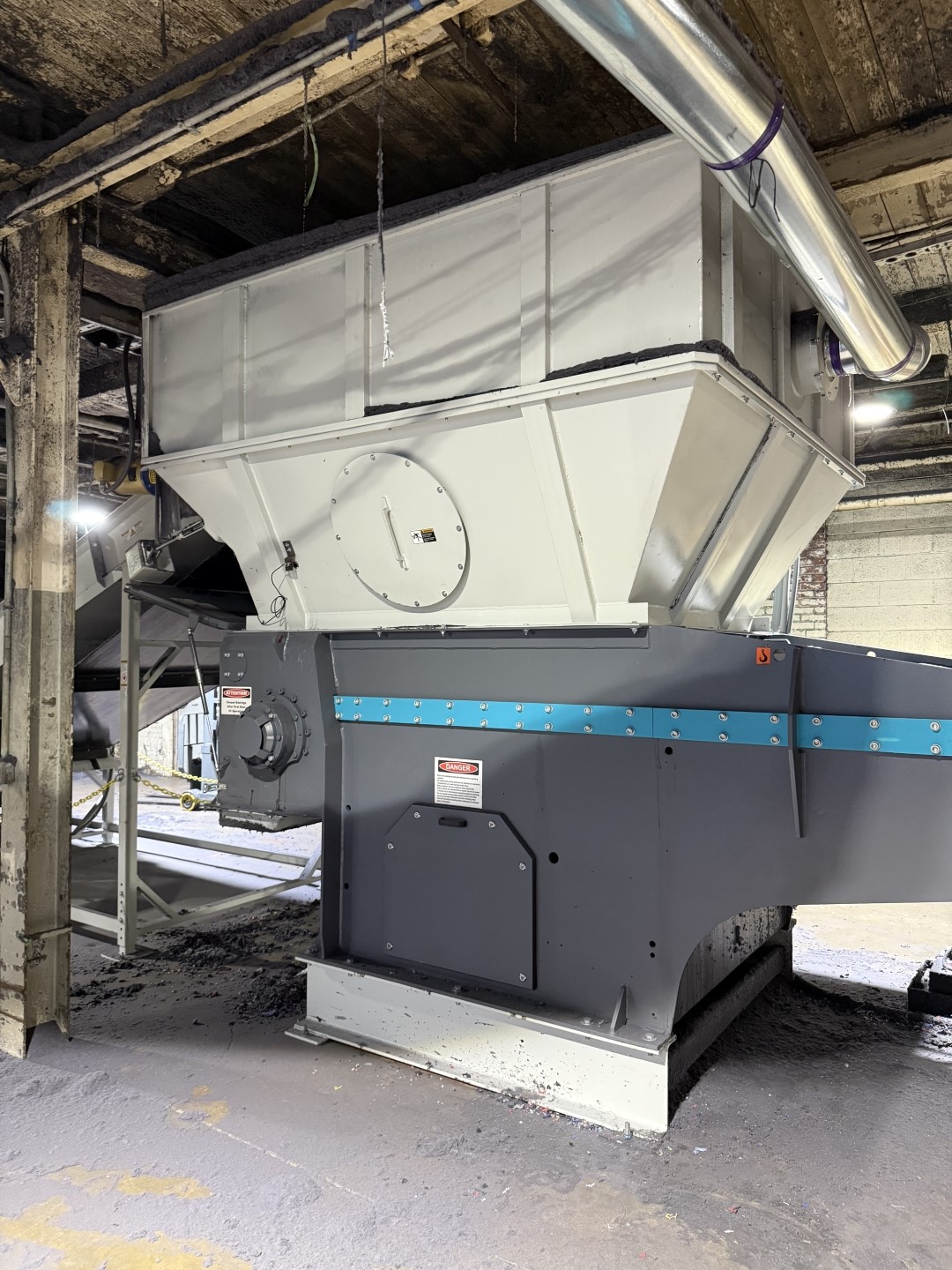

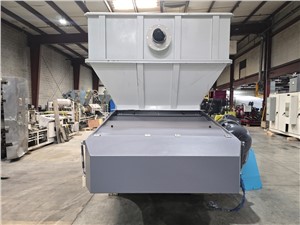

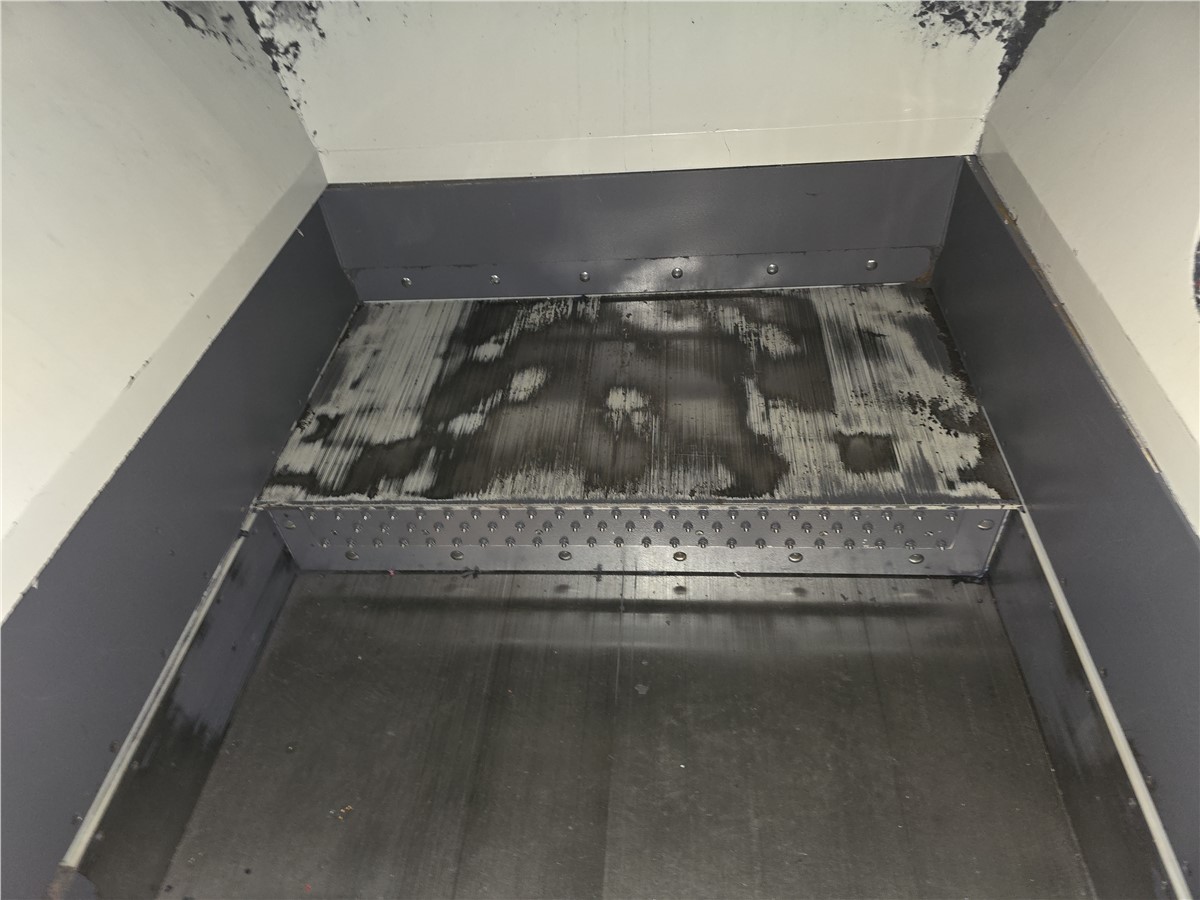

62” X 80” Hopper Opening
6.4 Cubic Yard Hopper Volume

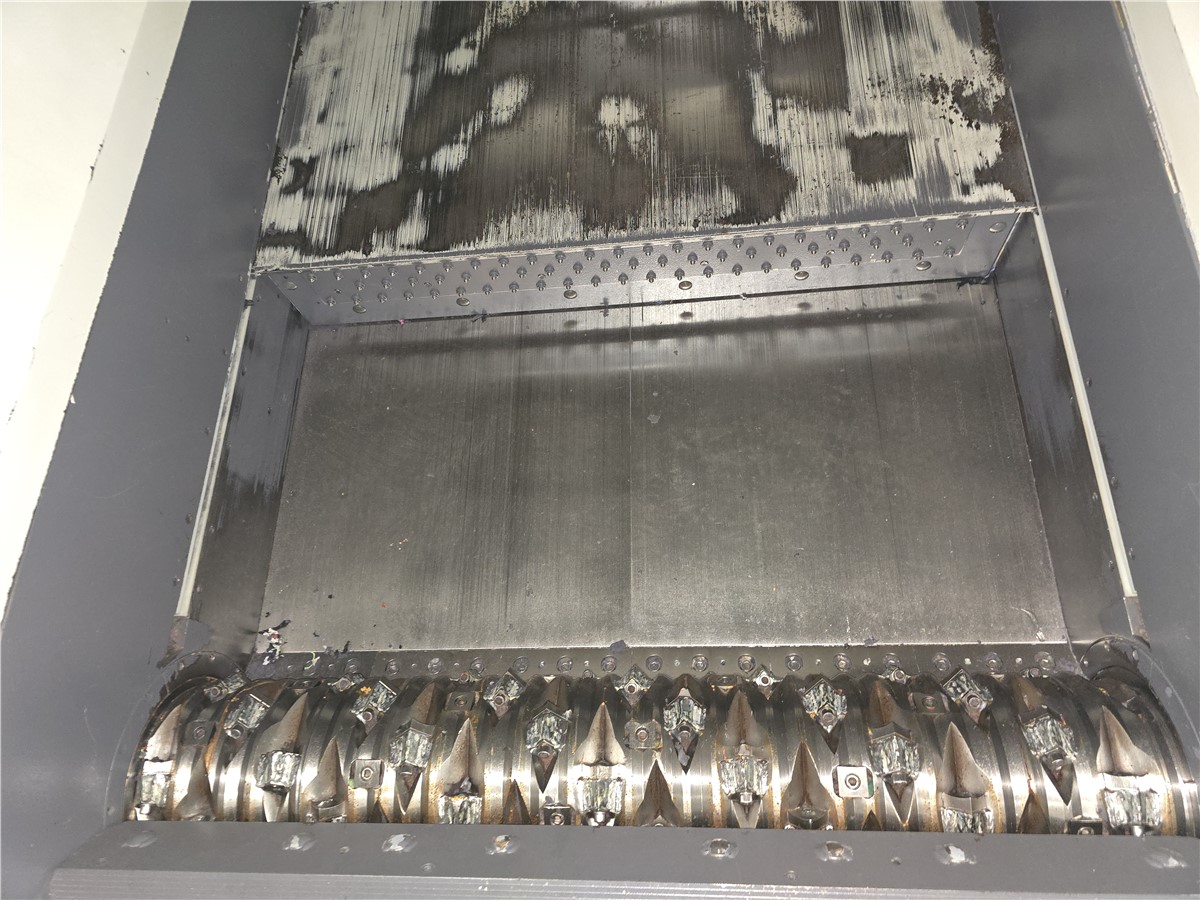

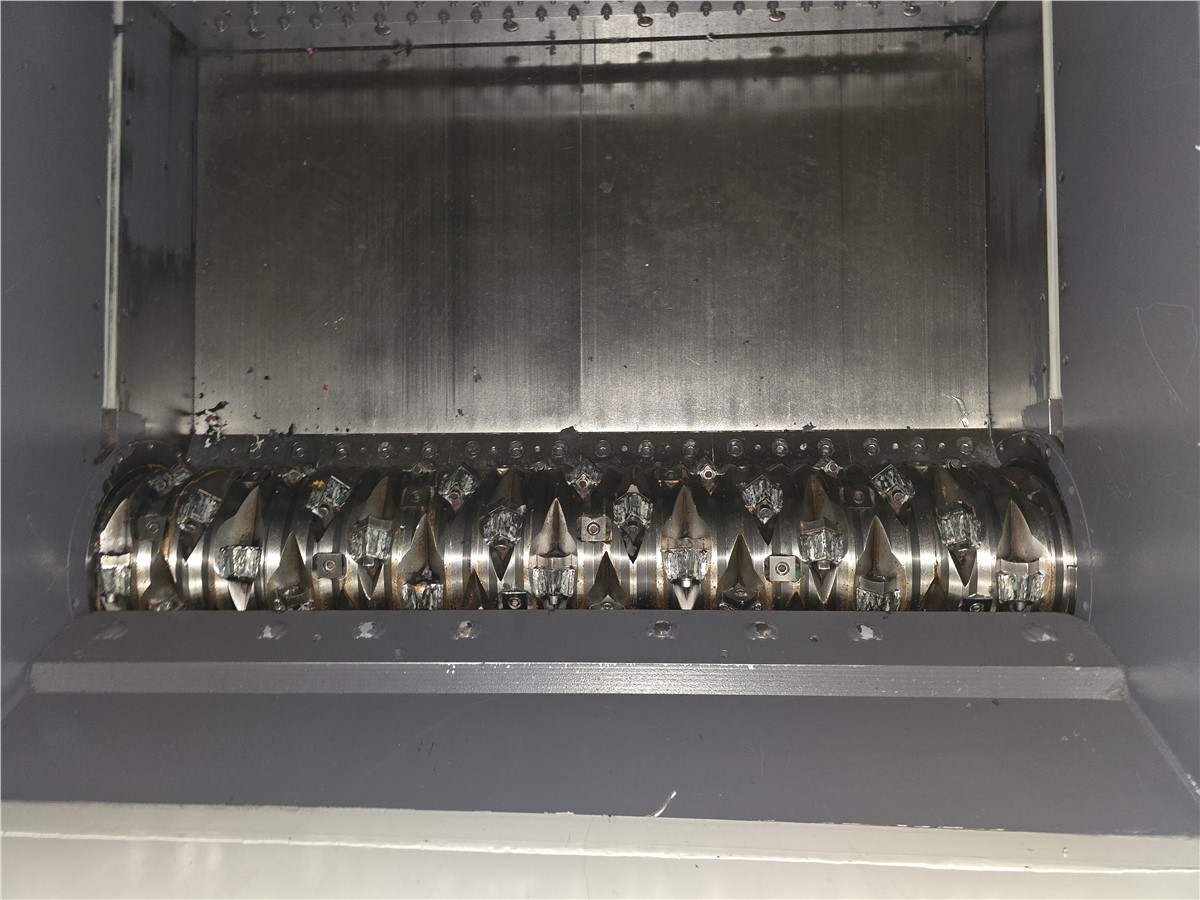

20” Rotor Diameter, 72 Cutters
63" Rotor Length
145 RPM Rotor Speed

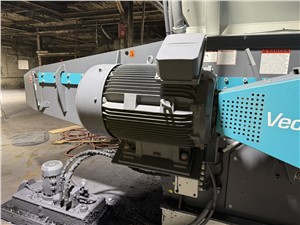

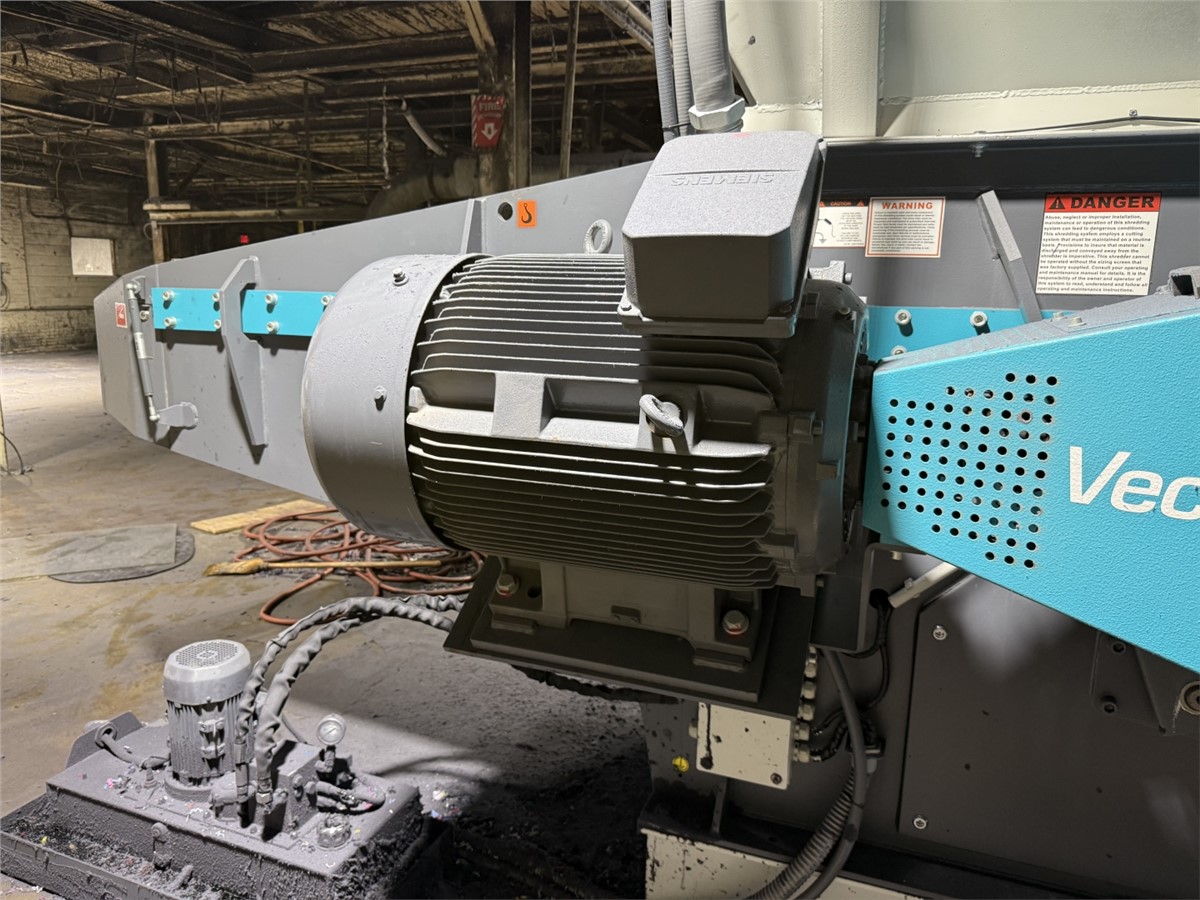

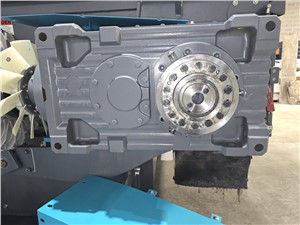

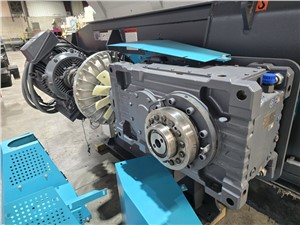

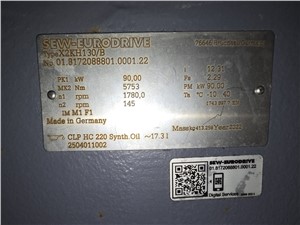

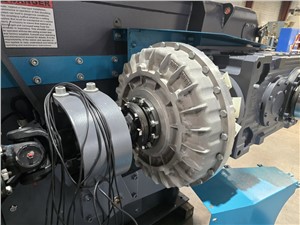

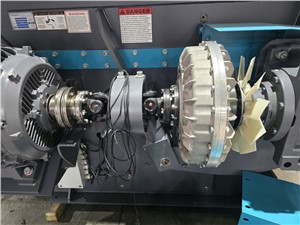

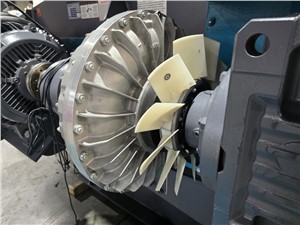

150 HP Electric Motor with Jointed Shaft, Turbo Clutch, and Conical Spur Gears

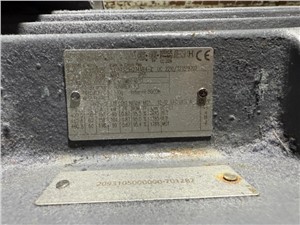

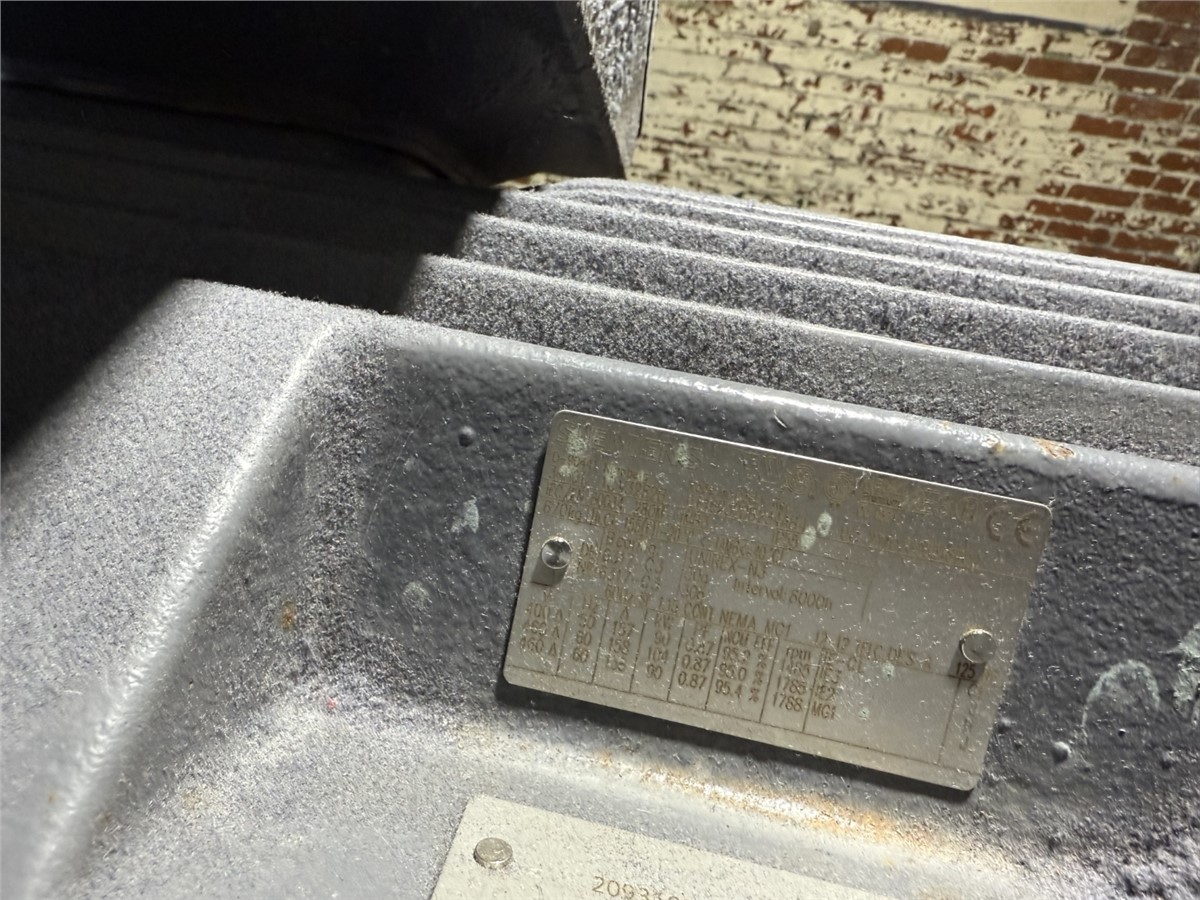

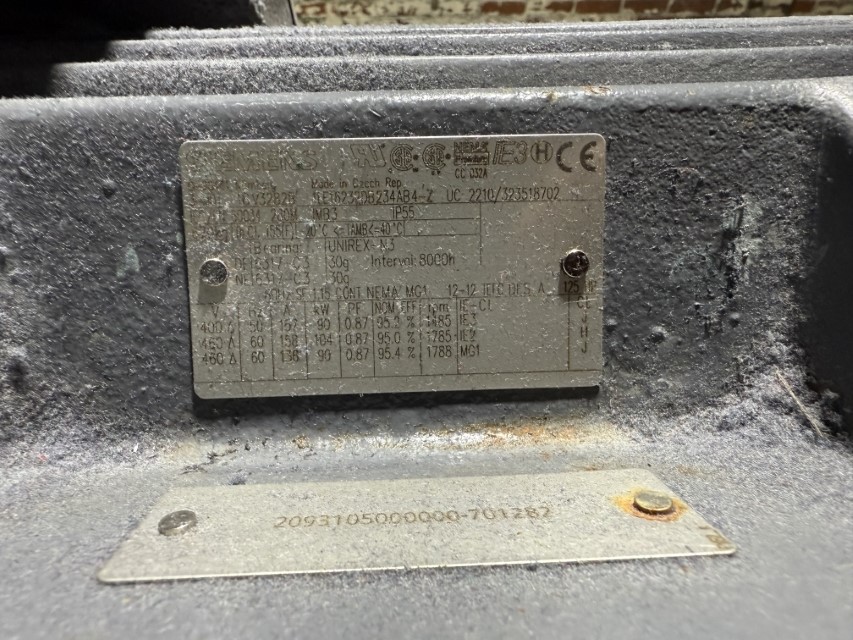

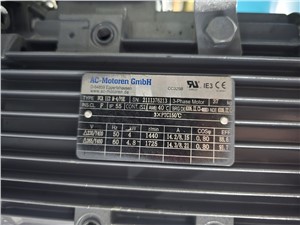

Motor Specs: 460/3/60, 158.7A, IP55, 1780 RPM
Cardan Shaft Drive
Double Sidewalls
Reversible Counter Knives, Externally Adjustable Counter Knives

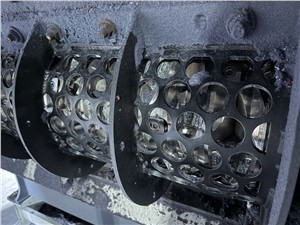

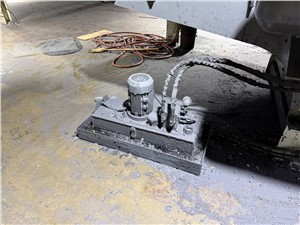

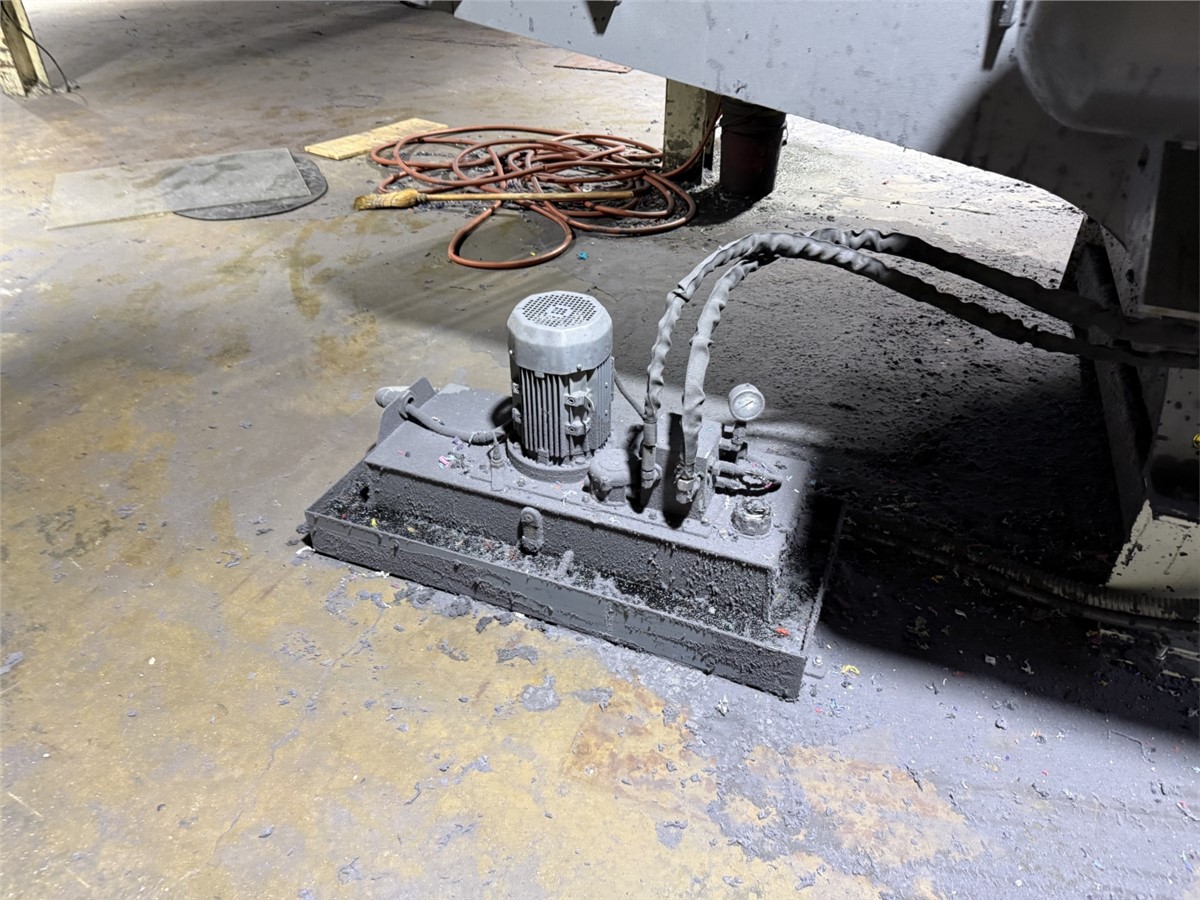

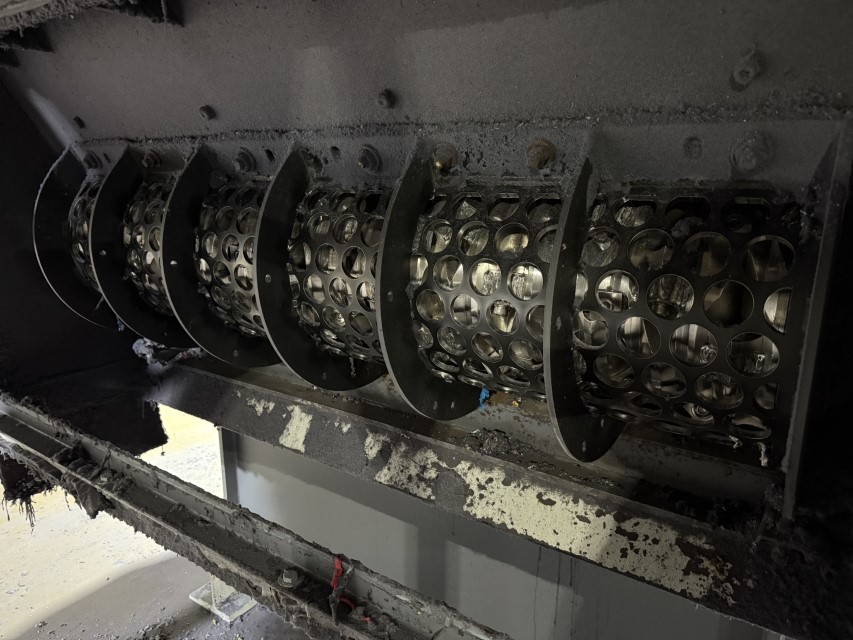

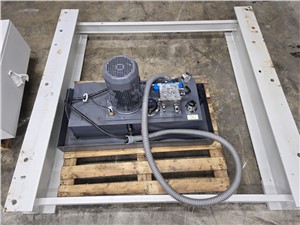

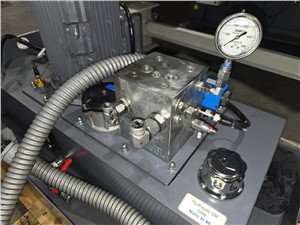

Hydraulic Swing-Up Screen Carriages, Rotatable Screens

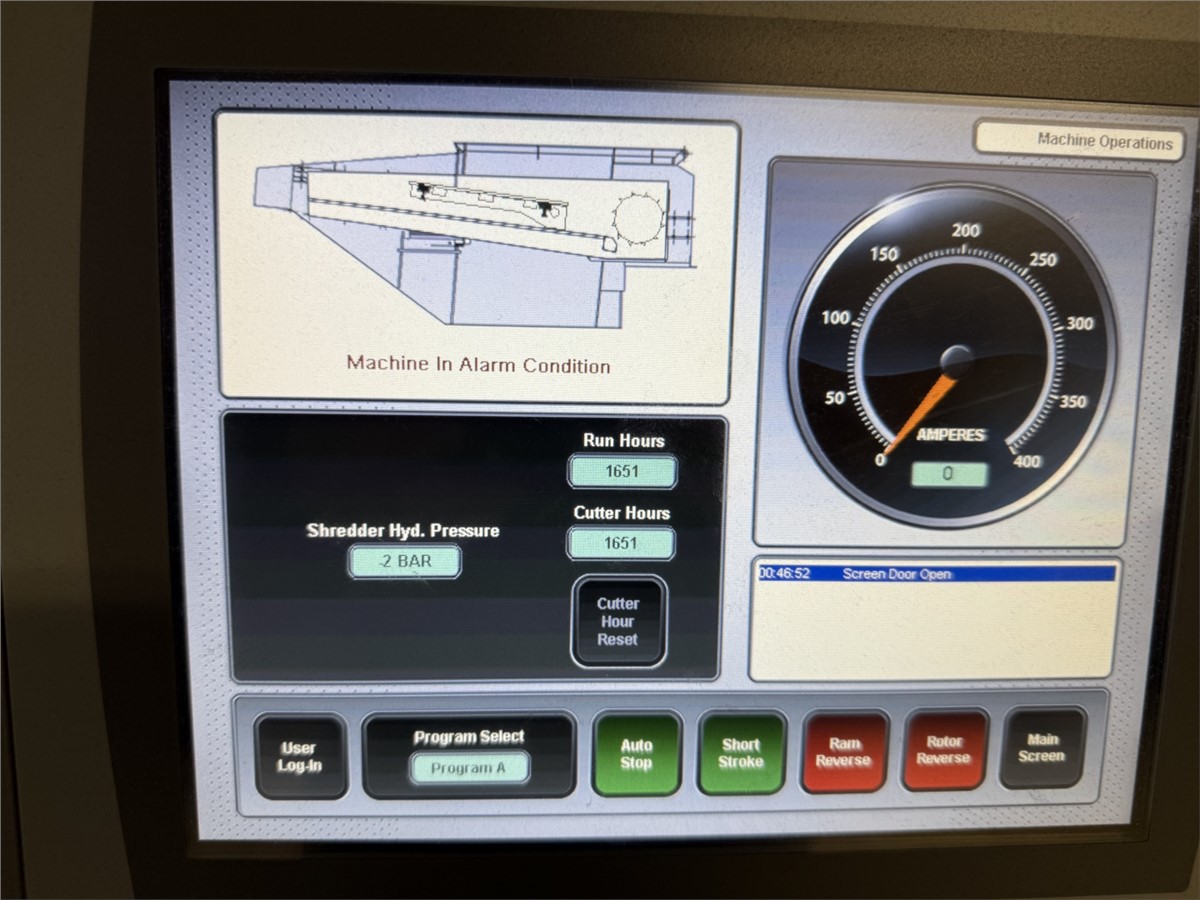

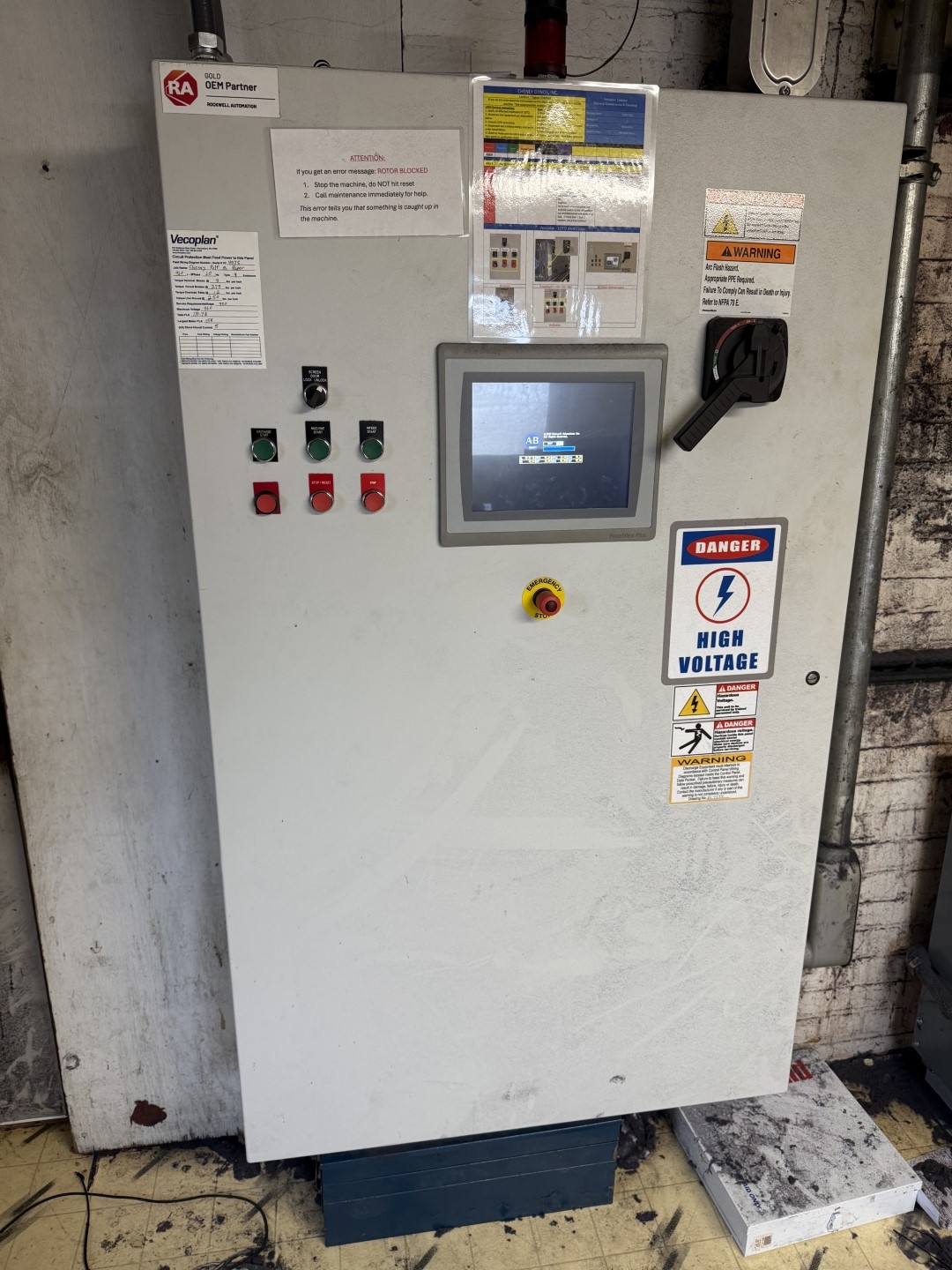

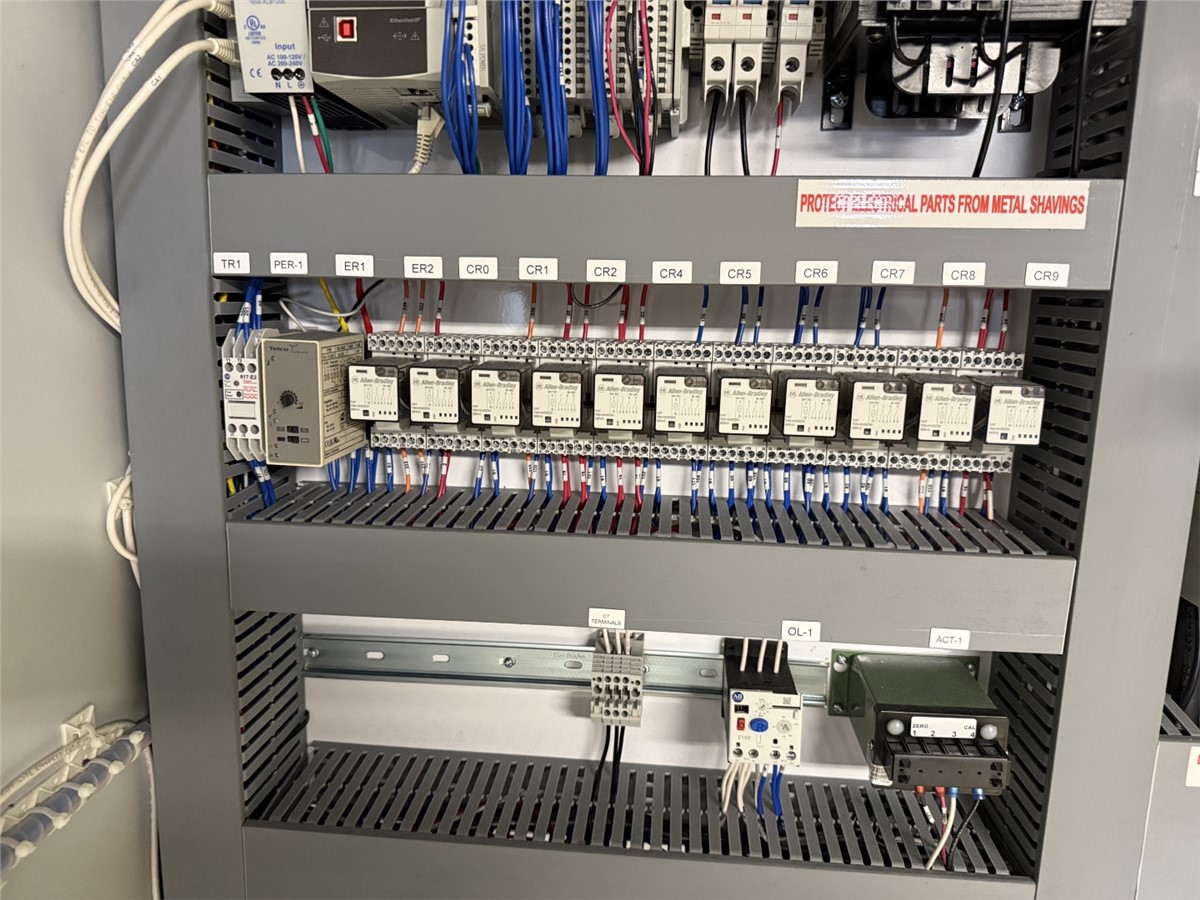

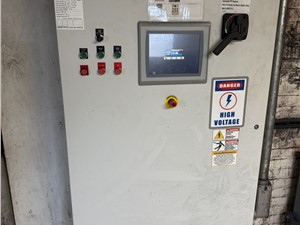

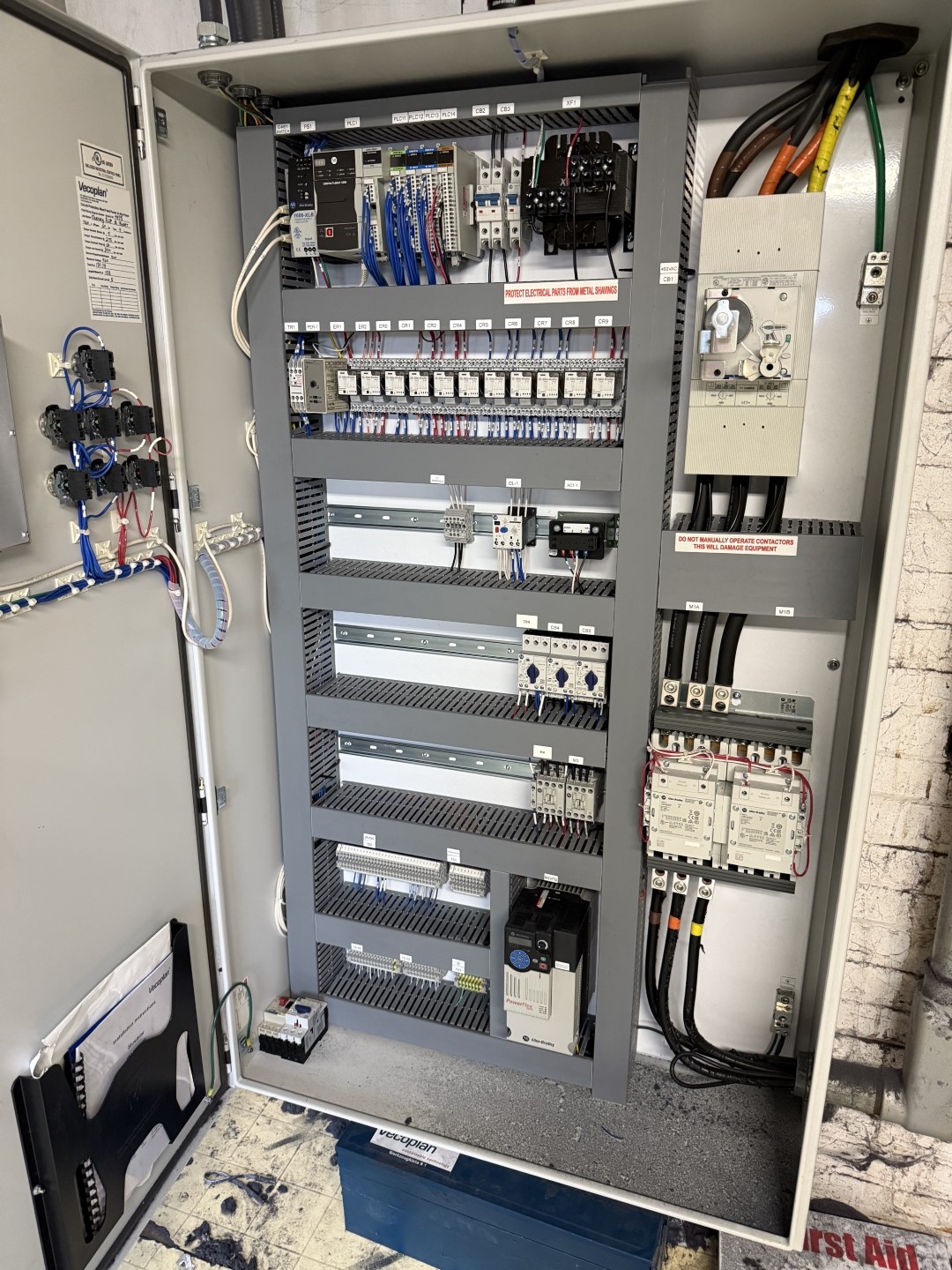

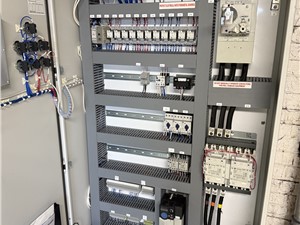

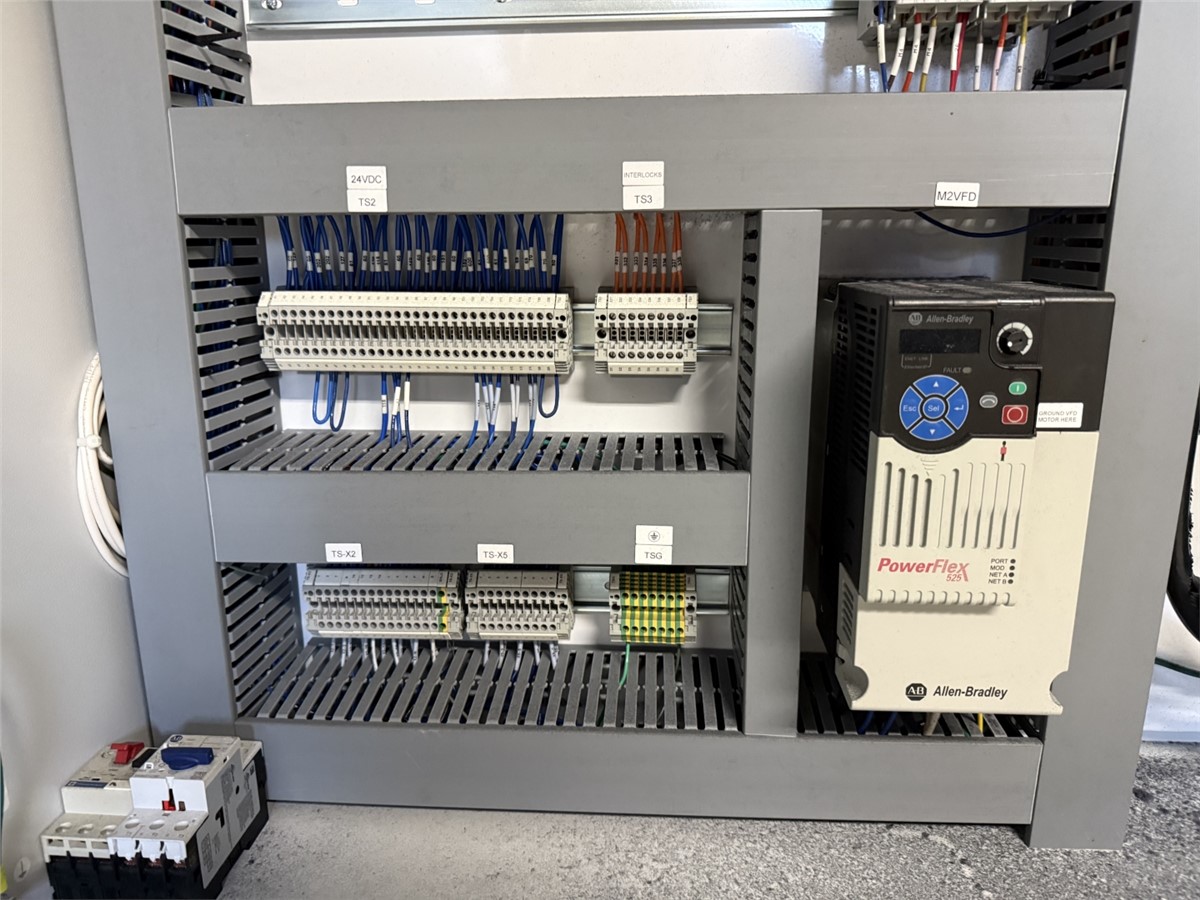

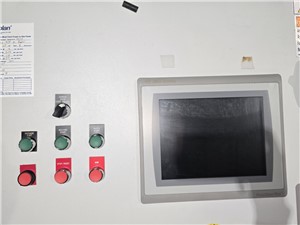

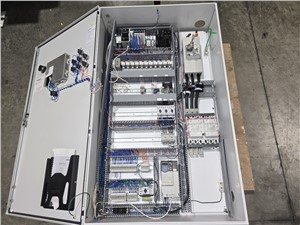

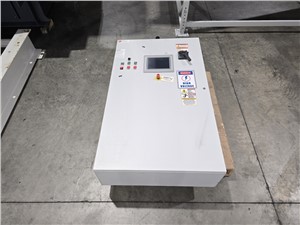

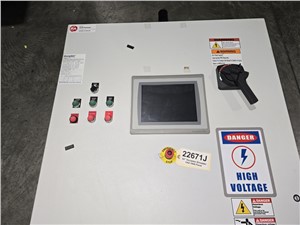

PLC Controls, Overload Control Using Limit Switches That Shut Machine Off During Sudden Load And Displays Warning Message On Cabinet
Drive Motor Has PTC Resistor Protection To Reduce Burn Out Risk From Overload
SPS Control Monitors Operation For Throughput And Conservative Operation

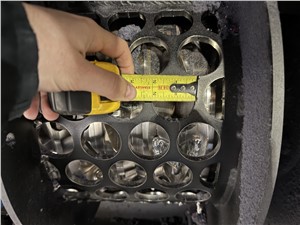

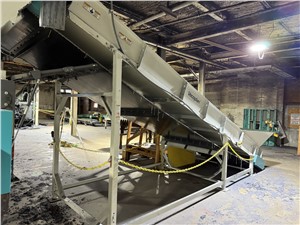

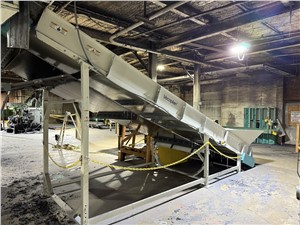

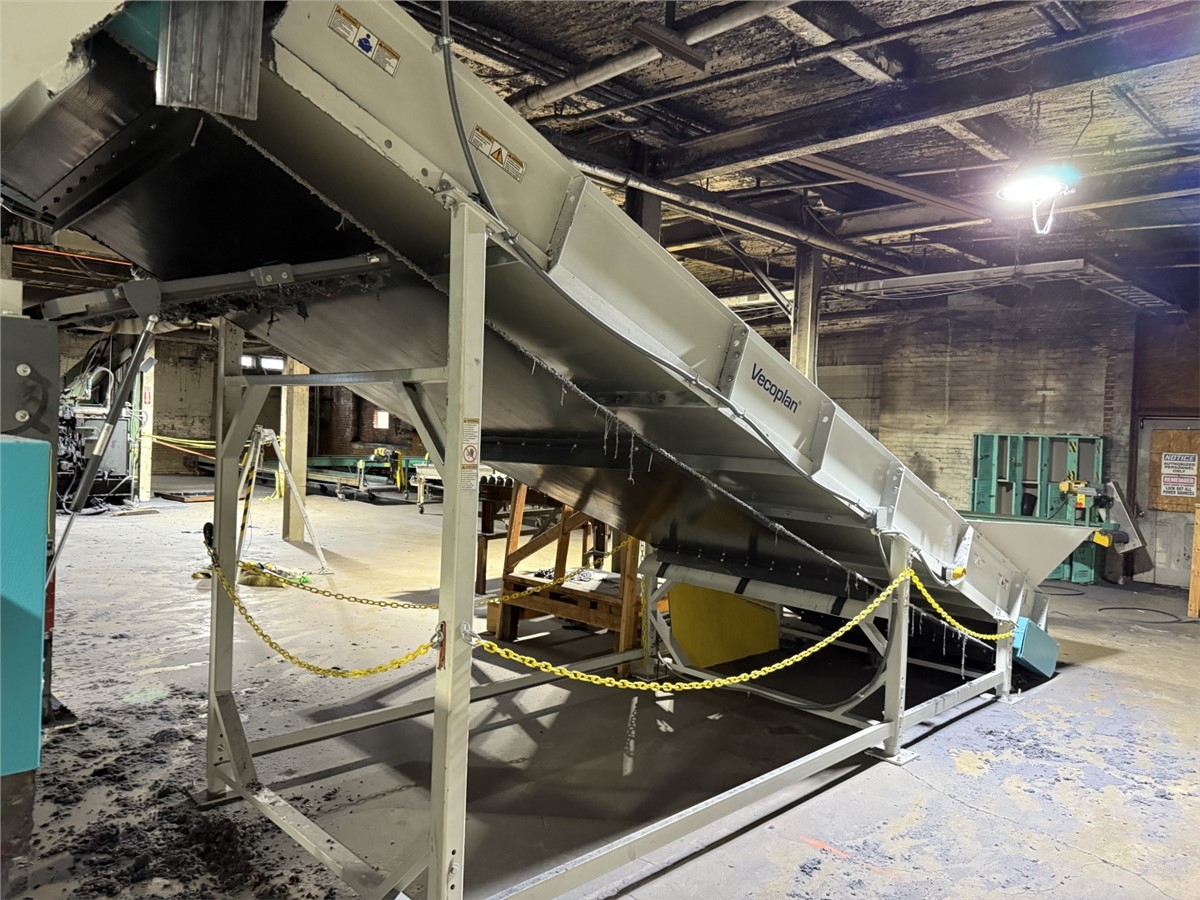

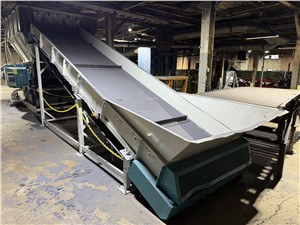

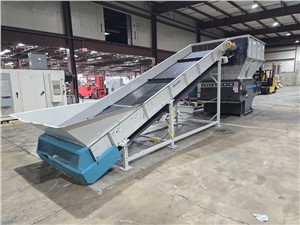

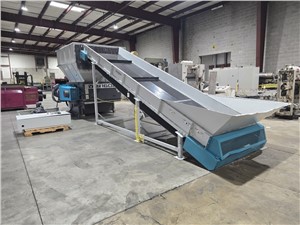

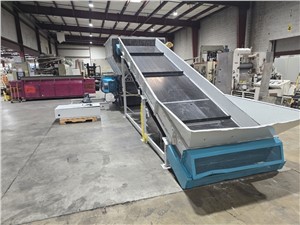

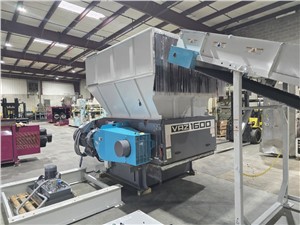

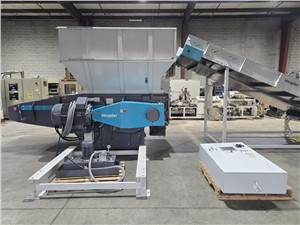

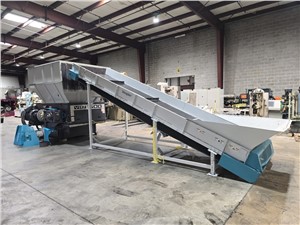

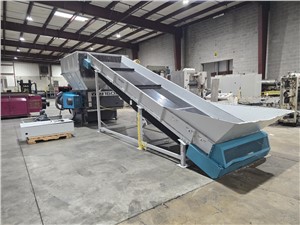

With Vecoplan Infeed Conveyor, Currently Has 2" Screen

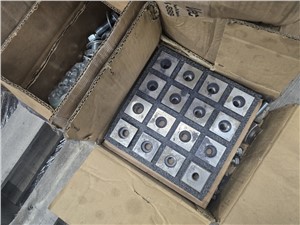

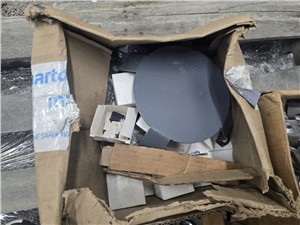

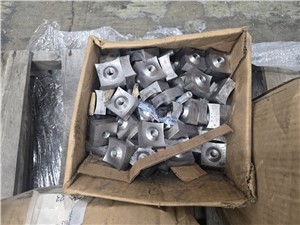

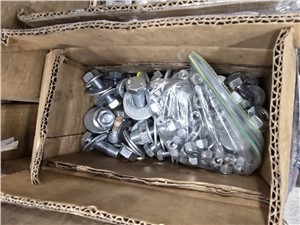

Has Spare Cutters

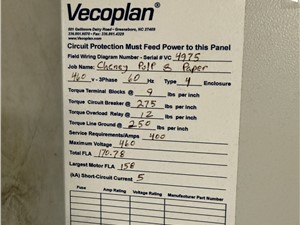

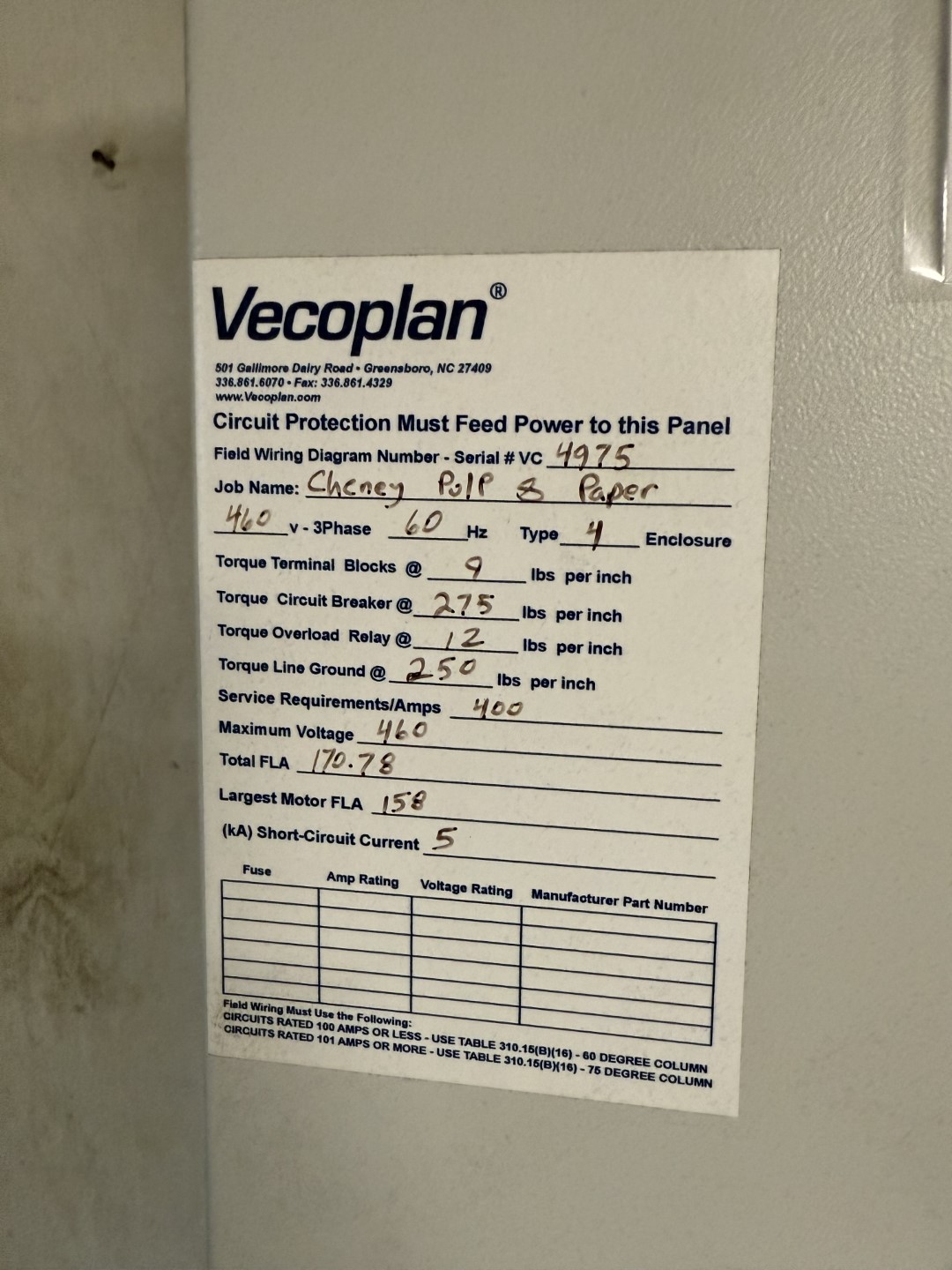

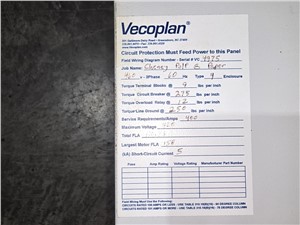

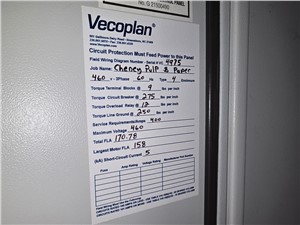

Total Amps 170.78, Voltage 460
Dimensions:
169" Overall Length
103" Overall Width
15,000 lbs Shredder Weight

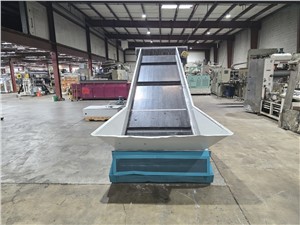

60" Wide Conveyor
20' Approximate Length

Add To Quote

Call Us
(877) 887-9408

International
(312) 878-3809

Sell Your Used
Machinery

Brand	Vecoplan
Model	VAZ-1600-M-FF V-5552
Item	22671J
