Name: 60MM Leistritz ZSE 60 GL-36D Twin Screw Extruder, 36:1 L/D, 121KW
Brand: Leistritz
SKU: 22278B
Price: 69500.00 USD
Availability: InStock

60MM Leistritz ZSE 60 GL-36D Twin Screw Extruder, 36:1 L/D, 121KW

Click to enlarge (25 Total Photos)

Product Features

Used 60MM Leistritz ZSE 60 GL-36D Twin Screw Extruder, 121KW(162 HP)
Co-Rotating

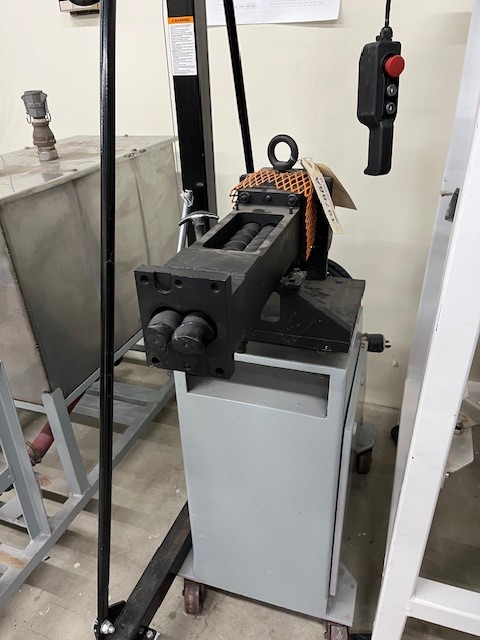

500 RPM Screw, 36:1 L/D Ratio, 9 Barrel Segments, With 40 MM Side Feeder
Vent In Zone 4, Side Feeder In Zone 5
10 Zone Control Panel With Eurotherm 2208 Temperature Controllers
121KW(162) HP Baumuller Shunt Wound DC Motor

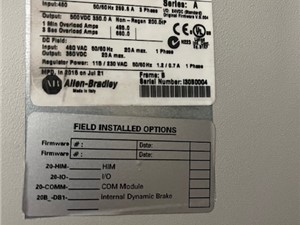

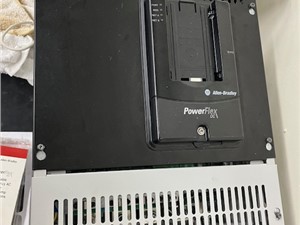

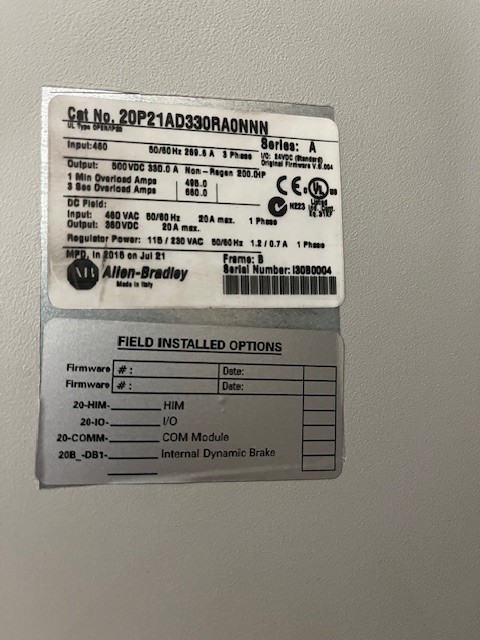

Allen Bradley DC Drive - Not Installed In Panel
400 AMP Breaker In Temperature Panel
Machine S/N 2862
Water Cooled Barrel With Recirculation Pump, Stainless Steel Holding Tank, and 6" Dia. x 28" L Heat Exchanger
New In 2000
One Set Of Spare Screws
460/3/60
Approximate Dimensions:
Extruder: 206" L x 34" W x 58" H
Temperature Panel: 48" L x 24" W x 94" H
Side Feeder: 42" L x 18" H x 42" H
Heat Exchanger/Holding Tank: 70" L x 30" x 50" H
