Chillers & Cooling Systems

For a single machine or your entire shop floor, we are your resource for quality used and professionally refurbished equipment.

19 items Filter
Chillers play a critical role in plastics manufacturing by maintaining precise temperature control during production. Selecting the right chiller ensures quality, efficiency, and smooth operation. Chillers are used to cool molds, extruders, and other equipment in the plastics manufacturing process. By managing the heat generated during production, they help achieve consistent product quality, prevent equipment damage, and improve cycle times.

When purchasing a chiller, consider reliable, industry-recognized brands. Some of the top players include Conair, Frigel, Advantage, Thermal Care, AEC, Temptek, Top Chiller, and Drycool Systems just to name a few.

Each brand offers unique solutions tailored for different needs, from compact portable chillers to larger central cooling systems.

Here are some helpful hints to keep in mind when assessing your needs.

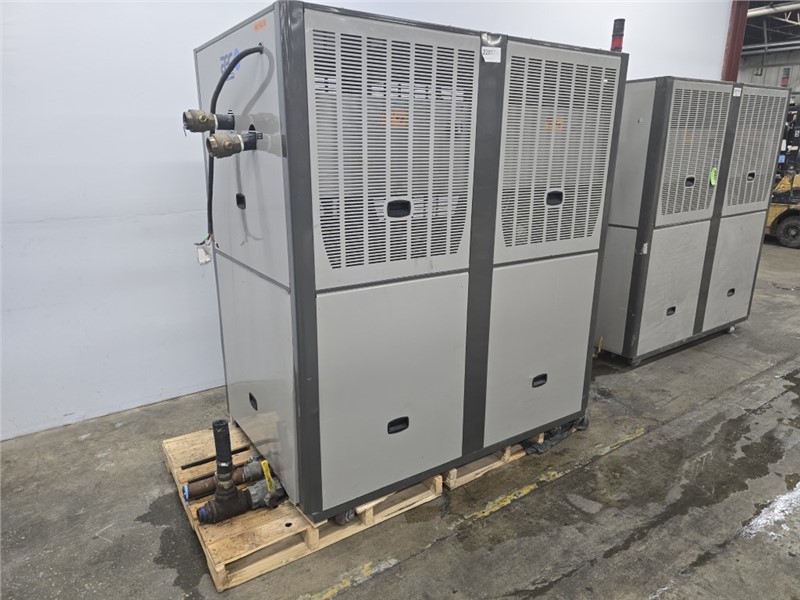

 2024 60 Ton AEC High Efficiency Remote Air-Cooled (HECR) Chiller, front angle view, showcasing advanced industrial cooling equipment designed for high-capacity and energy-efficient applications.

1. Cooling Capacity - Match the chiller’s capacity to your process requirements. Choose a slightly higher capacity than your cooling load to ensure efficiency.Consider the heat load from equipment size, throughput, and material type.

2. Temperature Control - Opt for chillers with precise temperature control, typically within ±0.5°C, to maintain consistent molding conditions.Verify the temperature range meets your needs (usually 1°C to 7°C or 34°F to 45°F).

3. Flow Rate - Ensure the chiller delivers coolant at the appropriate flow rate and pressure to avoid equipment damage. A typical flow rate is 2–3 GPM per ton.

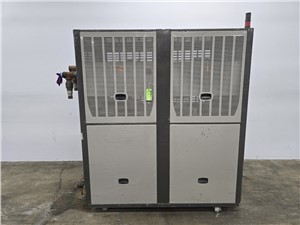

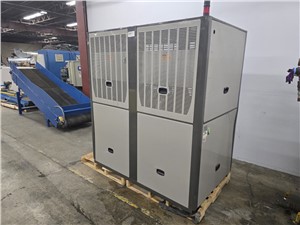

20-ton AEC GPWC-70 water-cooled chiller, manufactured in 2012, industrial equipment for sale, designed for efficient cooling applications.

4. Energy Efficiency -
Energy-efficient chillers reduce operational costs. Look for models with energy efficiency ratings of 0.9 kW/ton or lower.

5. Cooling System Type - Air-Cooled Chillers are suited for smaller facilities due to simpler installation requirements. Water-Cooled Chillers provide a higher cooling capacity and are ideal for larger installations.

6. Space Requirements - Evaluate available space. Portable chillers are compact and mobile, while central chillers serve large-scale operations.


Pro Tip: Most chillers previously relied on HFC refrigerants like R410A, introduced in the 1990s for their near-zero ozone depletion potential (ODP). However, HFCs are now being phased out due to their high Global Warming Potential (GWP). For example, R410A contributes 1,890 times more to global warming than carbon dioxide.

Key Regulations and Compliance

  • United States: From January 1, 2024, 12 states require new chillers to use low-GWP refrigerants (GWP of 700 or less). Nationwide regulations may be implemented by 2026.
  • Canada: From January 1, 2025, all manufactured or installed chillers must use low-GWP refrigerants.
  • Existing chillers using high-GWP refrigerants are “grandfathered” and can remain operational throughout their lifespan but cannot be retrofitted to low-GWP refrigerants.

Leading manufacturers, such as Conair, are transitioning to low-GWP refrigerants by redesigning their chillers. Modern Conair chillers are compatible with refrigerants such as R454B while maintaining the flexibility to use R410A in approved regions.

Why Retrofitting Isn’t an Option

Due to differences in thermodynamic properties and operating pressures, retrofitting older chillers to low-GWP refrigerants is neither safe nor feasible. Manufacturers recommend investing in new units designed for compliance and efficiency.

Invest in Future-Ready Chillers

Selecting the right chiller for your plastics operation requires a combination of capacity planning, energy efficiency evaluation, and adherence to regulatory standards. Explore options from trusted brands like Conair, Frigel, and Thermal Care to secure reliable cooling solutions for your facility. By transitioning to low-GWP refrigerant systems now, your operations will stay compliant and align with sustainable practices.

Need help choosing the right chiller? Contact Arlington Machinery for tailored advice or consult your local regulations to ensure alignment with environmental standards.
