Name: 2” Davis Standard Extrusion Line For Monofilament
Brand: Davis Standard
SKU: 22676B
Price: 149500.00 USD
Availability: InStock

2” Davis Standard Extrusion Line For Monofilament

Click to enlarge (33 Total Photos)

Product Features

Davis Standard Monofilament Line
Line Consists Of The Following Pieces:

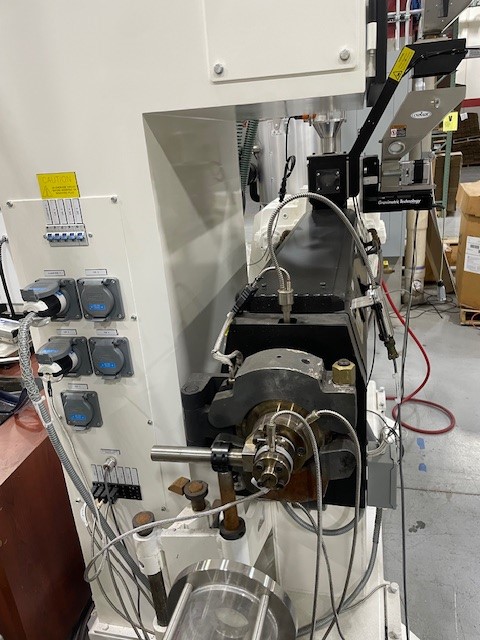

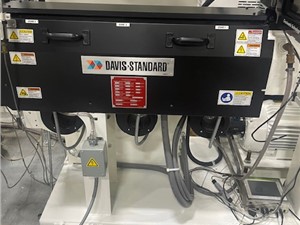

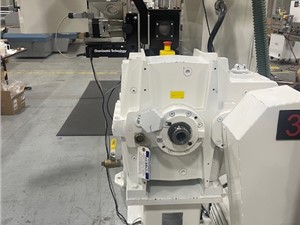

Used 2.0” Davis Standard Super Blue Single Screw Extruder
24:1 L/D Ratio, Air Cooled Barrel
3 Barrel Zones, 5 Die Zones
17.56:1 Gearbox Rated To 35 HP
Clamp
20 HP 1000:1 AC Motor With 20 HP Yaskawa AC Inverter Drive
DS-TPC II With 15” Touch Screen Controller

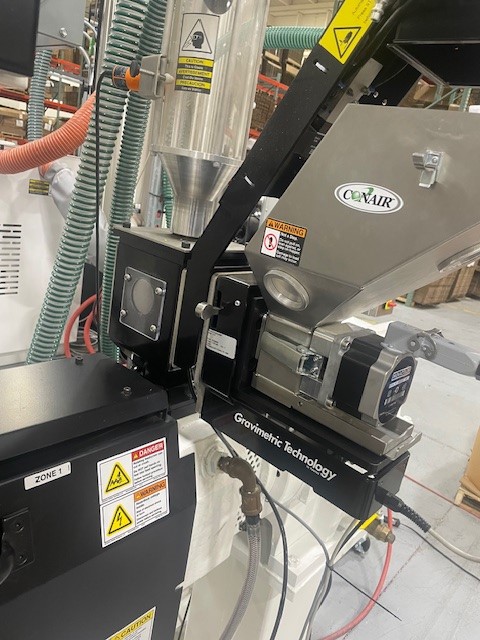

VF Color Feeder
New In 2020
460/3/60

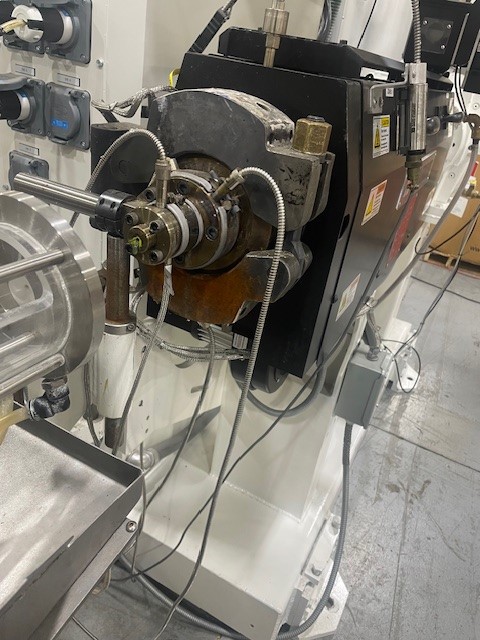

Model GRH-1.0 Extruder Rod Head, Stainless Steel

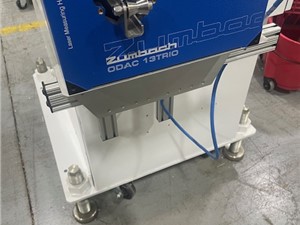

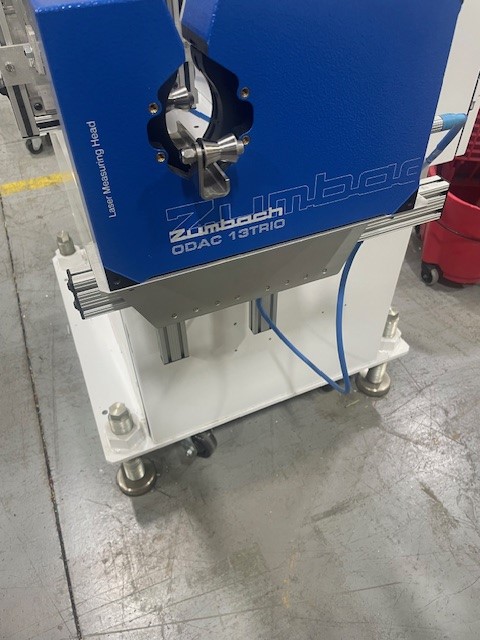

Used Conair/Zumbach Diameter Measuring And Control System
Diameter Monitoring, SPC/SQC Data Acquisition, Industrial Microprocessor, LCD Touch Screen, ODAC 13Trio-J Scanner - ,0020/.063 Diameter
$26,960 New In 2020

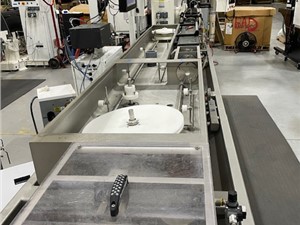

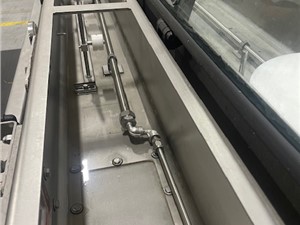

Used 12’ Conair HTMP-12-4 Multipass Cooling Tank
Up To .500” Diameter Tubing
8’ Vacuum Chamber
12’ Multipass Open Top Cooling Chamber, 24” Wide
11 Gauge Stainless Tank
Variable Speed Vacuum Blower Capable If Up To 135 Inches Of Vacuum
1 HP Recirculation Pump For Vacuum Tank
2 HP Recirculation Pump For Cooling Tank
Approximate Weight And Dimensions: 16’ L x 55” W x 72” H, 3,000 LBS
460/3/60, 13.9 Amps
Rated To Cool Up To 150 LBS/HR Of Tubing/Profile
18” Long Air Wipe Chamber
Stainless Steel Reservoir
Stainless Steel Heat Exchanger
Right To Left Operation
42” Centerline +/- 2”
Additional Options Installed:
PAVC Plus Automatic Vacuum Control With Touch Screen HMI
Stainless Steel Plumbing Package – No Copper Or Brass
Servo Driven First Pass Roller
Trojan UV Max Ultraviolet Water Treatment
Minntech 5 Milcron Filter
Stainless Steel Flow Meter
$87,398.00 New In 2002
Used 3” x 20” Conair Model 3-20 Belt Puller
3.2 To 330 FPM
3.5” Max. Opening
Servo Driven By 3.25 HP Servo Motor Through Helical Gearbox
42” +/- 2”
60 Durometer FDA White Nitrile Rubber Belts
Right To Left Operation
Pro Scale Digital Gap Sensor
New In 2020
460/3/60, 5.2 Amps

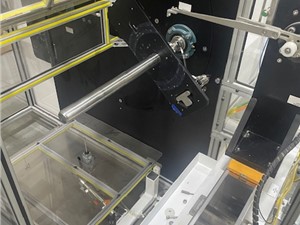

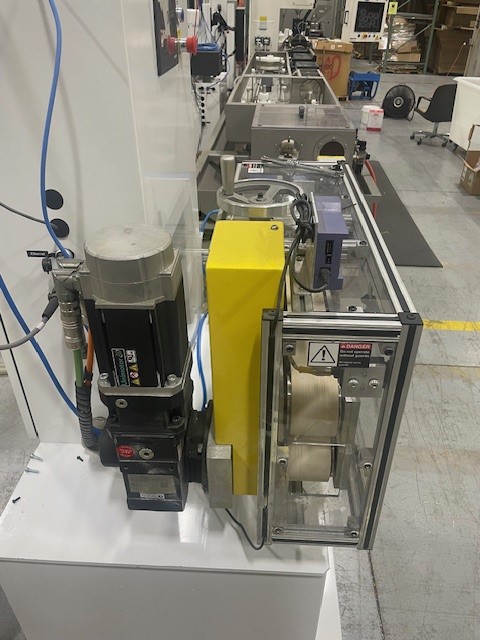

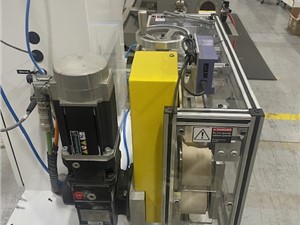

Used Conair ATC Automatic Cut And Spindle Transfer System, New In 2020
Model ATC-24
Coil Size 20” OD X 12” Wide
Independent Servo Drive For Each Reel
Traverse Driven By Servo With Ball Screw

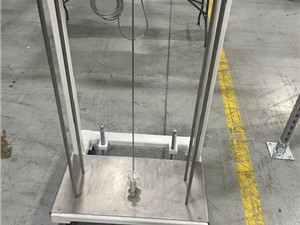

Separate Floor Mounted Dancer
8” HMI Touch Screen
800 FPM Max. Line Speed
Tubing From .125” To .500”,
Guarding With Aluminum Strut Framing And Clear Plastic Doors
Painted Medical White
460/3/60, 12.4 Amps
New Price In 2020 - $116,874.00
40” To Spindle Centerline
Right To Left Operation
Approximate Dimensions: 72” L x 54” W x 68”, 2,200 LBS
Used 9 kW Conair TW-S Thermolator Mold Temperature Control
Single Zone
250 Fahrenheit Degree Max. Temp.
¾ HP Pump
50 GPM
460/3/60
New In 2020
Approximate Dimensions: 26” L x 14” W x 30” H, 300 LBS

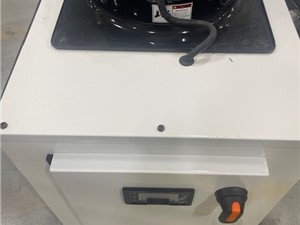

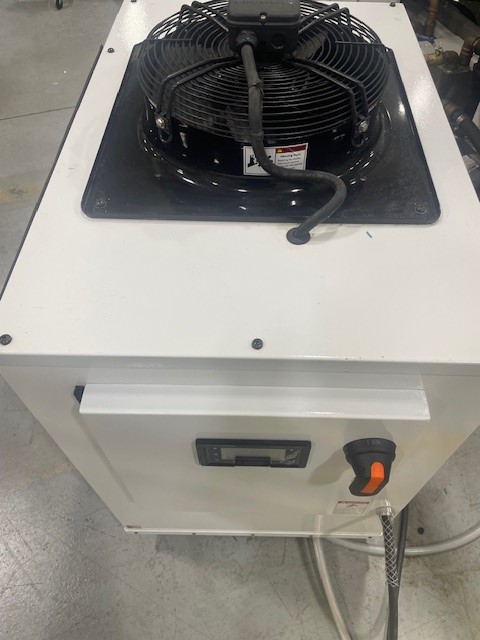

Used 3 Ton Conair EP1A-03 Chiller
20-65 Degree(Fahrenheit) Setpoint
1.0 HP Pump
11 Gallon Reservoir Tank
Auto Water Make-Up
New In 2020
460/3/60
Approximate Dimensions: 40” L x 24” W x 44” H, 430 LBS

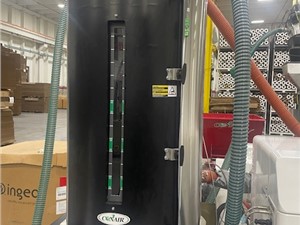

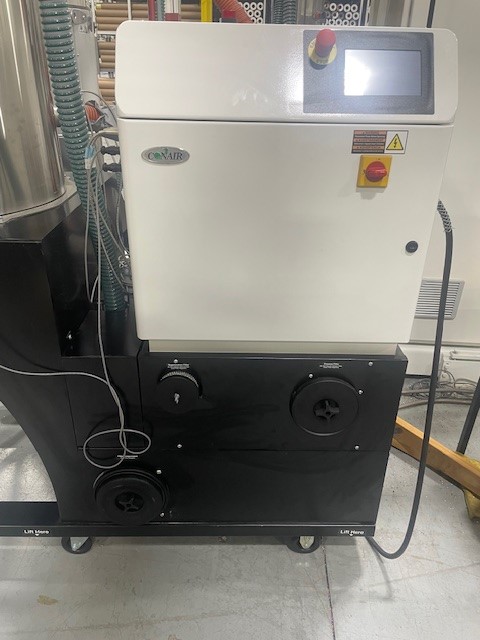

Used 50 LB/HR Conair dX50 Carousel Plus Dryer With 175LB Cap. Hopper
Approximately 50 LBS/HR - Drying Rates Vary By Material
375 Degree Fahrenheit Max Temp.
-40 Dew Point
Air To Air Aftercooler
7” Touch Screen
Approximately 50 LBS/HR - Drying Rates Vary By Material
460/3/60
Approximate Dimensions: 52” L x 34” W x 72” H, 800 LBS
This PLA Extrusion Line That Arlington Has For Sale Was New In 2020 And Has Low Hours. The New Price On This Line Is Over $415,000.00.
