Name: 60” Wide Davis Standard Co-Ex Sheet Line, New In 2001
SKU: 22647B
Price: 224900.00 USD
Availability: InStock

60” Wide Davis Standard Co-Ex Sheet Line, New In 2001

Click to enlarge (36 Total Photos)

Product Features

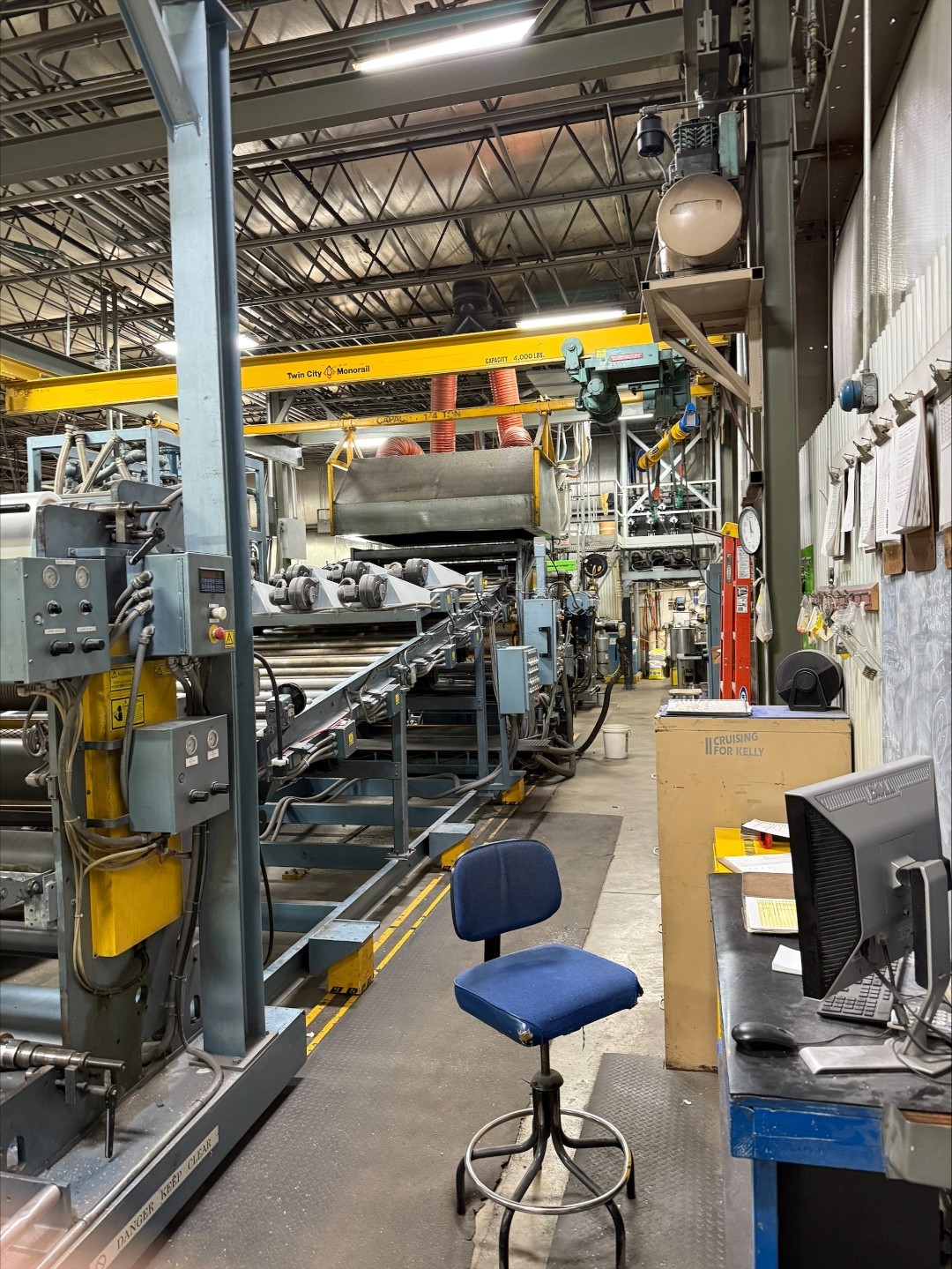

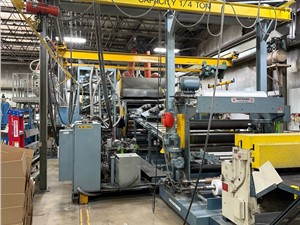

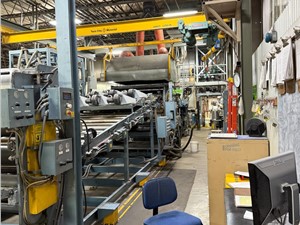

60” Wide Davis Standard Co-Ex
Sheet Line
Lines Consists Of The Following
Pieces:

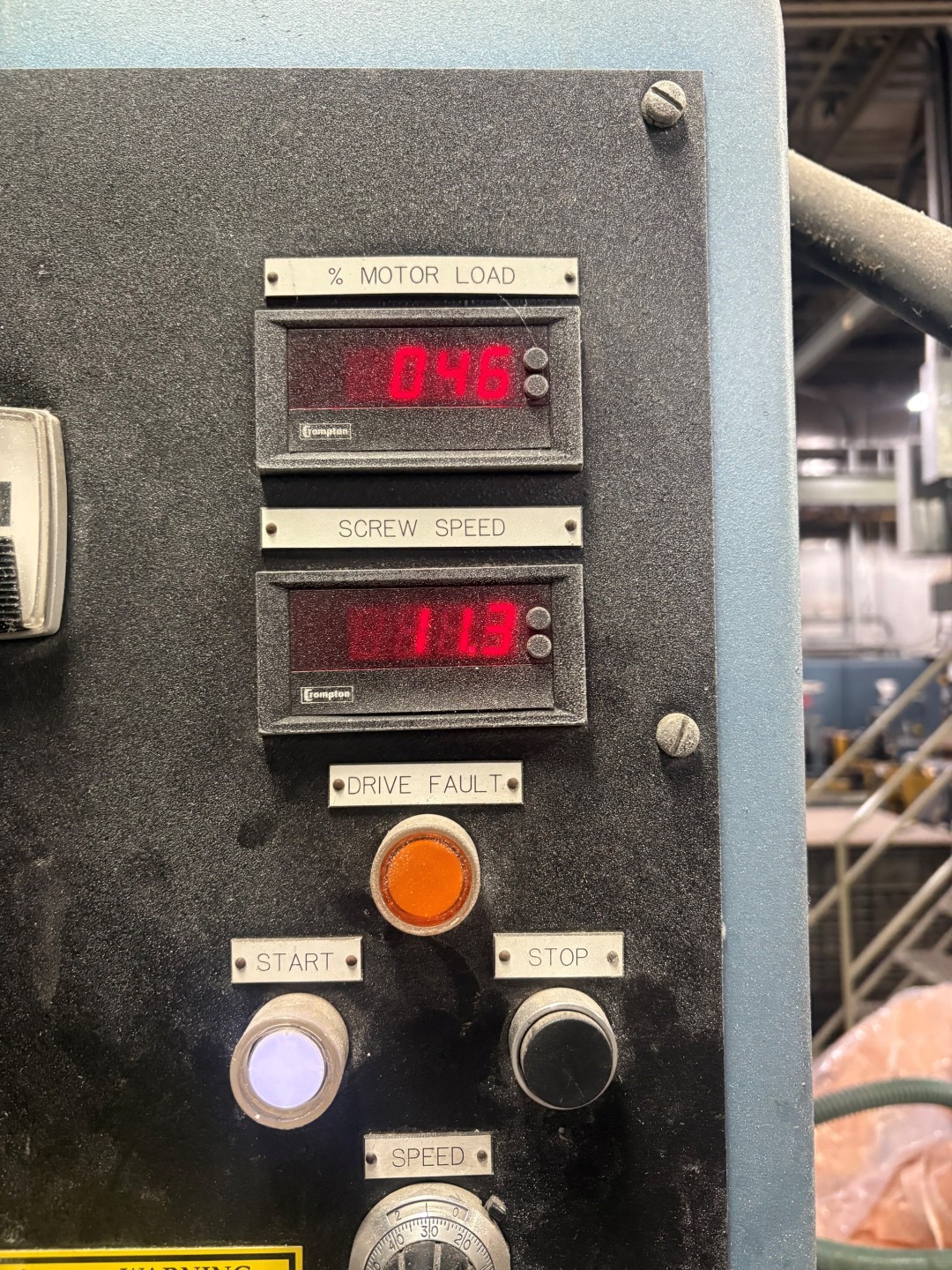

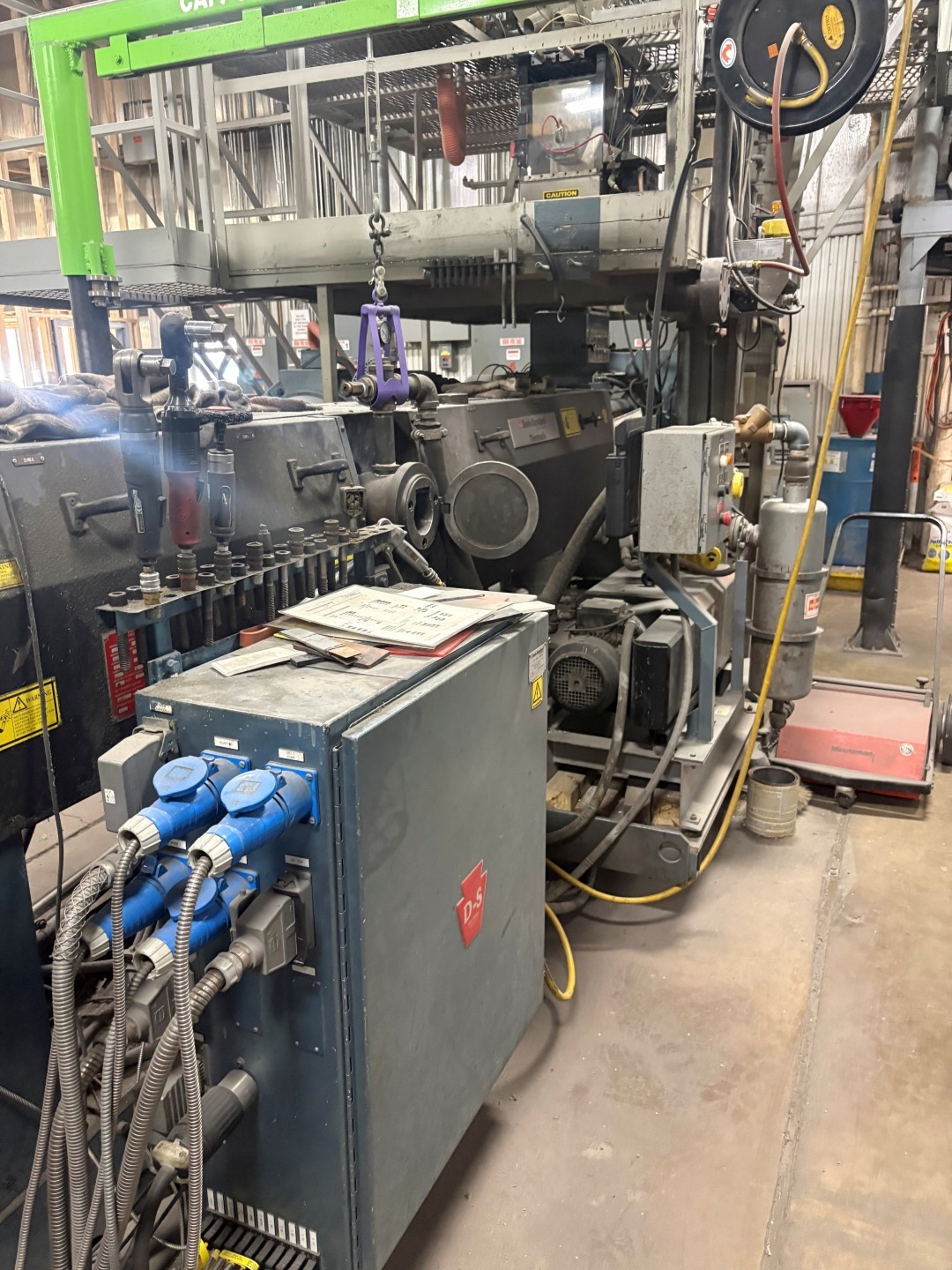

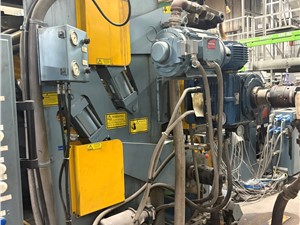

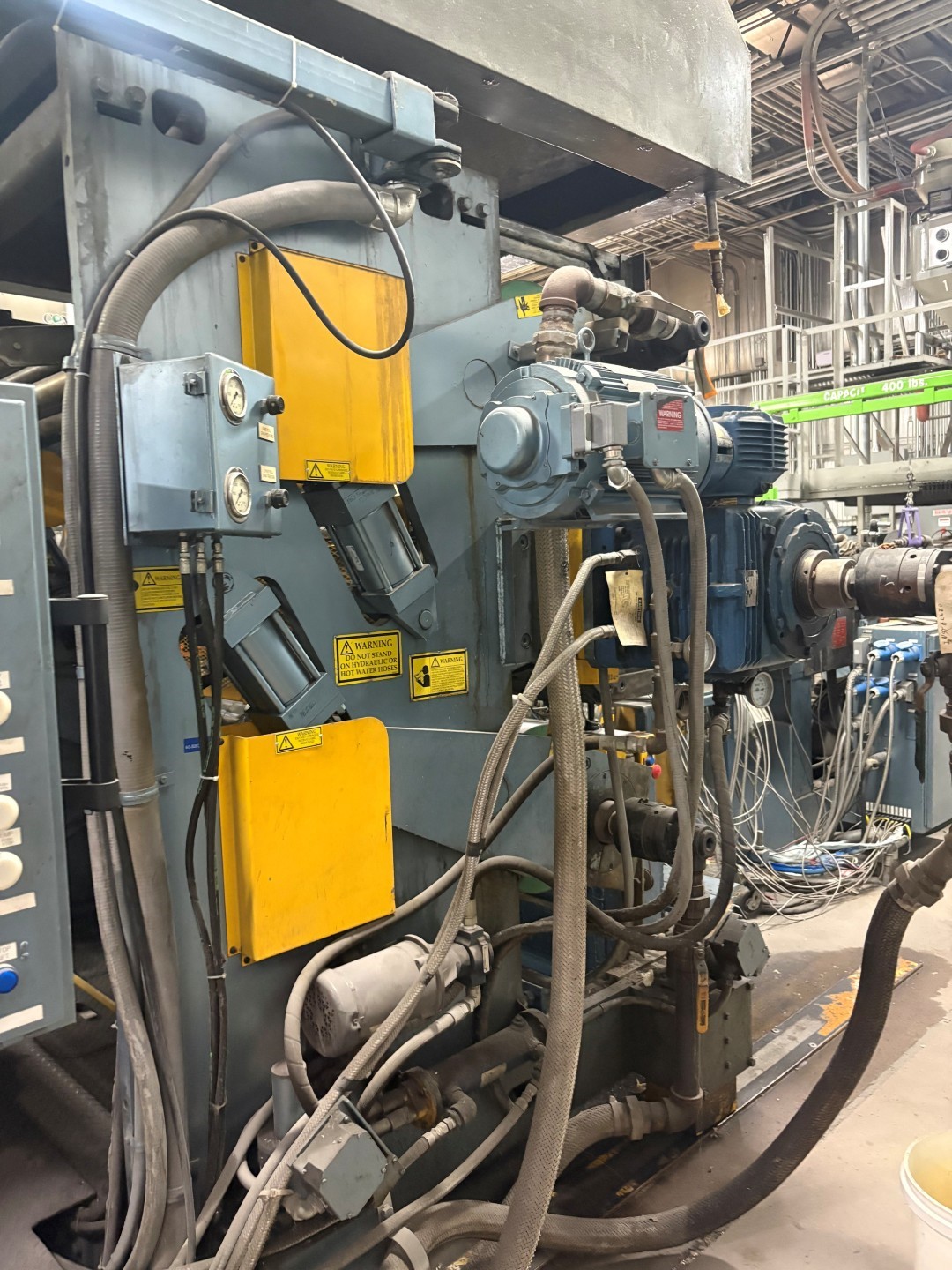

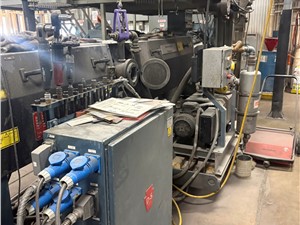

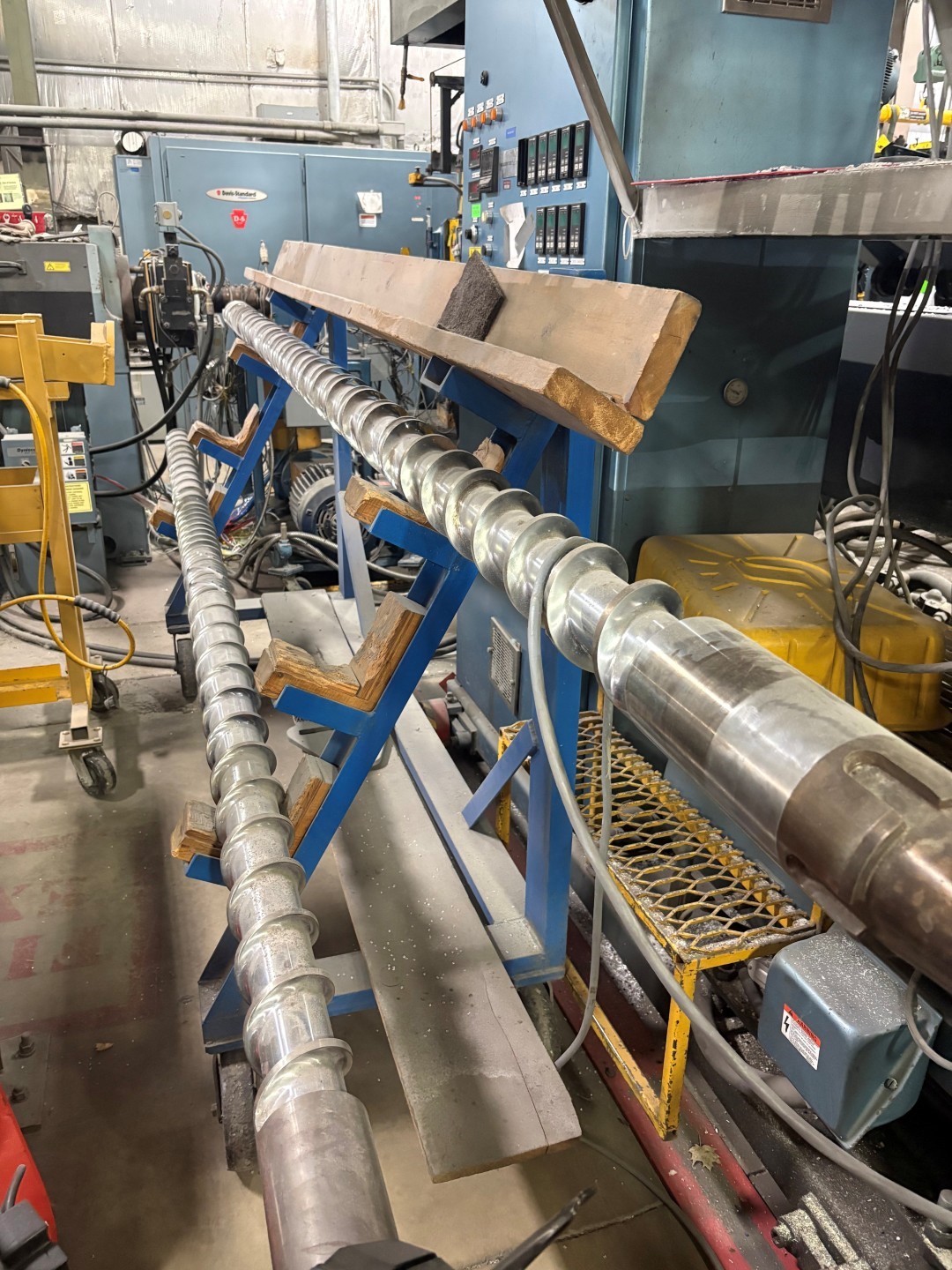

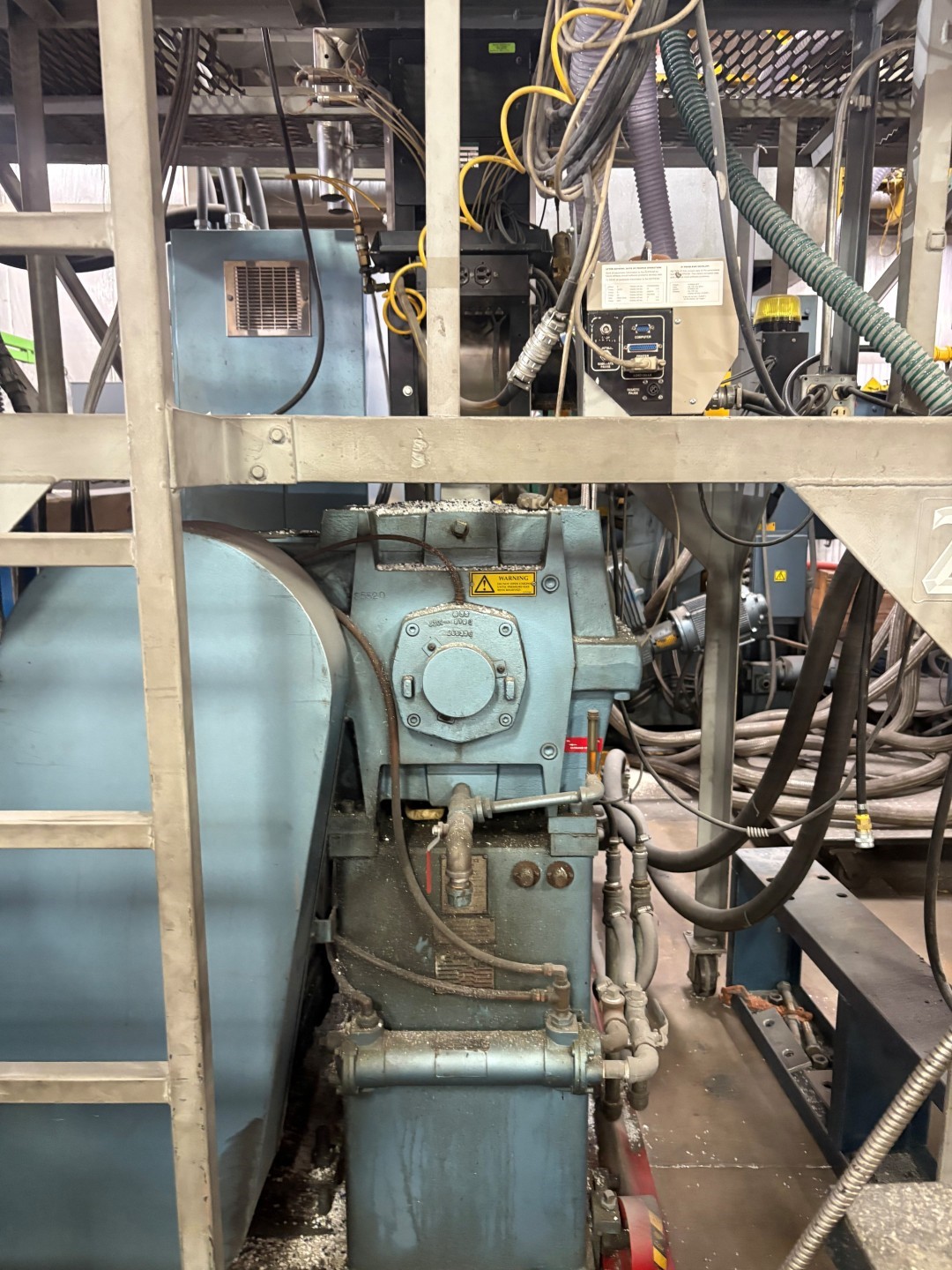

4.5” Davis Standard Single Screw
Extruder, 30:1 L/D, Model Thermatic III, Vented Barrel With 7.5 HP Nash Vacuum Pump,

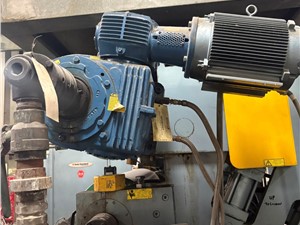

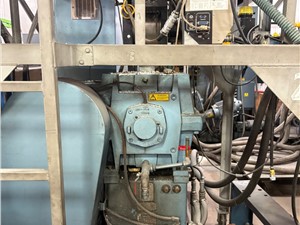

Air-Cooled Barrel, 6 Barrel Zones, 10 Die Zones, 45IN45HT Gearbox Rated To 360

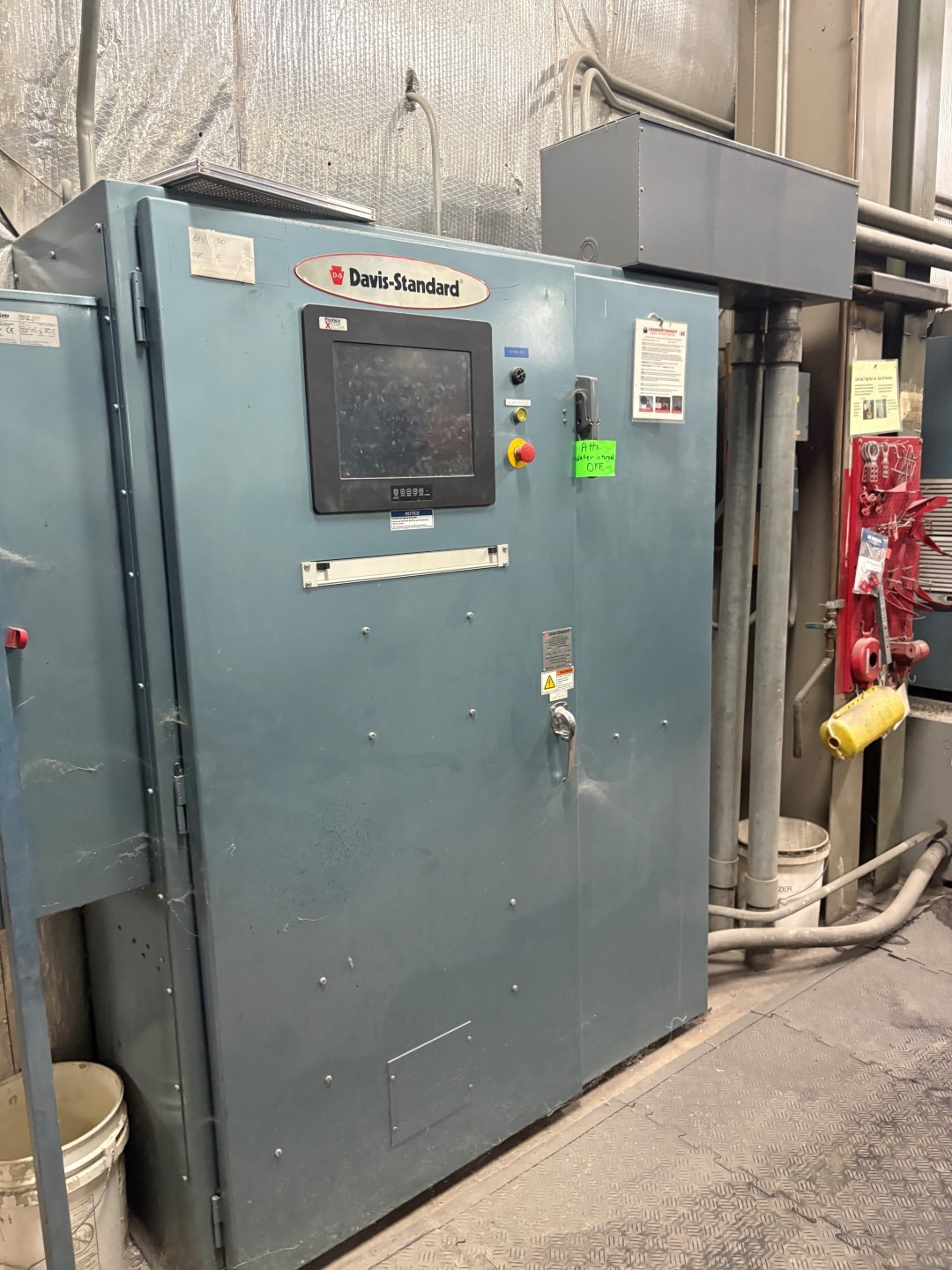

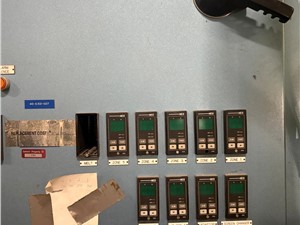

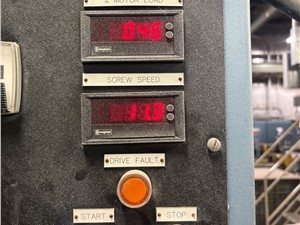

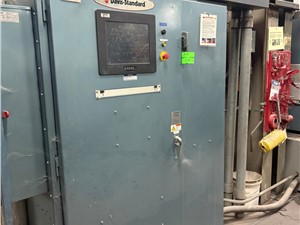

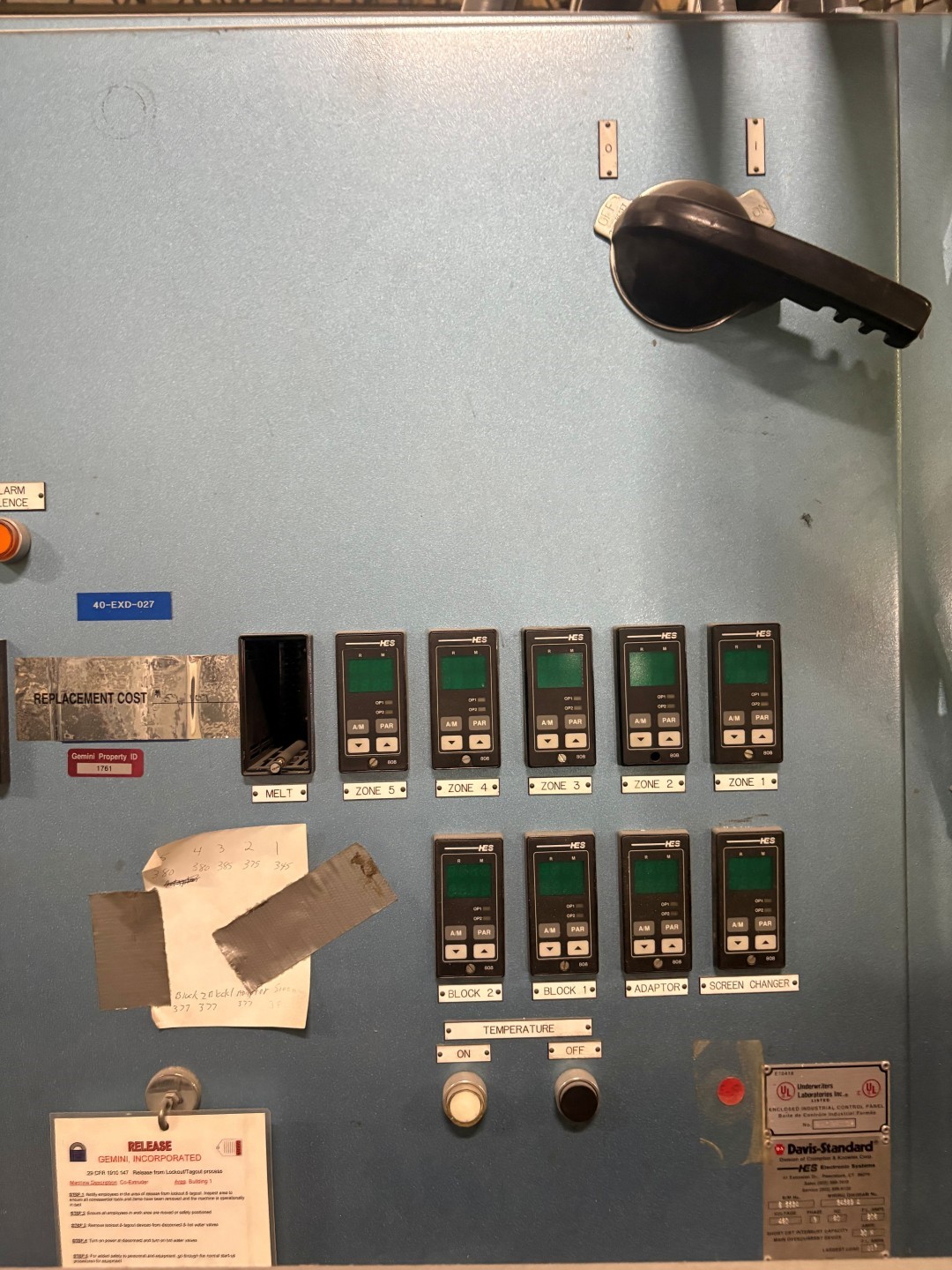

HP, 17.49:1 Gearbox Ratio, 300 HP AC Motor, Control Panel With 16 Eurotherm 2208
Temperature Controllers, New In 2001

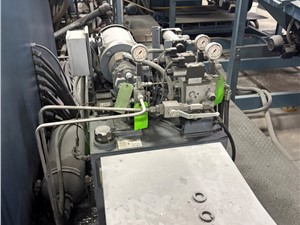

4.5” Dynisco EH-45 Hydraulic Slide

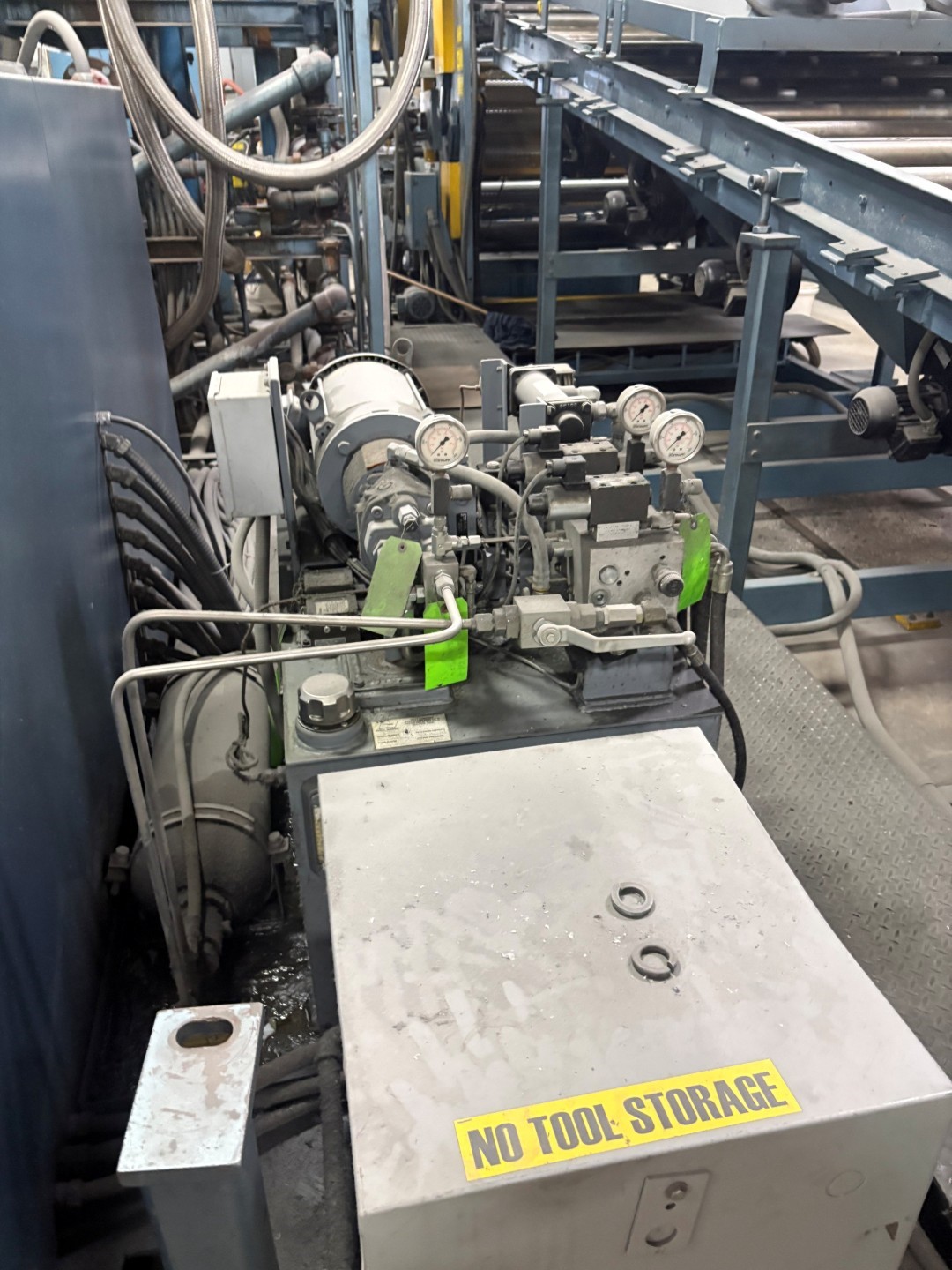

Plate Screen Changer With Hydraulic Power Unit

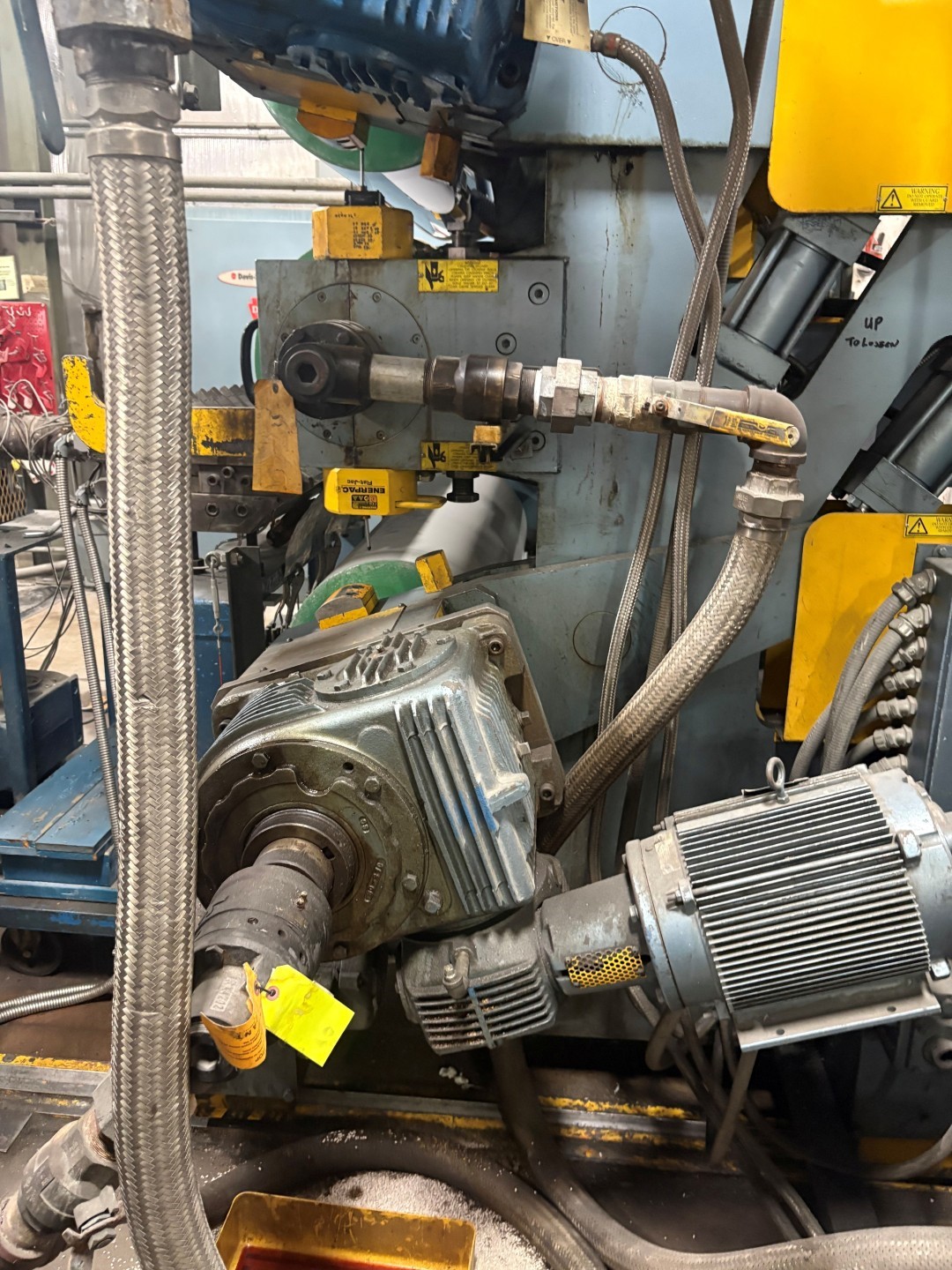

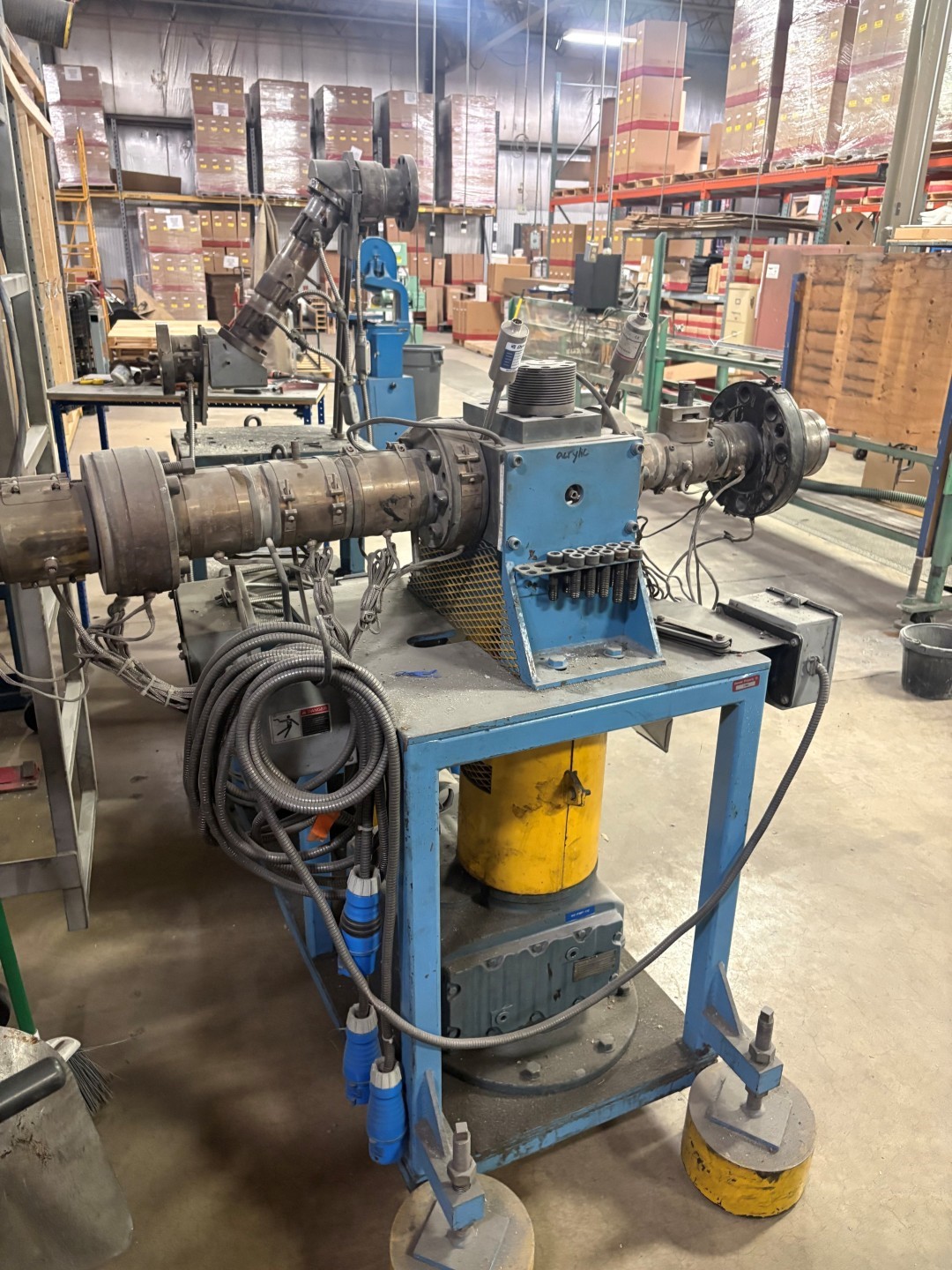

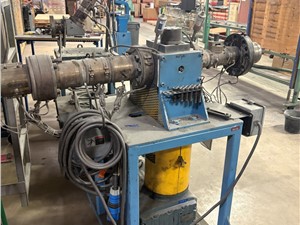

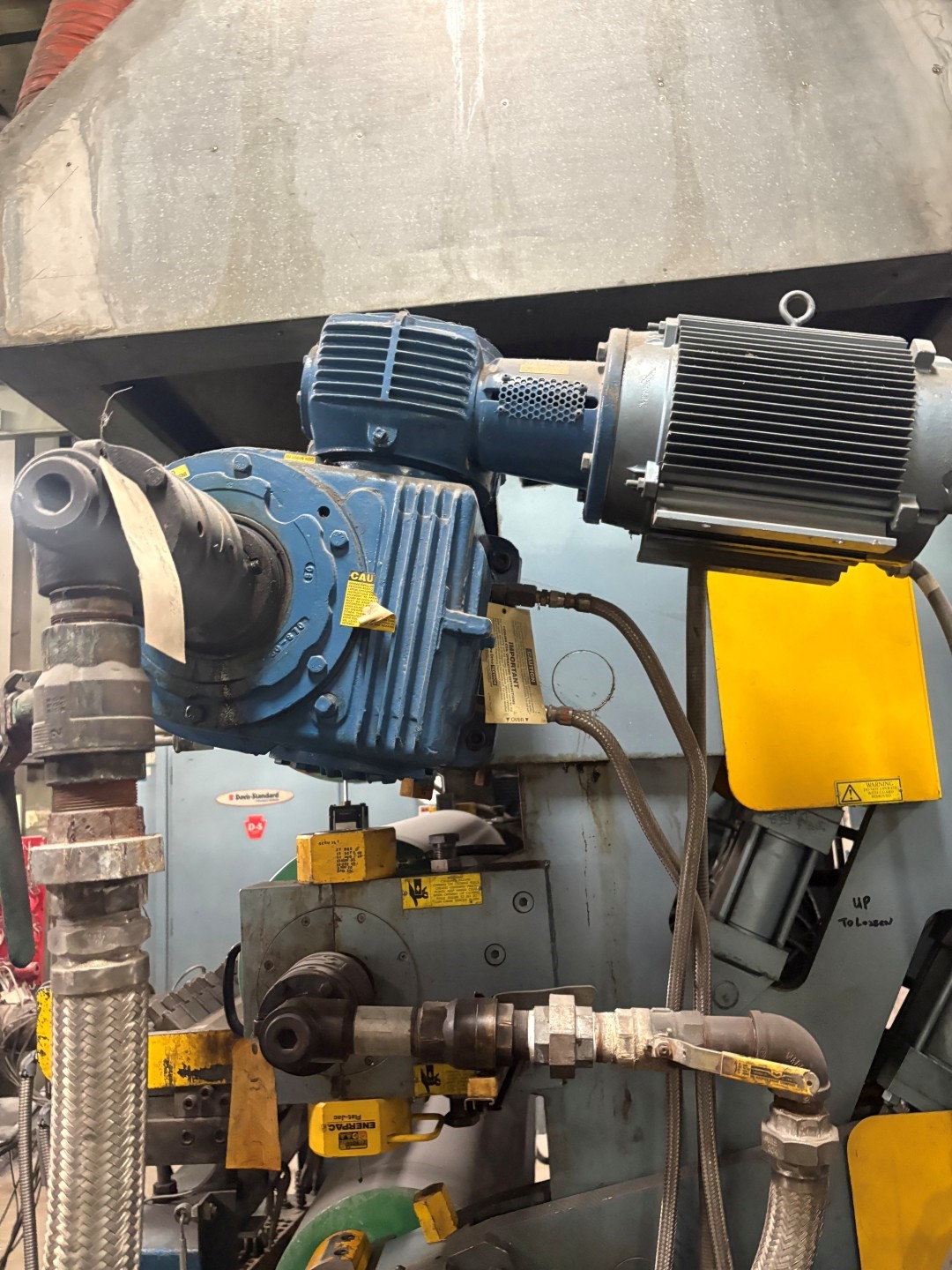

Dynisco 275 Melt Pump With Static
Mixer, AC Motor

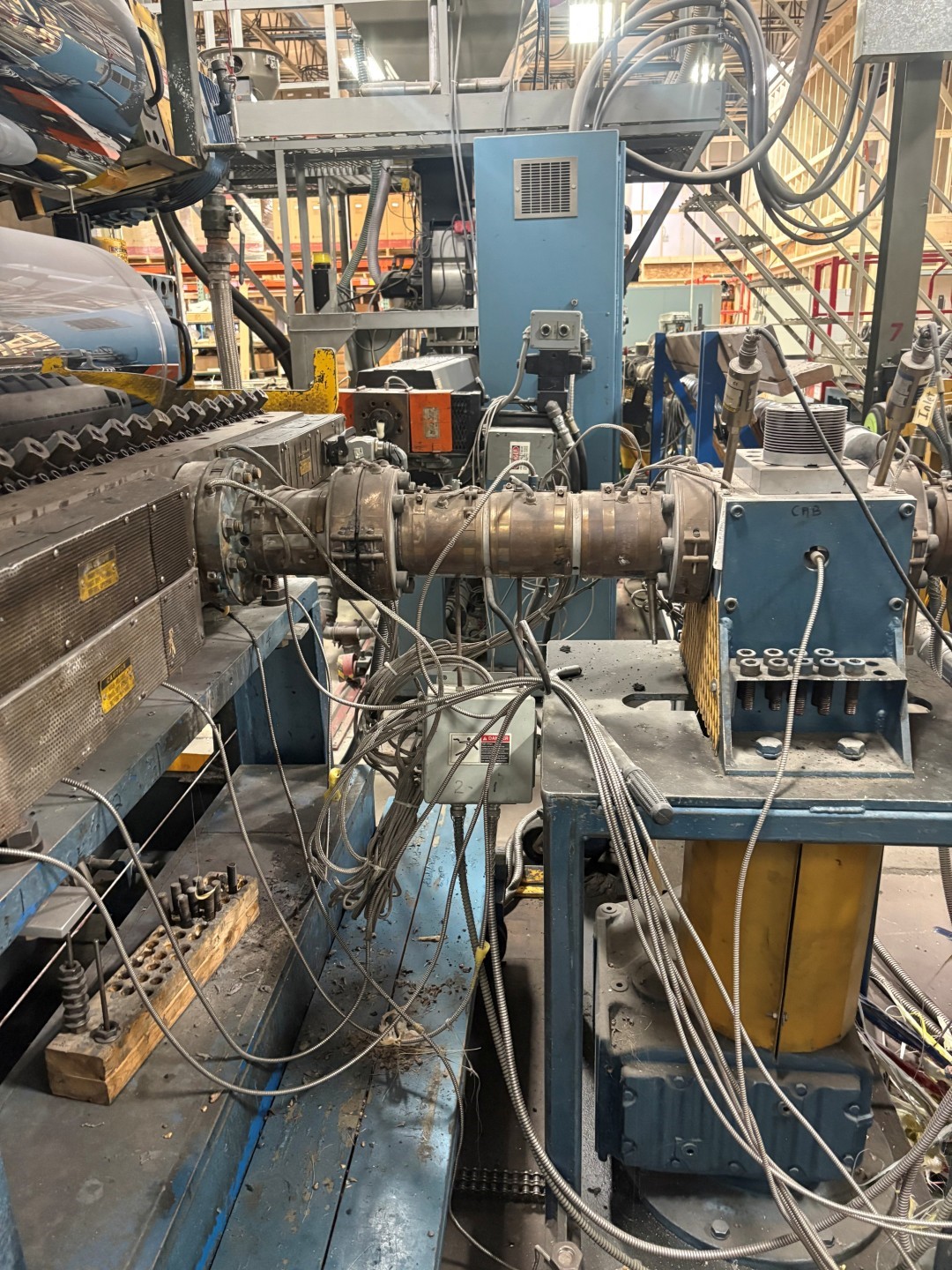

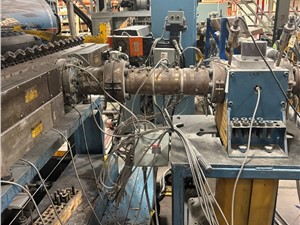

2.5” Davis Standard Co-Extruder –
Additional Information Coming Soon

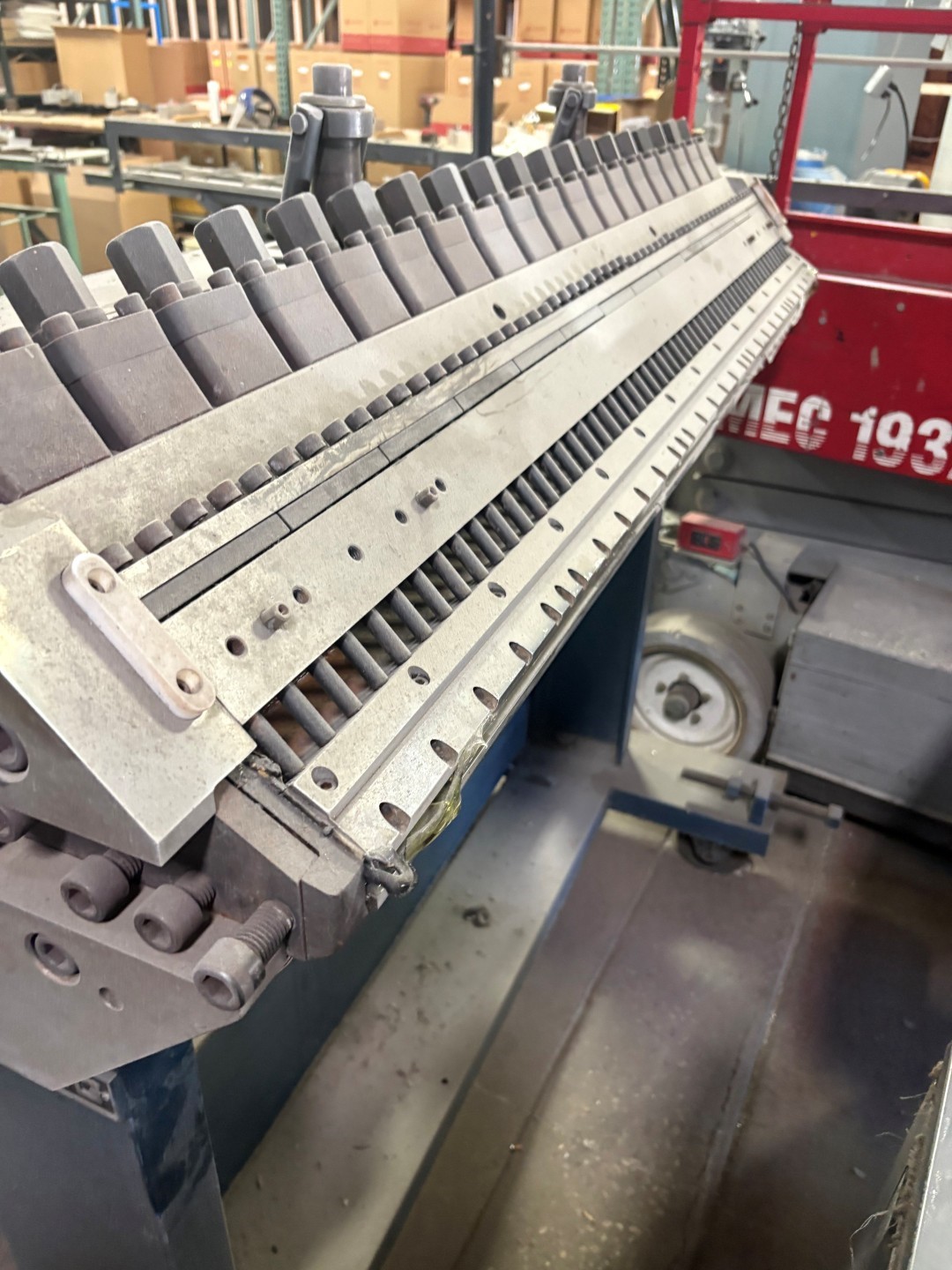

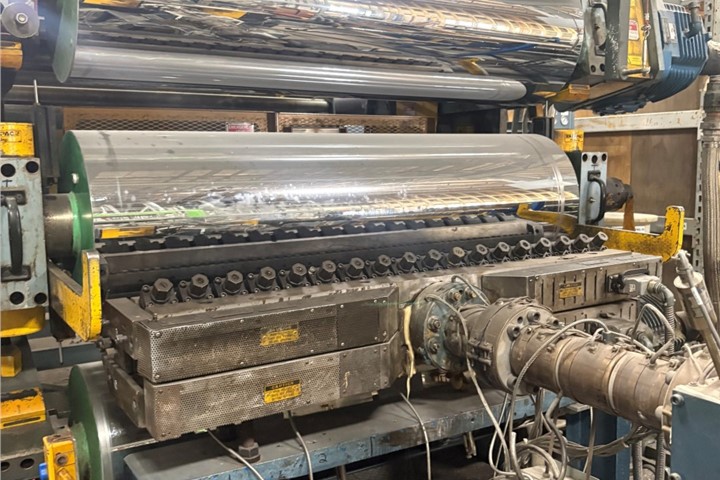

58" Wide Sheet Die

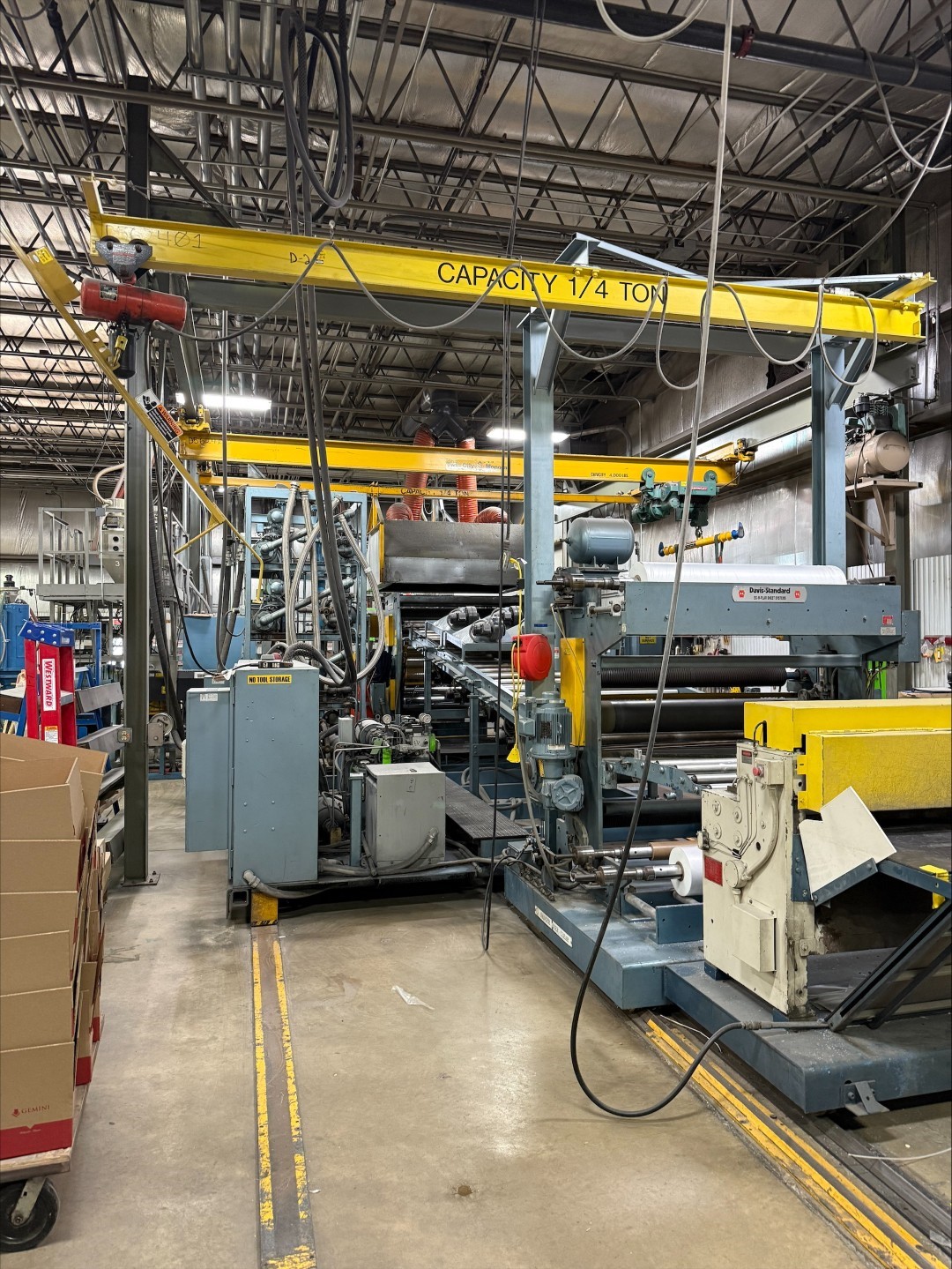

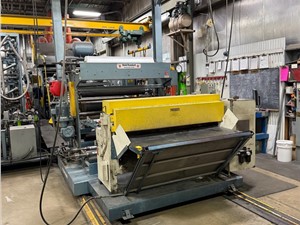

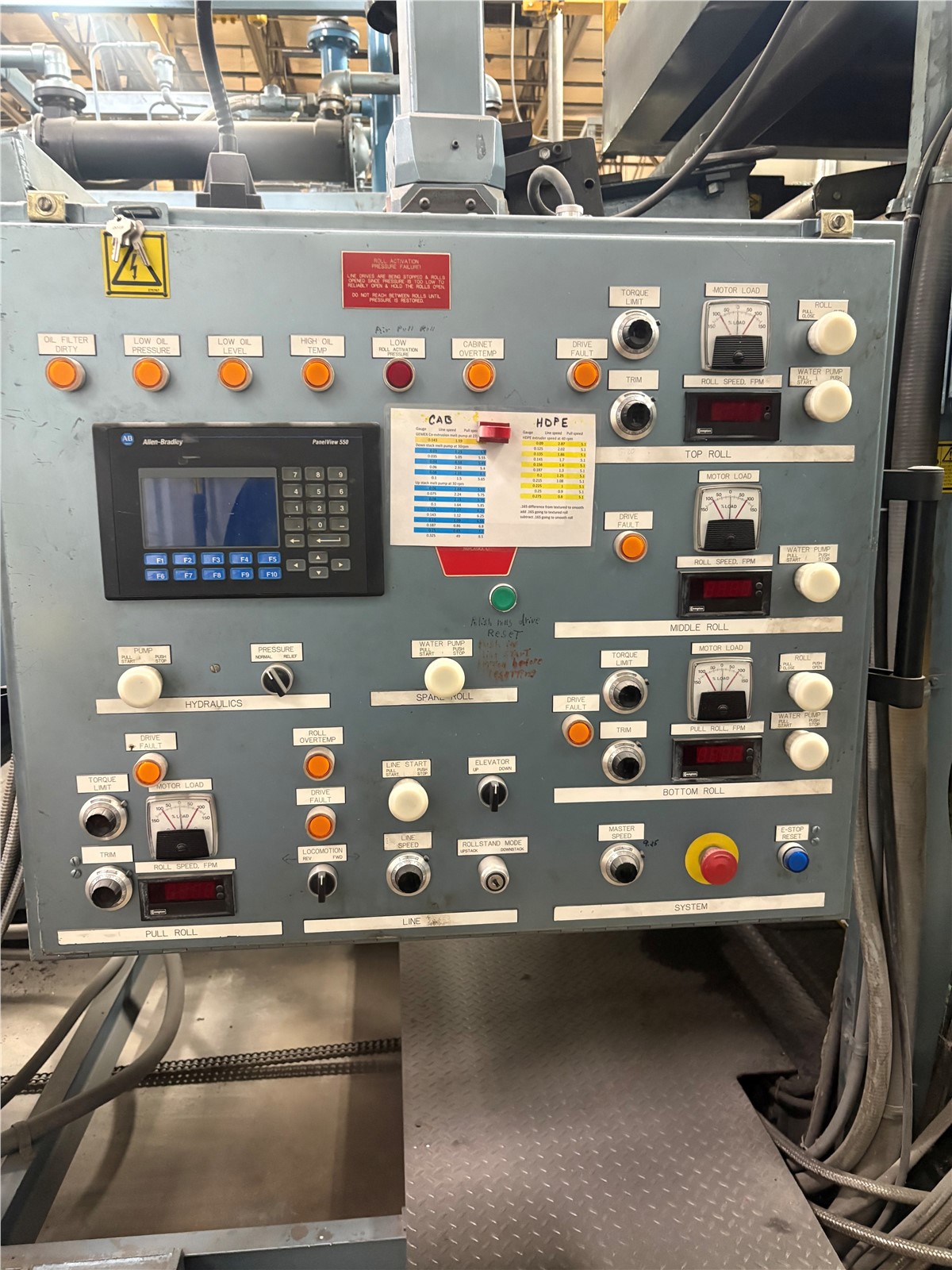

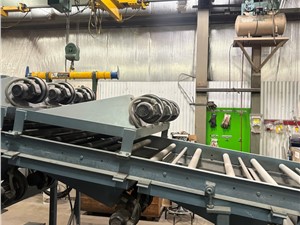

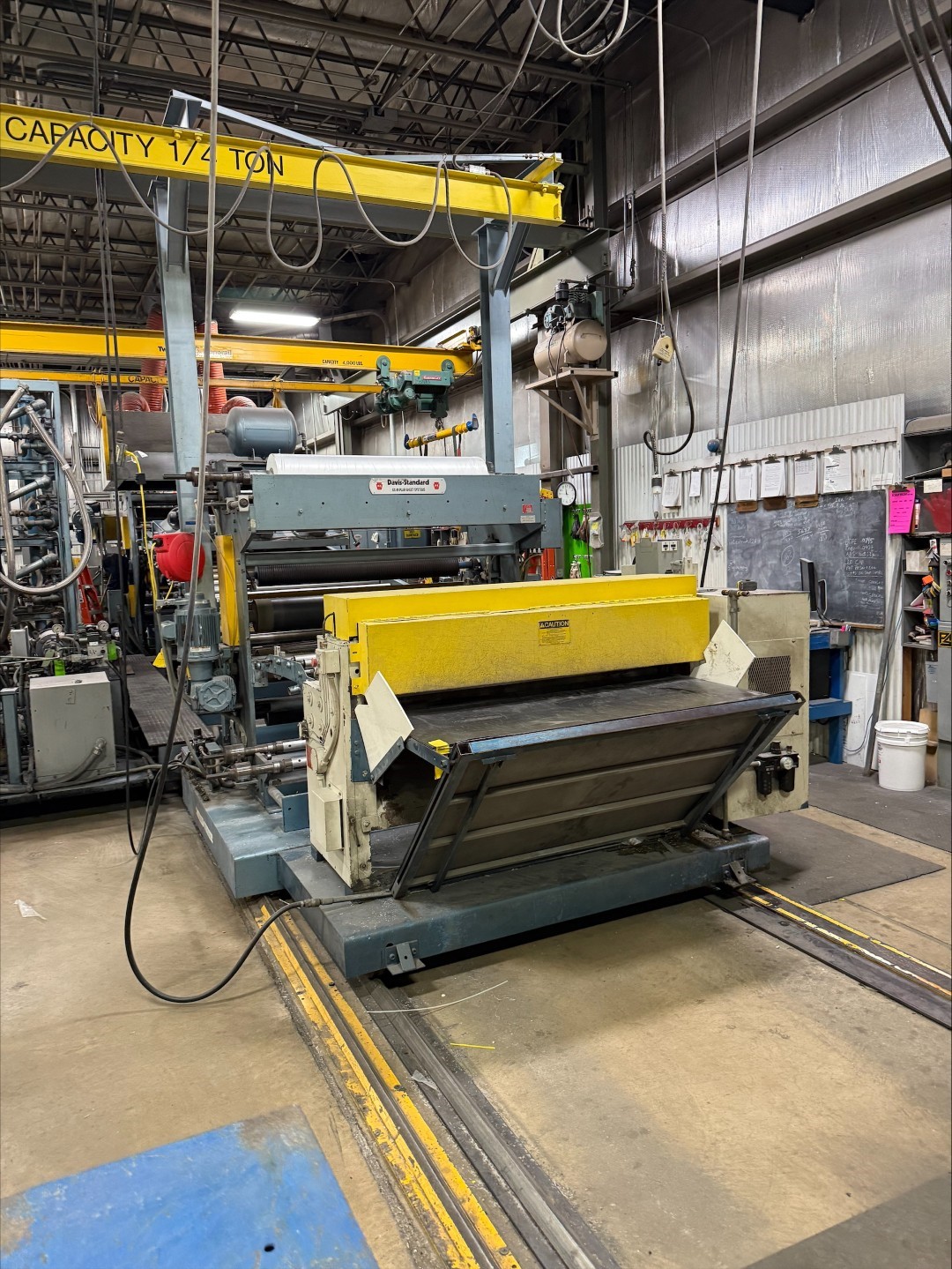

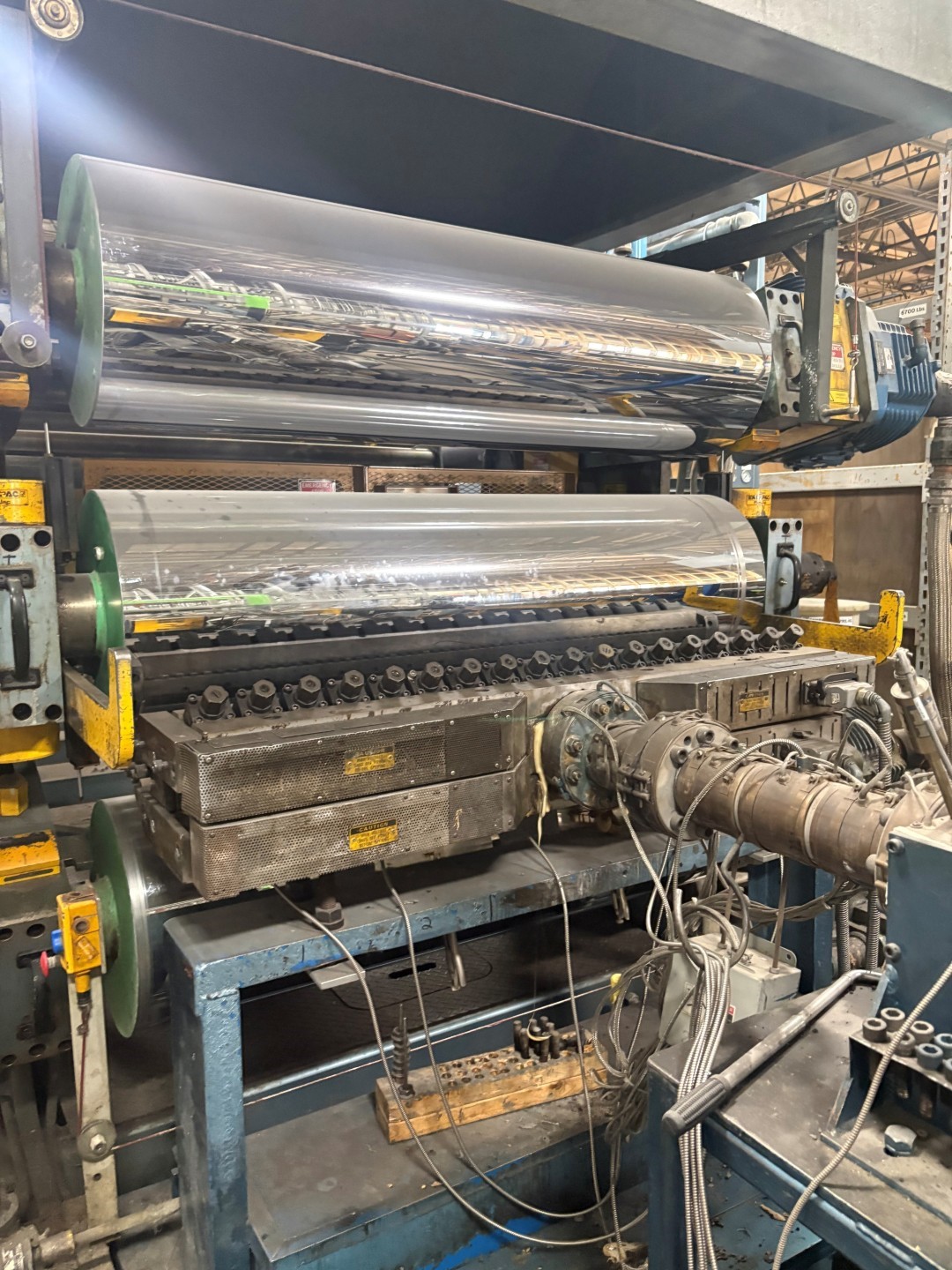

60” Wide Davis Standard Ex-M-Plar
III Roll Stack, Upstacking, 18” Diameter Rolls, Individually Driven Rolls, 3 HP

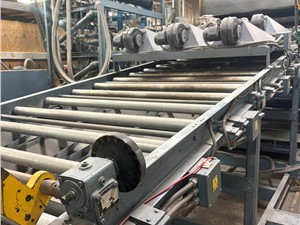

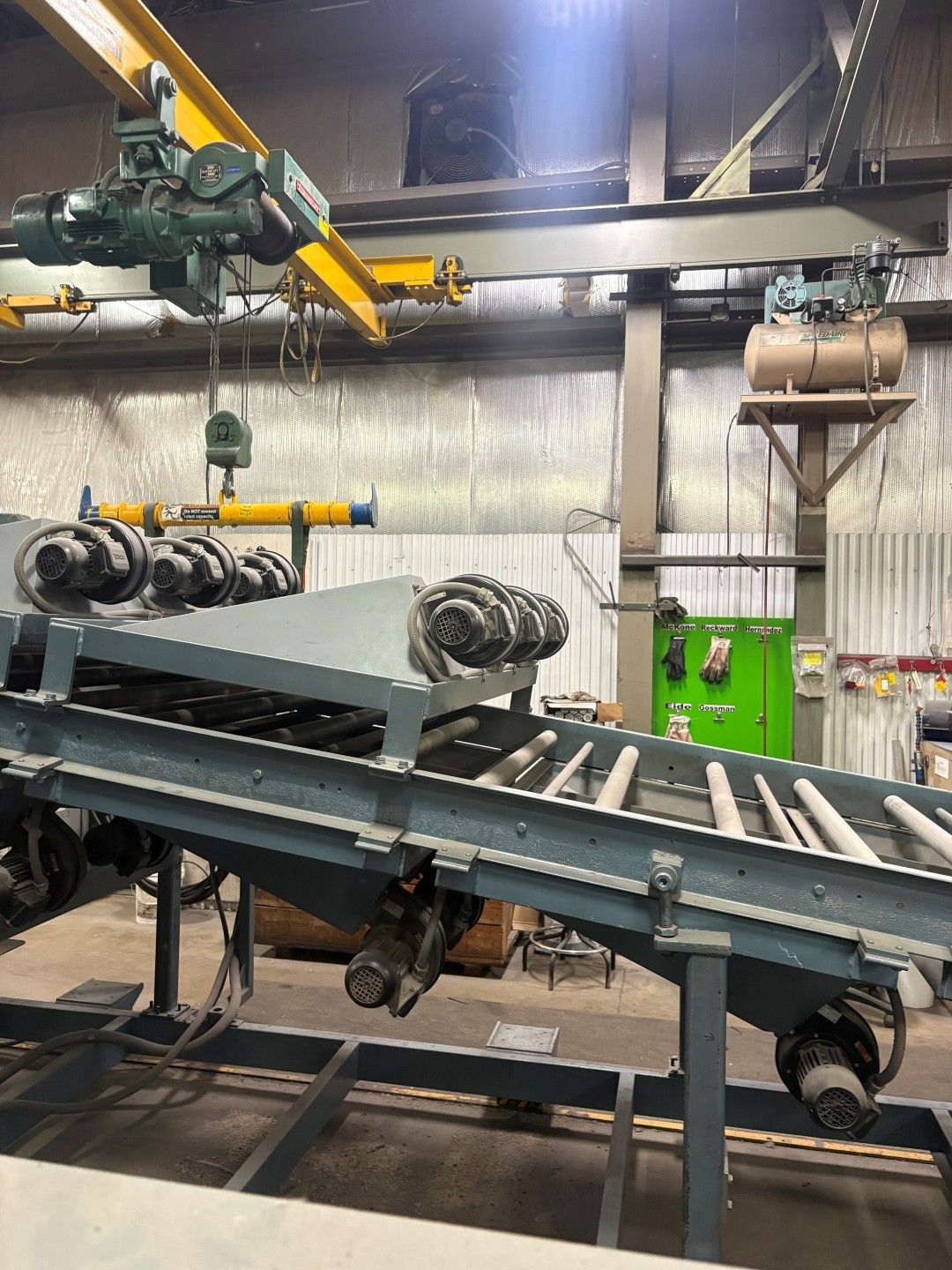

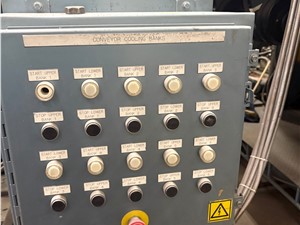

Motors, 25’ Long Cooling Conveyor, Hydraulic Roll Pressure

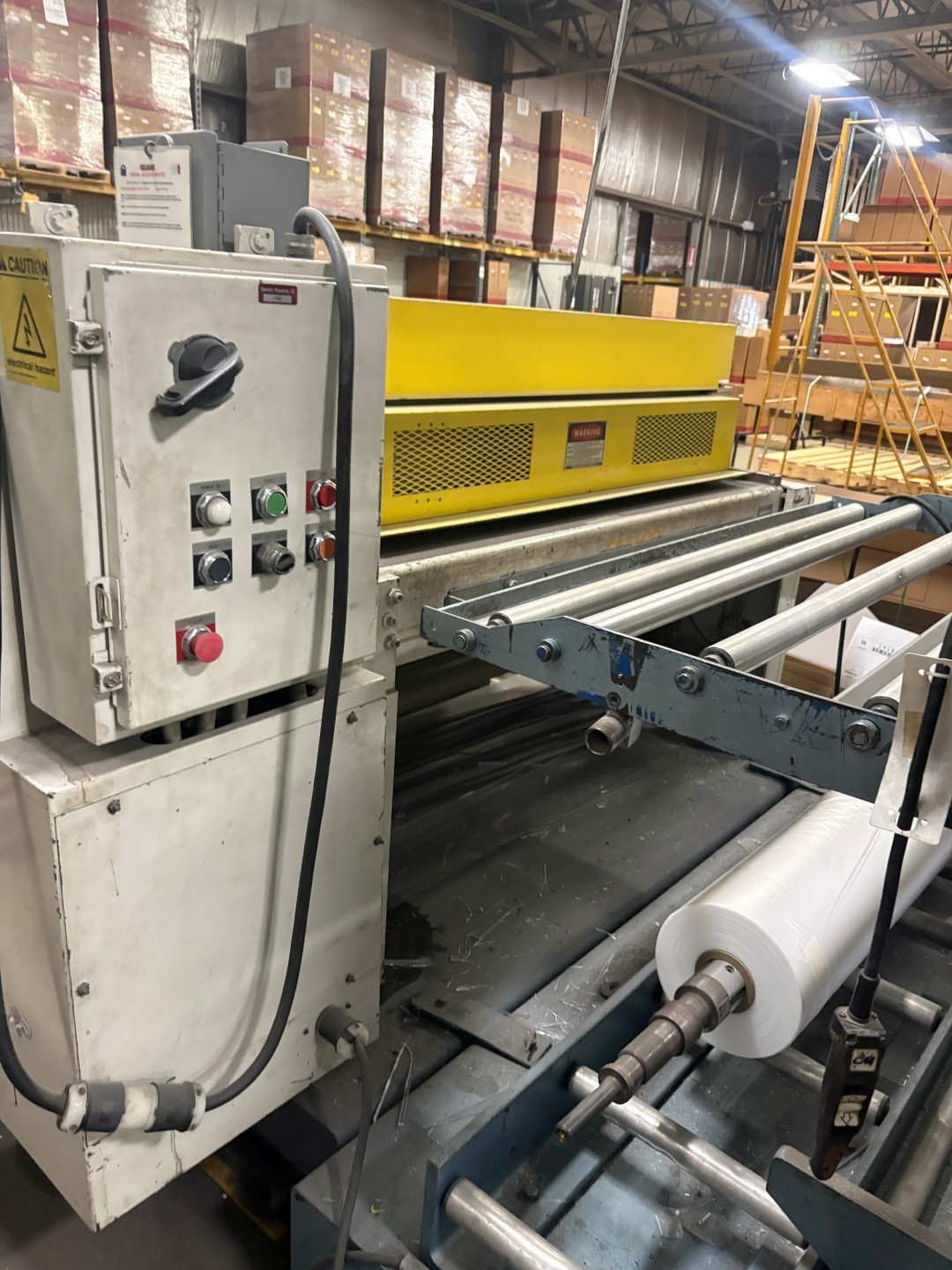

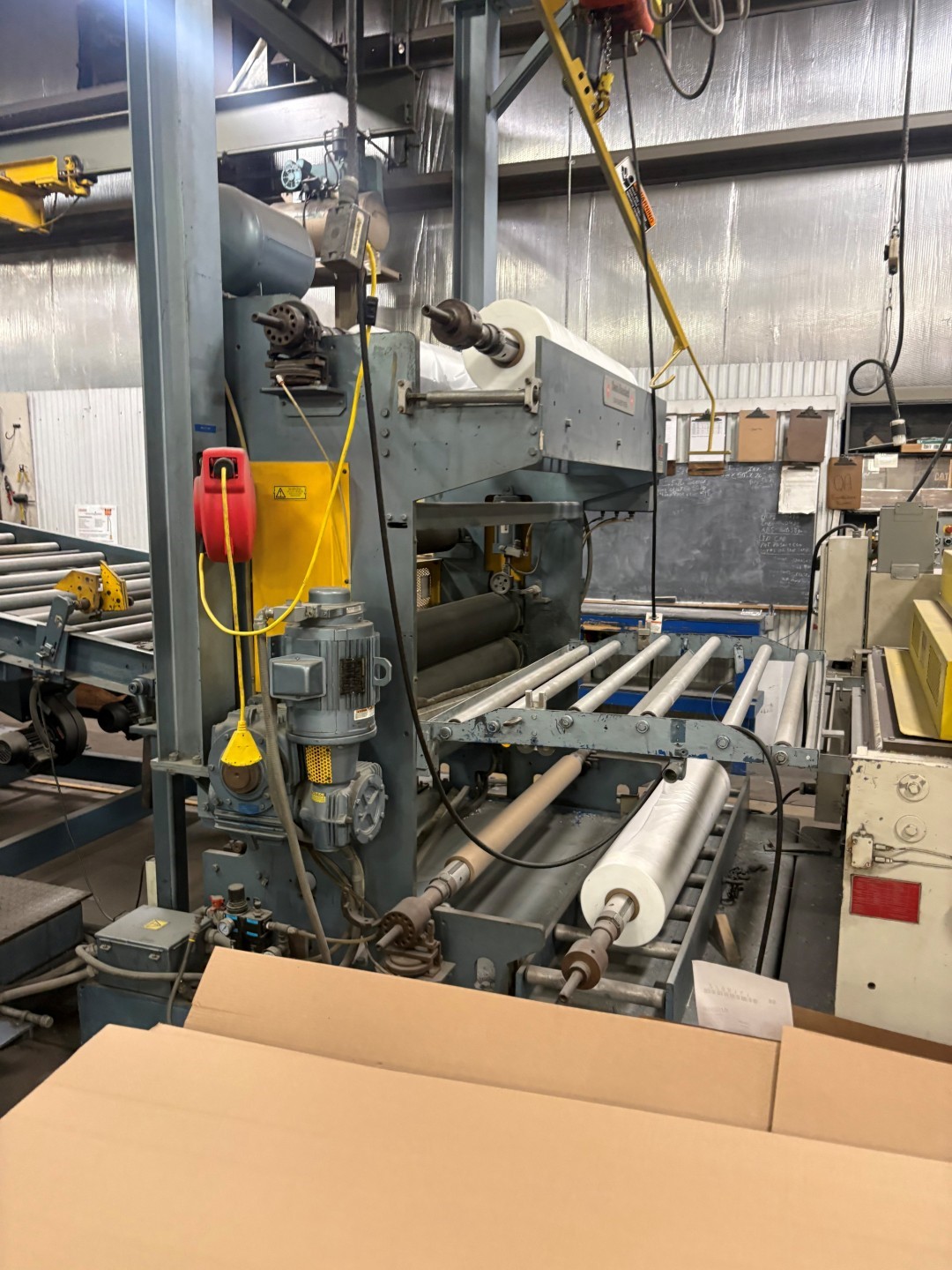

60” Wide X 8” Diameter Rubber Pull
Rolls, 3 HP AC Motor
72” Wide Famco Shear

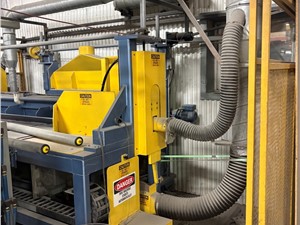

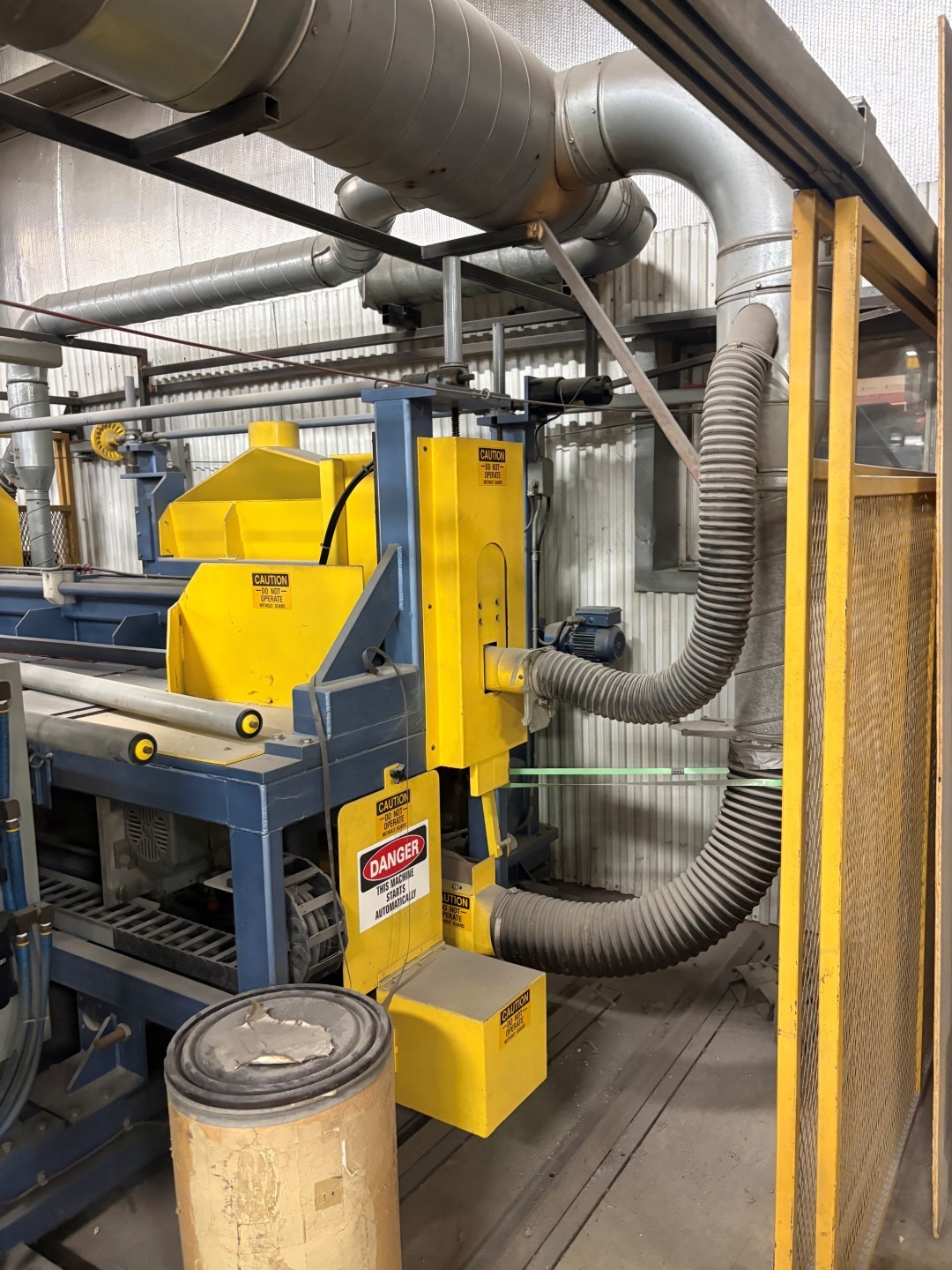

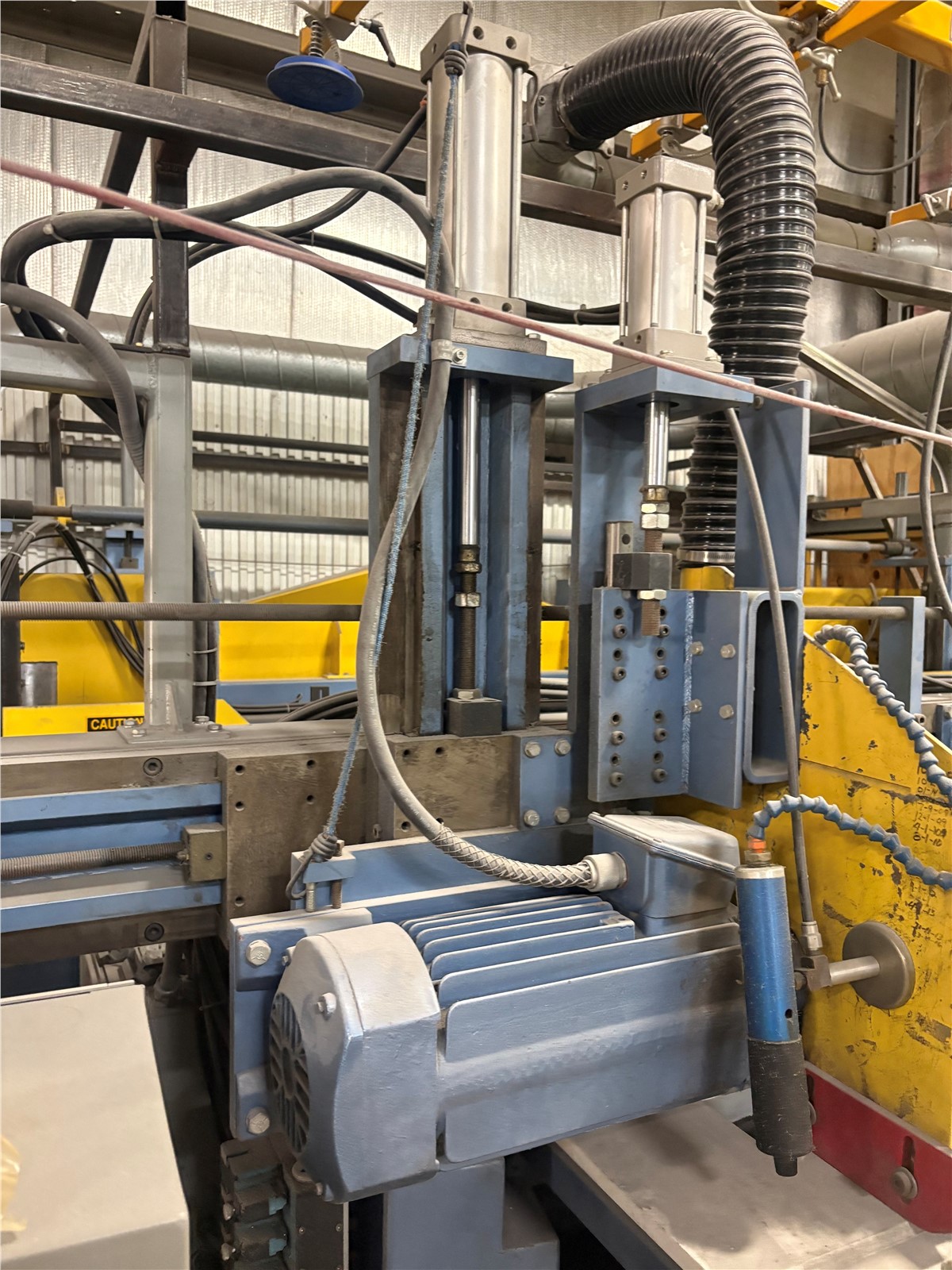

TH60 Trim Saw, Two 10 HP Motors With
AC Inverter Drives, Manual Adjustment, 36” To 60” Finished Width

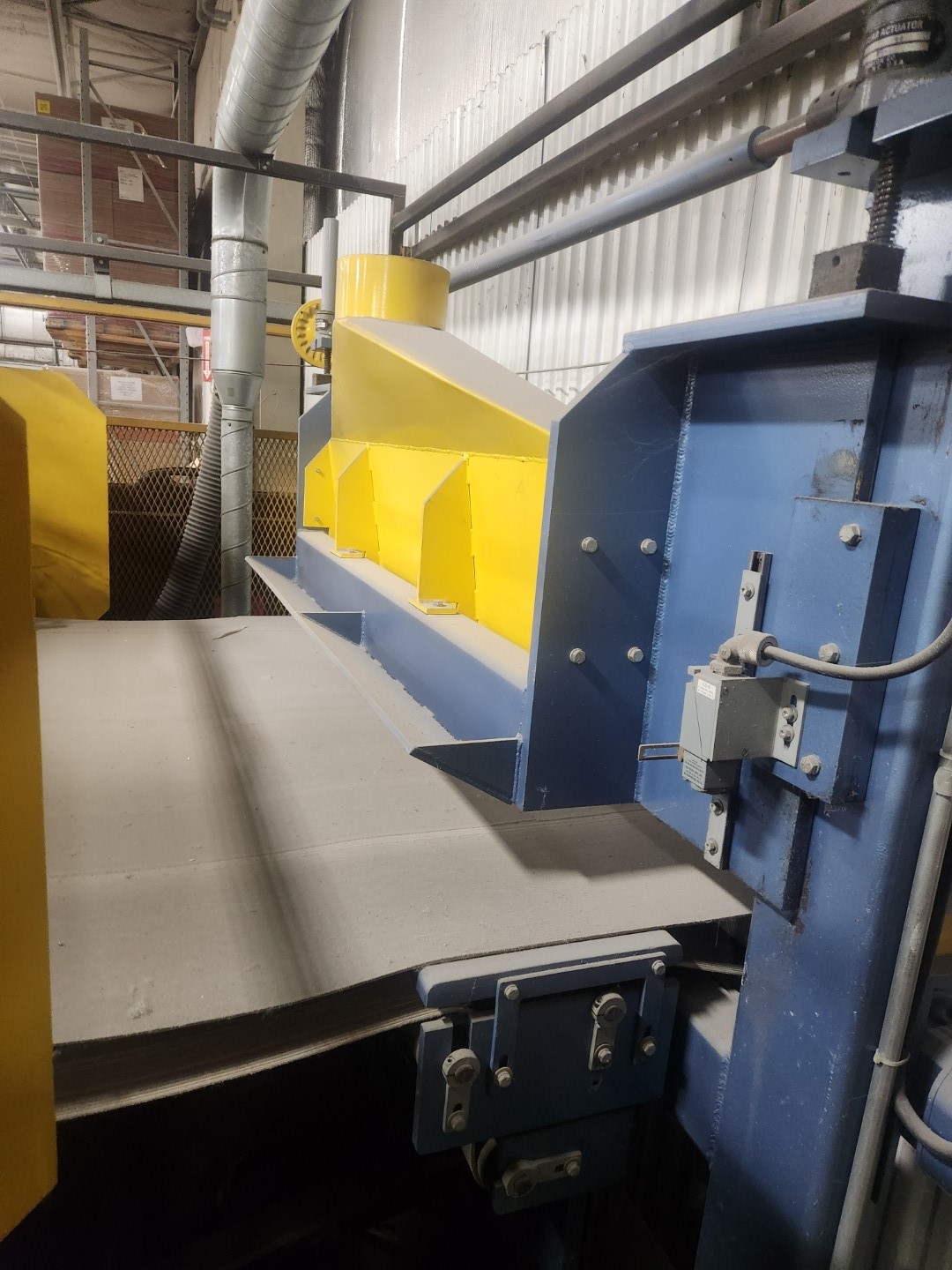

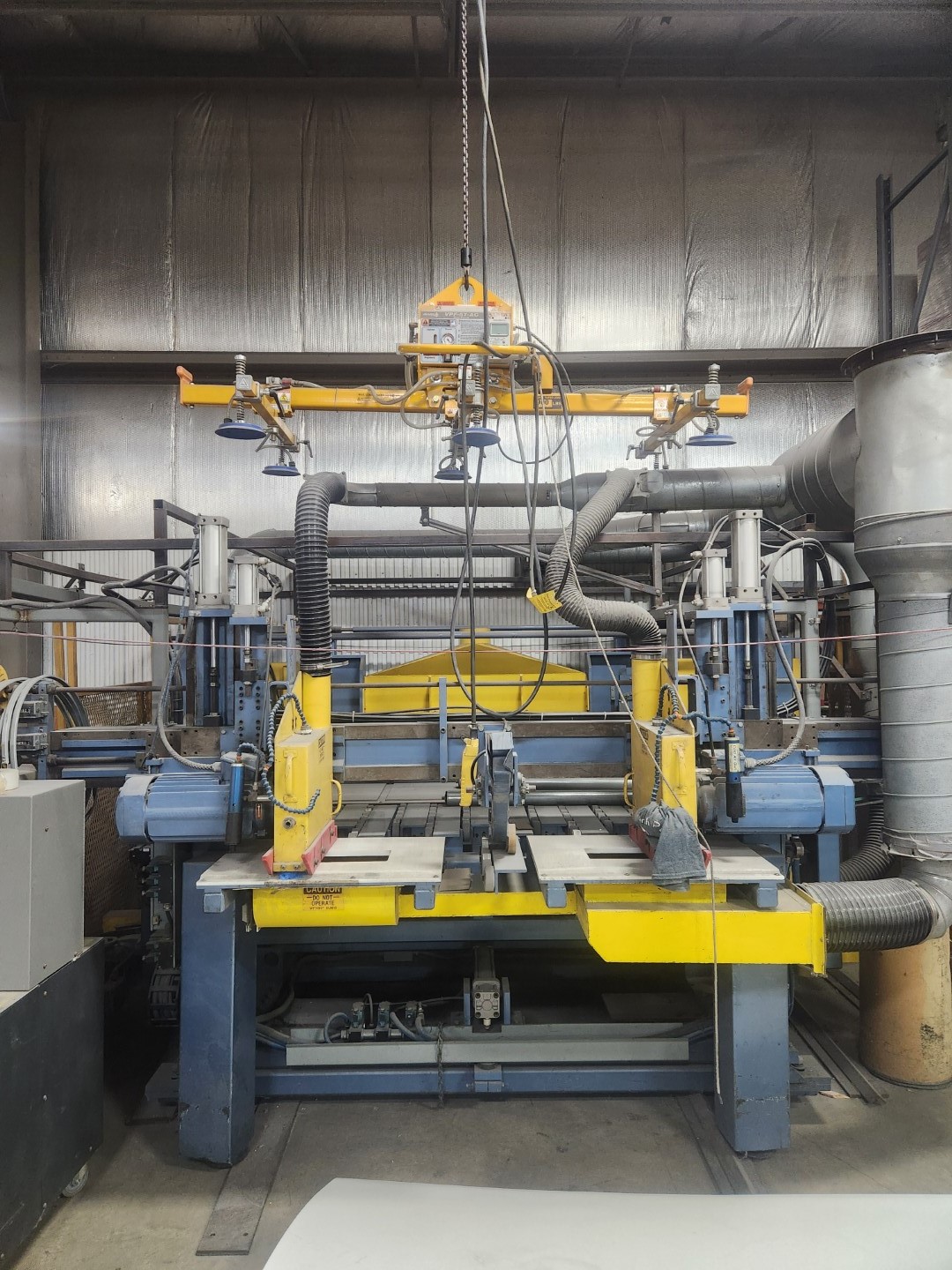

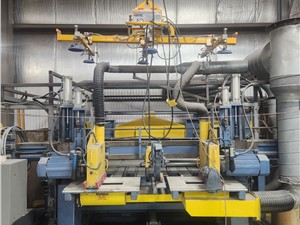

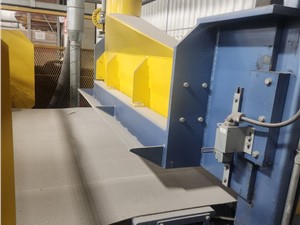

SH60 Traveling Sheet Saw – Cross
Cut, 20” Table Travel, 10 HP Motor With AC Inverter Drives, Pneumatic Clamp
Pressure

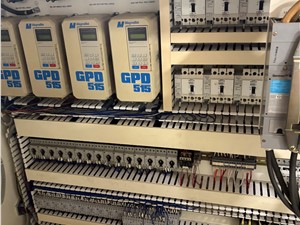

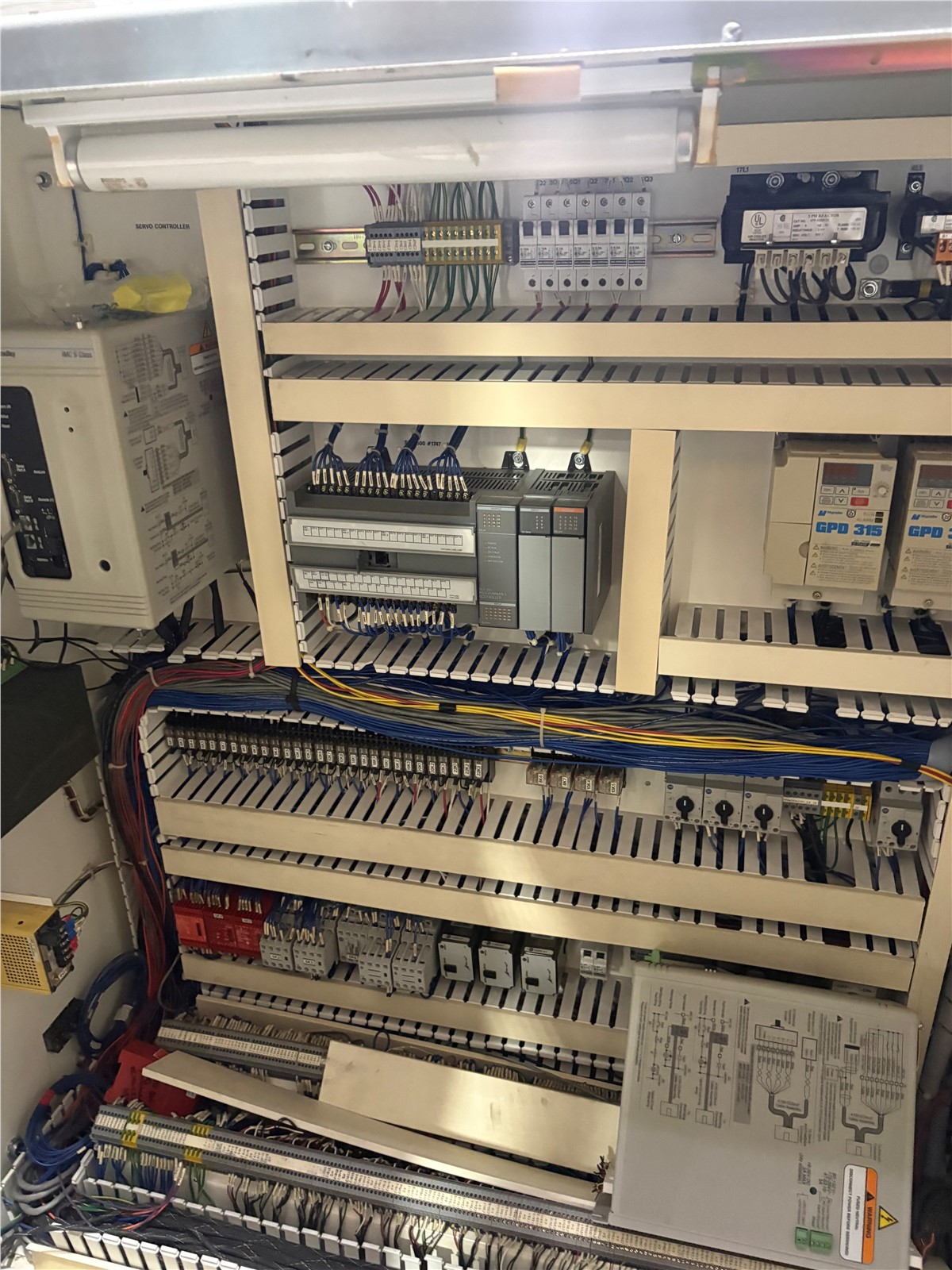

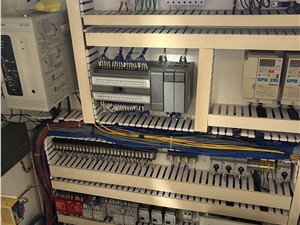

Allen Bradly PLC Control System,
SLC-500
460/3/60
