Name: 2” Davis Standard Extrusion Line
Brand: Davis Standard
SKU: 22640B
Price: 149500.00 USD
Availability: InStock

2” Davis Standard Extrusion Line

Click to enlarge (33 Total Photos)

Product Features

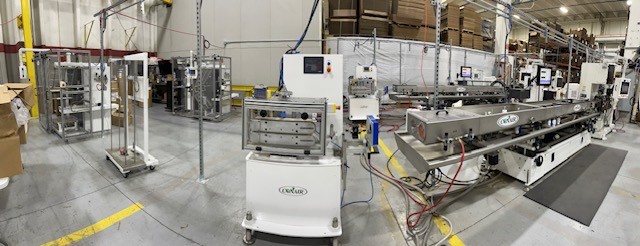

Used 2” Davis Standard Extrusion Line

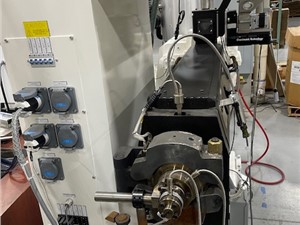

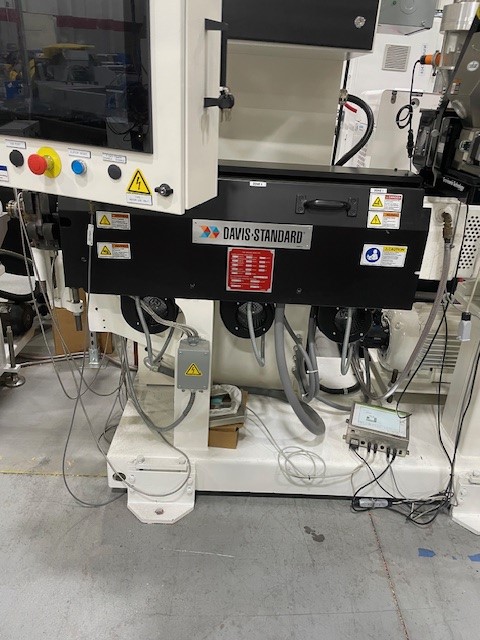

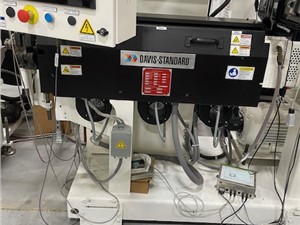

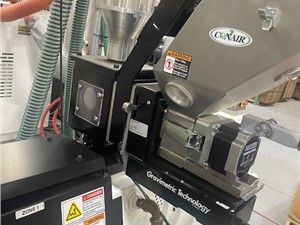

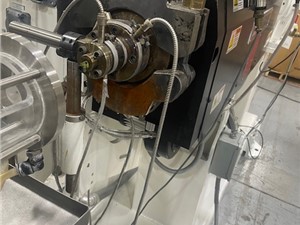

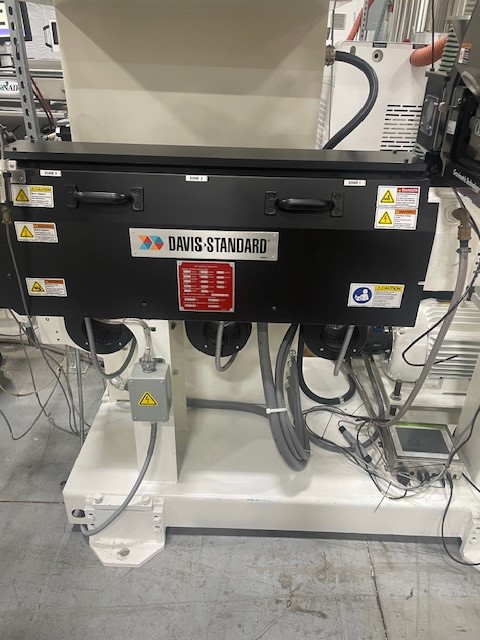

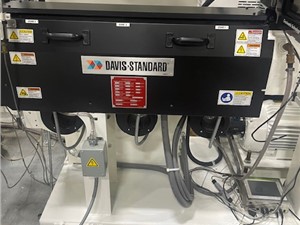

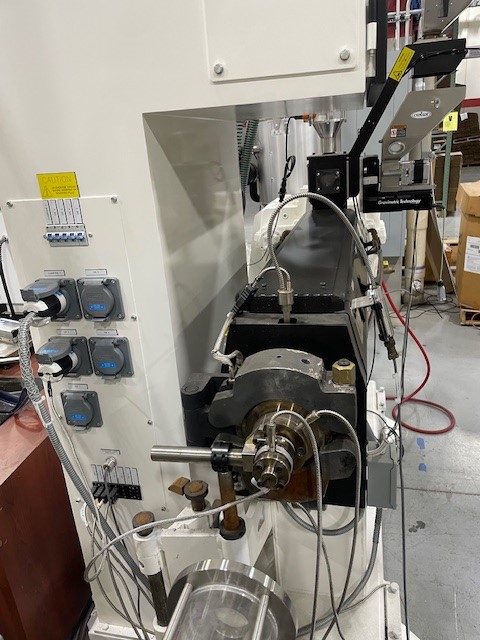

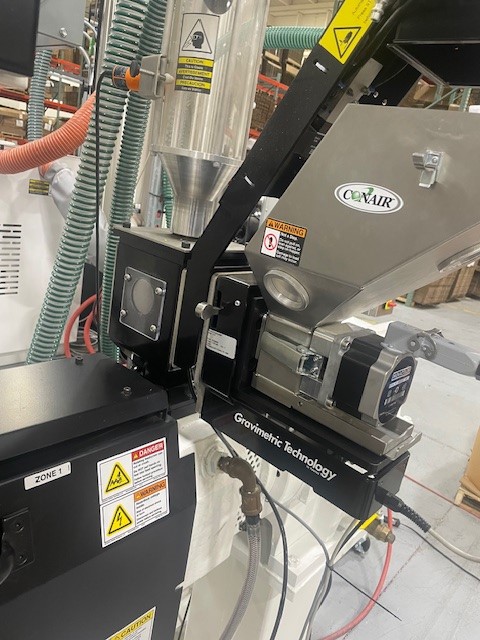

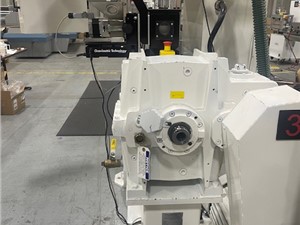

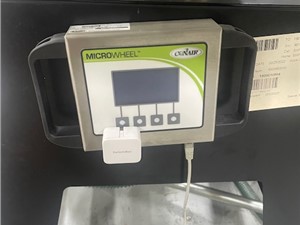

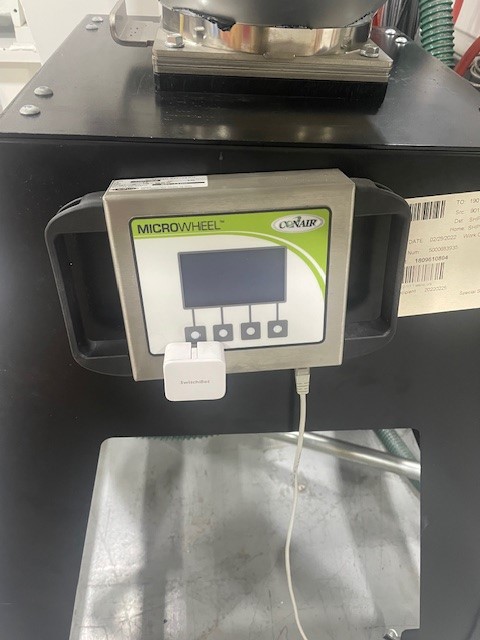

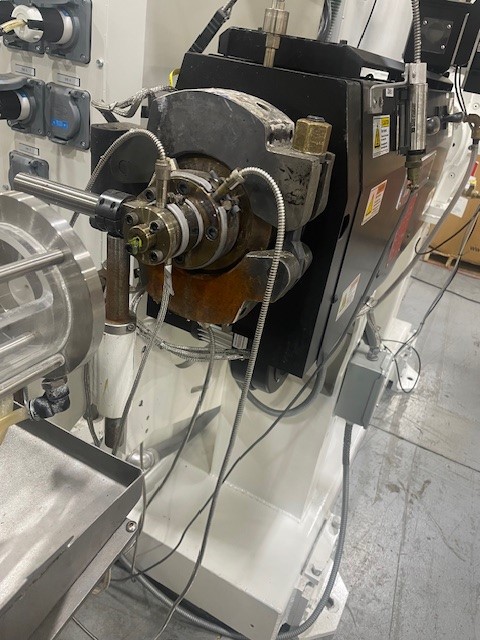

2” Davis Standard, 24:1 L/D Ratio,3 Barrel Zones, Air Cooled, 20 Hp AC Motor With Yaskawa AC Drive, Conair VF Volumetric Feeder,

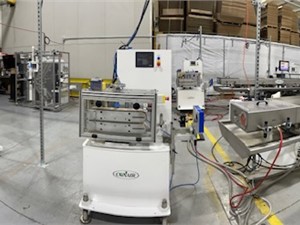

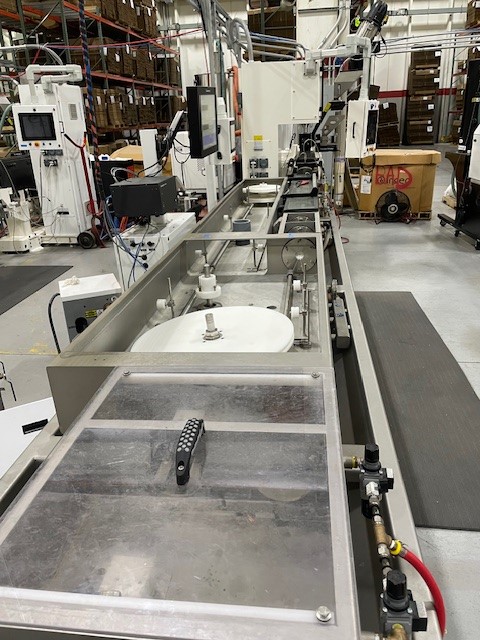

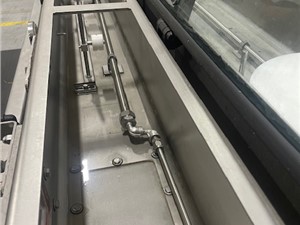

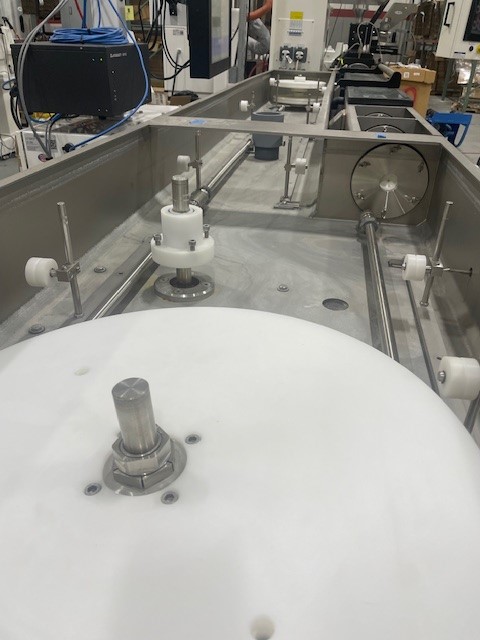

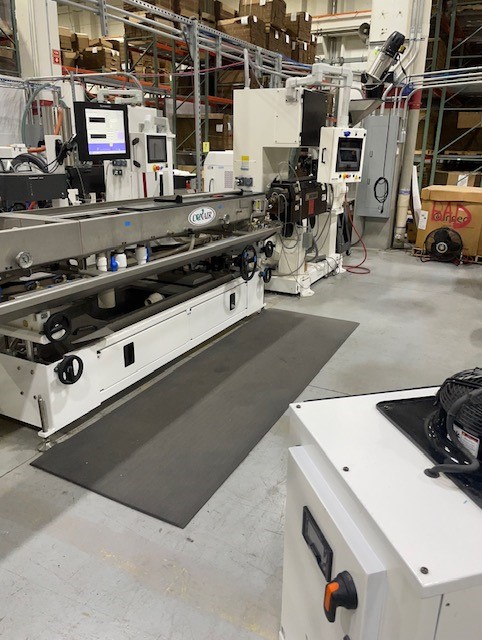

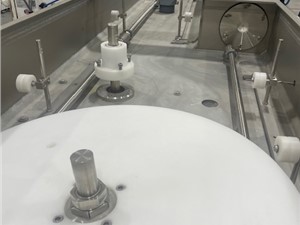

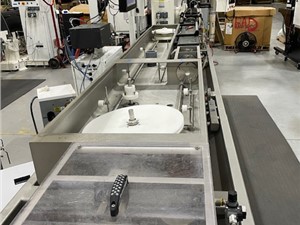

Conair Model HTMO-12-4 HighTech Multipass Combination Vacuum/Cooling Tank, 12’ Length x 24” Wide x 8” High. Designed For .500” Diameter Tube Capacity. 8’ Long Vacuum Chamber.

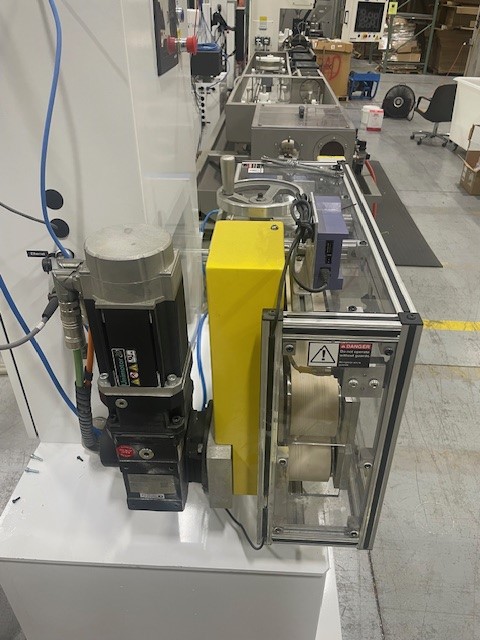

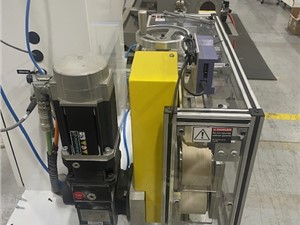

3” Wide Belt Puller, Model 3-20, Maximum Opening of 3.5”, 60 Durometer FDA White Nitrite Rubber Belt, 3.25hp Servo E Drive. Belt Speed Range 3.2-33. FPM

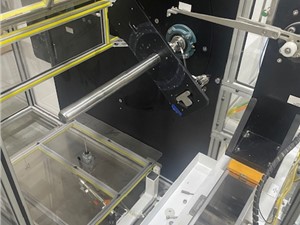

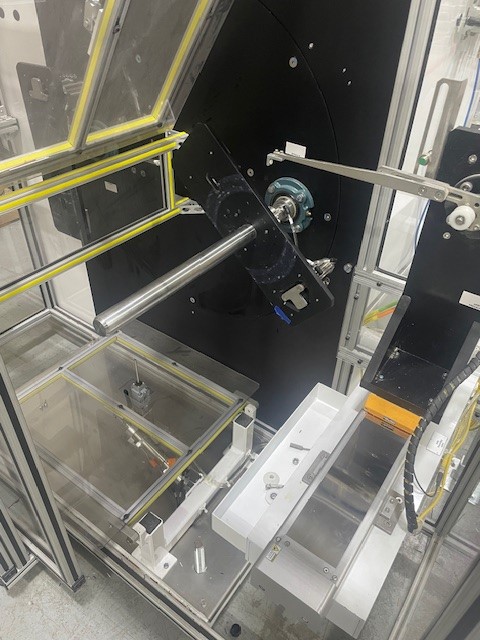

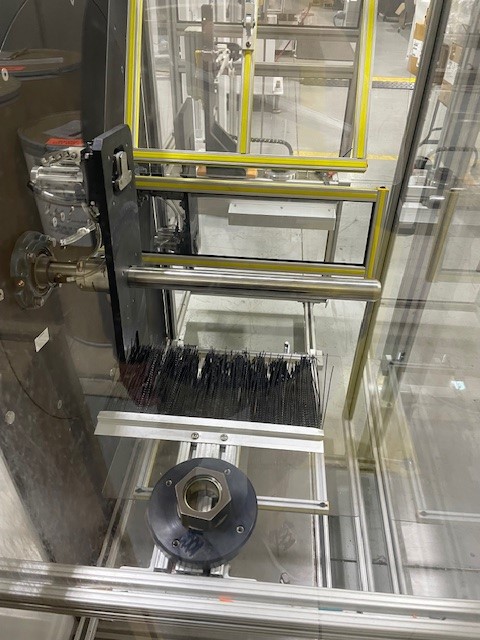

ATC-24 Automatic Transfer Coiler, Up To 20" Coil Size x 12" Width, Dual External Cutters, Independent Servo Drive Of Each Reel. Servo Turret Shaft , Servo Traverse .
TPE Extruder Screw

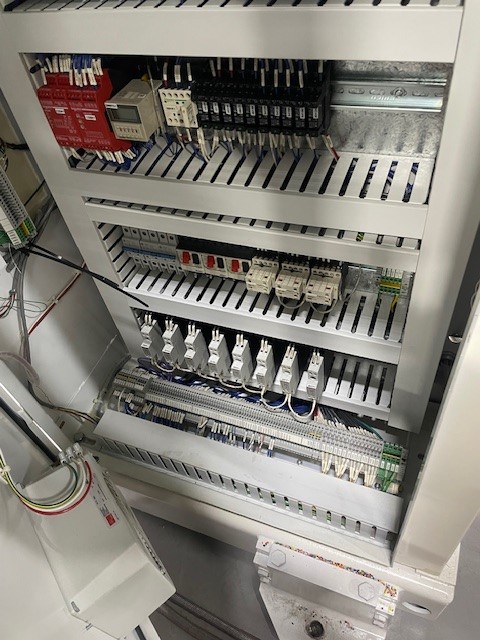

Davis Standard Touch Panel Control,
Currently Has Tooling For PLA 3D Printer Filament Sizes 1.75mm & 2.85mm OD
Line Could Be Reproposed For Tubing
Line Was Designed To Do 300 FPM at 33 LBS/Hr

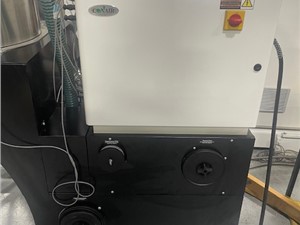

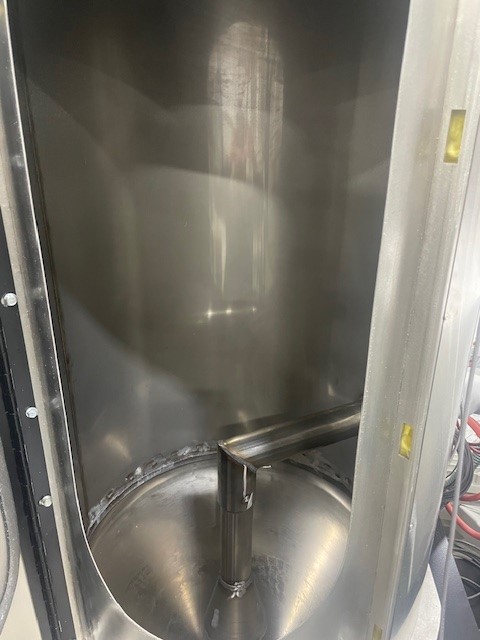

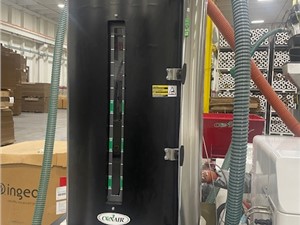

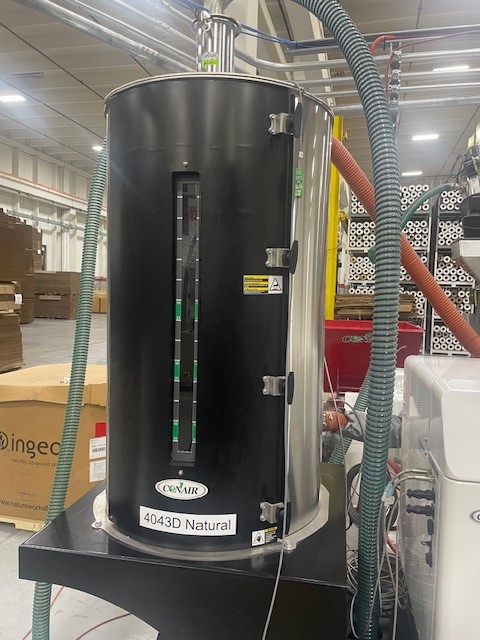

Line Comes With dx50 Conair Carousel Dryer

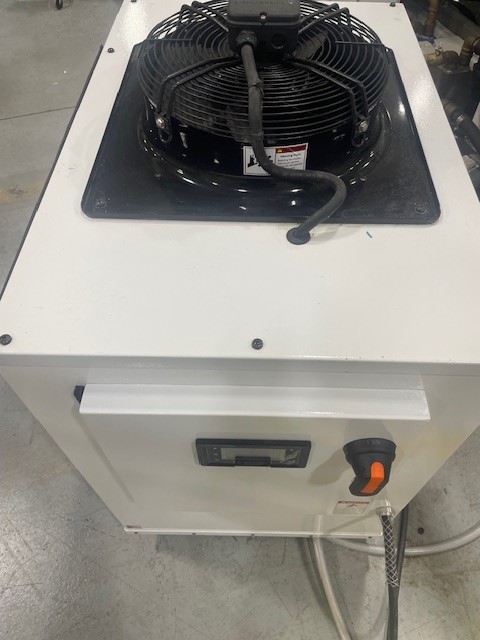

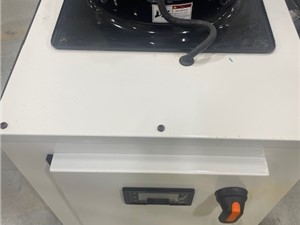

Conair Model EP1A03 Air Cooled Chiller

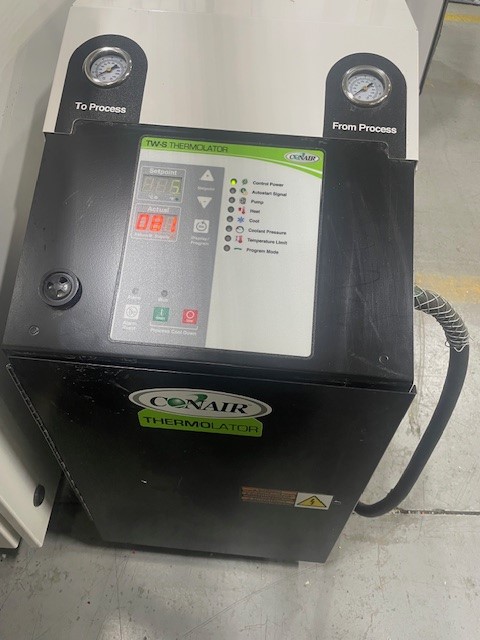

Conair Temperature Controller, Model TW-S
Line 460/3/60
