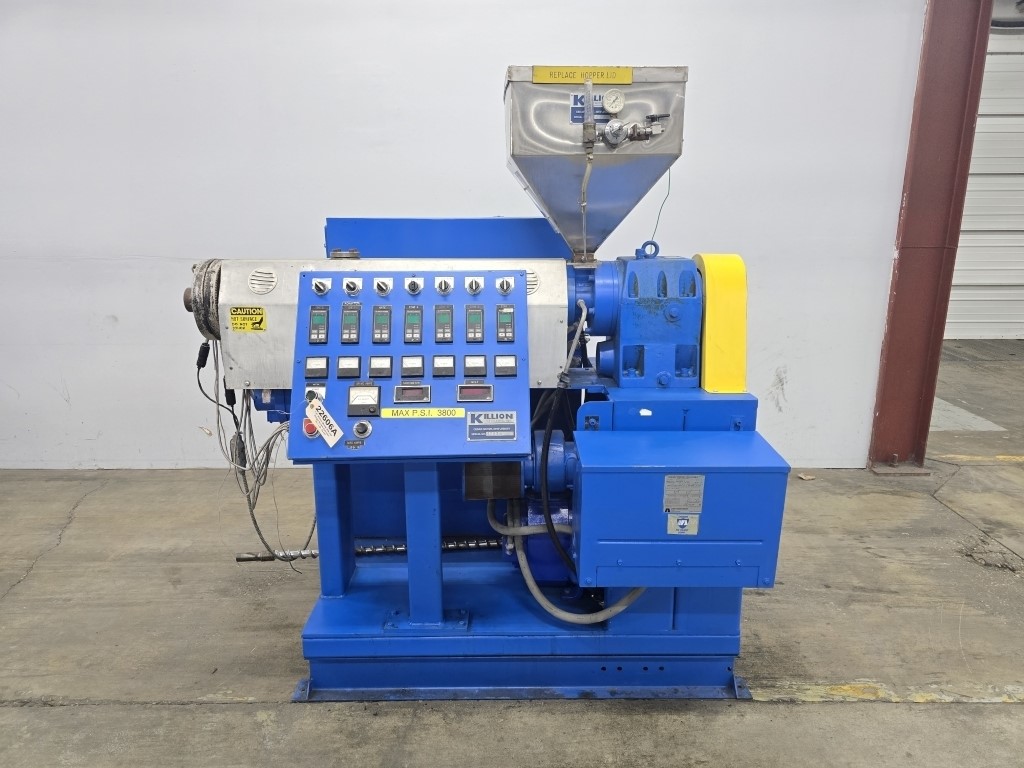

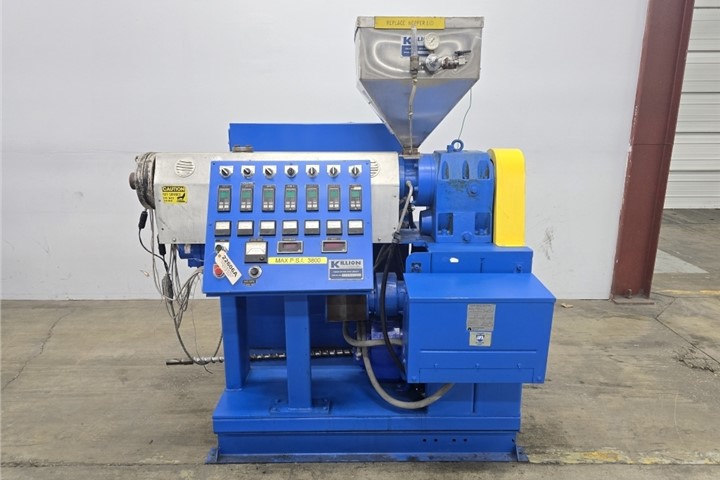

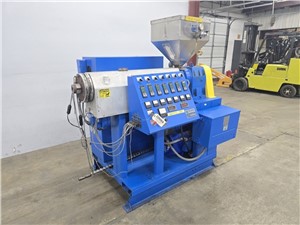

Name: 1.5" Killion Single Screw Extruder, Model KN-150, 30:1 L/D, 15 HP
Brand: Killion
SKU: 22606A
Price: 14500.00 USD
Availability: InStock

1.5" Killion Single Screw Extruder, Model KN-150, 30:1 L/D, 15 HP

Click to enlarge (21 Total Photos)

Product Features

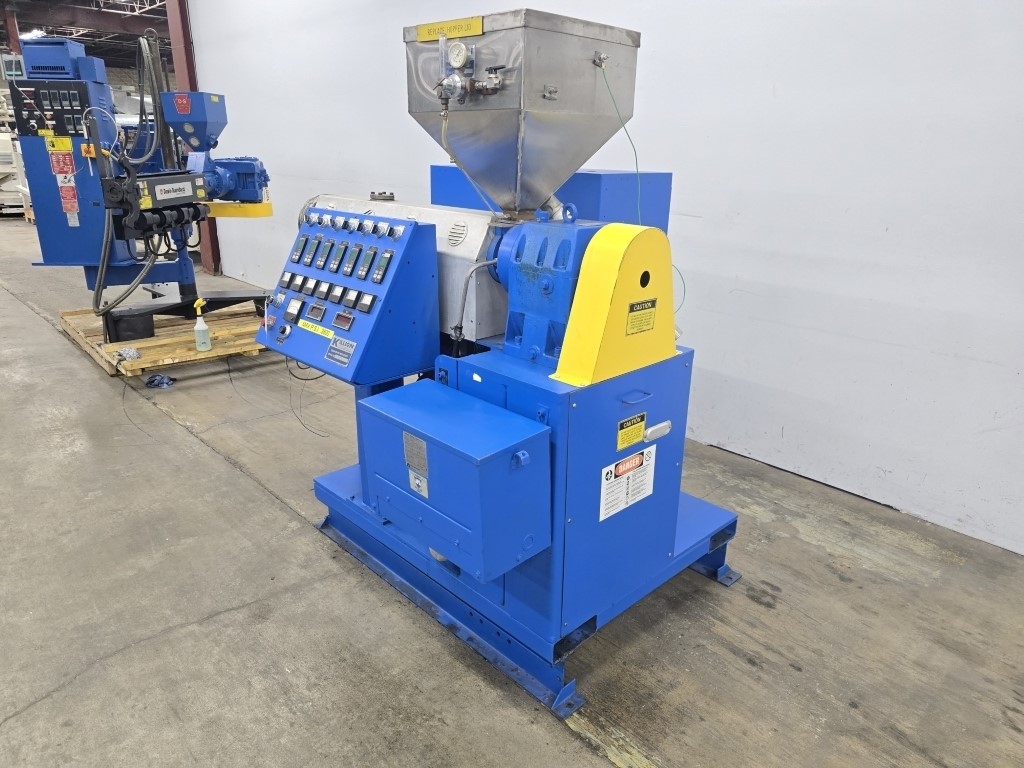

Used 1.5" Killion Single Screw Extruder, Model KN-150, 30:1 L/D, 15 HP

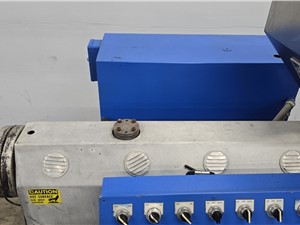

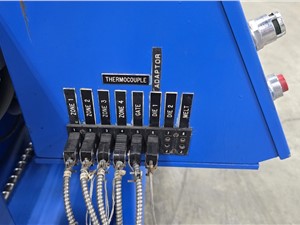

4 Barrel Zones (Plugged), 3 Downstream Zones, Air Cooled

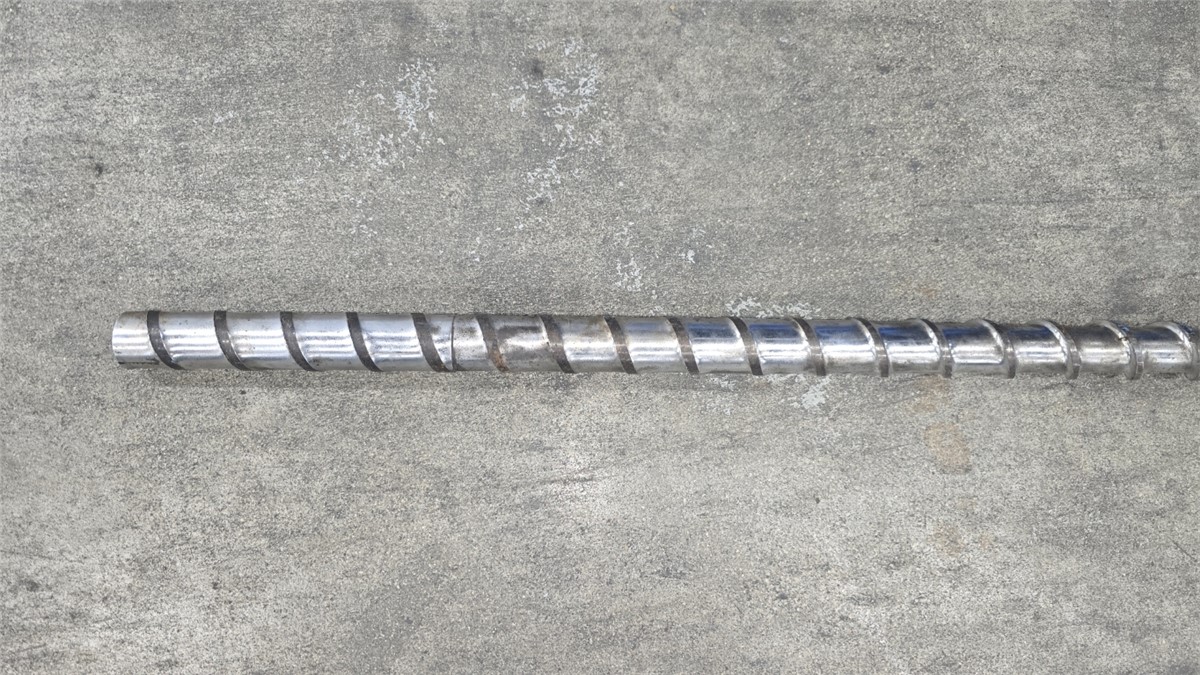

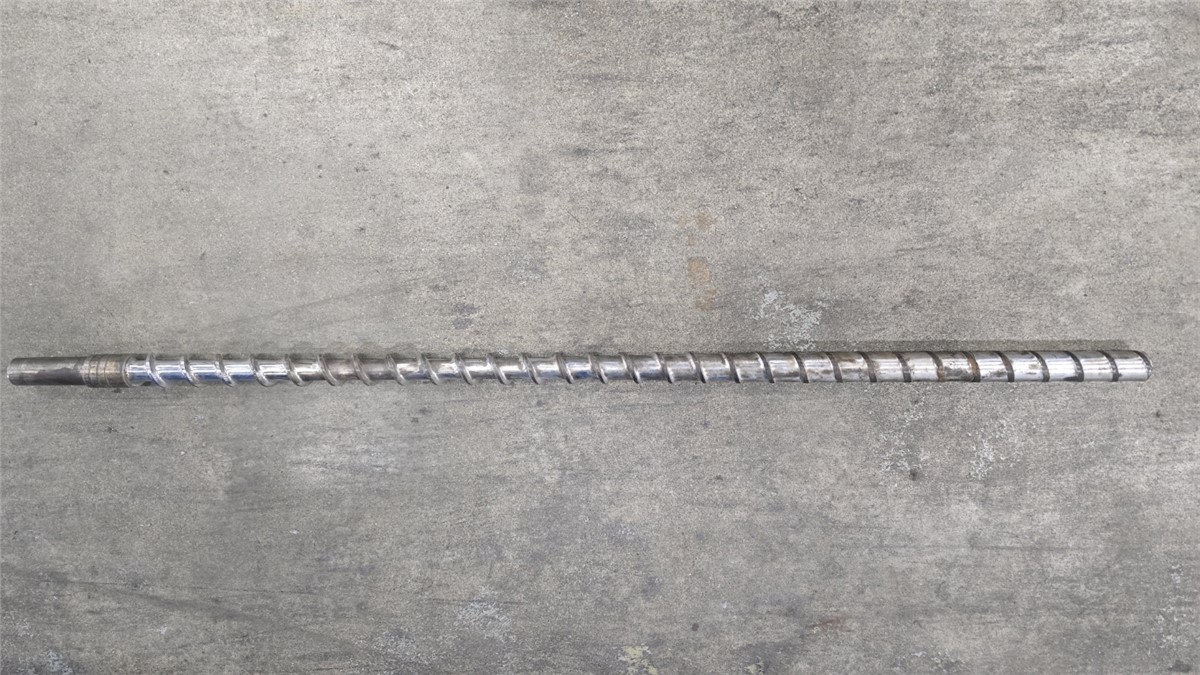

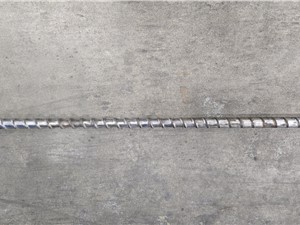

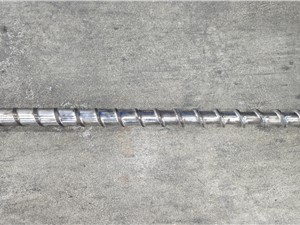

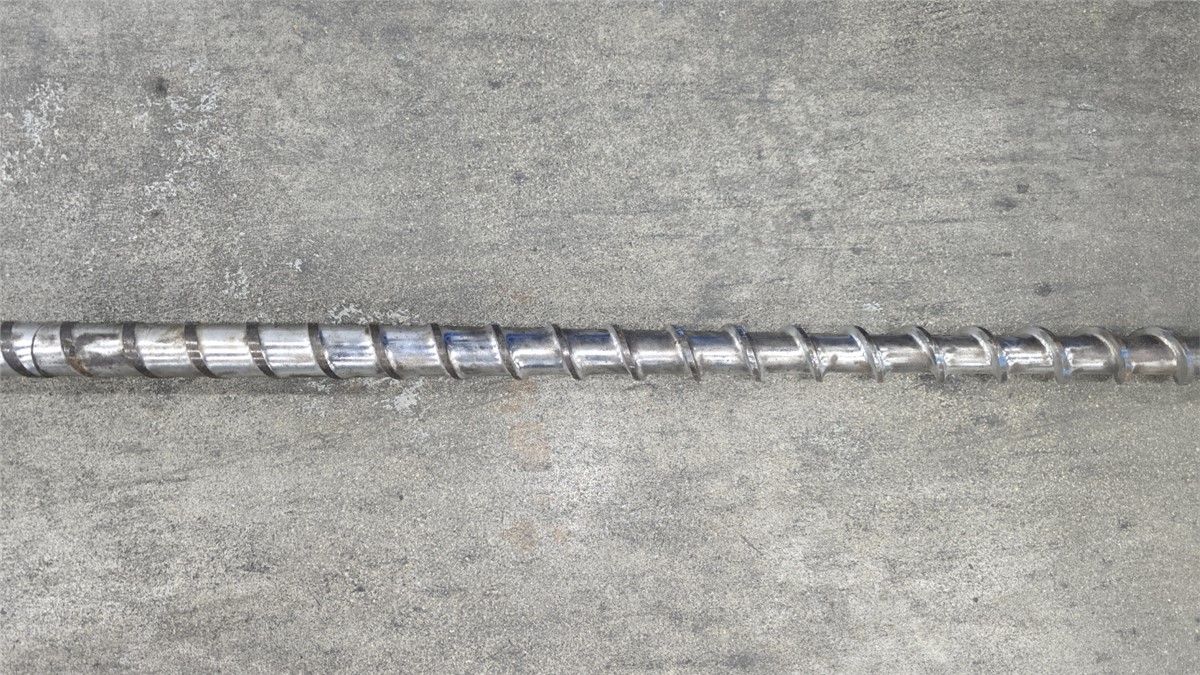

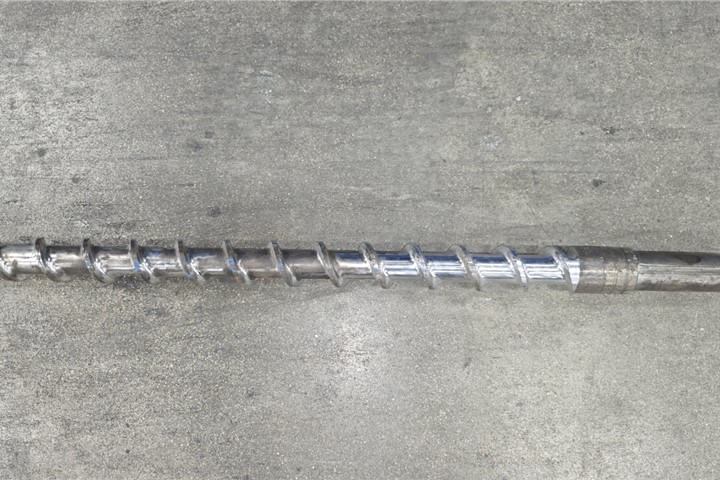

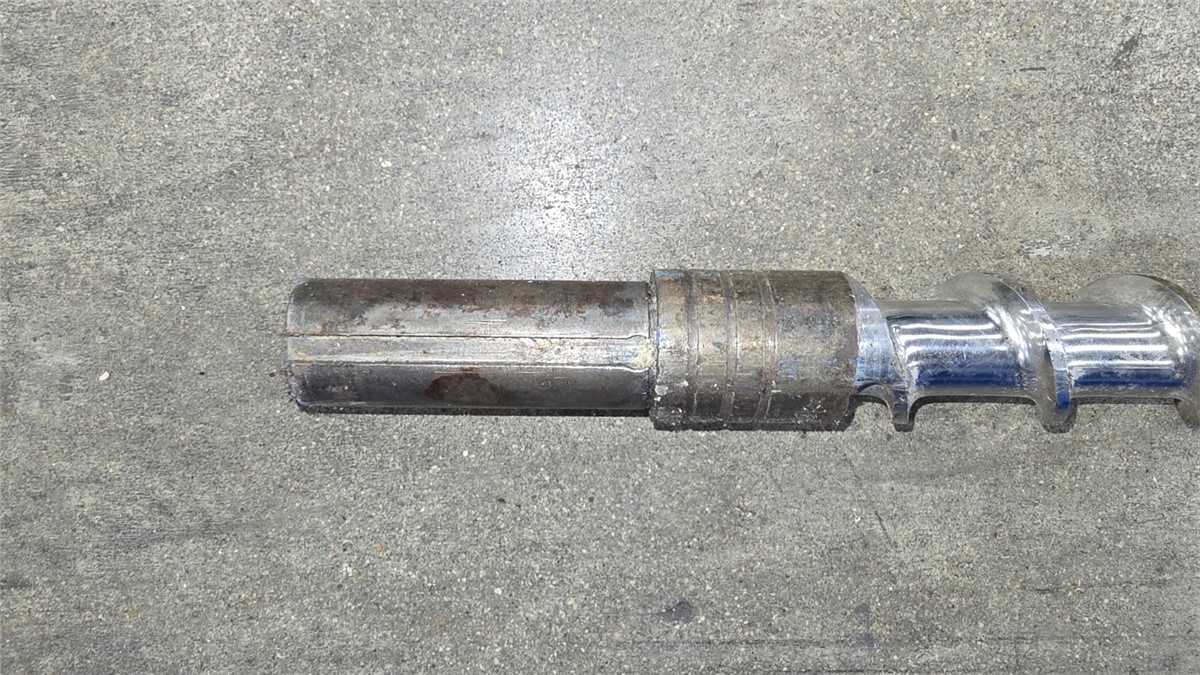

Standard Single Stage Screw
48" Centerline Height
2.5" x 3" Feed Throat w/ Slide Plate
Infeed Height: 74"

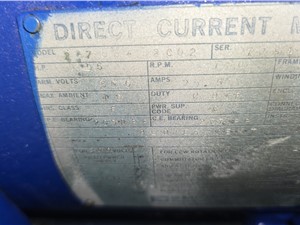

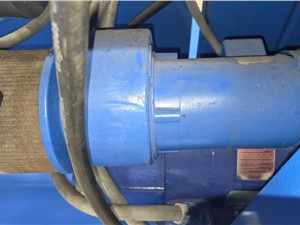

15 HP DC Motor w/ Blower
1750 RPM
500 Volt, 26.5A
Frame: 257
Shunt Winding, Drip-Proof Enclosure

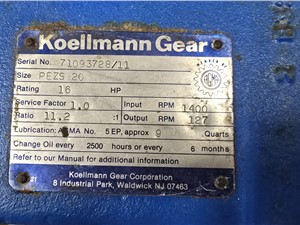

Koellmann Gearbox Rated For 16 HP, Size PEZS 20, S/N: 71093728/11
Gear Ratio: 11.2:1, 1.0 Service Factor
Input: 1400 RPM, Output: 127 RPM

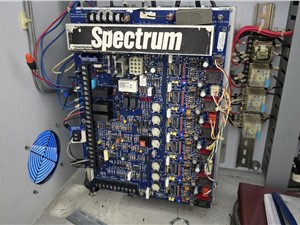

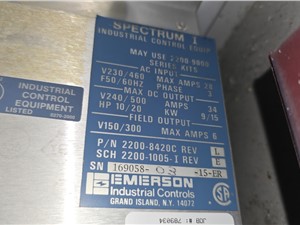

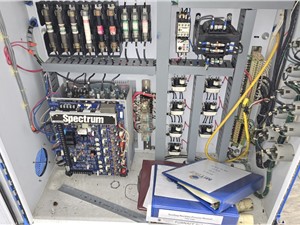

Spectrum I 2200-8420C DC Drive Package, S/N: 169058-03-15-ER
AC Input: 460/3/60, 28 Max Amps
DC Output: 0-500 VDC, 34 Max Amps
Field Output: 300 VDC, 6 Max Amps

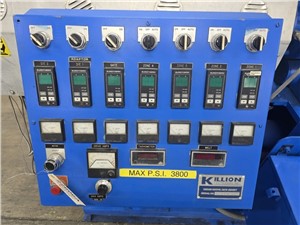

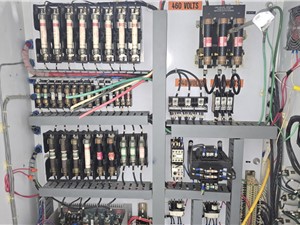

Eurotherm 808 Controllers, Dedicated On/Off Toggle Switches For Each Zone, Analog Simpson Amp Gauges, Start/Stop Buttons, Speed Pot, Digital RPM Gauge, Digital Pressure Readout
Machine Is Wired For 460V

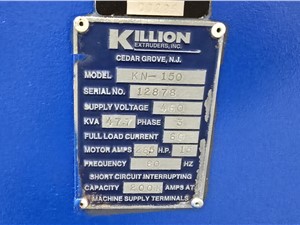

Machine Nameplate: 460/3/60, 60 FLA
S/N: 12878
Approximate Dimensions: 73" L x 56" W x 74" H

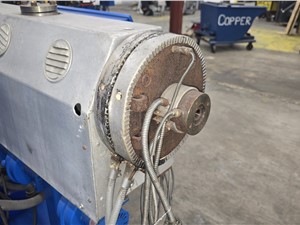

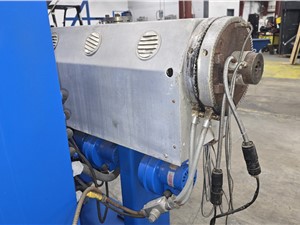

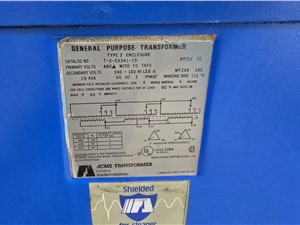

Includes Hopper, 15 KVA 480V Primary To 240/120V Secondary Type 2 Enclosure Acme Transformer For Controls & Auxiliaries, Extruder Has Discharge Flange For Mounting Die And Adaptor
**Die Head/Tooling NOT INCLUDED**
Quoted And Sold As-Is
Just Purchased Additional Pictures Coming Soon
