Name: 38mm Lantai Model SHJ-38 Extruder, Water Cooled, L/D 40:1, 40 HP, 2001
Brand: Lantai
SKU: 22585A
Price: 19500.00 USD
Availability: InStock

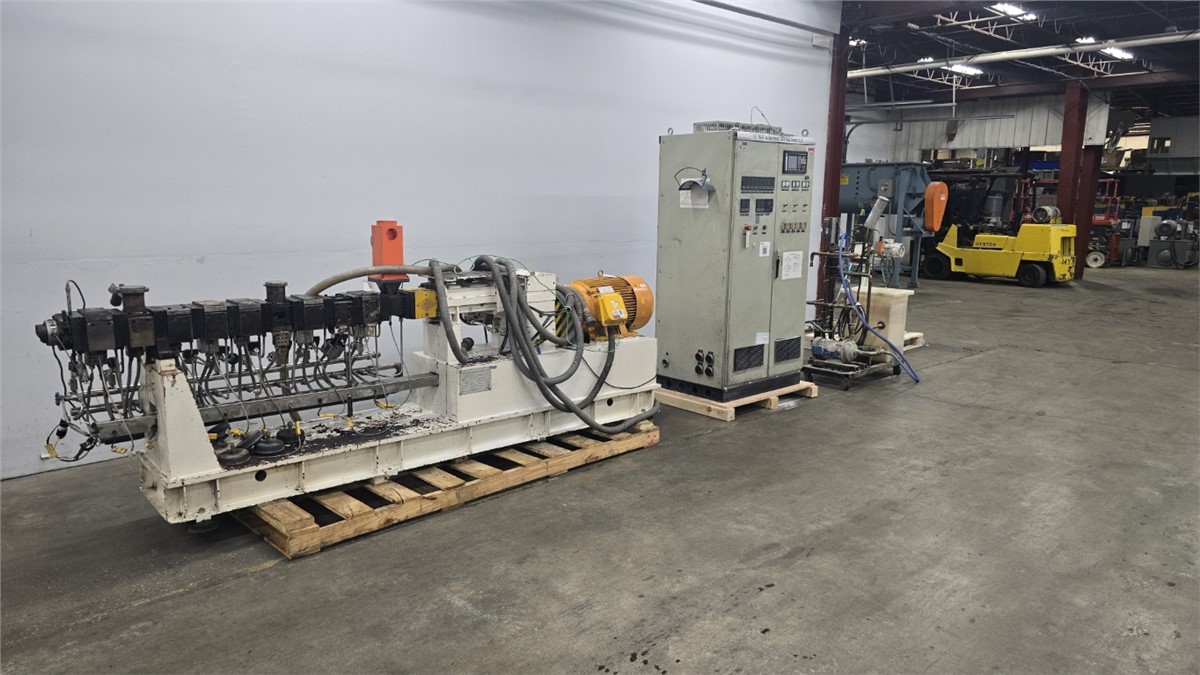

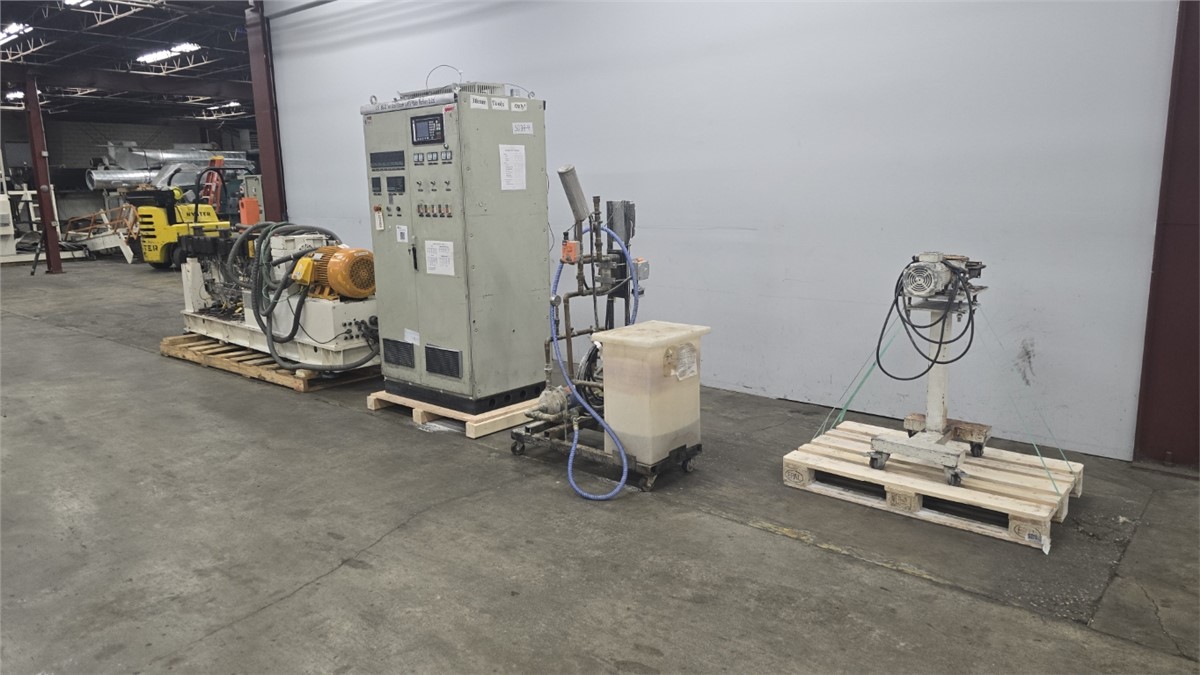

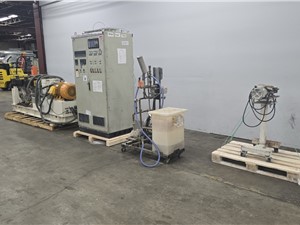

38mm Lantai Model SHJ-38 Extruder, Water Cooled, L/D 40:1, 40 HP, 2001

Click to enlarge (40 Total Photos)

Product Features

Used 38mm Lantai Model SHJ-38 Extruder, Water Cooled, L/D 40:1, 40 HP, 2001
9 Barrel Zones, Vents In Zone 4 & 8
Infeed Height: 50" @ Side Feed, 55" @ 4" x 4" Circular Top Feed
Max Screw Speed: 600 RPM
Total Heating Power: 18 kW
Approx. 40 HP Nanjing, Type 200L-4 Continuous Duty AC Motor
480/3/60, 45.8A
1760 RPM
IP44, B-Class Insulation
Zambello Riduttori Gear Reducer, Type ZT-32/40 COR-HT, New in 2007
2.5:1 Gear Ratio
Mittsubhi A700 VFD, Model FR-A740-30K-CHT, S/N: F73N09002
Input: 480/3/60, 115A
Output: 480/3/0.2-400Hz, Normal Duty: 57A / LD (50°C), 70A, Heavy Duty: 44A / SLD (40°C), 77A
RKC CH402 Temp Controllers, Sand PS1016 Intelligent Digital Pressure Indicator, E-Stop, Dedicated Analog RPM, Amp Gauges & Speed Pots For Screw, Feeder, Sub Feeder
External 0.75 HP Water Pump System w/ Reservoir & Plate Heat Exchanger
Has 38" Infeed Height External Side Feeder With an L/D 20:1 and Die Clamp
New In 2001
S/N: XS-2007-31
Approx. Extruder Dimensions: 154" L x 34" W x 55" H , 8,800 LBS
Approx. Cabinet Dimensions: 42" L x 33" W x 82" H
Approx Water Pump System Dimensions: 44" L x 32" W x 66" H , On Casters
Approx. Side Feeder Dimensions: 36" L x 22" W x 42" H , On Casters
