Name: 150 Ton Dake H-Frame Hydraulic Press, Model 5-150
SKU: 22548A
Price: 5500.00 USD
Availability: OutOfStock

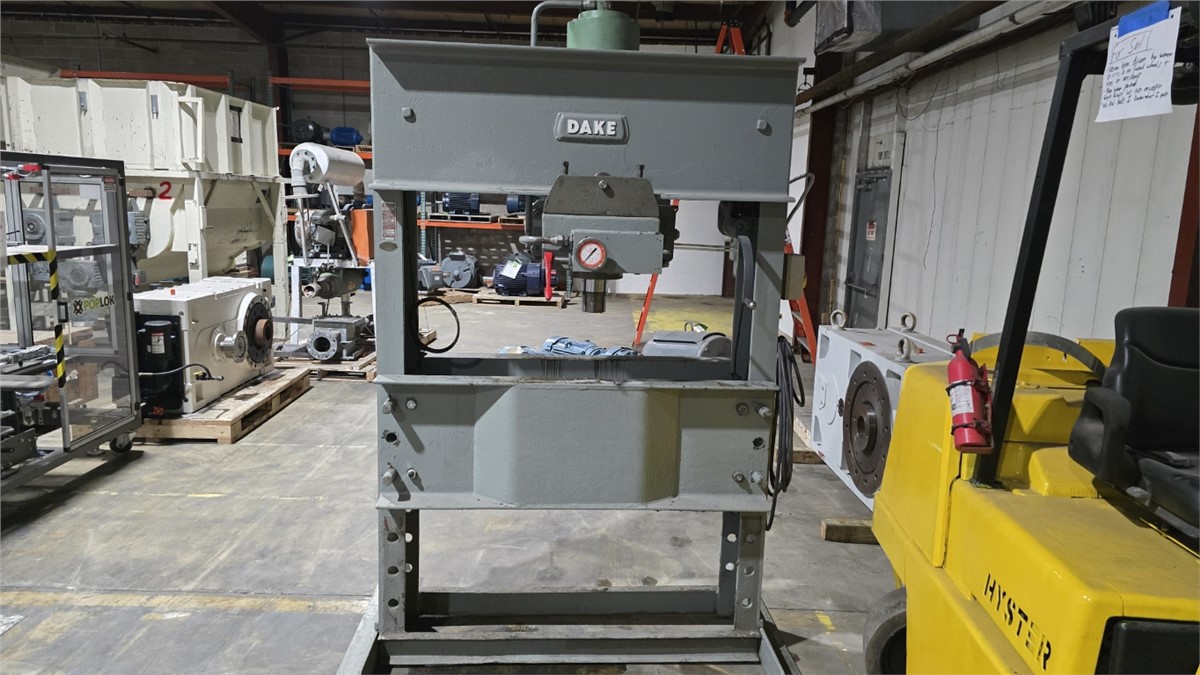

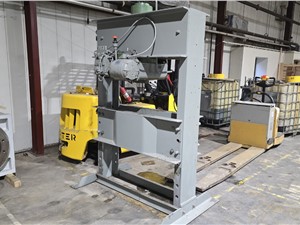

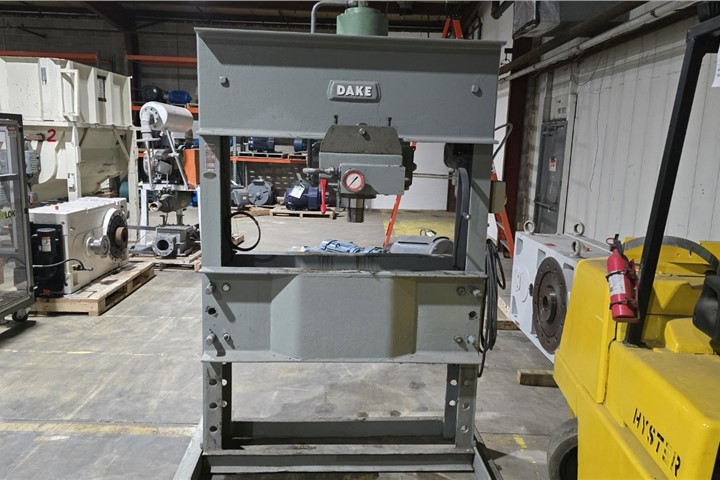

150 Ton Dake H-Frame Hydraulic Press, Model 5-150

Click to enlarge (13 Total Photos)

Product Features

Used 150 Ton Dake H-Frame Hydraulic Press, Model 5-150
Width Between Uprights: 48"
Width Between Table Channels: 12 1/4"
Min. Ram-To-Table Clearance: 10"
Max. Ram-To Table Clearance: 30"
Ram Stroke: 16"
Ram Speed: 16 Inches Per Minute Per Manufacturer
Pressing Speed: 2.75 Inches Per Minute Per Manufacturer
2 HP AC Motor, Type COGX, S/N: 2329635

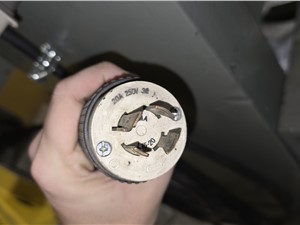

220-440/3/60, 6A-3A
1735 RPM
Adjustable Table Via Self-Locking Hoist For Vertical Positioning
Movable Workhead Roller-Mounted On Ball Bearings To Accommodate Off-Center Work
Variable Ram Speed Control (Advance & Pressing) Enabling Fingertip Adjustment Of Ram Movement
Stroke Indicator For Accurate Ram Depth Control
Dake Corp Manual Hydraulic Pressure Gauge
20 Quart Oil Capacity

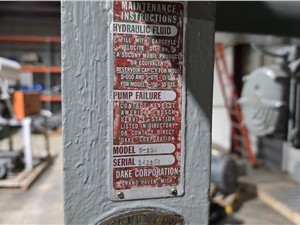

Press S/N: 1413164
Approximate Dimensions: 66" L x 42" W x 95" H, Approx. 3,000 LBS
