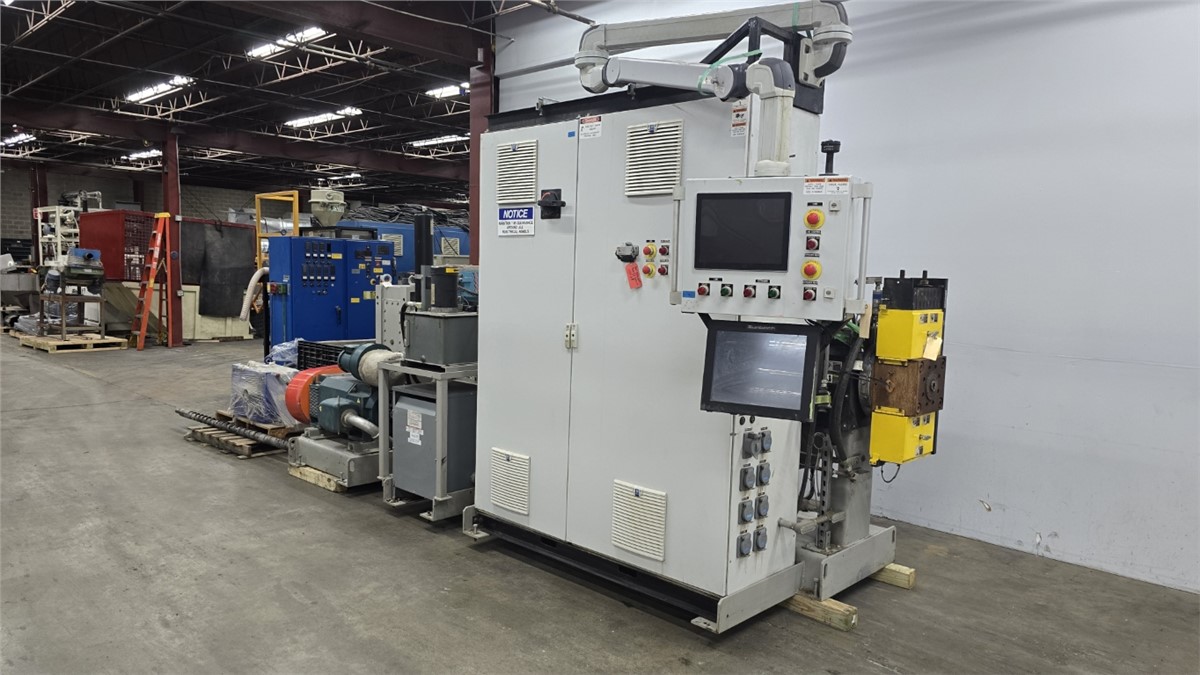

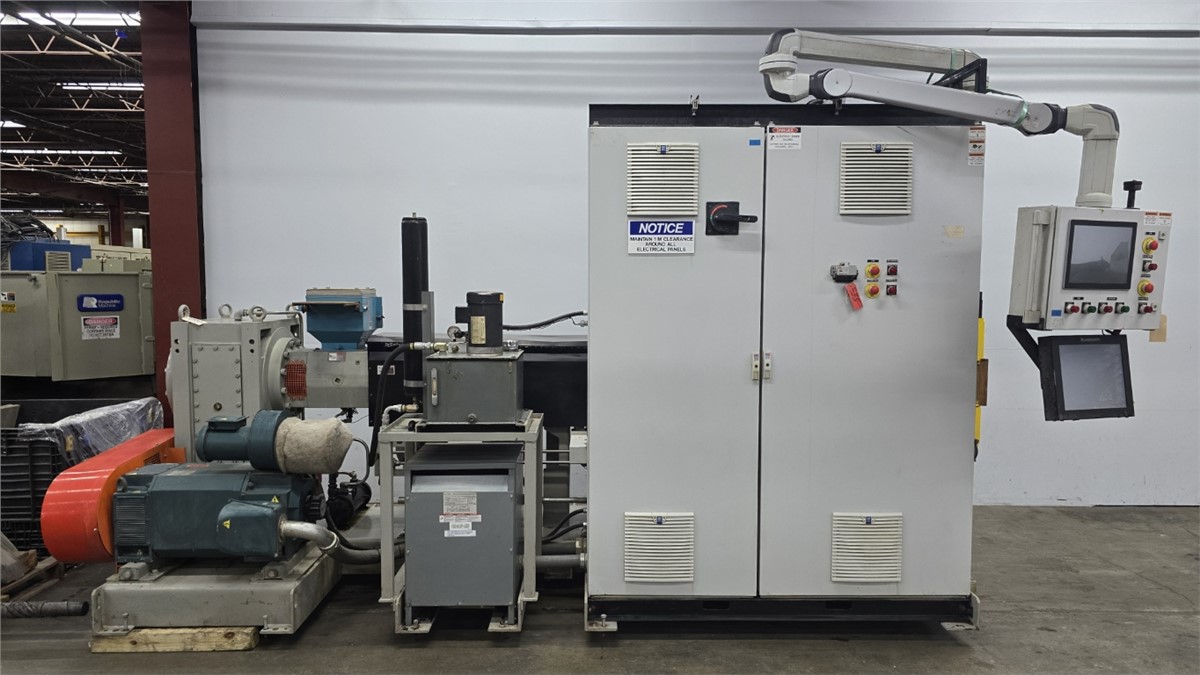

Name: 4.5" American Kuhne 450 Extruder, 30:1 LD, Air Cooled, 250 HP
Brand: American Kuhne
SKU: 22535A
Price: 74500.00 USD
Availability: InStock

4.5" American Kuhne 450 Extruder, 30:1 LD, Air Cooled, 250 HP

Click to enlarge (33 Total Photos)

Product Features

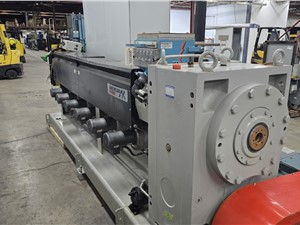

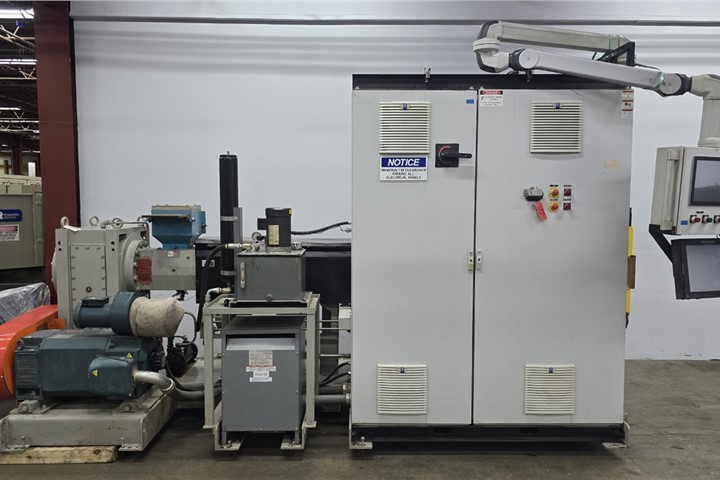

Used 4.5" American Kuhne 450 Extruder, 30:1 LD, Air Cooled, 250 HP
6 Barrel Zones, Air Cooled
8 Downstream Zones
42.5" Centerline Height
Bunting “No-Spill” Rare Earth Drawer Magnet Mounted On Feed Throat To Protect Screw, Barrel, Check Ring, And Downstream Equipment From Metal Contaminants

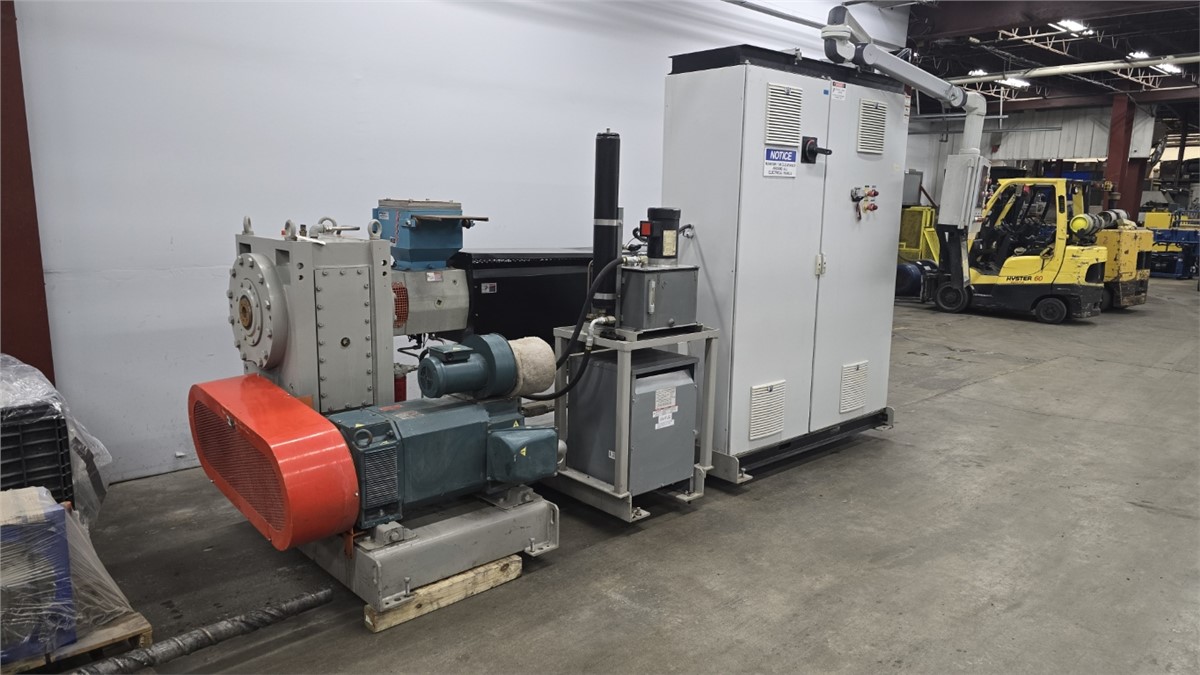

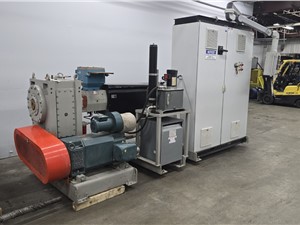

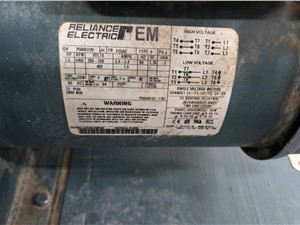

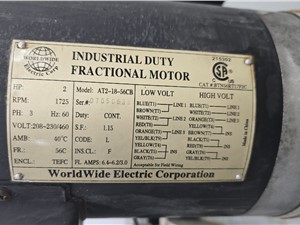

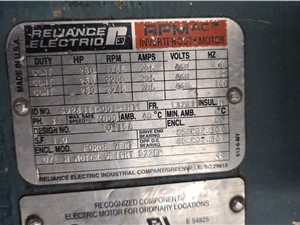

250 HP Reliance Electric AC Motor With 1.5 HP Blower
460/3/60, 295A
1765 RPM

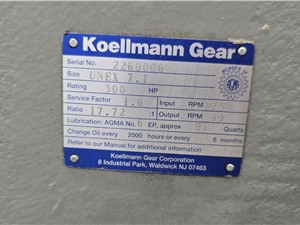

Koellmann Gearbox Rated For 300 HP, S/N: 2260006
Size: UNEX 7.1
Ratio: 17.72 : 1
Service Factor: 1.6
Input RPM: 1750
Output RPM: 99

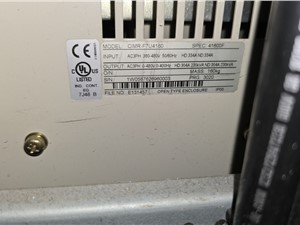

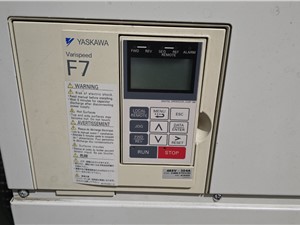

Yaskawa Varispeed F7 AC VFD, Model: CIMR-F7U4160, S/N: 1W0587626960003
Input: 480/3/60, 334A
Output: 0-480V, 0-400Hz, 304A, 230kVA

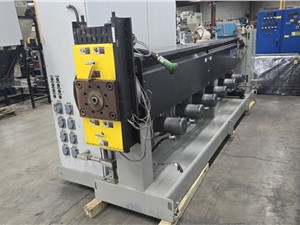

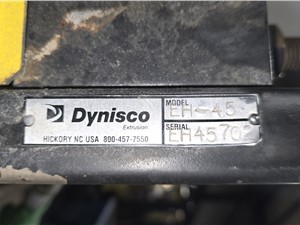

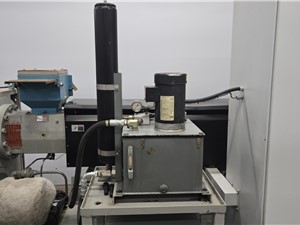

Dynisco EH-45 Hydraulic Screen Changer, S/N: EH45702 (Missing Hydraulic Cylinder)

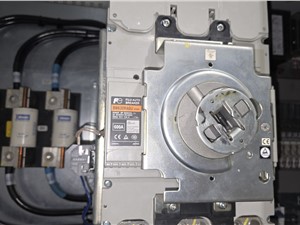

600 AMP Fuji Auto Main Breaker, Model BW630RAGU-3P600
Pressure Rating Up To 10,000 psi
Temperature Rating Up To 850°F
Thermal Transfer Products 4-Pass Shell & Tube Heat Exchanger, Model: C-1014-2-6-F, S/N: 1398283
Shell: 300 PSI, Tubes: 150 PSI
Max Temp. 300F

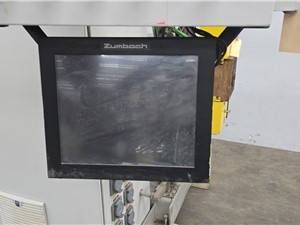

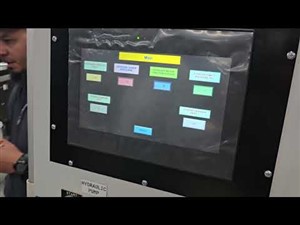

HOPE Industrial HIS-UM17-CTBH Multi-Touch Control Panel HMI, S/N: 6107825
S/N: 5057
New In 2005
Approximate Dimensions:
