Name: 14' CDS Stainless Steel Vacuum Calibration Table Model CVC 14-475 LH
Brand: CDS
SKU: 22501A
Price: 19500.00 USD
Availability: InStock

14' CDS Stainless Steel Vacuum Calibration Table Model CVC 14-475 LH

Click to enlarge (28 Total Photos)

Product Features

Used 14' CDS Stainless Steel Vacuum Calibration Table Model CVC 14-475 LH,
Table Size 2.5 X 14 FT
Centerline Height: 43"
14" Center to Center Width Between Mounting Holes

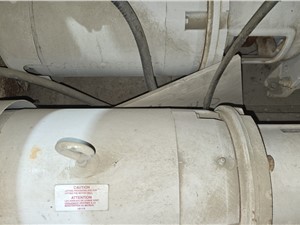

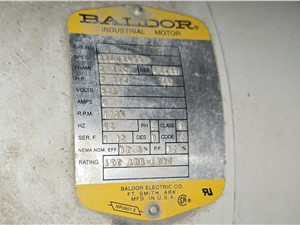

(4) 7.5HP Baldor Vacuum Pumps
575/3/60, 8A
1725 RPM, 213TC Frame

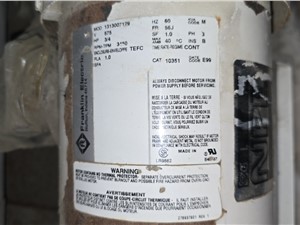

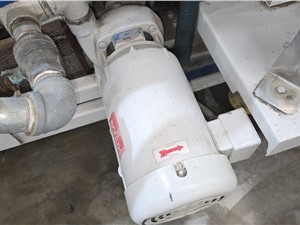

3/4 HP Franklin Recirculation Pump and 5 HP Baldor Spray Pump
4 Vacuum Manifolds, 15 Vacuum Ports In Zone 1, 15 Vacuum Ports In Zone 2, 22 Vacuum Ports in Zone 3, 10 Vacuum Ports In Zone 4
1 Water Manifold, 20 Water Ports

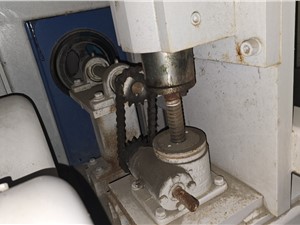

Motorized Table Travel, Handwheel For Manual Positioning On Traverse Feed Screw, Manual Handwheel Up/Down
Inline Rosedale Stainless Filter Housing, Model LCO8-30-2P-12-5-S-B-B,125 PSIG, Temperature and Pressure Gauges Installed
Front Panel Pushbuttons For Table Forward, Table Reverse, Table Auto Reverse, Recirculation, Jet, Vacuum Pump Zones, Integrated Reservoir and Auto Fill Level Control

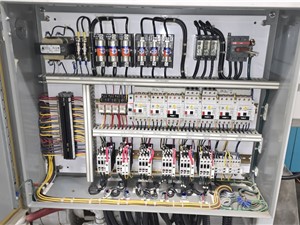

Stainless Top Covers and Removable Access Plates Over Tank, Includes Control Panel, Interconnecting PVC and Stainless Piping As Photographed
S/N: 330600
Left To Right Operation
575/3/60, 52A
*MACHINE WIRED FOR 600V* TRANSFORMER AVAILABLE
Approximate Dimensions: 214" L x 65" W x 87" H
QUOTED AND SOLD AS IS

Add To Quote

Call Us
(877) 887-9408

International
(312) 878-3809

Sell Your Used
Machinery

Brand	CDS
Model	CVC 14-475 LH
Item	22501A
