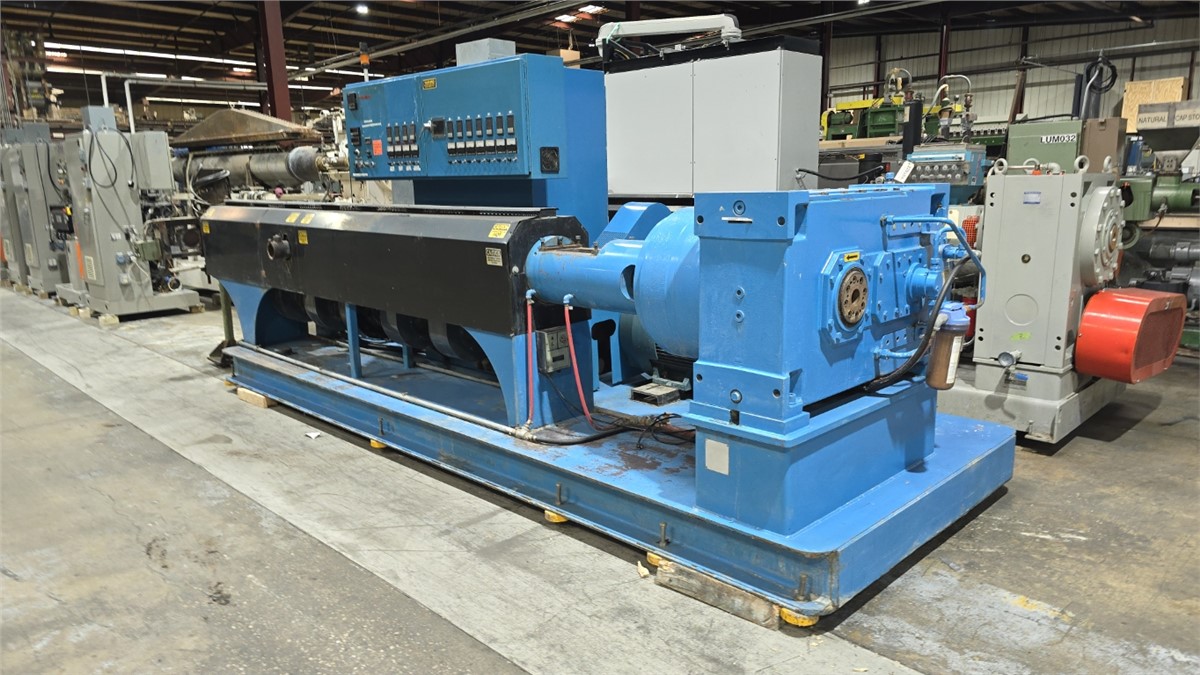

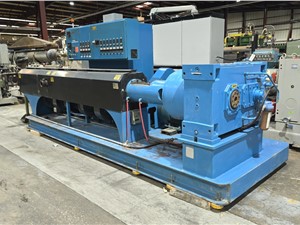

Name: 4.5" Polytruder Extruder, L/D: 34:1, With Beringer Water Ring Pelletizing System with Spin Dryer, Hydraulic Drive, and Control Panel
Brand: Polytruder
SKU: 22487A
Price: 74500.00 USD
Availability: InStock

4.5" Polytruder Extruder, L/D: 34:1, With Beringer Water Ring Pelletizing System with Spin Dryer, Hydraulic Drive, and Control Panel

Click to enlarge (49 Total Photos)

Product Features

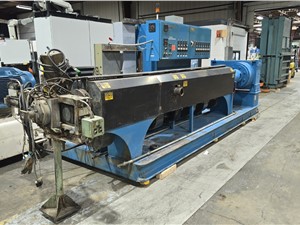

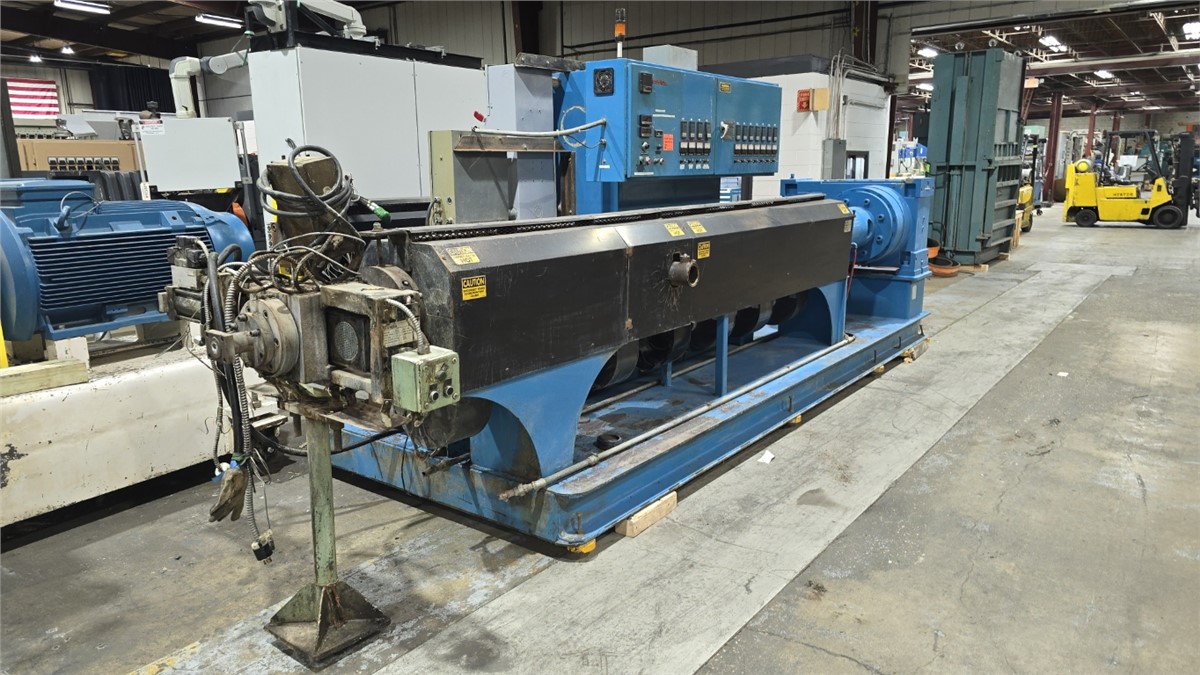

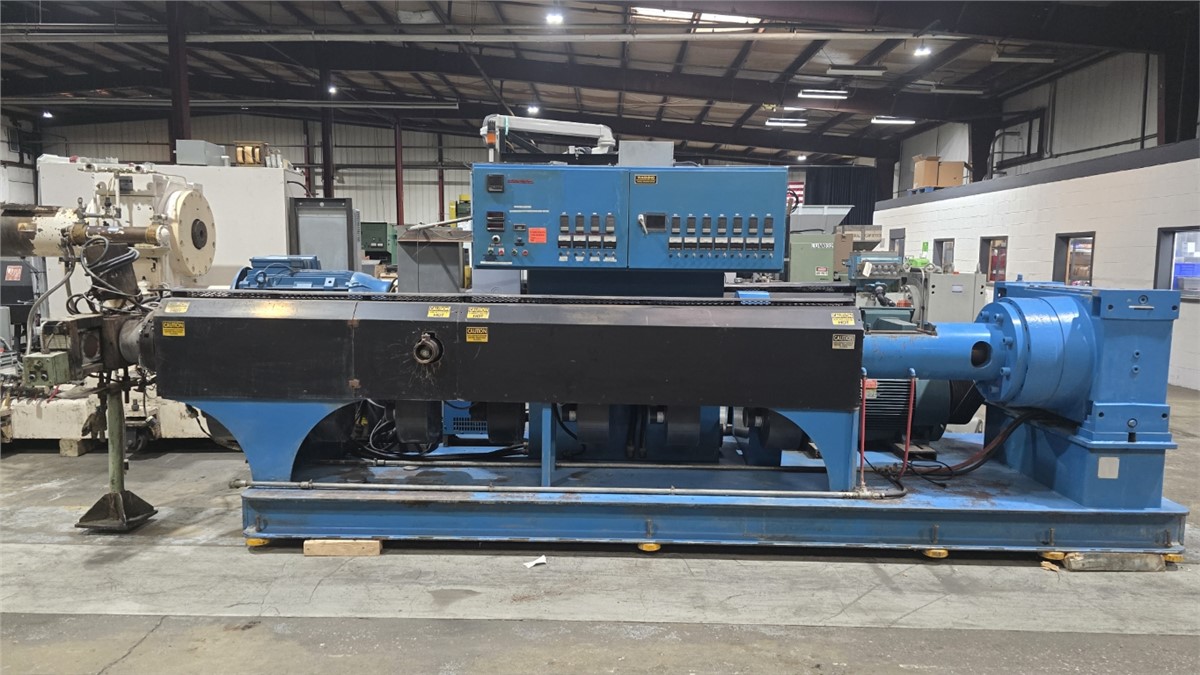

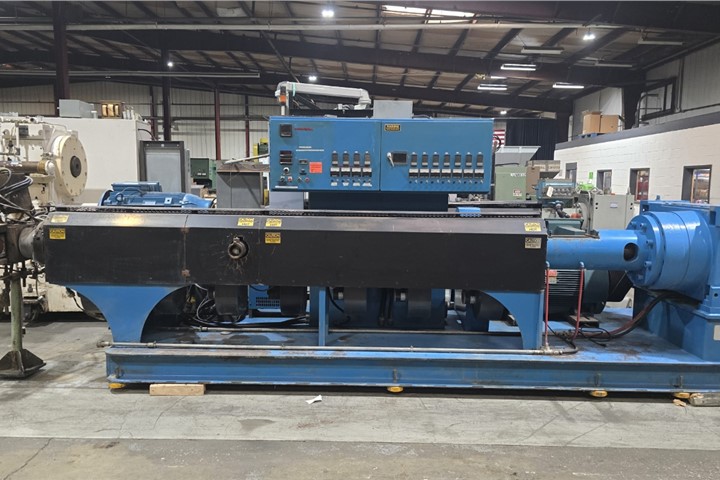

Used 4.5" Polytruder Extruder, L/D: 34:1, With Beringer Water Ring Pelletizing System with Spin Dryer, Hydraulic Drive, and Control Panel
Single Screw, Air Cooled, Vented, 7 Barrel Zones, 4 Downstream Zones

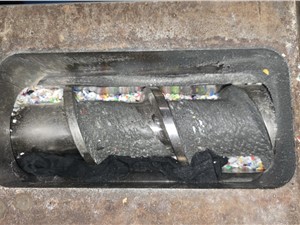

12" x 5.5" Square Water Cooled Feed Throat
42" Centerline Height

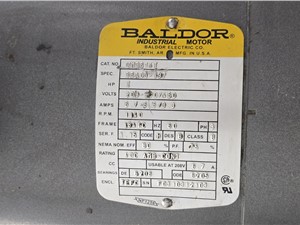

250 HP Baldor AC Motor, Cat. No. ECP4408T-4, S/N: 1112072026
460/3/60, 276A
1785 RPM
449T Frame, TEFC

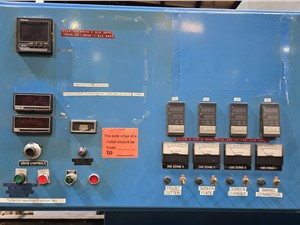

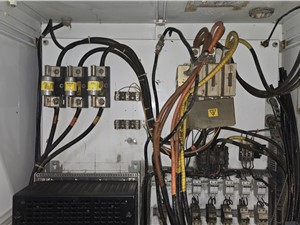

Hydraulic Drive System with Dedicated Control Panels

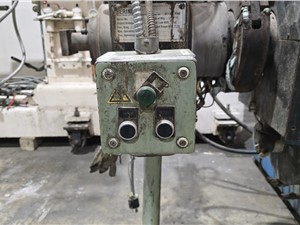

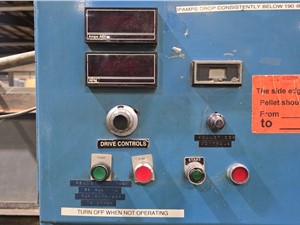

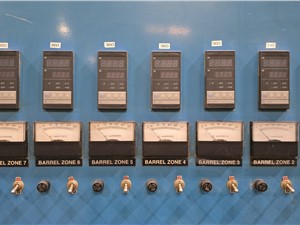

RKC CB400 Temperature Controllers, Start/Stop Drive Push Button Controls
Speed POT, Digital RPM And AMPS Readout

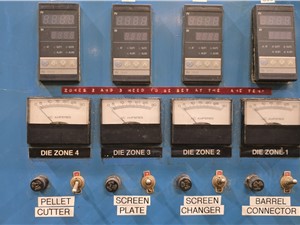

On/Off Toggle Switches for Pelletizer, Screen Plate, Screen Changer, and Barrel Connector
Dedicated AC Amp Readouts for Each Downstream Zone
Dynisco UPR 700 Digital Pressure Transducer Readout

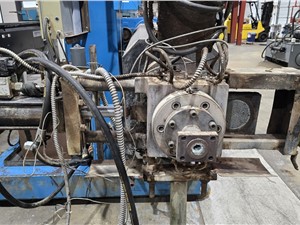

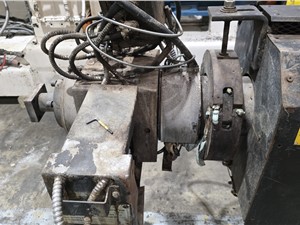

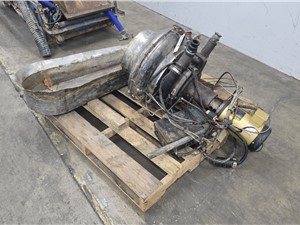

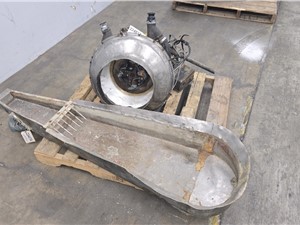

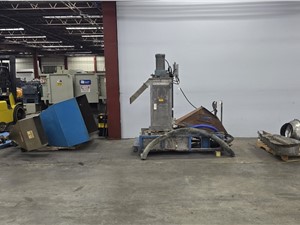

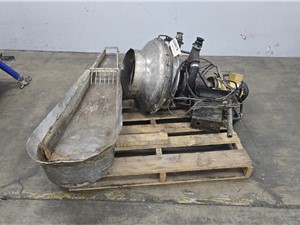

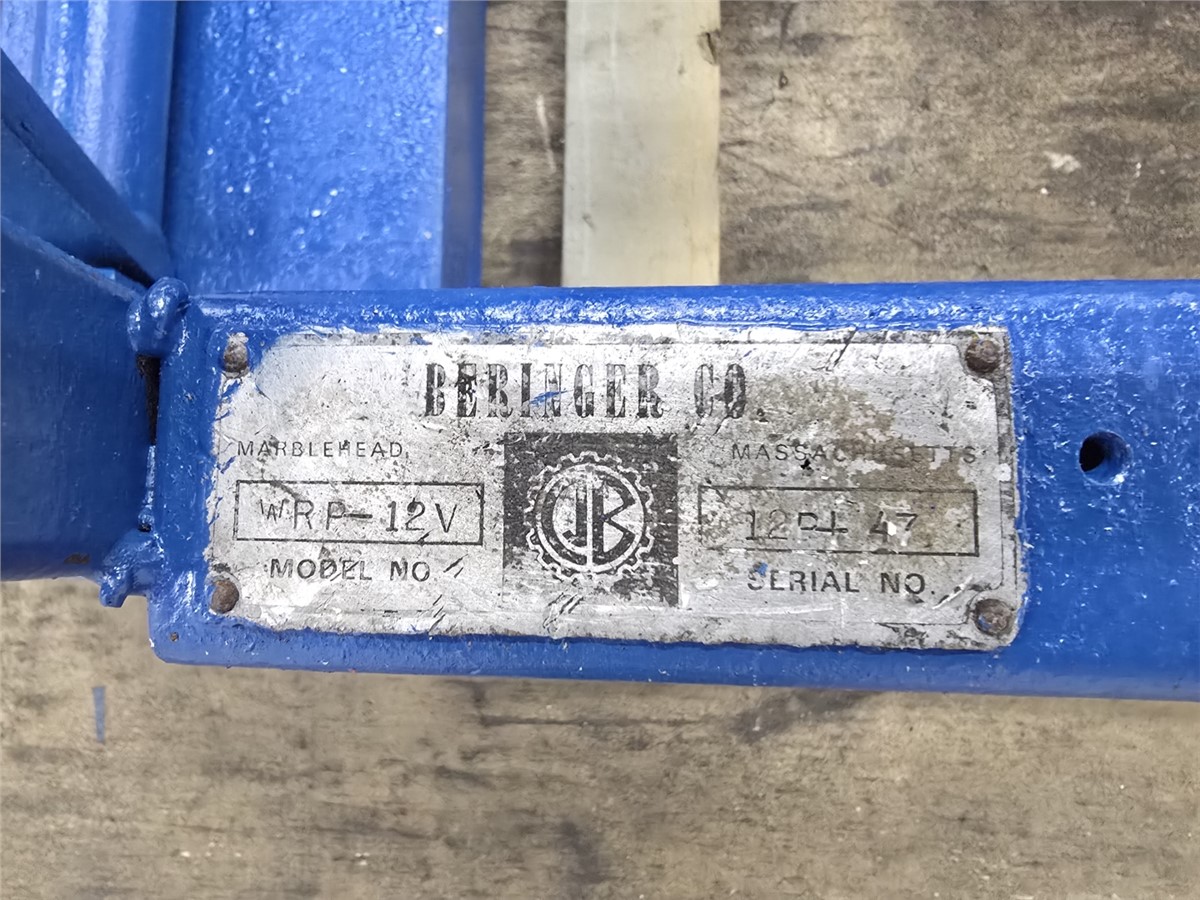

Beringer Water Ring Pelletizer, S/N: 4UL279
240/1/60
Max Operating Pressure: 6,500 PSI
Max Operating Temp: 550°F

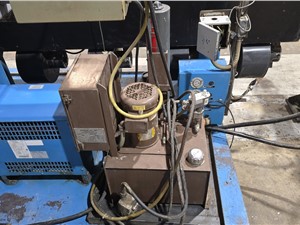

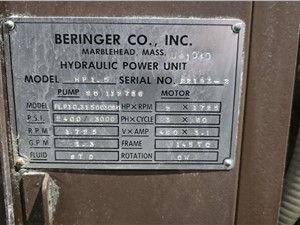

Beringer Model 1.5 HP HPU, S/N: 22193-2
Pump: 2400/3000 PSI, 1725 RPM, 1.3 GPM
Motor: 2 HP @ 1725 RPM, 460/3/60, 3.1A, 145TC Frame, CW Rotation

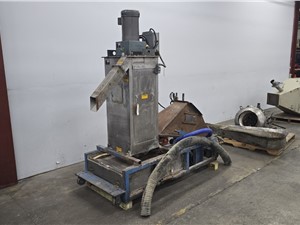

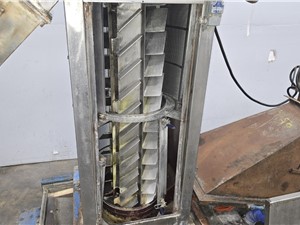

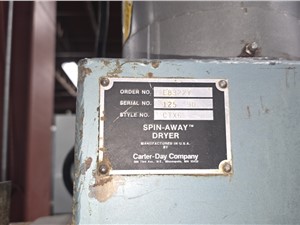

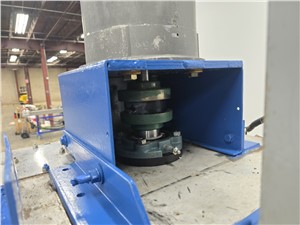

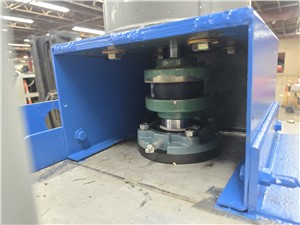

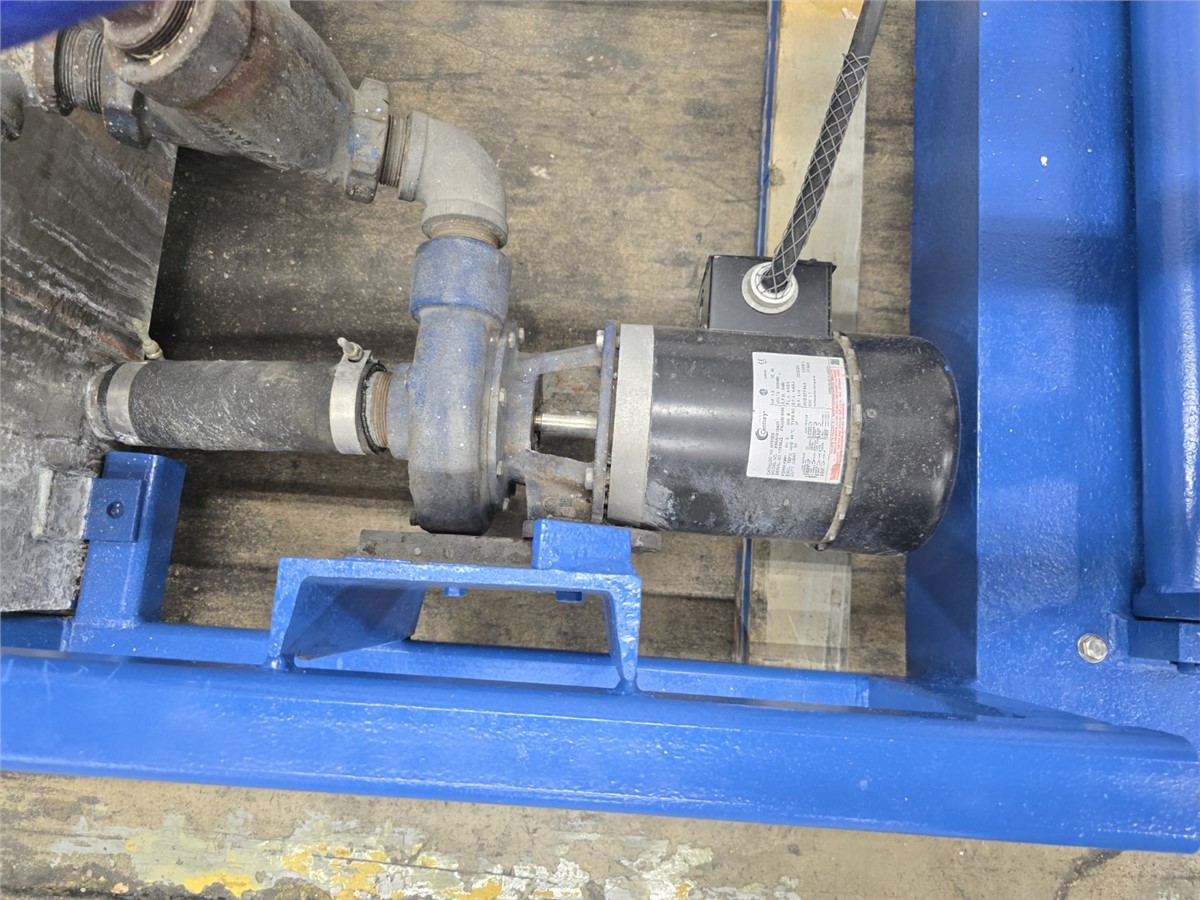

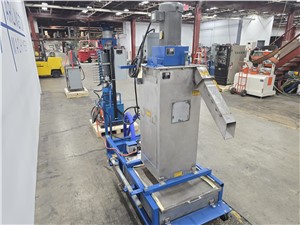

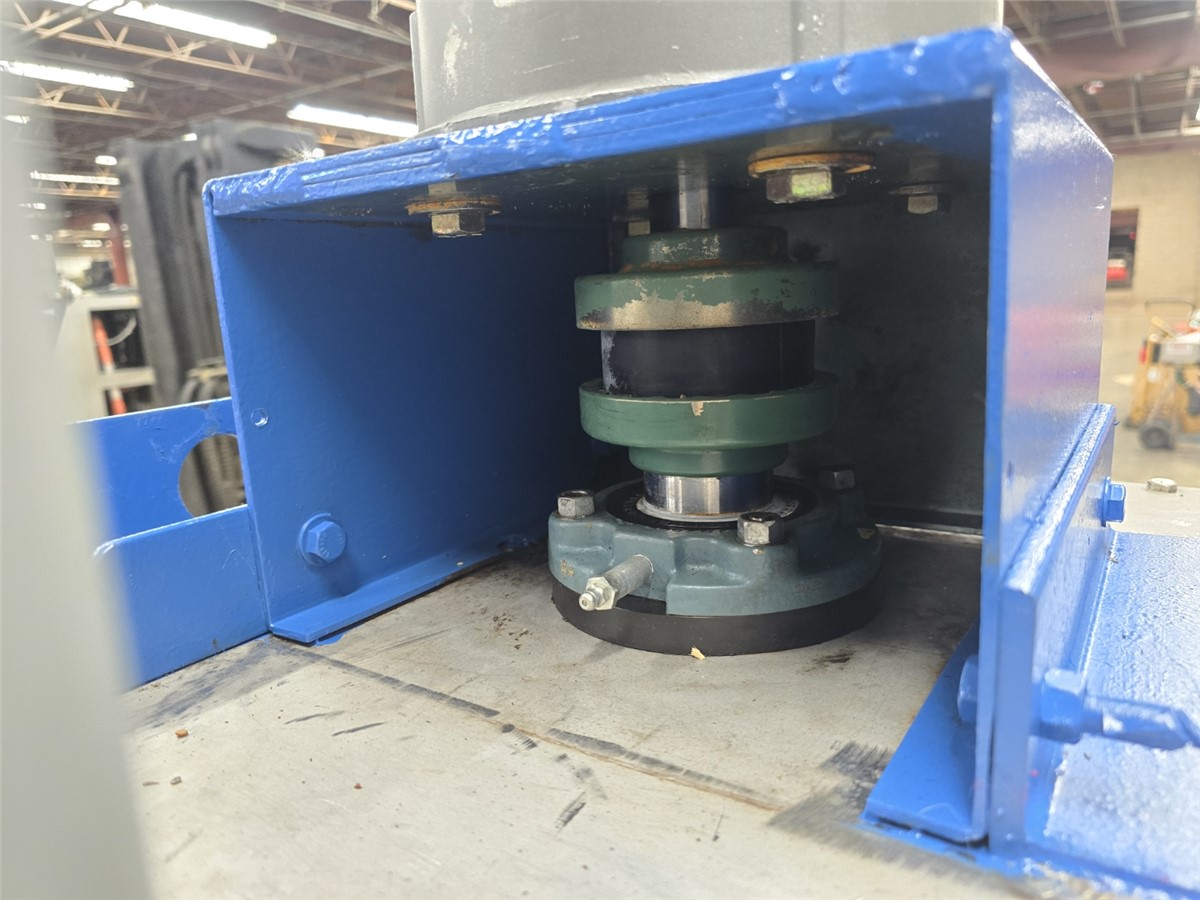

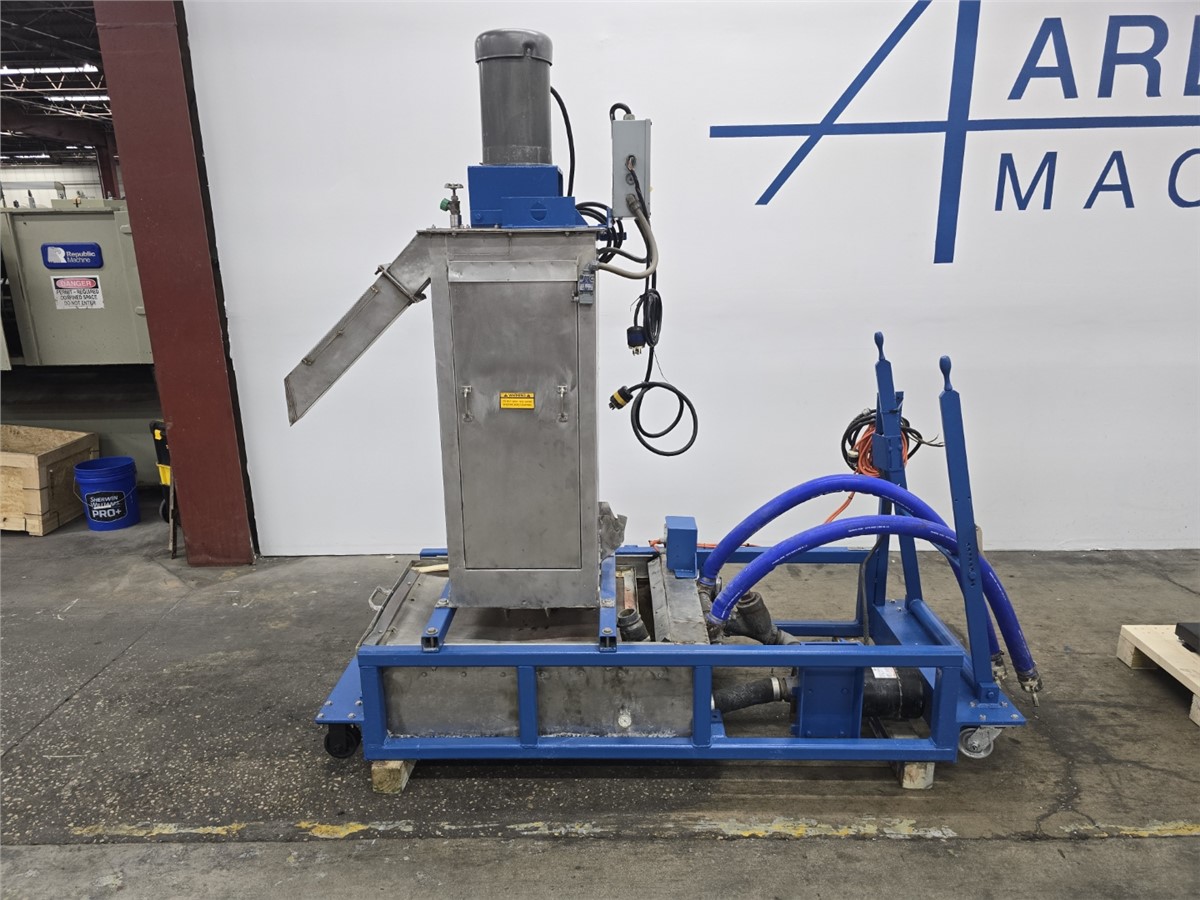

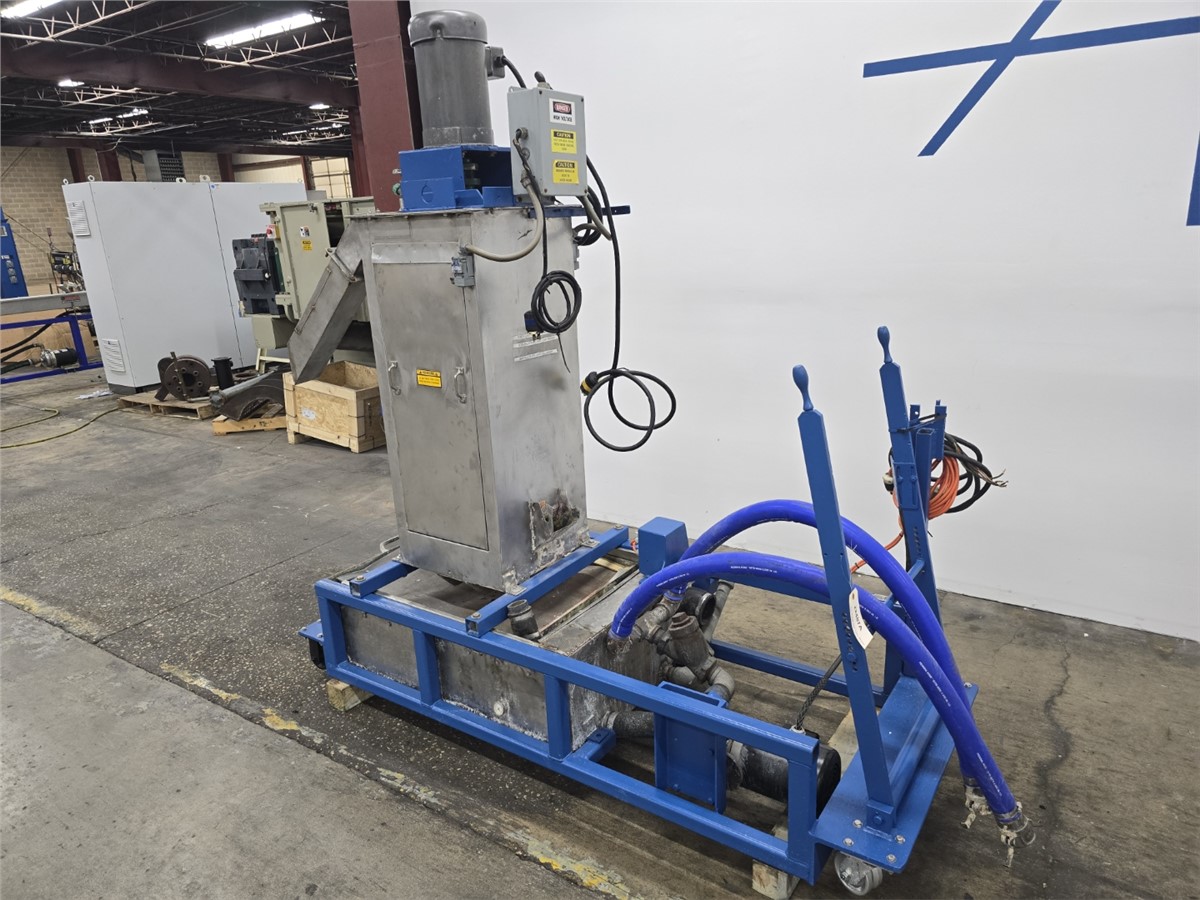

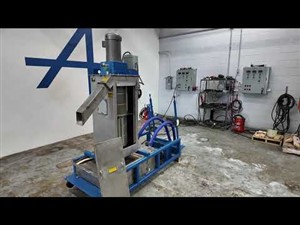

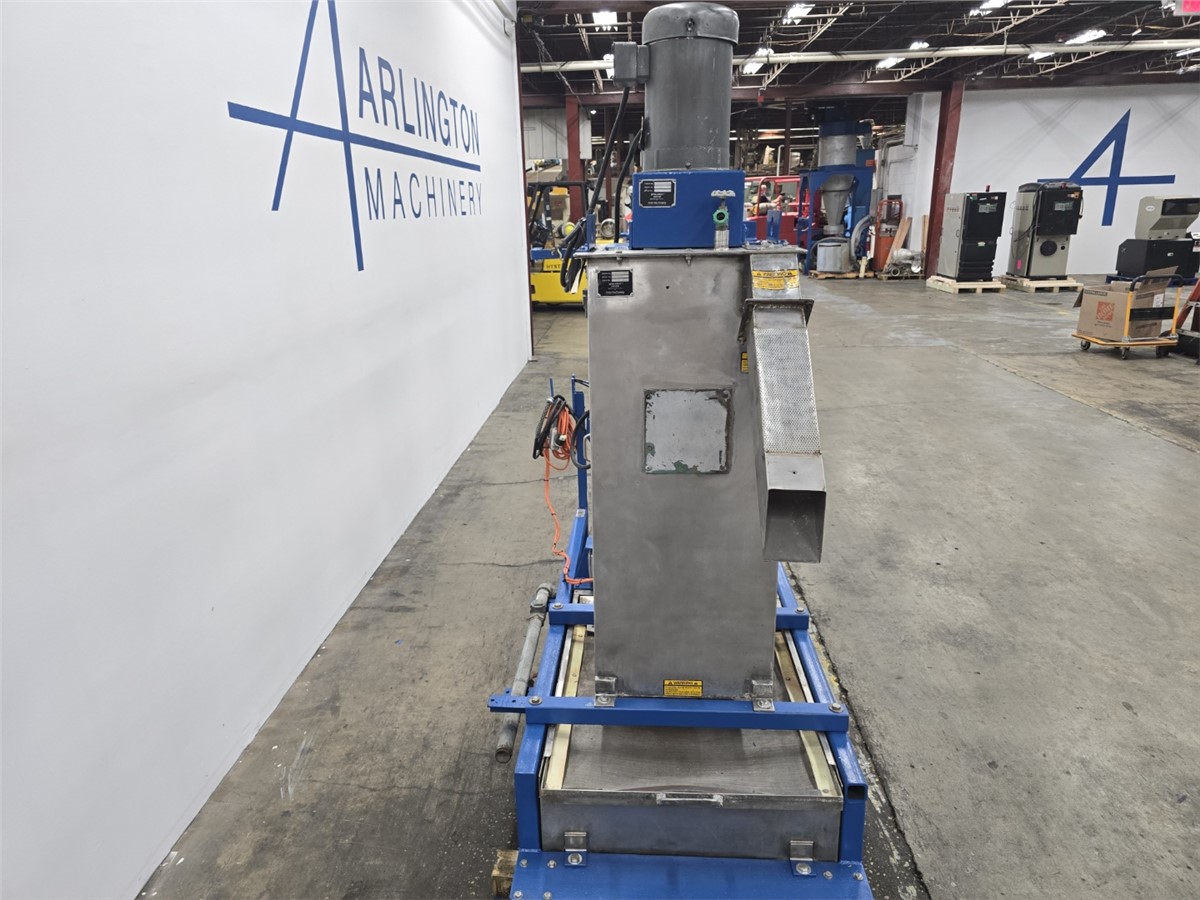

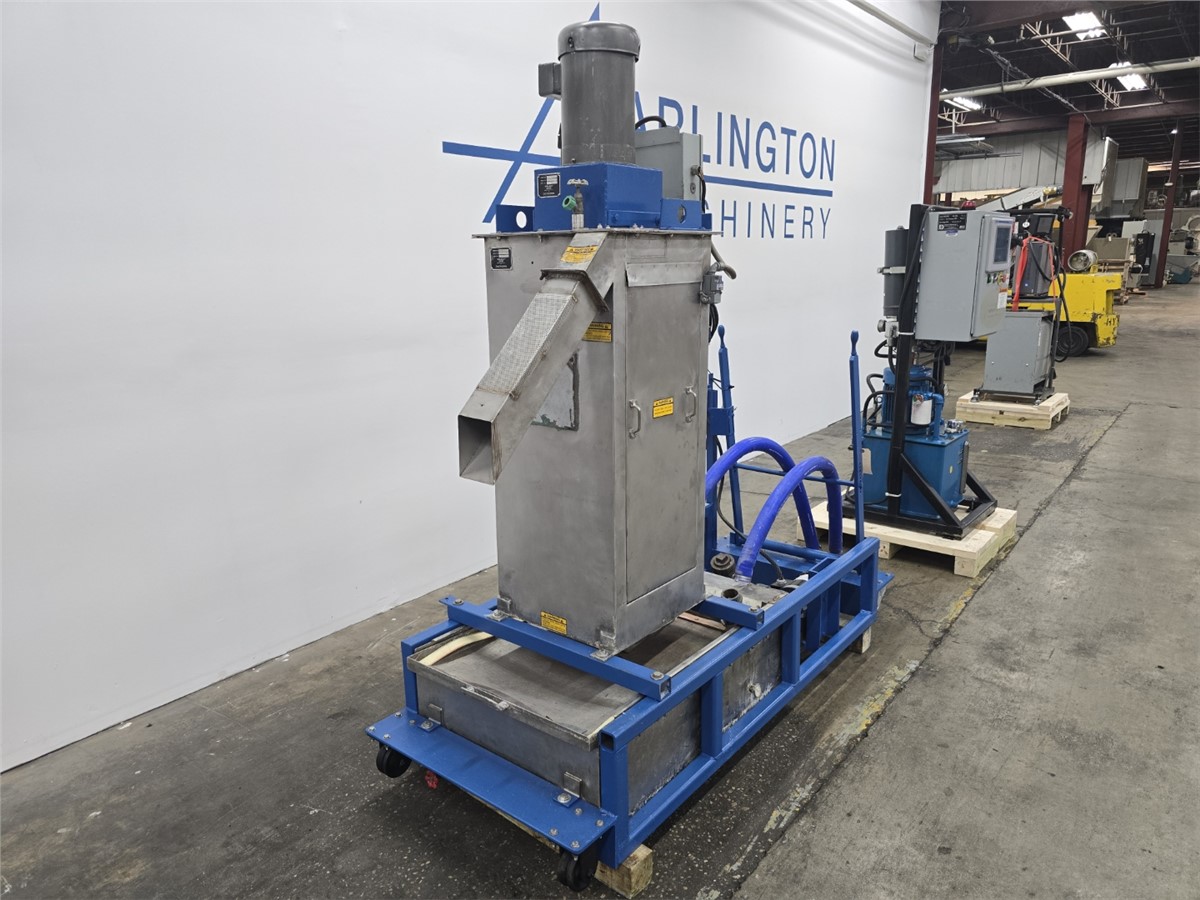

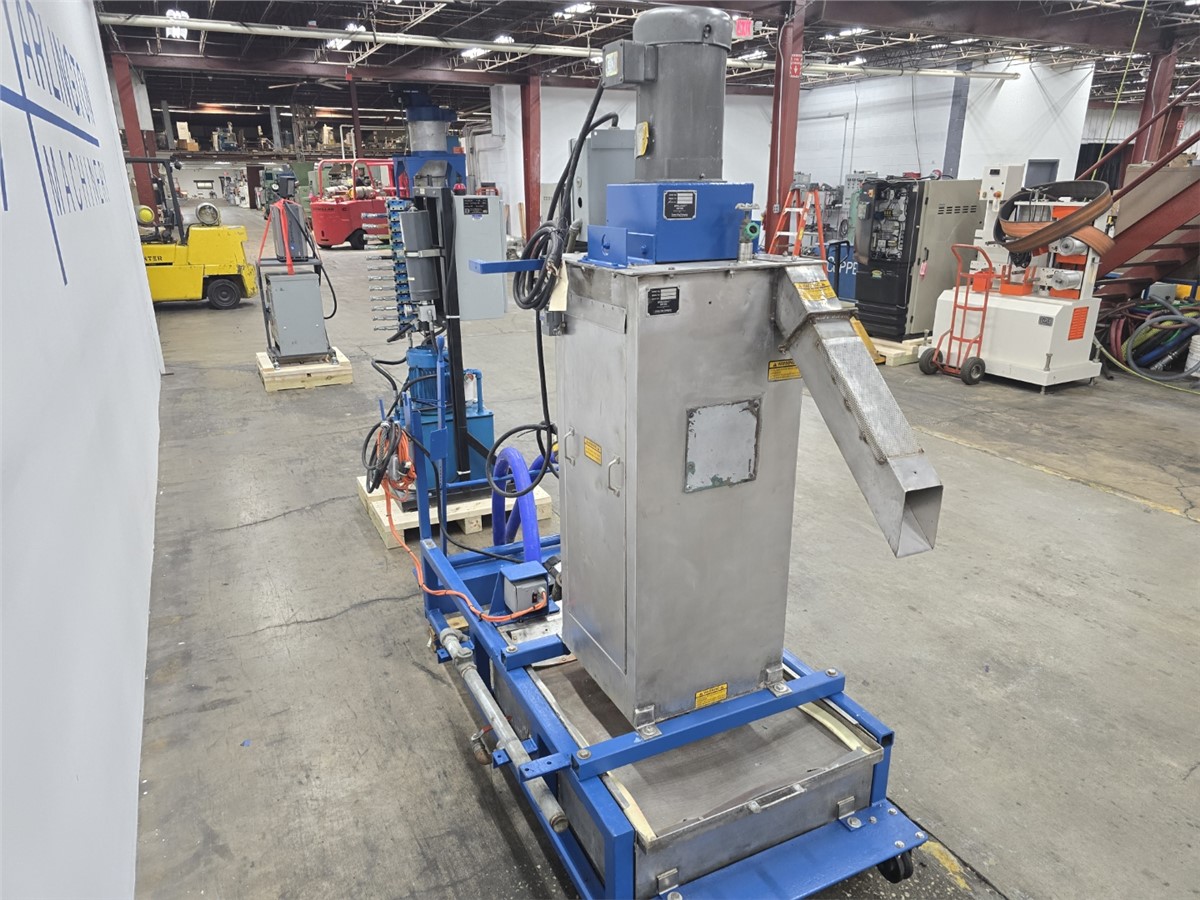

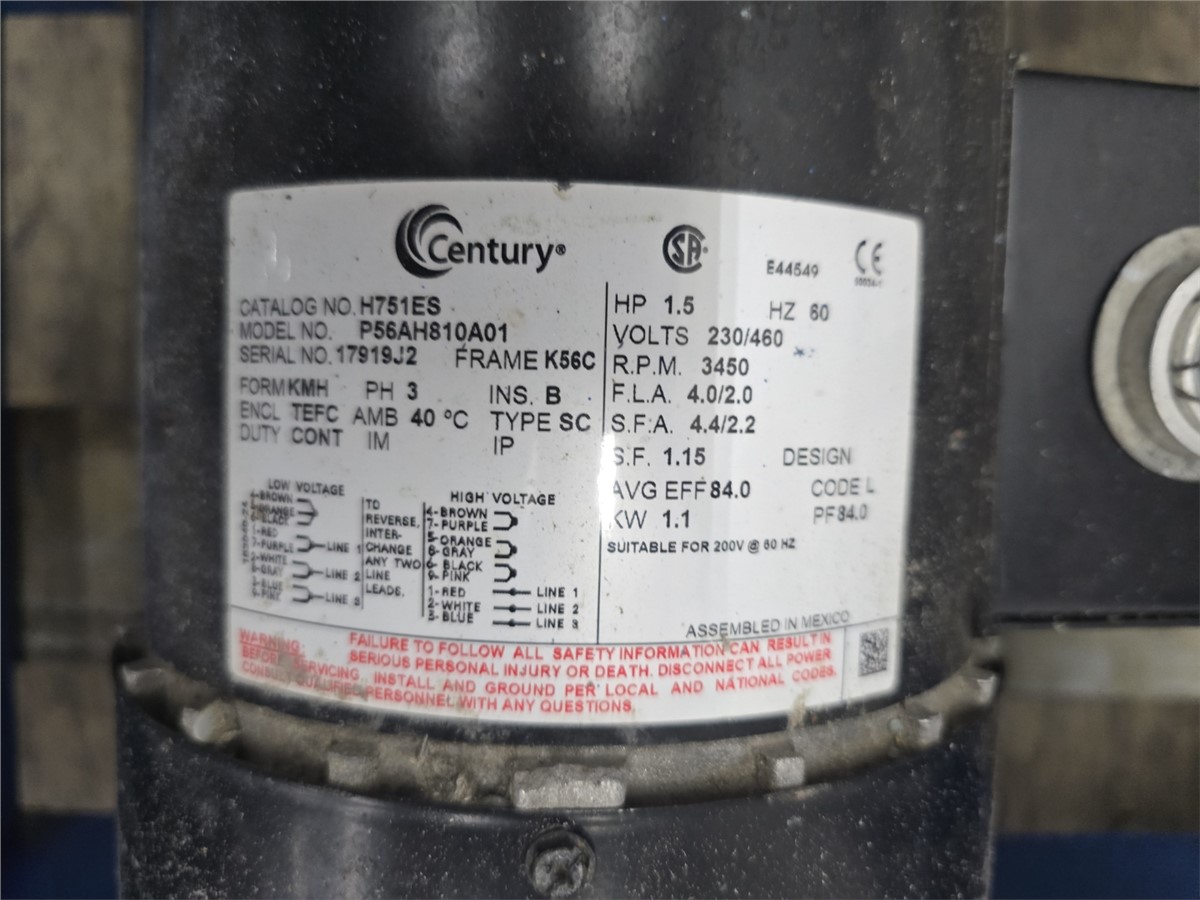

2 Hp Carter Day CTX6 Spin Dryer, 1140 RPM, S/N: 1250 90

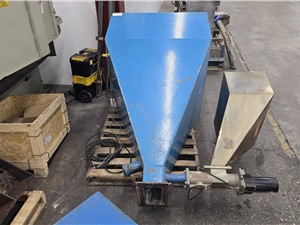

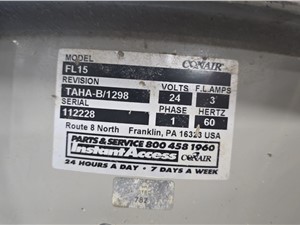

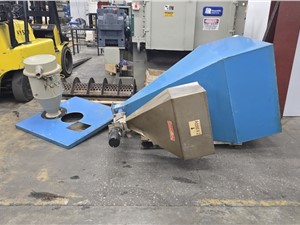

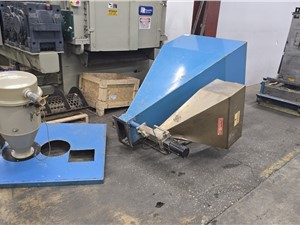

Comes With Conair Stainless Steel CL-15 Vacuum Receiver & Hopper Fed Screw Feeder
Approximate Dimensions: 168" L x 64" W x 88" H
