Name: 4.5" PTI Water Ring Pelletizing Line, Vented Barrel
Brand: PTI
SKU: 22293A
Price: 89500.00 USD
Availability: InStock

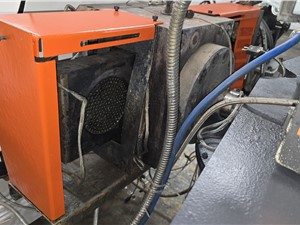

4.5" PTI Water Ring Pelletizing Line, Vented Barrel

Click to enlarge (56 Total Photos)

Product Features

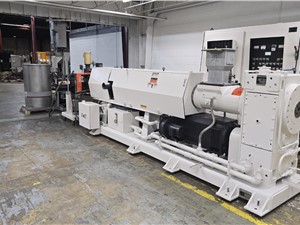

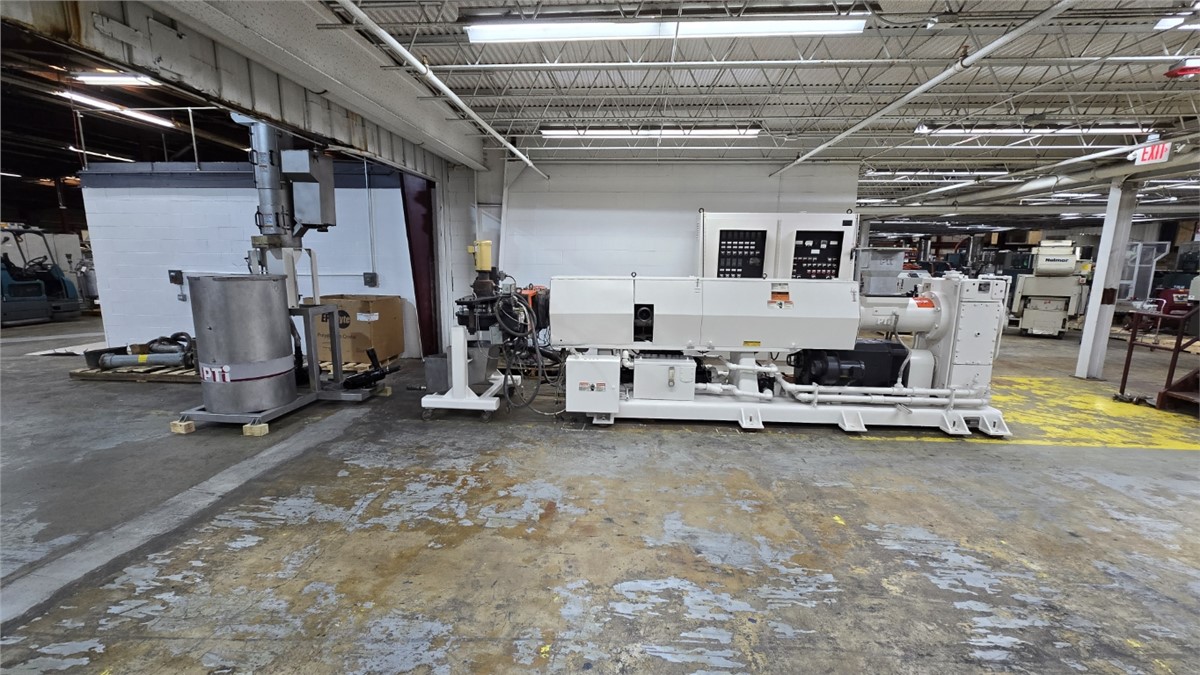

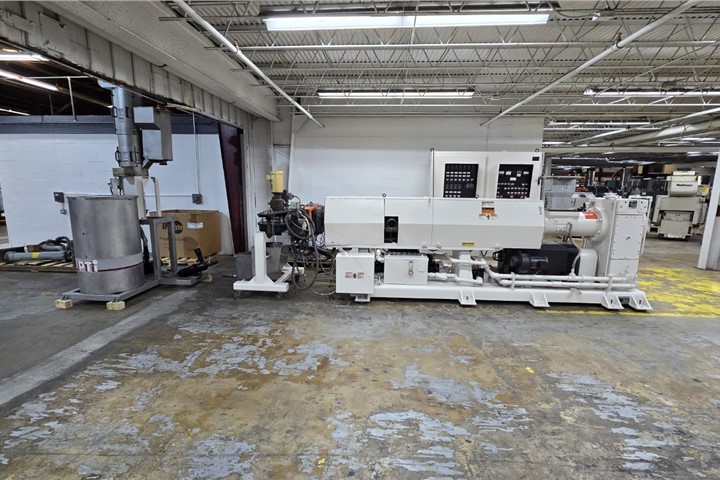

Used 4.5" PTI Water Ring Pelletizing Line Consisting Of The Following Pieces:

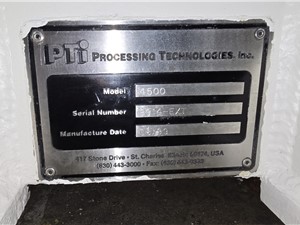

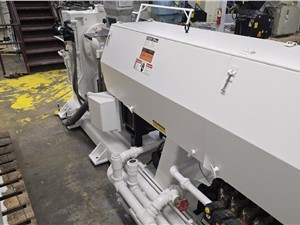

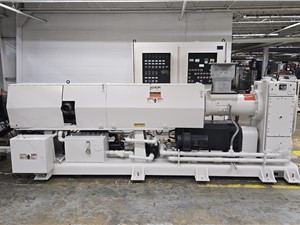

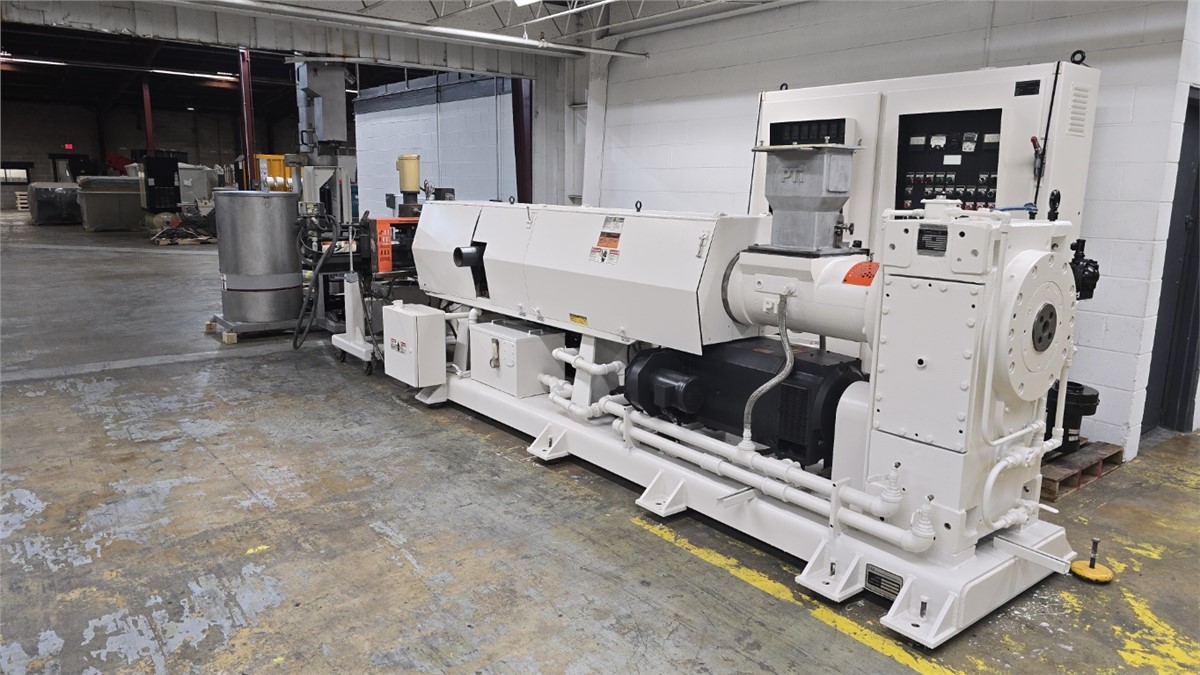

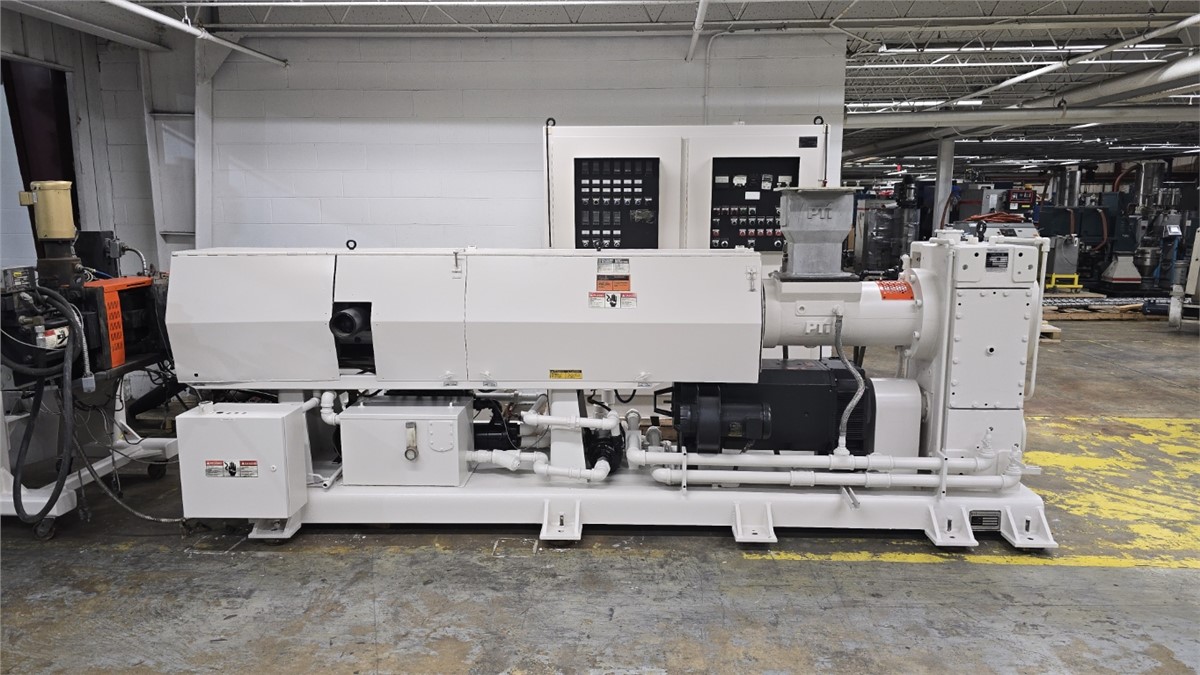

4.5" PTI Trident Extruder, Model 4500, 32:1 L/D Ratio

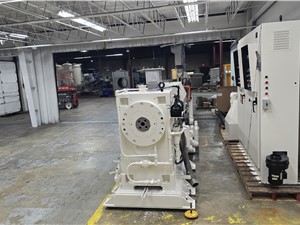

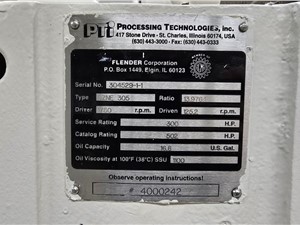

13.976:1 Flender SZNE 305 Gearbox, Rated To 502 HP

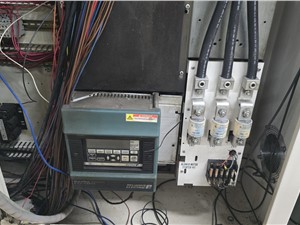

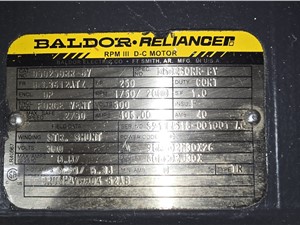

250 HP Baldor DC Motor With Reliance Flexpak 3000 DC Drive
Vented Barrel, Vent Located Approximately 94" From Center Of Feed Throat

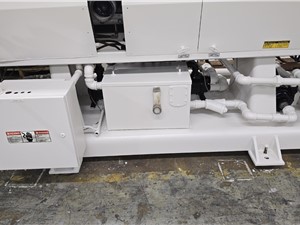

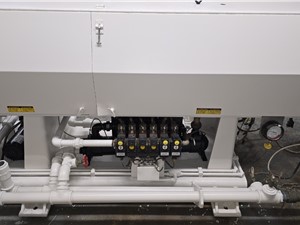

Water-Cooled Barrel, 6 Barrel Zones, 4 Downstream Zones

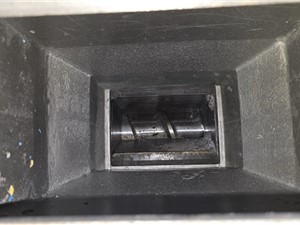

8" L x 4.5" Wide Feedthroat, Includes Hopper

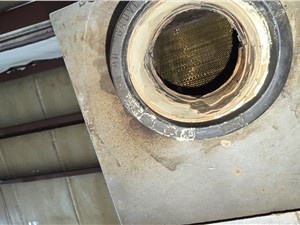

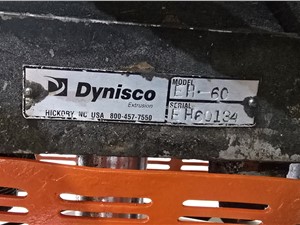

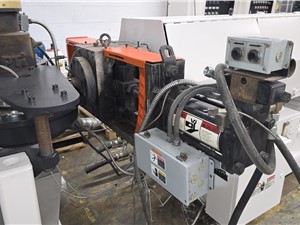

6" Dynisco Slide Plate Screen Changer, Model EH-60

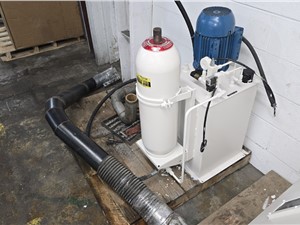

5 HP Hydraulic Power Pack With Accumulator

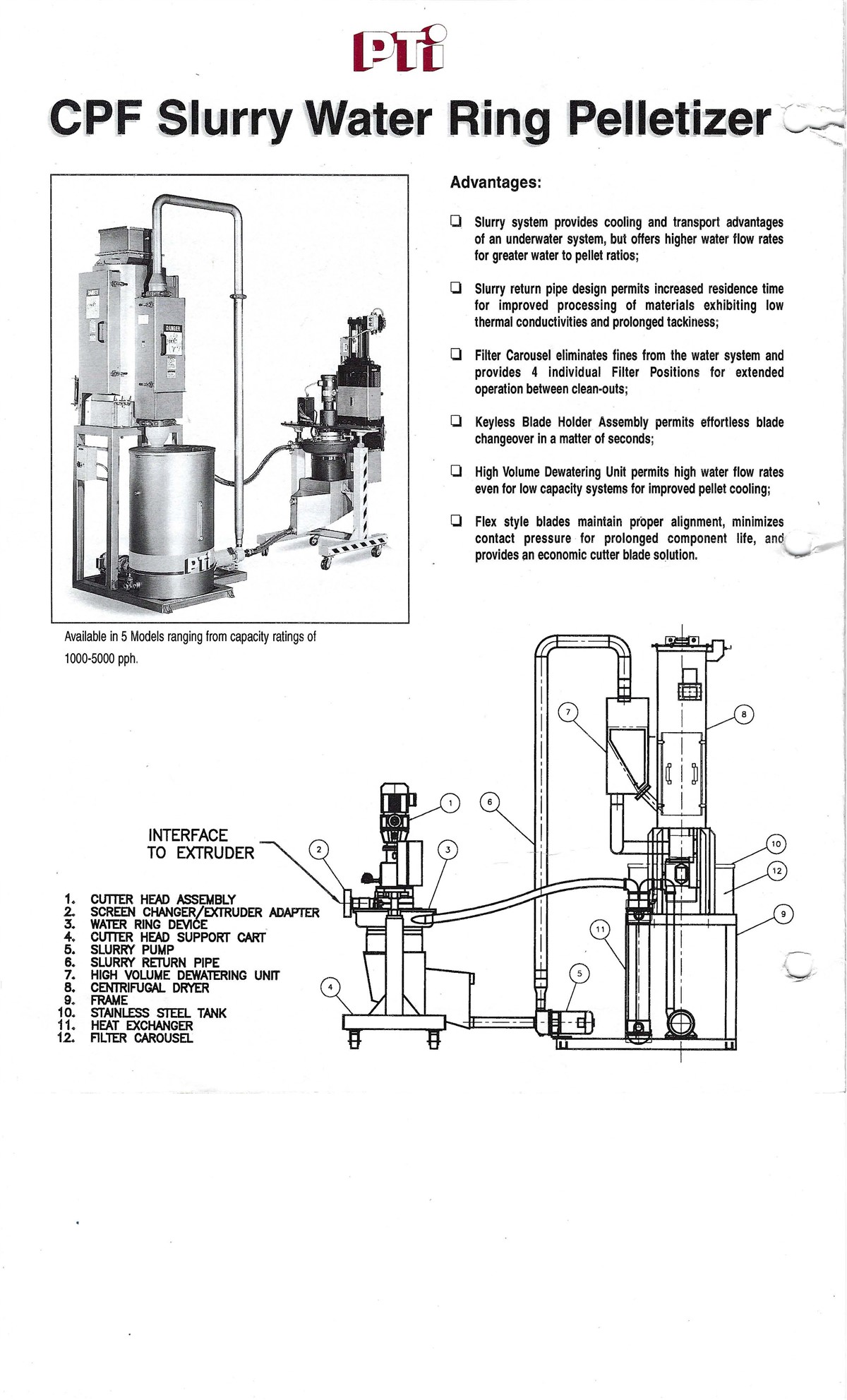

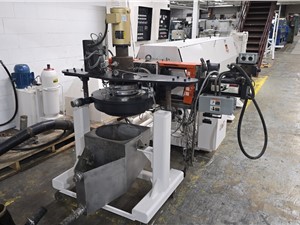

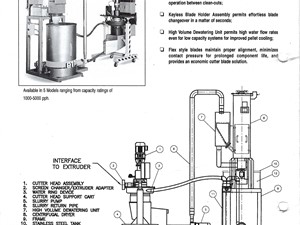

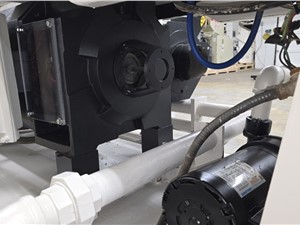

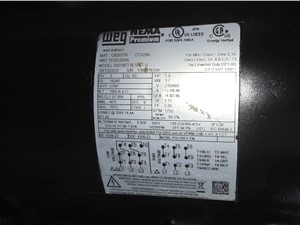

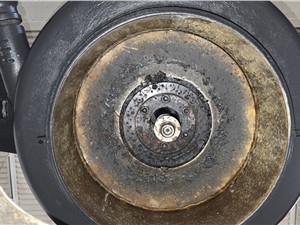

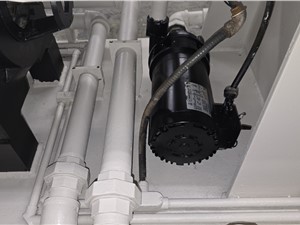

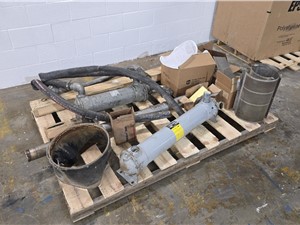

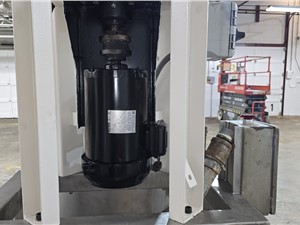

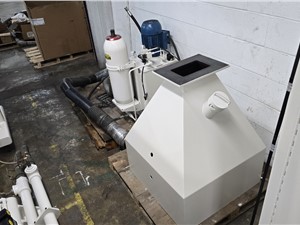

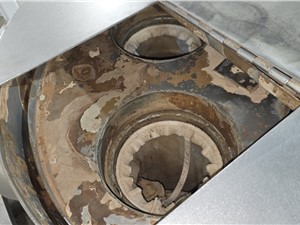

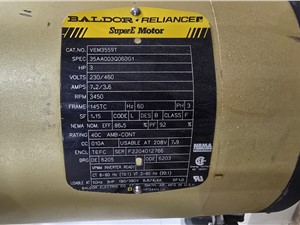

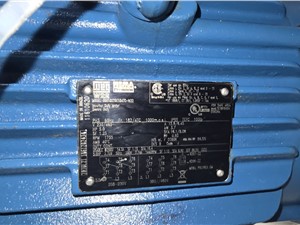

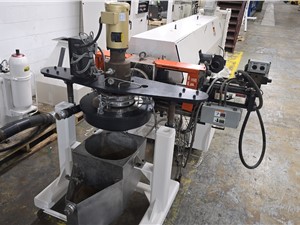

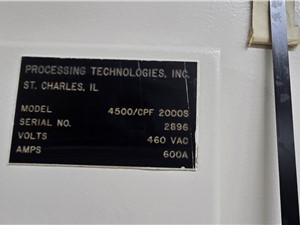

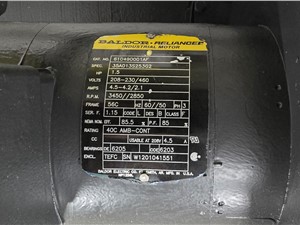

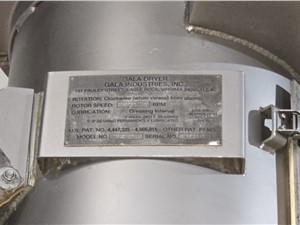

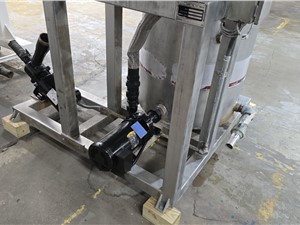

PTI CPF2000 Water Ring Pelletizer, 3 HP Cutting Head With Baldor Motor, Gala 8.2 BF Spin Dryer With 5 HP WEG Motor, Recirculation Pump, Heat Exchanger, Pelletizer S/N 2896
Line New In 1999
Approximate Dimensions:
Extruder - 220" L x 62" W x 72" H

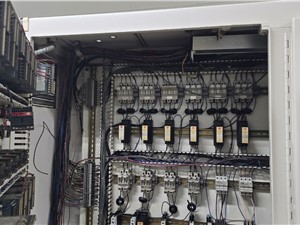

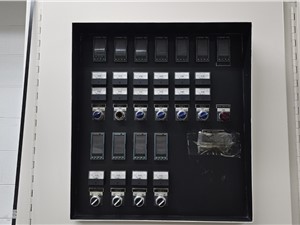

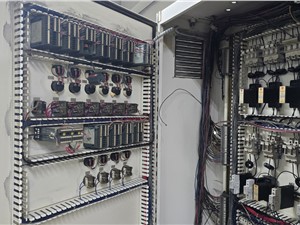

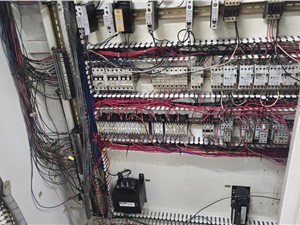

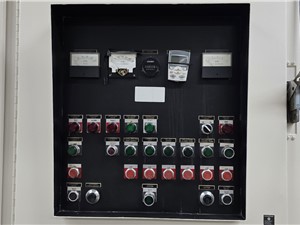

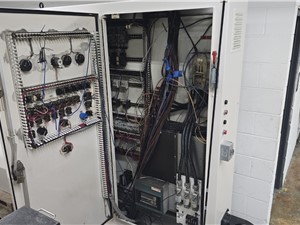

Control Panel - 93" L x 22" W x 88" H
Pelletizer - 60" L x 52" W x 71" H
