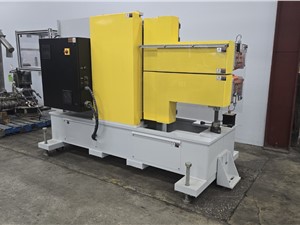

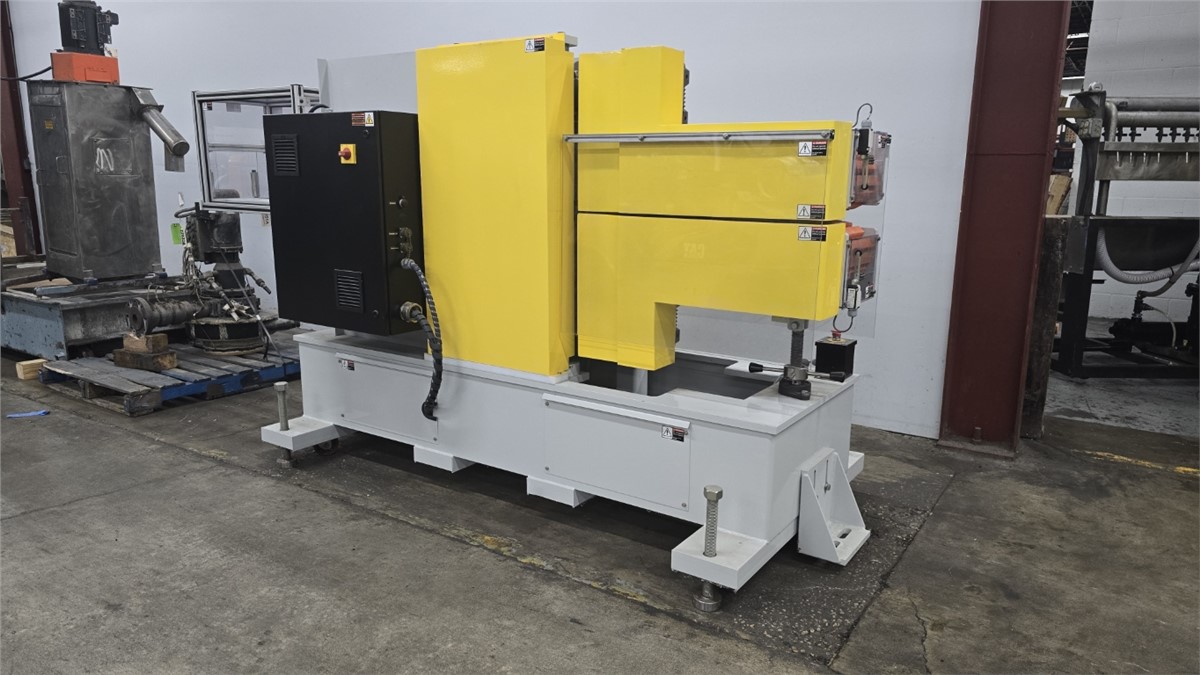

Name: 10" x 84" Conair Cleated Belt Puller, NEW IN 2023
Brand: Conair
SKU: 22251A
Price: 65000.00 USD
Availability: InStock

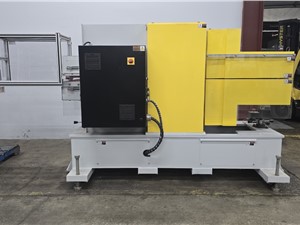

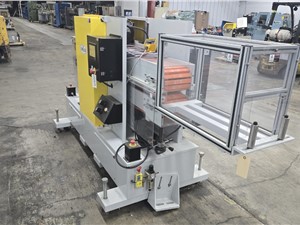

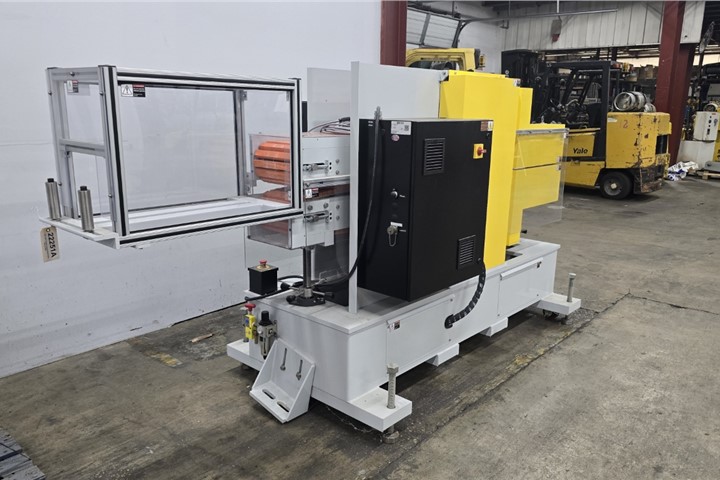

10" x 84" Conair Cleated Belt Puller, NEW IN 2023

Click to enlarge (28 Total Photos)

Product Features

Used 10" x 84" Conair Cleated Belt Puller
Cleat Width: 10 inches with 14 inches through clearance.
Cleat Contact Length: 76 inches.
Maximum Opening: 9 inches with standard 1-inch cleat.

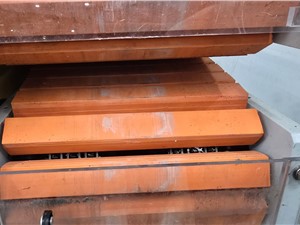

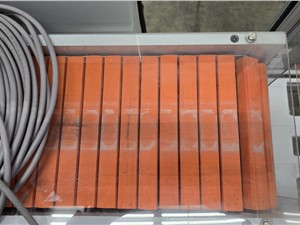

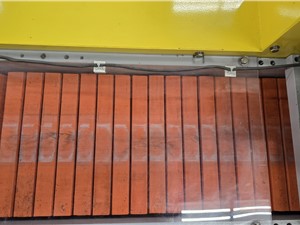

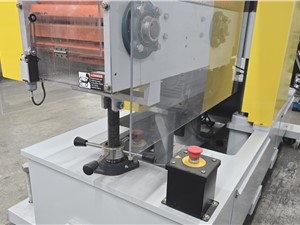

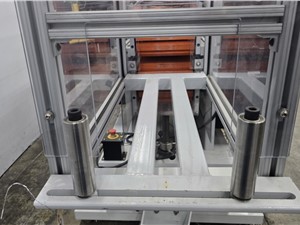

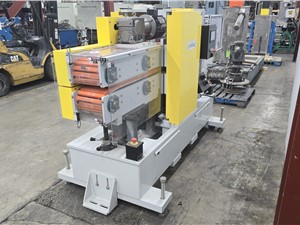

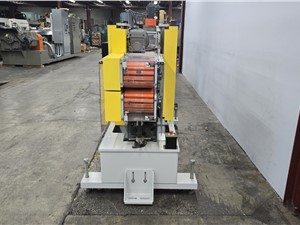

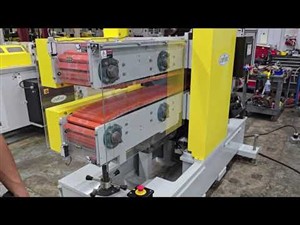

Cleat Type: 1-inch thick, 65A durometer cleated caterpillar type traction belts; roller chain runs on support platforms. Features a pneumatically controlled pendulum-mounted upper traction belt, manual height adjustment on the lower traction belt, and adjustable product entry guide rollers with bearings.

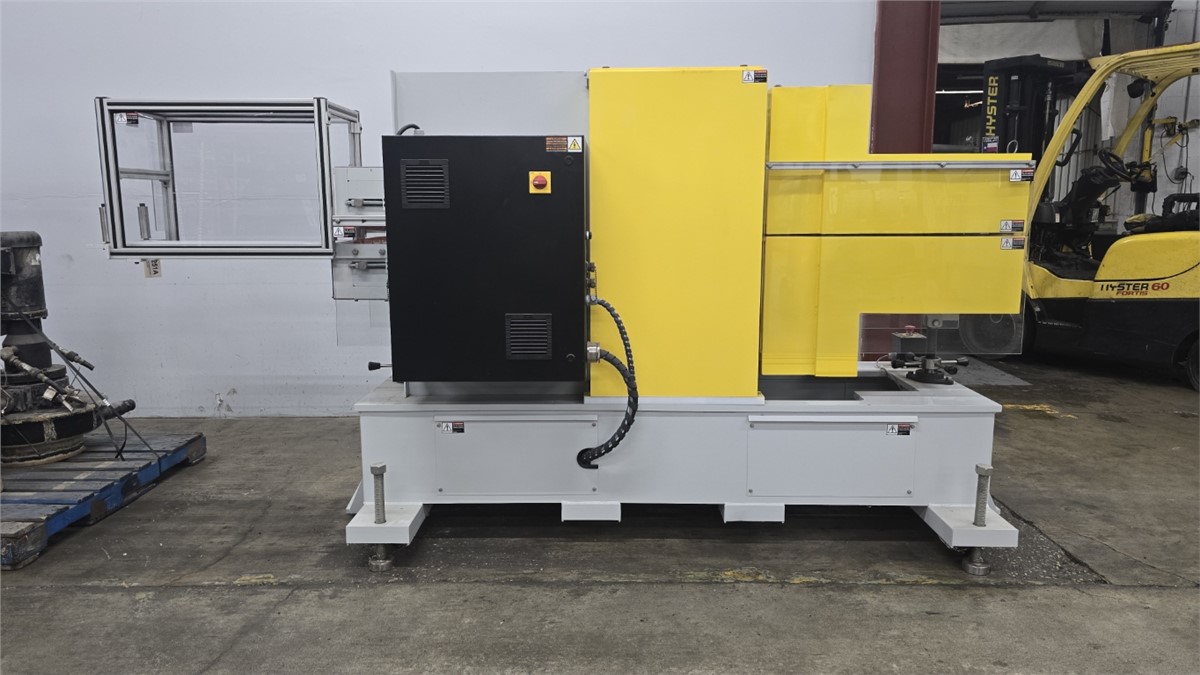

Frame: Heavy-duty, all-steel welded construction with 4-inch swivel casters and 1.250-inch floor lock jack screws. All parts are plated or painted to resist corrosion.

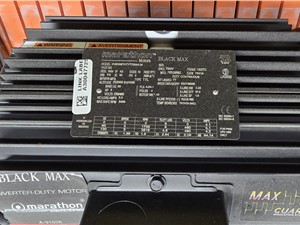

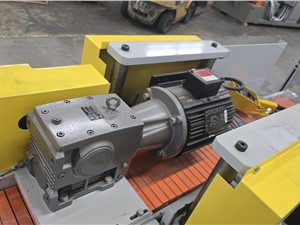

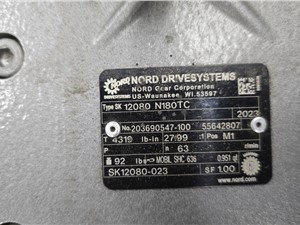

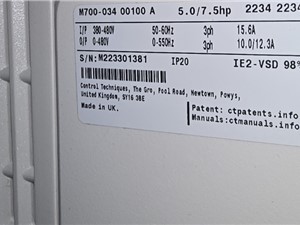

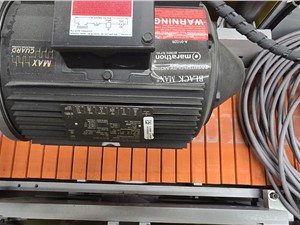

Drive: Two 3hp closed-loop vector drives for improved speed regulation and an increased 50:1 speed range.
Cleat Speed Range: 1 to 30 feet per minute.
Direction: Right to left.
Voltage: Wired for 460/3/60 power supply.
Center Height: 42.25 inches ±2 inches.
Paint: Tele gray - RAL 7047.

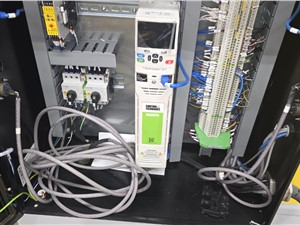

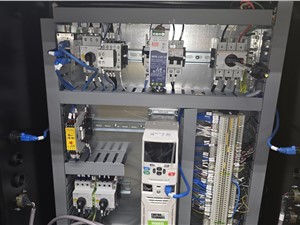

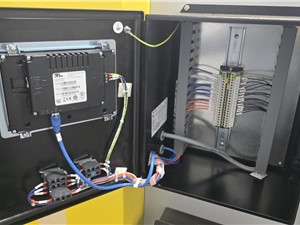

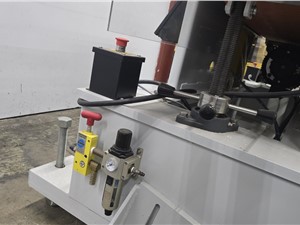

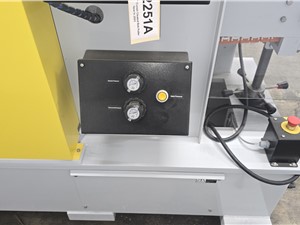

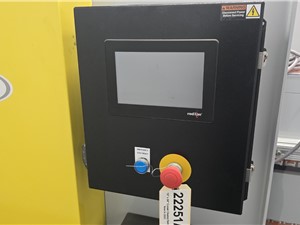

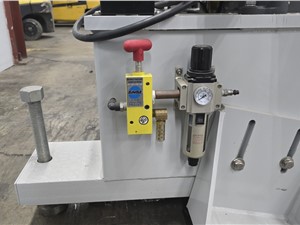

Front Operator Station: Eye-level control box with hinged rear access door, e-stop, lockable disconnect, and HMI touch screen control for start/stop, digital feet per minute, digital load readout, and speed functions. Includes pneumatic clamping pressure and balance controls with pressure gauges.

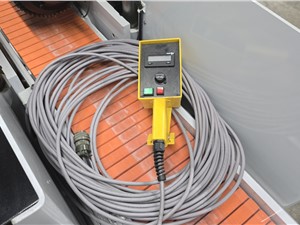

Remote Operator Station: Stop pushbutton, 10-turn speed potentiometer, digital speed indicator calibrated in feet per minute with 100 feet of cable.
NEW IN 2023
TESTED UNDER POWER AT ARLINGTON - SEE VIDEO
