Name: RDN Intellicut Traveling Chop Saw, Model 3618 (2013, Servo Upgrade), 3 HP
Brand: RDN
SKU: 22268A
Price: 12500.00 USD
Availability: OutOfStock

RDN Intellicut Traveling Chop Saw, Model 3618 (2013, Servo Upgrade), 3 HP

Click to enlarge (25 Total Photos)

Product Features

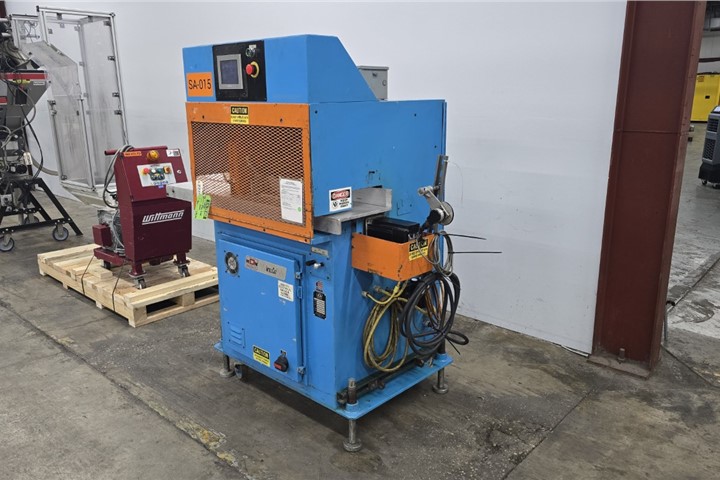

Used RDN Intellicut Traveling Chop Saw, Model 3618 (2013, Servo Upgrade), 3 HP
12" Saw Blade Diameter
3" High By 6" Wide Profiles/Tubing
Max Outer Diameter: 2" For Rigid/Semi-Rigid Sections

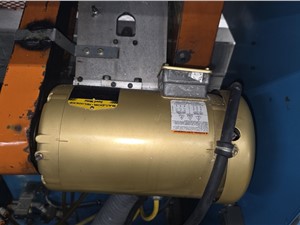

3 HP Baldor Reliance SuperE Motor, EM3559T, Frame 145T
Saw Blade Motor RPM: 3450
Servo Intellicut Upgrade, w/ Upgraded 24" Table Travel Length
Cut Tolerance (Servo) = ±0.015 in
Centerline Height: 42" +/- 2"
Pneumatic Hold-down Clamps w/ Polyurethane Faces
6" Pro-face HMI Touch Screen, Digital Wheel Encoder
Comes w/ Dust Pan
Serial Number: 61201
230/3/60, 25A
Digital Encoder Wheel Tracks Feed Length, Provides Real-Time Data And Feedback Loop To Servo Controller To Provide Accurate Table Movement. Pre-programmed Cut Mode & Manual Cut Mode
Approximate Dimensions: 66" L x 38" W x 68" H

Sale Pending

Call Us
(877) 887-9408

International
(312) 878-3809

Sell Your Used
Machinery

Brand	RDN
Model	3618
Item	22268A

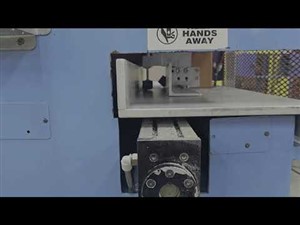

Product Video
