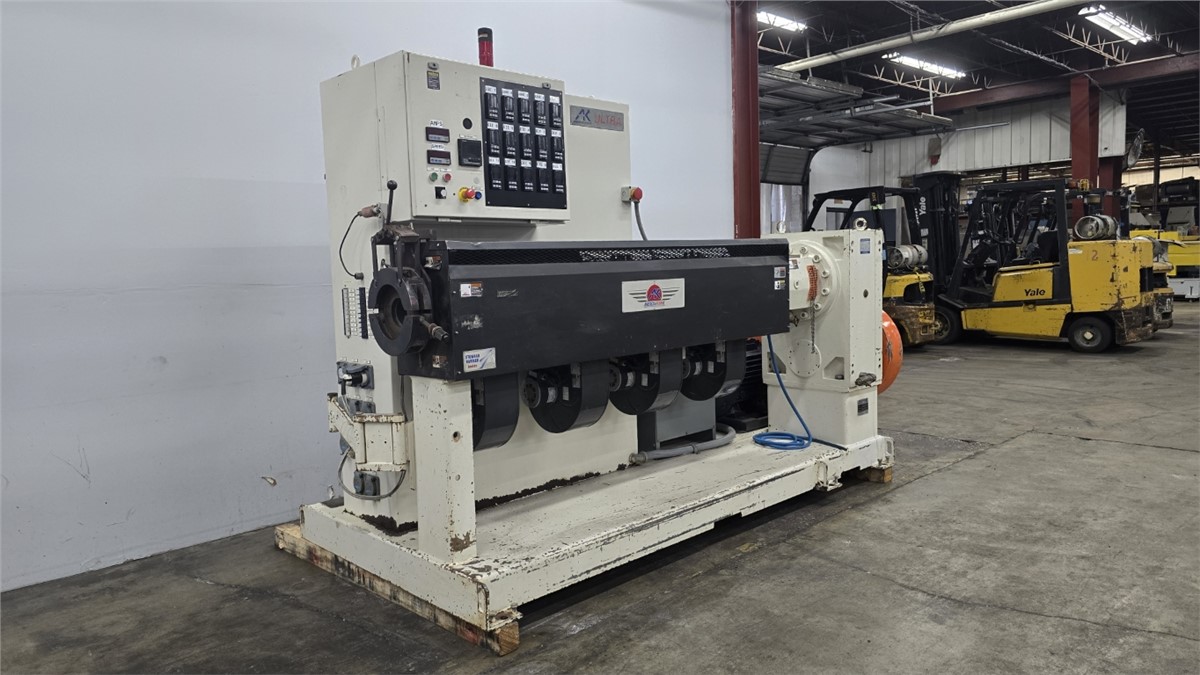

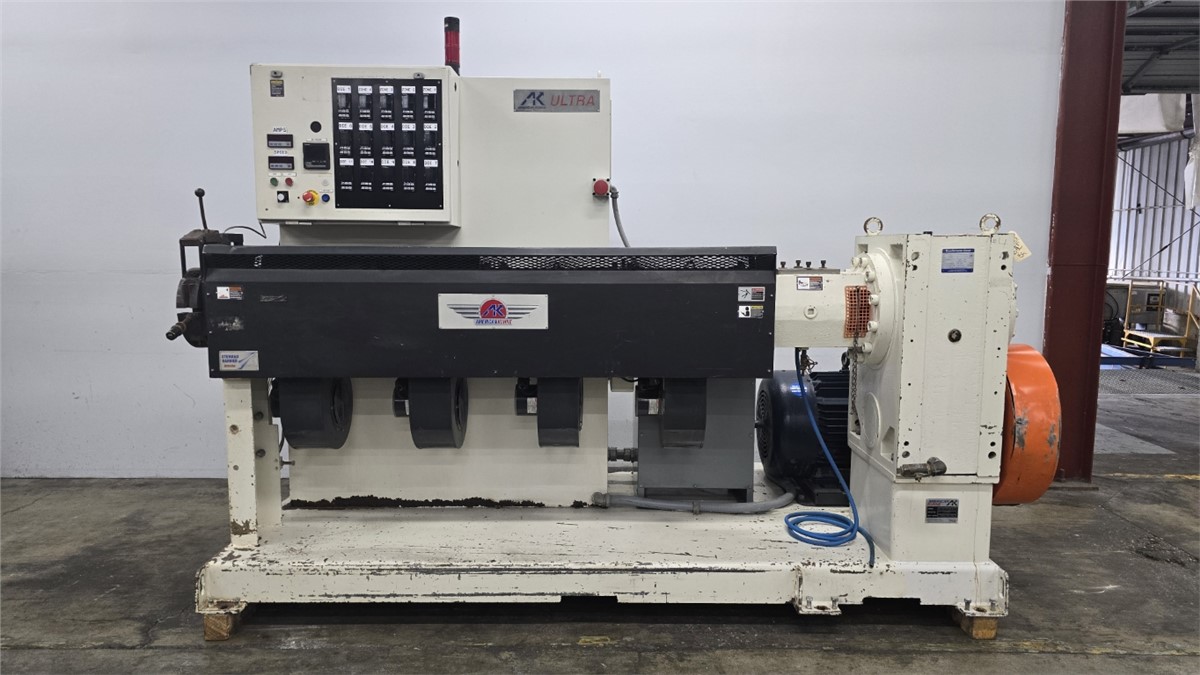

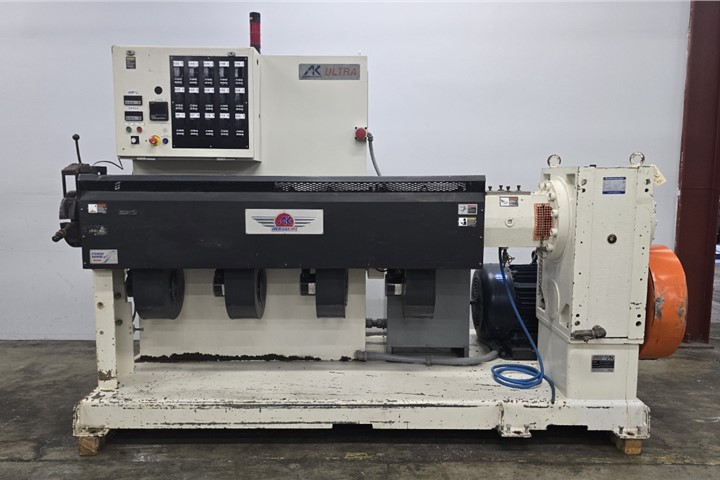

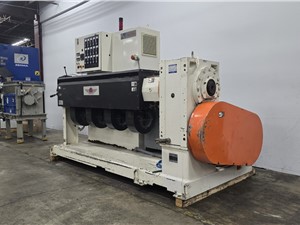

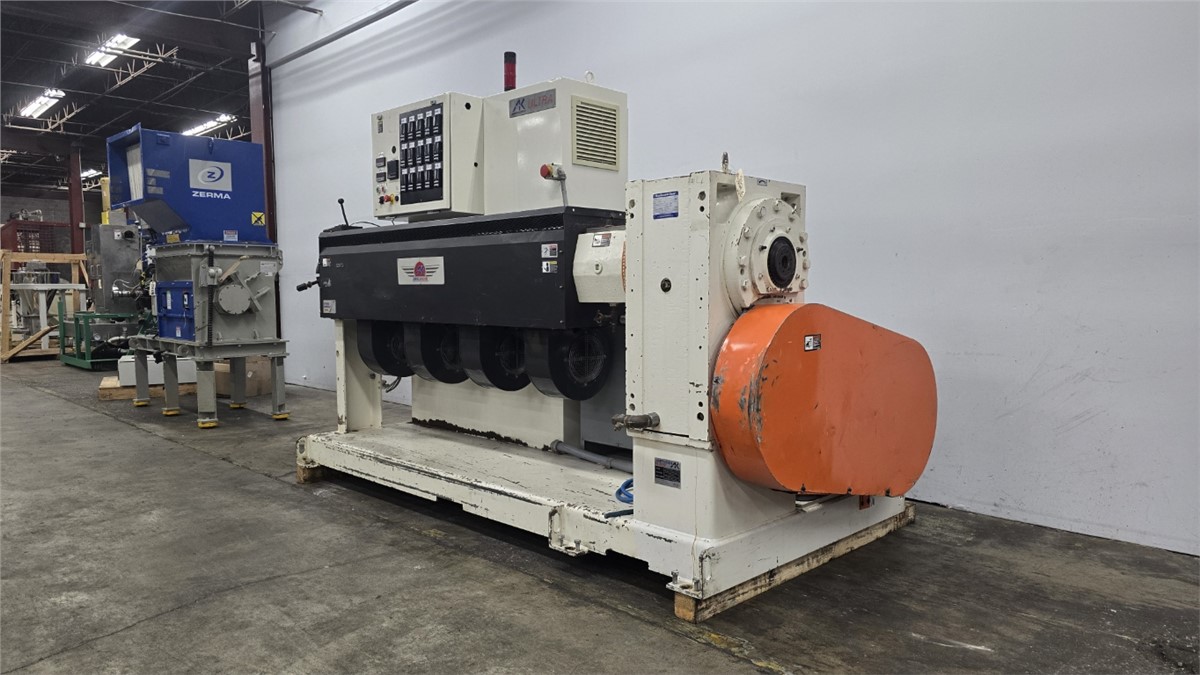

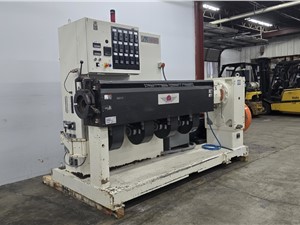

Name: 3.5" American Kuhne Single Screw Extruder, AK350, 24:1 L/D, 75 HP, New in 2011
Brand: American Kuhne
SKU: 22266A
Price: 59500.00 USD
Availability: InStock

3.5" American Kuhne Single Screw Extruder, AK350, 24:1 L/D, 75 HP, New in 2011

Click to enlarge (32 Total Photos)

Product Features

Used 3.5" American Kuhne Single Screw Extruder, AK350, 24:1 L/D, 75 HP, New in 2011
Air Cooled 24:1 L/D Barrel, 4 Barrel Zones, 11 Die Zones
Centerline Height: 42.5"
3.5" x 3.5" Circular Water Cooled Feed Throat
75 HP AC Marathon Electric Motor, Model 365THFS8036EUF21, S/N: 70012694
460/3/60, 92FLA
1760 RPM
TEFC Enclosure
365T Frame
Koellmann Gearbox, Size UNEX6.1, Rated For 175 HP, S/N: 2302392
Gear Ratio: 17.65:1
Service Factor: 1.6
Input RPM: 750
Output RPM: 99
2:1 Belt Ratio, Approx. 45 RPM Screw Speed
15 New Novus Temperature Controls & Speed POT
Load And Speed Carlo Gavazzi Digital Gauges, Dynisco UPR800 Melt Pressure Gauge, Start/Stop Push Buttons, Alarm Silence/E-Stop Reset Buttons,
With Clamp
Serial Number: 10505
New in 2011, 12,840 Hours
BARREL MEASUREMENTS ARE IN THE PRODUCT BROCHURE PDF
Approximate Dimensions: 136" L x 62" W x 90" H

Add To Quote

Call Us
(877) 887-9408

International
(312) 878-3809

Sell Your Used
Machinery

Brand	American Kuhne
Model	AK350
Item	22266A
