Name: Hwacheon Box Way CNC Lathe With Y Axis & SUB SPDL
Brand: Hwacheon
SKU: 22261B
Availability: InStock

Hwacheon Box Way CNC Lathe With Y Axis & SUB SPDL

Click to enlarge (5 Total Photos)

Product Features

Used Hwacheon Box Way CNC Lathe With Y Axis & SUB SPDL
Model: Hi-Tech 230BL YSMC
Swing over bed: 29.53”
Swing over saddle: 21.26”
Max. cutting diameter: 15.74”
Std. cutting diameter: 8.58”
Max. cutting length: 20.93”
Spindle nose main/sub: A2-8/A2-5
RPM: Main/Sub: 3,500/5000
Hole through spindle main/sub: 3.58”/2.44”
Max bar size through main/sub: 3.19”/2.01”
Spindle motor main/sub: 22/7.4

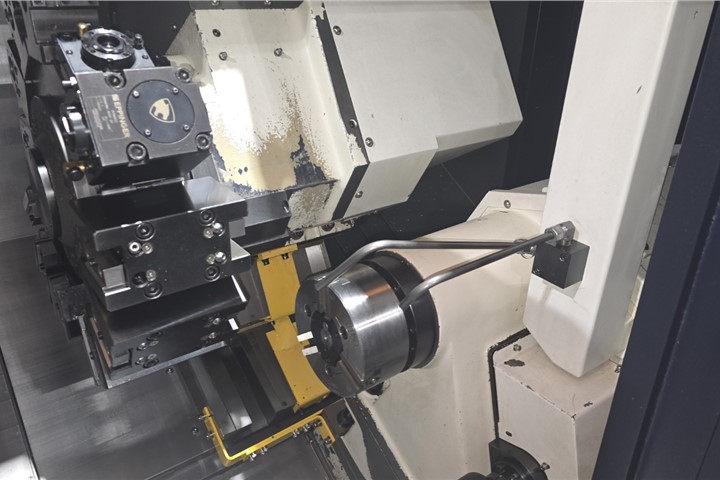

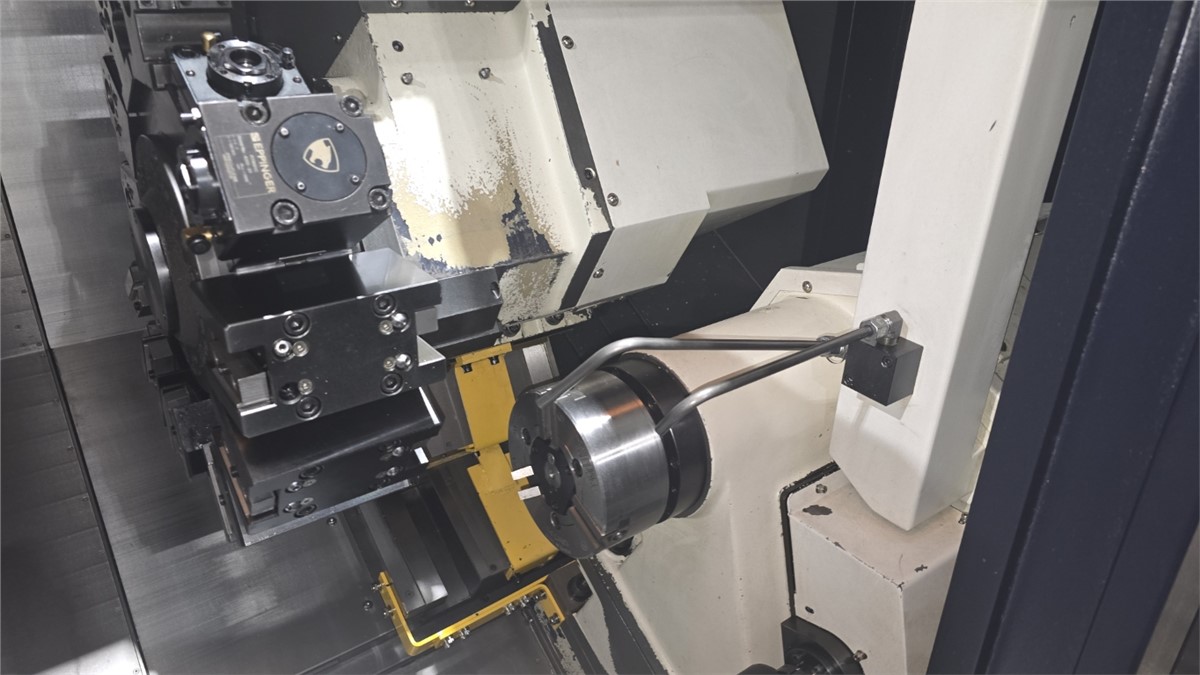

Turret: 12 stations & 24 positions
Tool size: OD: .98”, ID: 1.57”
Turret index time: 0.344 sec/step
Milling spindle HP/RPM: 7.4/5,000
Floor space: 123.35” x 75.77” x 82.83” high
Weight: 14,960 lbs.
Wired For 230/3/60
New In 2012
SN: M158376I4FD
Run Hours: 2,748
EQUIPPED WITH:
Fanuc Oi-TF controls

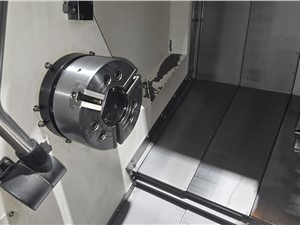

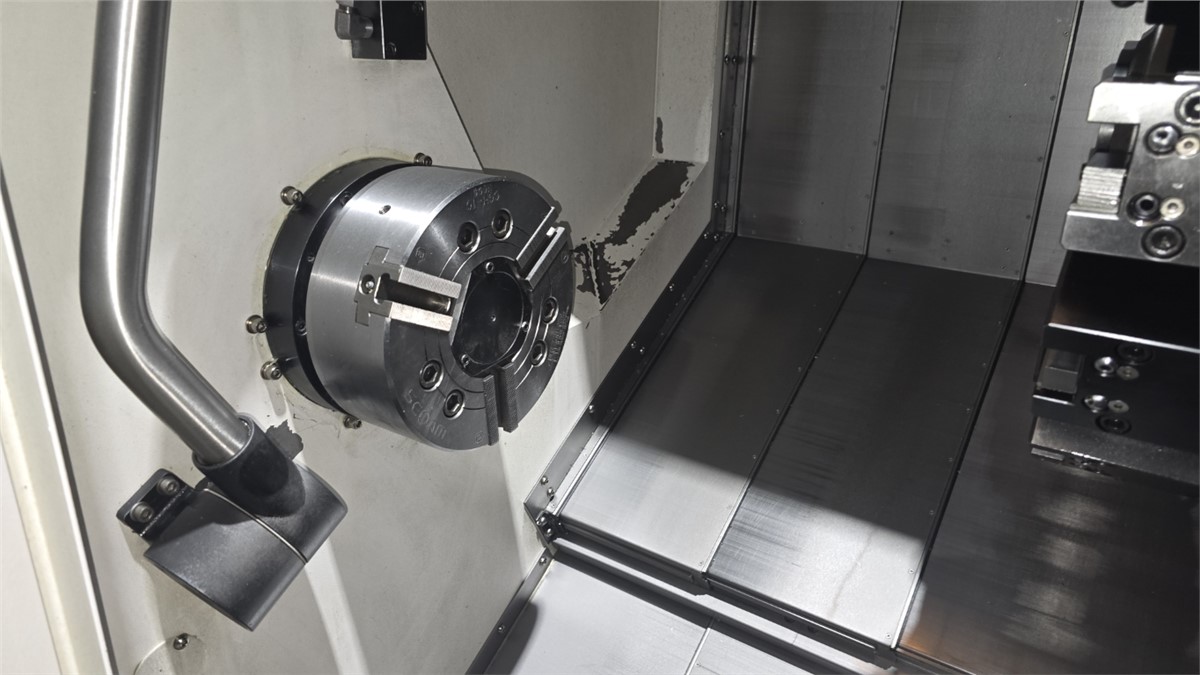

10” chuck on main, 5” chuck on sub
Tool setter
Parts catcher
Chip conveyor with small hopper
Coolant
Static tools
One each radial & axial live tools
