Name: Makino E33 Hard Milling & Graphite VMC
Brand: Makino
SKU: 22230B
Price: 44500.00 USD
Availability: InStock

Makino E33 Hard Milling & Graphite VMC

Click to enlarge (9 Total Photos)

Product Features

Used Makino E33 Hard Milling & Graphite VMC
Travels: 25.6” x 17.7” x 17.7”
Table Size: 35.5” x 19.7”
Spindle Speeds: 400-40,000 rpm
Spindle Taper: HSK E32
Spindle HP: 11.25
ATC: 30
Rapid Feed Rates: 1,574 ipm
Cutting Feed Rates: ,574 ipm
Max. Work Piece Weight: 1,102 lbs.
New In 2008
Dimensions: 90” wide x 99” long x 119” high x 16,090 lbs.
Equipped With:
Pro 5 control, The Makino Professional 5 Control provides the perfect blend of a Windows CE graphical user interface (GUI), touch-screen convenience, the networking and storage capability of a data center, and the proven stability of Fanuc 310i hardware. It provides a highly integrated, superior performance, embedded control system capable of fast execution of commands, high reliability, flexibility, integration capability and ease of operation.
Graphite machining package
Auto Lube
Fully Enclosed
Rigid Tap
Helical Interpolation
Transformer
Spindle Chiller
Linear Scale Feedback
Recent New Ball Screws
Renishaw Probe Ready
Blum Laser

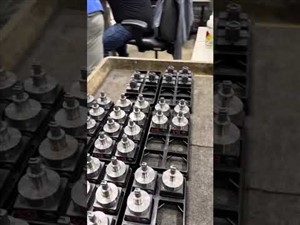

Tool Holders
NOTE: This machine was holding 0.0003” to 0.0005” upon removal from service.
