Name: 24' Long X 46" Wide Vecoplan Conveyor With Metal Detector
Brand: Vecoplan
SKU: 22228A
Price: 18250.00 USD
Availability: OutOfStock

24' Long X 46" Wide Vecoplan Conveyor With Metal Detector

Click to enlarge (30 Total Photos)

Product Features

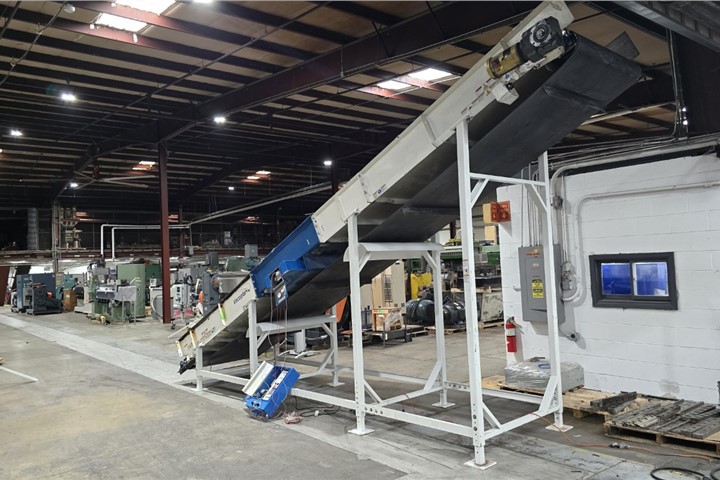

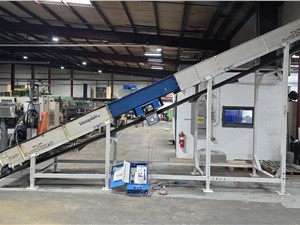

Used 24' Long X 46" Wide Vecoplan Conveyor With Metal Detector
3" Cleats - 6' On-Center
Infeed Height: 28"
Discharge Height: 144"
12" Side Walls
2 HP Baldor Motor, Does Not Include Starter Or Drive
Boston Gear 73.923:1 Gearbox

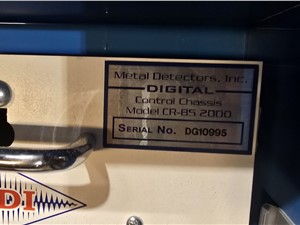

Metal Detection Inc. CR-85 2000 Control Chassis w/ MP-4F Module (P0640) Digital Processing Board interfacing w/ Coil & CB-3 Capacitor Block (Drives Coil, Connects To Control Board & Coil Cabling) SEE Product Brochure For Manual/Wiring Diagram
New Drive & Idler Bearings
New Taper Locks & Driveshaft On Drive Barrel
Reinforced Bottom Material Catch Wall With 1/4" x 1.5" Angle Iron & 4" C-Channel
Approximate Overall Dimensions On Legs: 344" L x 68" W x 156" H
