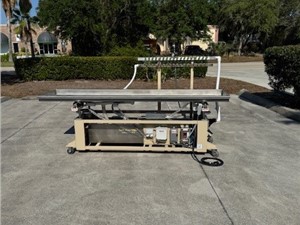

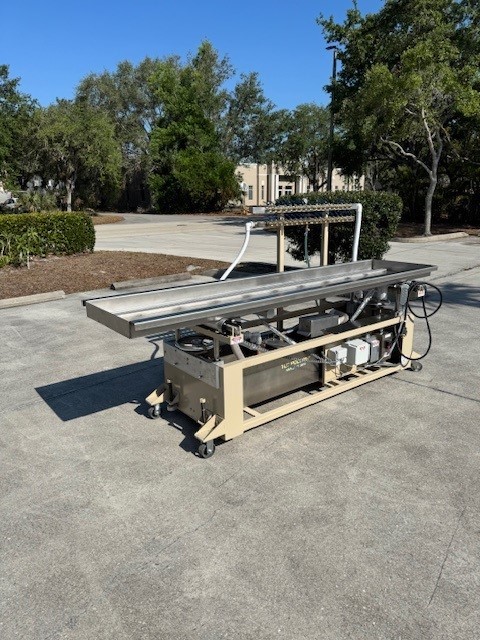

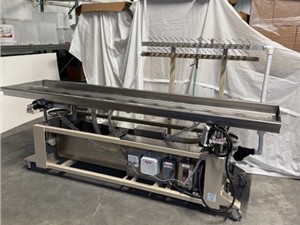

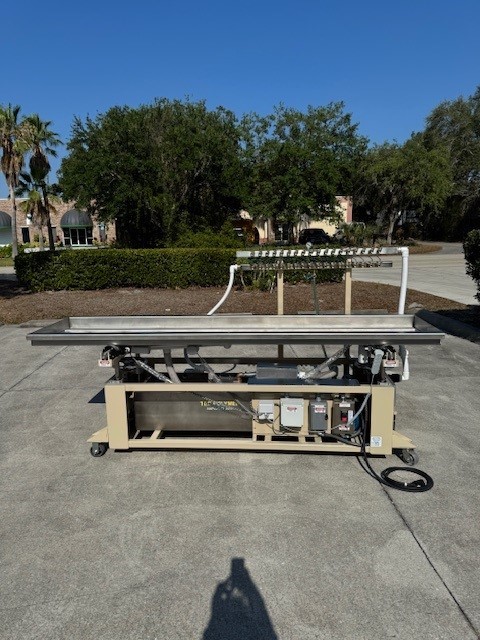

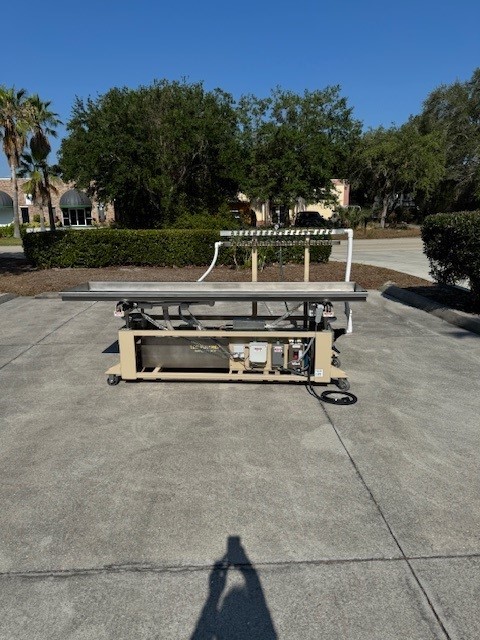

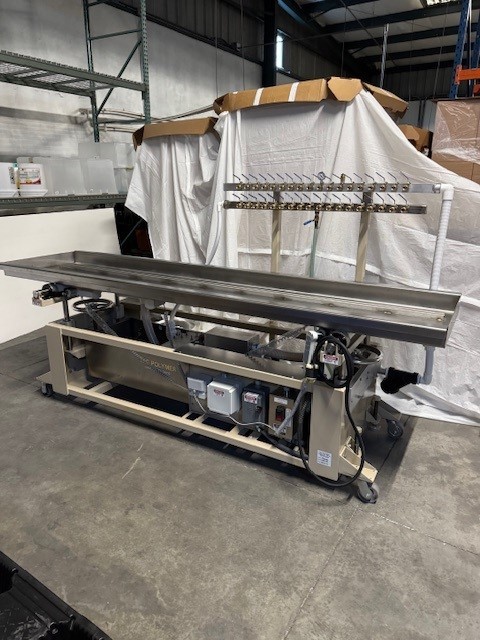

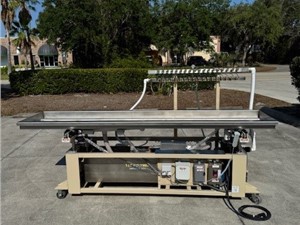

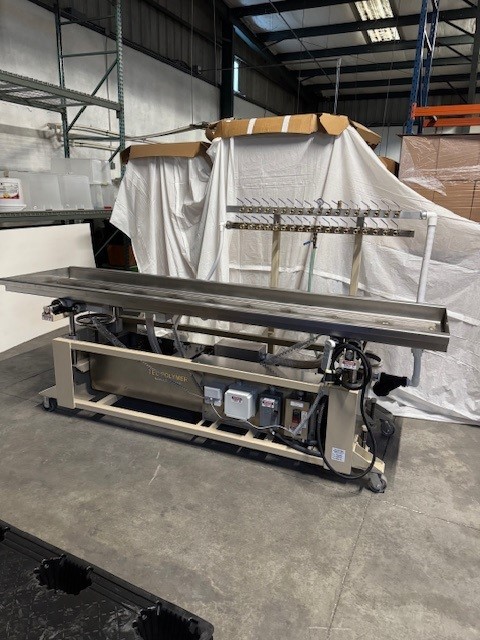

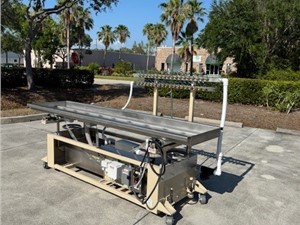

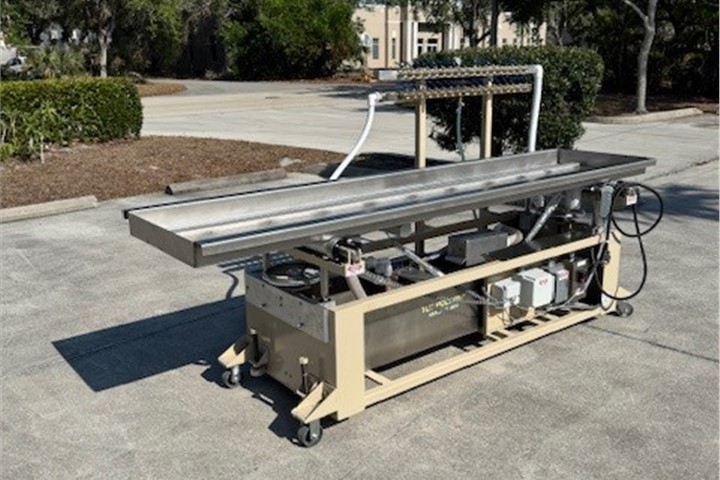

Name: 10' Calibration Table, TEC Polymer Vacuum, New
Brand: Tec Polymer
SKU: 22215B
Price: 41000.00 USD
Availability: InStock

10' Calibration Table, TEC Polymer Vacuum, New

Click to enlarge (20 Total Photos)

Product Features

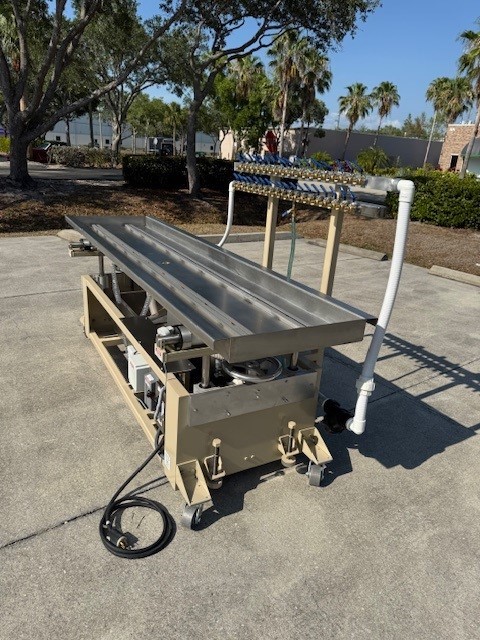

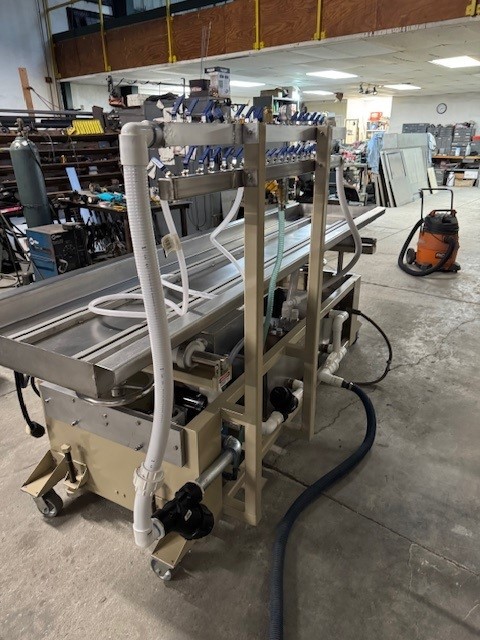

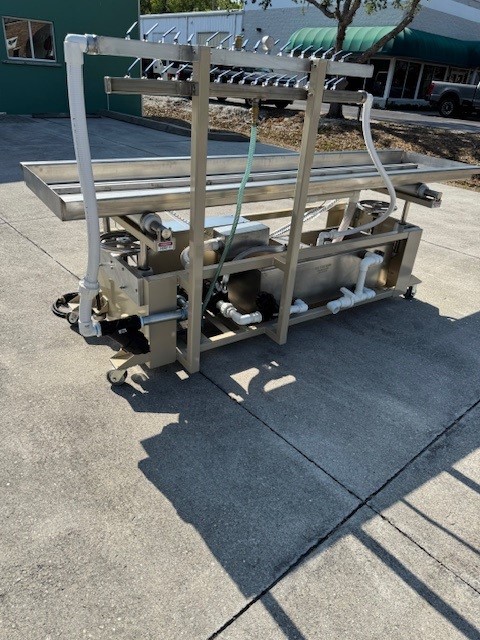

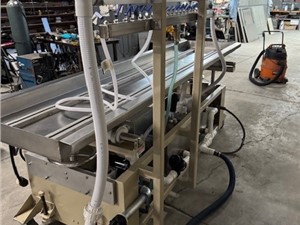

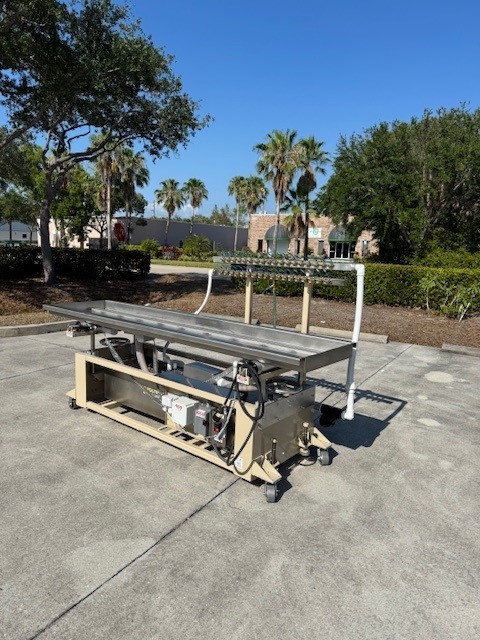

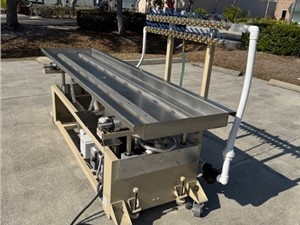

10' Calibration Table, TEC Polymer Vacuum, New
26" Wide Tray

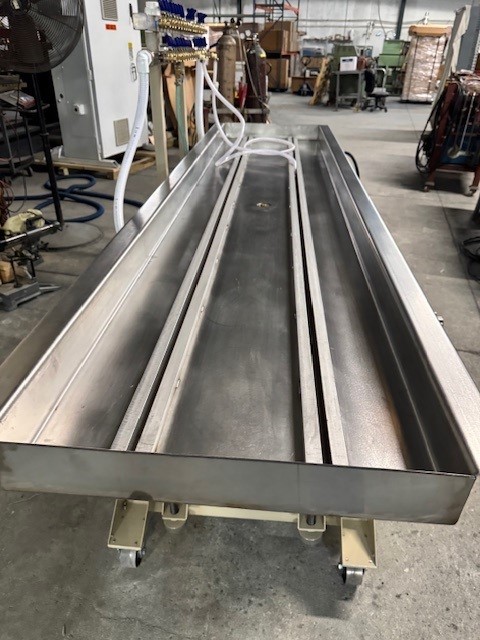

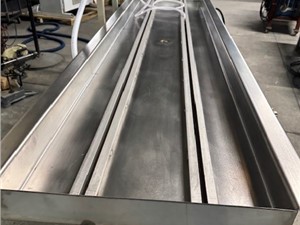

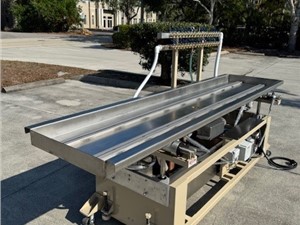

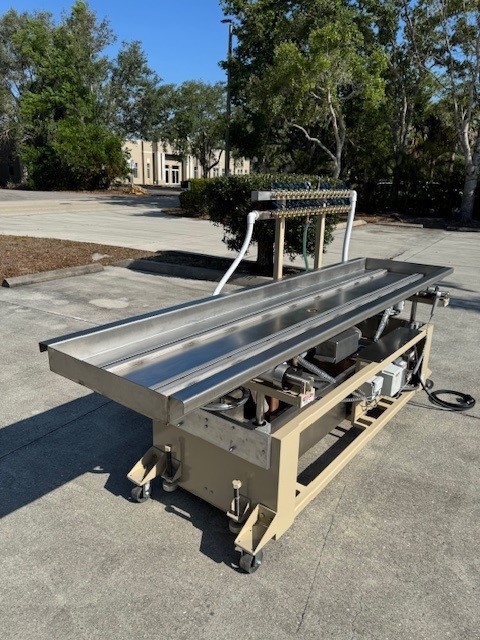

· Upper stainless steel tray size to Be 10 ft. long by 26 in. wide made of 10 Ga. 304 stainless steel.

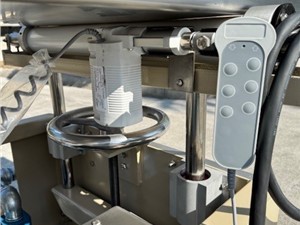

· Movement to be 3 axis movement 2 in. side to side and 18 in forward and back by electric with 3 in up and 3 in. down by manual hand crank.
· Frame made of Carbon steel painted with automotive grade paint.

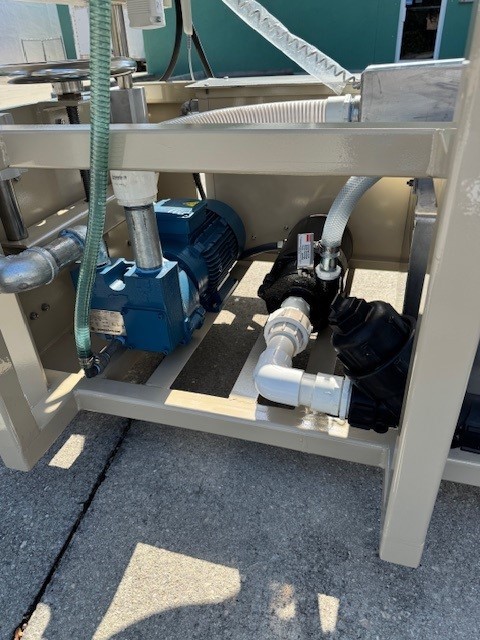

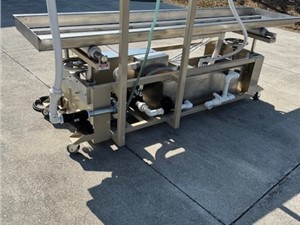

· 1 vacuum pump 5 hp. High volume flow liquid ring with max water ports.

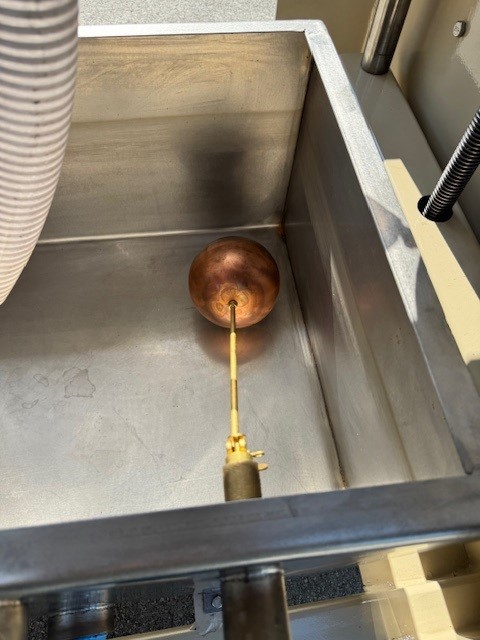

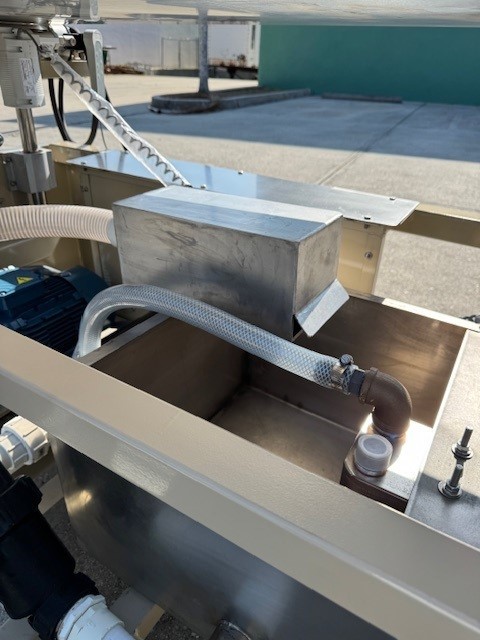

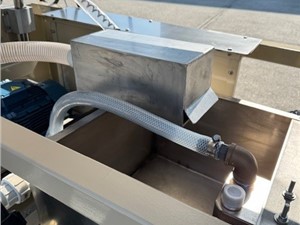

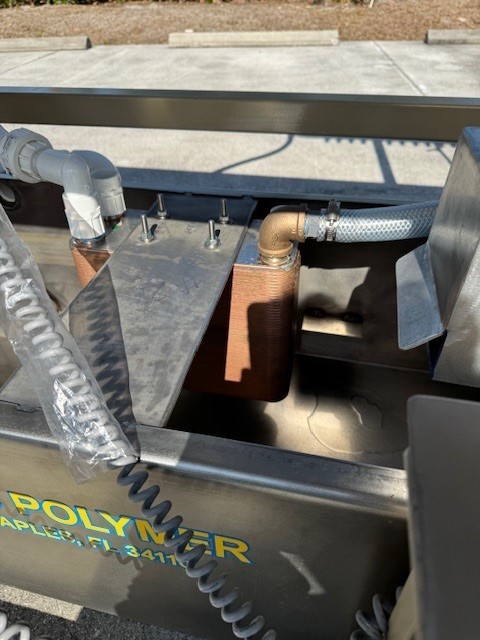

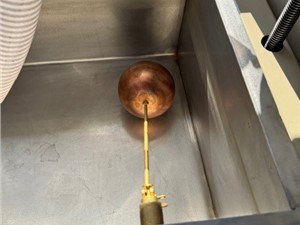

· Water recycle to have oversized holding tank with 100 plate heat exchanger, a 1.5 hp. high volume water pump.

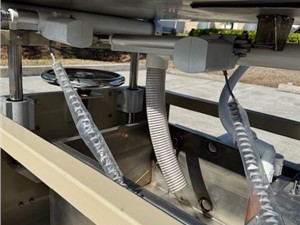

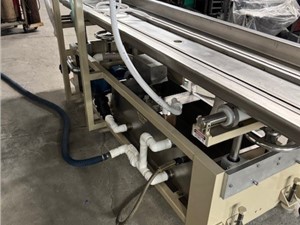

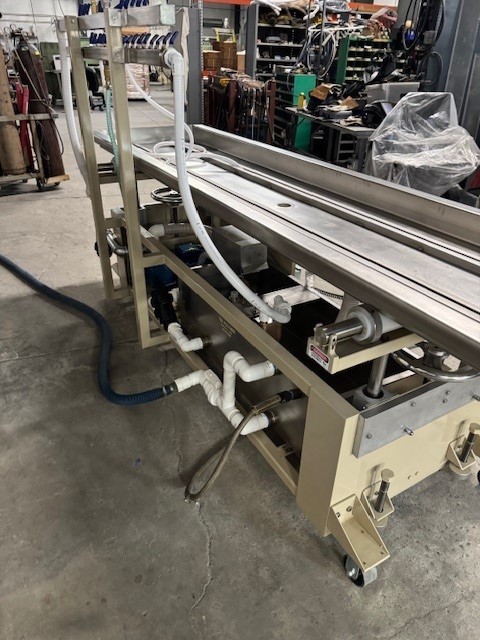

· manifolds one is for vacuum with eighteen ½ in. valves the other is for water with eighteen ½ in. valves.
· Tool mounting rails to be set 12 in on center.
· Nema 4 x manual motor starters mounted overhead.

Add To Quote

Call Us
(877) 887-9408

International
(312) 878-3809

Sell Your Used
Machinery

Brand	Tec Polymer
Item	22215B
