Name: PE Washline Equipment
SKU: 22212B
Price: 44500.00 USD
Availability: InStock

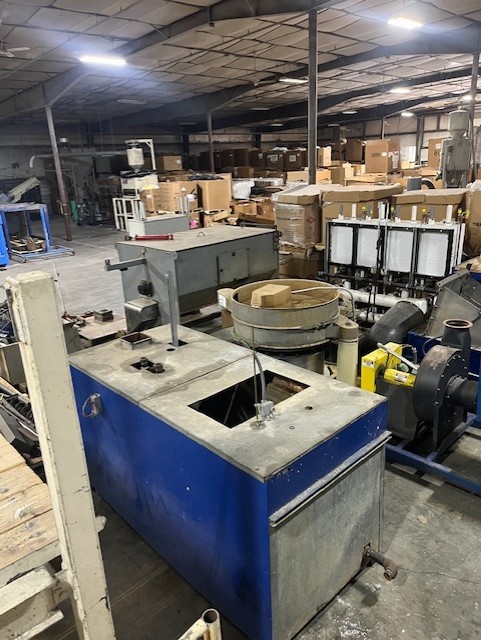

PE Washline Equipment

Click to enlarge (6 Total Photos)

Product Features

PE WASH SYSTEM
1,500 +’s LBS Per/HR. Reported
GRANULATOR HAS BEEN REMOVED

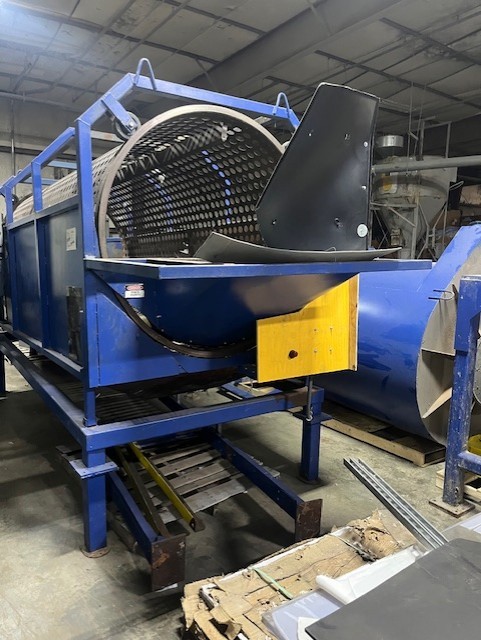

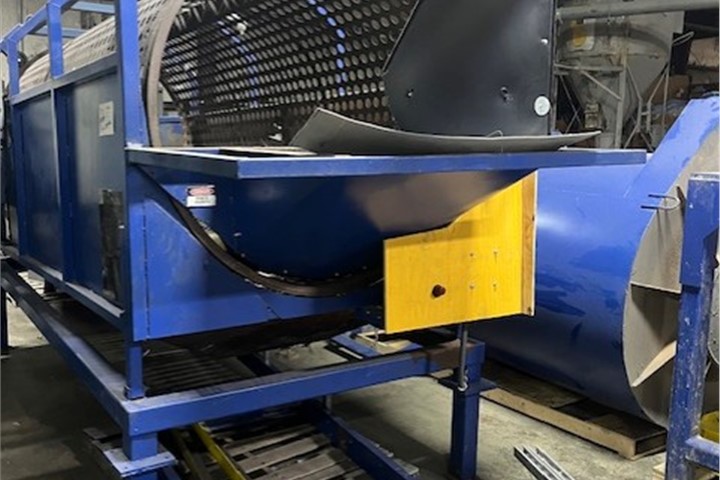

TROMMEL SCREEN
12' long x 5' diameter trommel barrel with 2" screen openings. Dual drive trunnions driven by belts and pulleys powered by a 2 HP 230/460V, 60 Hz, 3 PHz. AC Motor with a gear reducer.
In-Feed bottle catch Cowling & Discharge Chute. Bottom Chute to dropping caps & rings to conveyor belt underneath trommel screen. Waste removal conveyor 14' Long x 18” Wide,
Rubber Belt with 4” Side walls, powered by a 1HP, 230/460V, 60 Hz, 3 PHz. AC Motor with gear reducer.
INCLINE FEED CONVEYOR
36” Wide x 15’ Long; Estimated Discharge Height 104". Rubber Belt with 3” Cleats on 24’ Center.
10” Side Walls with Feed Hopper. Unit power by a 2 HP, 230/460V 3 PHz. AC Motor with gear reducer. Mount in to a tubular steel frame.

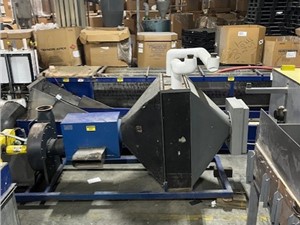

HORIZONTAL TURBO WASHING / RINSER
4.5’ Wide x, 5’ High x Length 9’; Infeed Hopper, Discharge set up for vacuum blower Belt Driven; 15,000 RPM 50 HP Motor, 230/460V 3PHz.

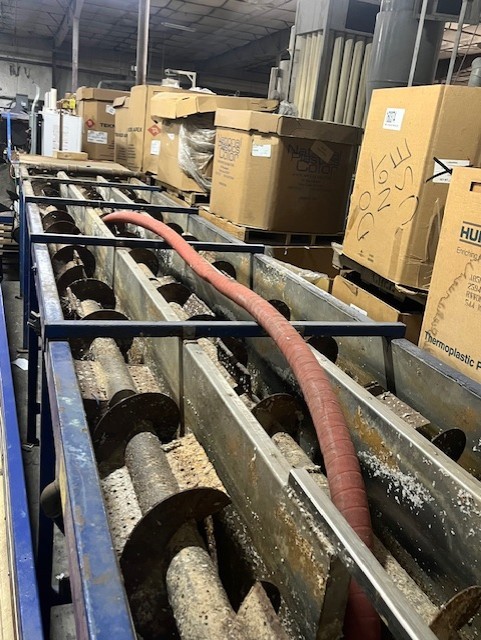

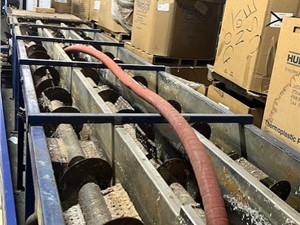

PRE-SOAK HOT SEPARATION SYSTEM (SINK FLOAT TANK)
PROCESS AUGERS - (3) Three 12” Diameter X 18’ Long Open Augers with Flipping Paddles, driven though Gear Box powered by a 3 HP AC Motor, 230/460V, 3 ph./60 Hz. with AC Inverter Speed Drive Controller.
SINK FLOAT TANK - 4’ Wide X 20’ Long with barrier wall between augers.
DREDGING AUGERS - (2) Auger system for removing heavy waste materials. Each unit comes with its own AC Inverter Speed Drive Controller.
PE De-Watering Removal Auger - 12” Diameter x 8’ Long U Trough Auger having a 2 HP AC Motor, 230/460V, 3Phz. 60 Hz. AC Inverter Speed Drive Controller.
Stainless Steel Tank in a Heavy Duty Tubular Frame coated with corrosive resistant.
WATER RETURN TANKS W/ PUMPS
Sump Tank 16” High x 24’ Wide x 4’ Long Water Circulation Sump Pump Automatic Off/On Flow Switch 1 HP Motor, 230/460V, 3Phz.
FINES SEPARATOR/CLASSIFIER
SHAKER - 48 inch diameter having a single giving deck two separations. Screen 48 round with 1/8 inch size holes (Fines Removal) 2.5 HP Motor, 230/460V, 3Phz. 60 Hz. Mounting Stand
VACUUM BLOWER
10” Inlet; 8” Outlet 3,800-4,200 CFM Belt Driven 10 HP Motor, 230/460VPage 3 of 4
MATERIAL DISCHARGE AUGER
6” Dia. U-Trough Auger. 10’ Long. Driven though Gear Box, with variable speed drive, 2 HP AC Motor, 230/460V, 3Phz.
HORIZONTAL TURBO CENTRIFUGE: DRYER
4.5’ Wide x, 5’ High x Length 9’; Infeed Hopper Discharge set up for vacuum blower Belt Driven; 15,000 RPM 50 HP Motor, 230/460V 3PHz.
CYCLONE POLISH-DRYER
Large Diameter Air Cyclone, 5’ Diameter x 8’ Tall over all height 12” in stand. 8” Feed Inlet, 8” Discharge with slid gate. Mounted in a tubular steel Frame/Stand
ELECTRICALS
Central Control Panel with main Disconnect, Start /Stop and Drive Controllers.
