Name: 58MM Coperion Mega Compounder Twin Screw With Gala 7 Underwater Pelletizer
Brand: Coperion
SKU: 20216J
Price: 275000.00 USD
Availability: InStock

58MM Coperion Mega Compounder Twin Screw With Gala 7 Underwater Pelletizer

Click to enlarge (52 Total Photos)

Product Features

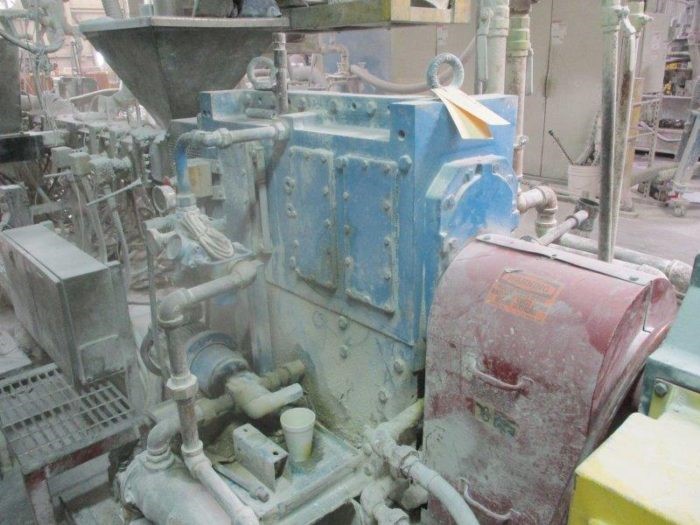

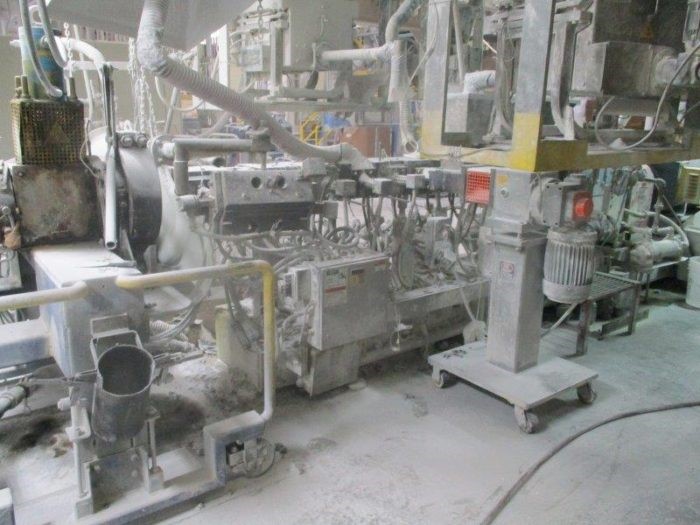

Used 58MM Coperion ZSK-58 Mega Compounder, 900 RPM Screw
Speed, 34:1 L/D

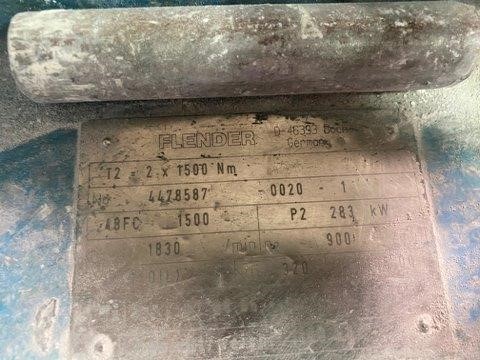

Flender Gearbox Directly Coupled To 500 HP DC Motor &
Drive
HMI Touchscreen Interface
500 HP GE DC Motor With GE DV-300 Drive
10 Barrel Sections, Electrically Heated, Water Cooled
Barrel, Side Feeder Port In Section 4, Vented In Section 4 Prior To Side Feeder
Port, Vented In Section 6.
Extruder New In 2002, S/N 181276
Includes Several Barrels Of Used And Unused Screw Elements
Includes 8 Spare Shafts
Includes Unused Spare Gearbox, Flender/Siemens NFB /
4607-00110
Century Side Stuffer, Model CXSF58, S/N 1210437SF, Driven By
5HP Motor Through Eisenbeiss Gearbox, New In 2016
Gala Model 7-PDV Polymer Diverter Valve, S/N 10200281, Does
Not Include Hydraulic Unit, Gala Die And Water Box Currently Mounted To Unit
Gala MUP7 Cutting Head, Approximately 15 HP AC Motor
5,000 LB/HR Gala Spin Dryer, Model 16.2 ECLN-DW, Low Noise
Model, S/N 1020081
450 GPM Tempered Water System
Gala Controls Integrated Into Extrusion Control Panel
Includes 225 KVA Transformer
Includes Feeding System And Hopper
DRIVE NEEDS TO BE INSTALLED IN ENCLOSURE
MACHINE NO LONGER INSTALLED
CURRENTLY LOCATED IN ARLINGTON WAREHOUSE
