Name: 90mm Shangdong Tongjia Extruder, 28:1 L/D, 50 HP
SKU: 19922J
Price: 14500.00 USD
Availability: InStock

90mm Shangdong Tongjia Extruder, 28:1 L/D, 50 HP

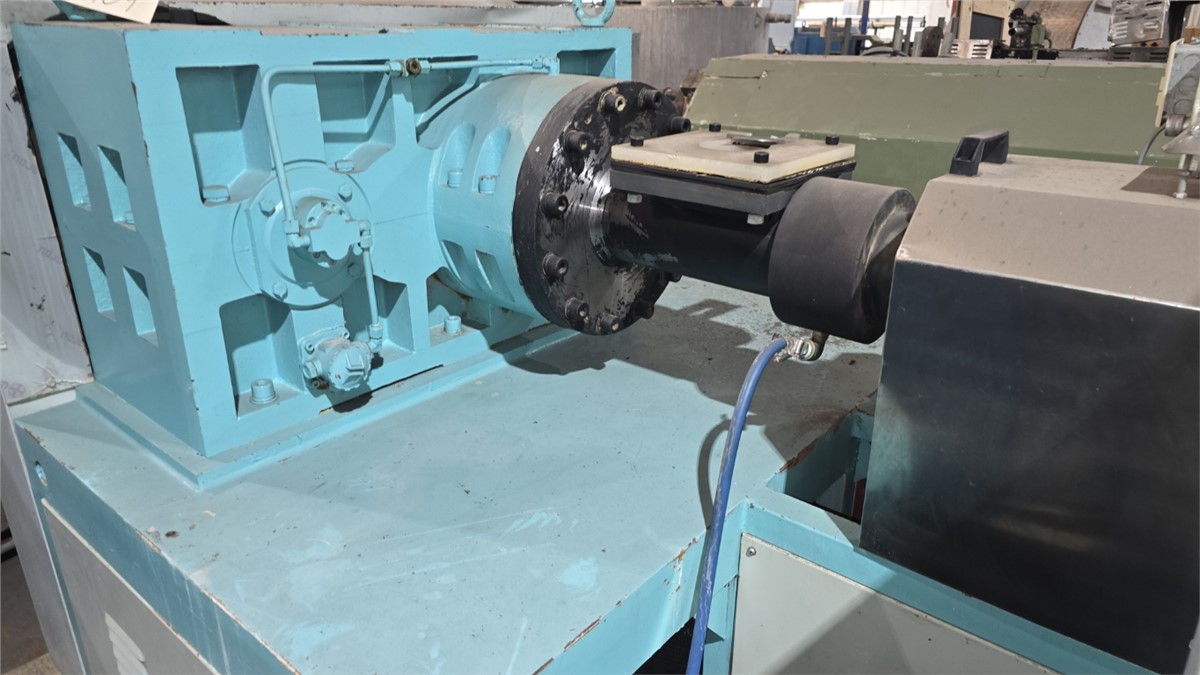

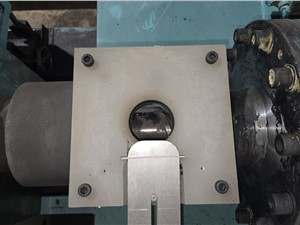

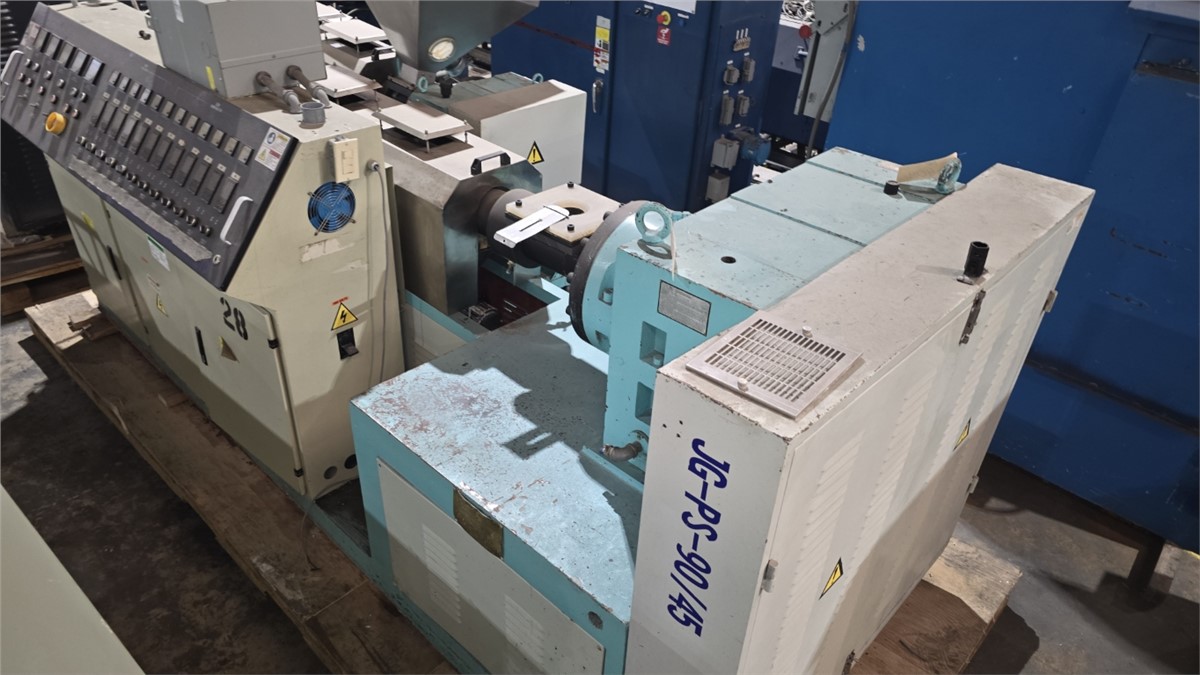

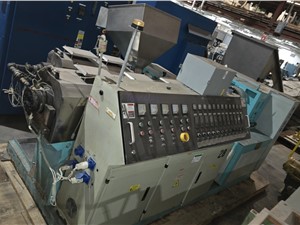

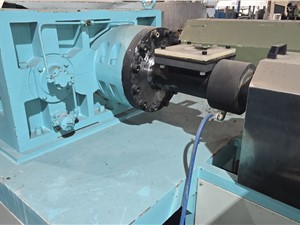

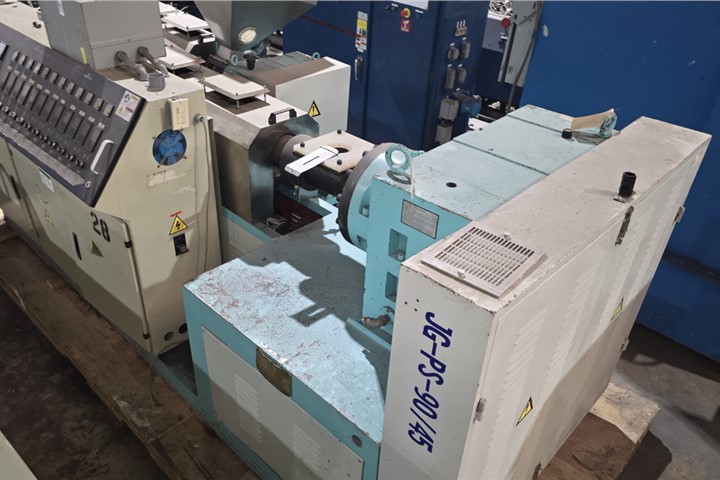

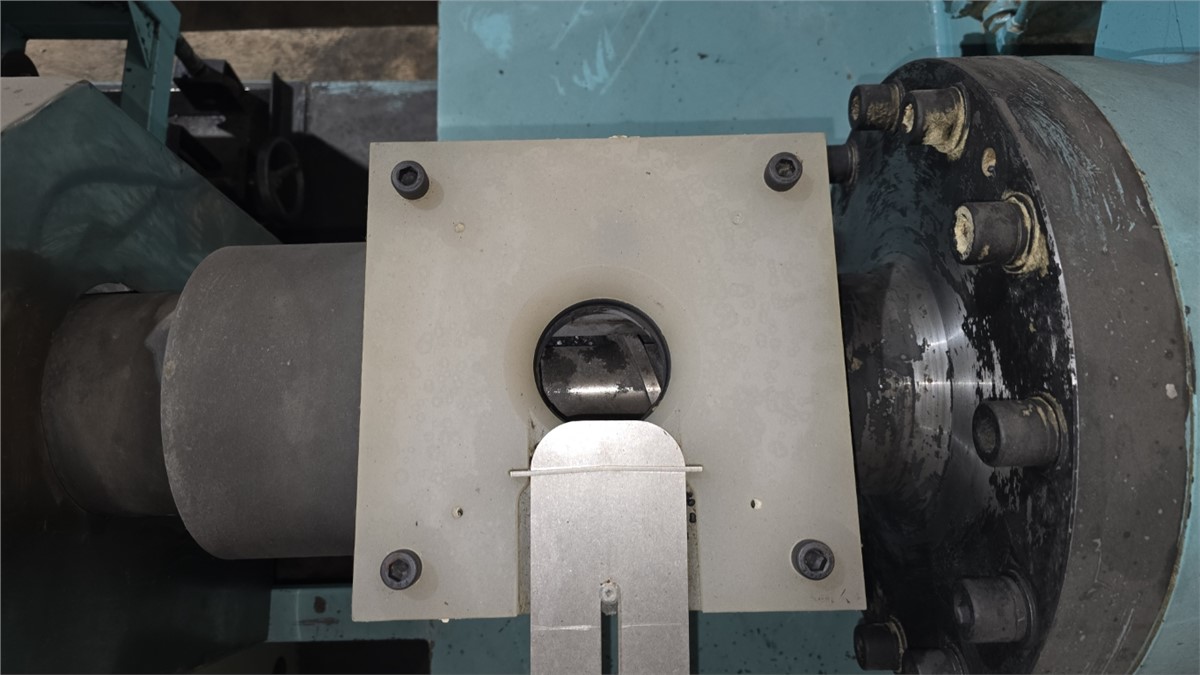

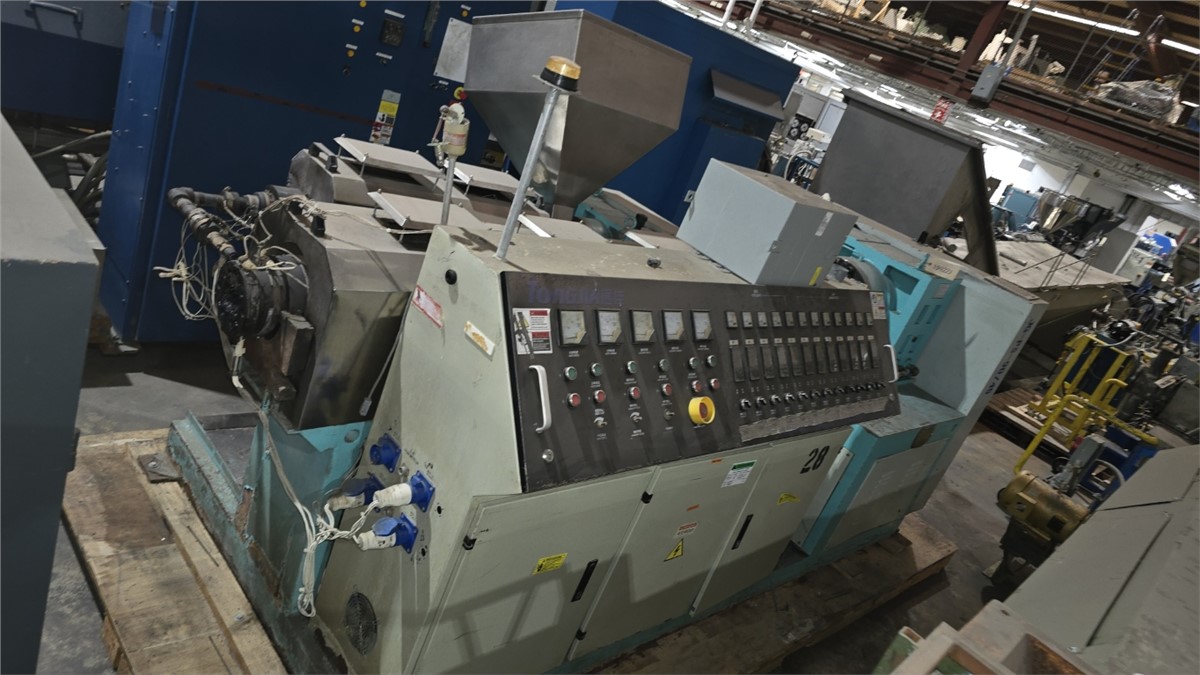

Click to enlarge (18 Total Photos)

Product Features

90mm Shangdong Tongjia JG/PS90/45 Extruder, 28:1 L/D, 50 HP
2 Downstream Zones, 5 Barrel Zones, Air Cooled
50 HP Siemens BEIDE Three Phase Asynchronous Inverter Duty Motor
Model TYB1002 2CC2 9 0AA5 Z 250M IM B3
1176 RPM
Rated Torque: 300 Nm
Constant Torque Operating Range: 30 - 60 Hz
Variable Torque Operating Range: 5 - 30 Hz
Rated Current 64 A @ 60 Hz
Thermal Class F
IP54 Enclosure
Ceramic Band Heaters With Independent Digital Zone Temp Controllers
Integrated Control Panel With Extruder Screw Speed Pot, Start/Stop Controls
Integrated Optional Downstream Controls For A Puller Downstream, Optional Start/Stop Vacuum Controls, Auxiliary Start/Stop, E-Stop
Analog Amp And Speed Gauges For Extruder & Puller, Analog Amp Gauge For Auxiliary
460/3/60
S/N: 201310264
2013
