Name: 10' Long x 16" Wide Conair Vacuum Table, Model HT104C-9.5-4
Brand: Conair
SKU: 22493A
Price: 14500.00 USD
Availability: InStock

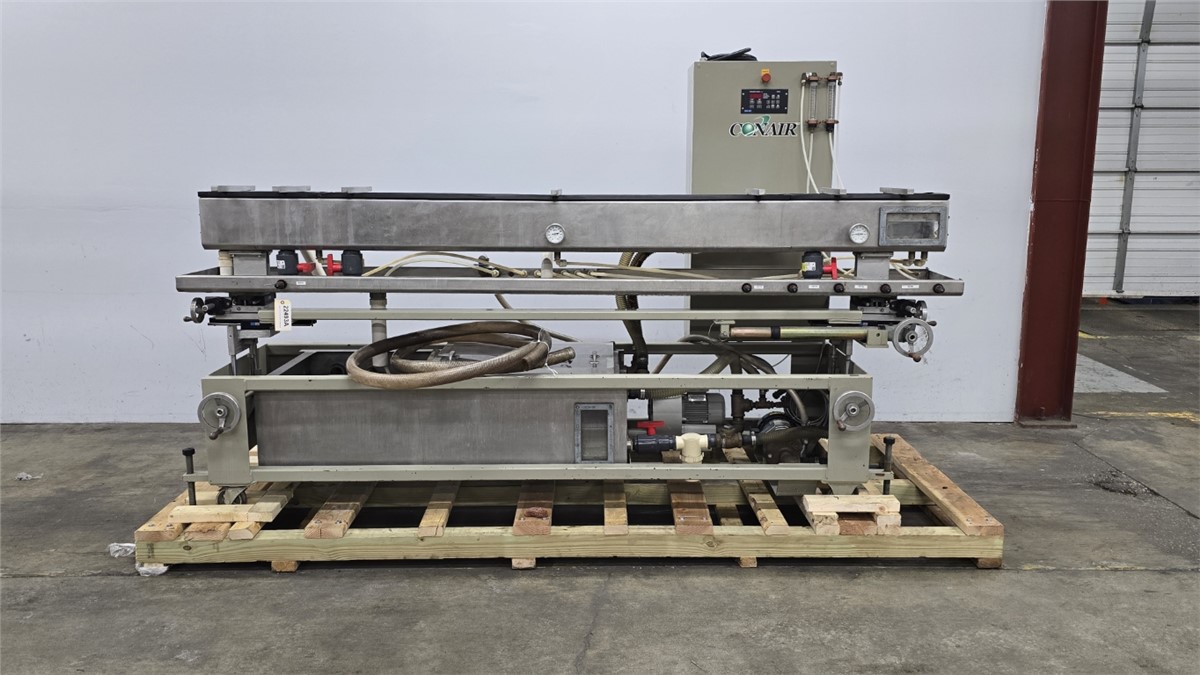

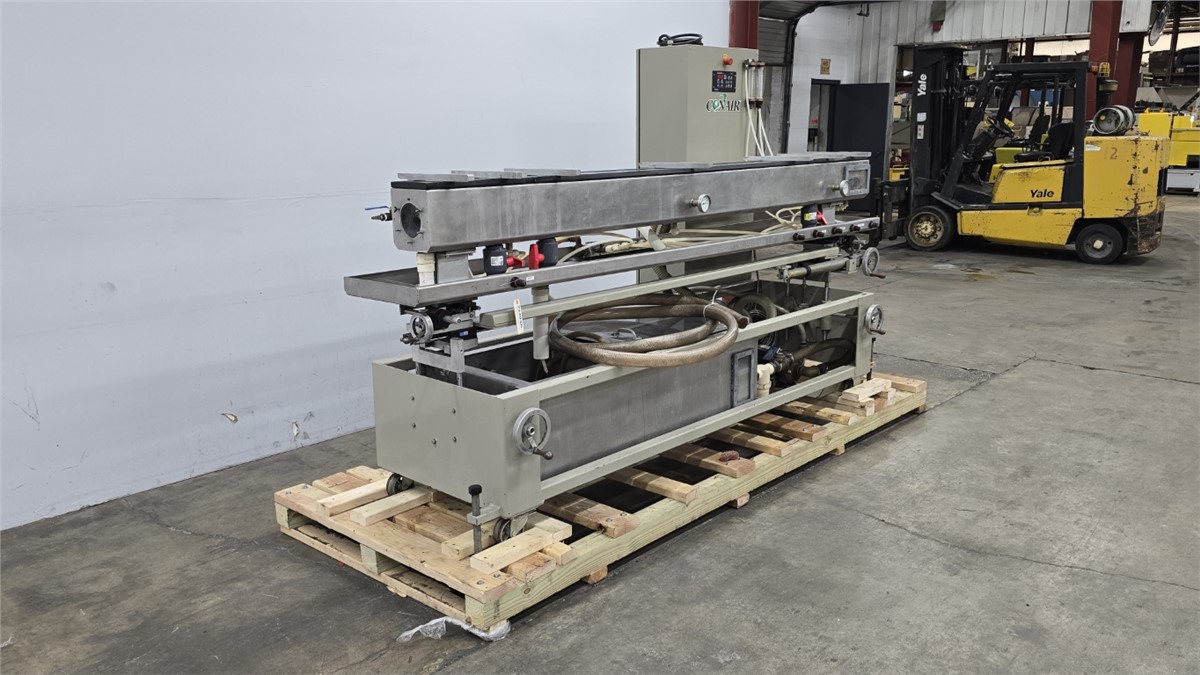

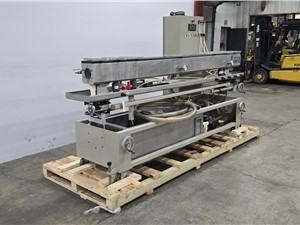

10' Long x 16" Wide Conair Vacuum Table, Model HT104C-9.5-4

Click to enlarge (25 Total Photos)

Product Features

Used 10' Long x 16" Wide Conair Vacuum Table, Model HT104C-9.5-4
Current Installed Trough is 9.5' Long with 8" W x 8" H Cross Section
First Section: 2' Vacuum
Second Section: 6' Vacuum
(4) Vacuum Ports
(6) Water PortsFlood Seal Section: 10"
Air Wipe Section: 8"
Stainless Steel Construction
42" Centerline Height, ±2" Adjustment
Manual Longitudinal, Lateral, and Vertical Adjustment
Variable-Speed Vacuum Blower, Up To 52" Water
1 HP Centrifugal Recirculation Pump With Internal Manifold
2 HP Siemens Recirculation & Spray System Pump
ABB ACS300 VFD
Open and Closed Reservoirs
Ten-Turn Potentiometer With Manual Coarse Vent Control
Individual Quick Dump Valves and Water Level Controls Per Chamber
Air Wipe Section For Drying
Right-To-Left Operation
Includes Control Panel460/3/60, 5.6A
S/N: 37513
Approximate Dimensions: 120" L x 39" W x 73" H, 2,275 Lbs
